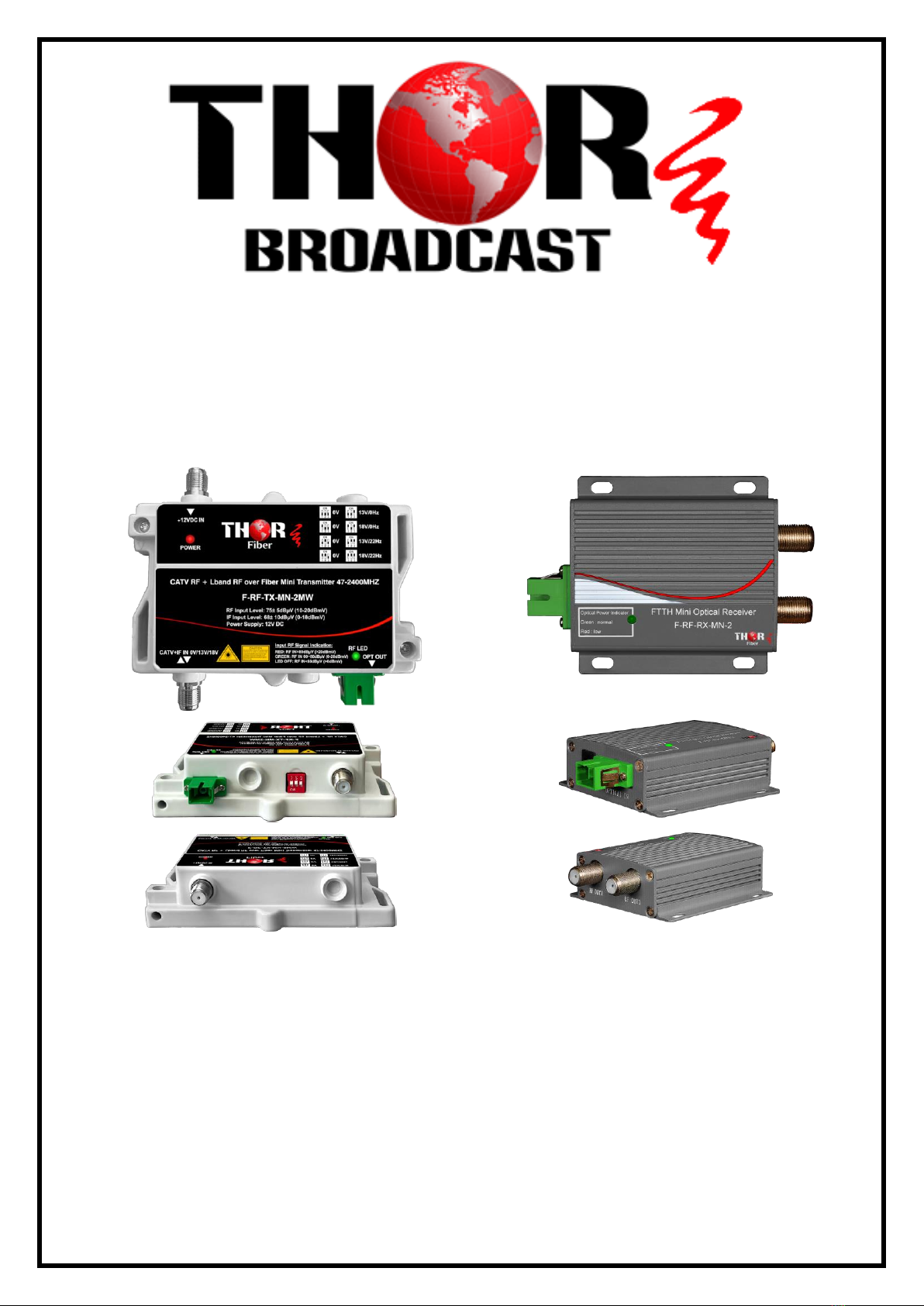

F-RF-TX-MN-2Mw & F-RF-RX-MN-2
Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com
Chapter 1 - Introduction
1.1 Product Overview
TRANSMITTER:
The Thor Fiber Optical Mini CATV RF 45-900Mhz Transmitter is mainly used for transmitting
long distance optical fiber transmission of CATV RF - Analog or digital QAM or ATSC Television Digital
TV, telephone and data transmission. It's application for digital signal transmission of video and data in the
cable television and communications industry. The transmission range can vary from 5km to 30km. It comes
equipped with an advanced DFB laser that readily provides exceptionally high performance and RF power,
as well as automatic processing technology developed by our company. Finally it has a built-in
micro-computer that automatically monitors the control system and guarantees excellent performance of the
equipment.
RECEIVER:
The Thor Fiber Mini FTTH optical receiver F-RF-RFMN-2 is specifically designed for FTTH
networks. These ultra compact Fiber-To-The-Home optical receivers were designed and engineered to
ensure compatibility for any type of FTTH network structure in mind. It has small compact housing,
mini-internal circuit structure that still remains a high performance, low cost receiver that is economical for
any project. It can be used for any application of HFC network fiber to the home (FTTH) because of it's
form factor and output power. These units have a wide range for receiving optical power, high output level
and low power consumption. They are the ideal pieces for any optical fiber network which can provide
a highly reliable, digital video frequency and data bi-directional transmission for the HFC network. It could
be use to send CATV RF point to point or point to multipoint.
This unit comes in a kit: part of the Thor Fiber MIni Transmitter / Receiver kit with F-RF-TX-MN-2Mw
