THORLABS PTL701 Manuale utente
PTL701, PTL802, PTL803
Rigid, Non-isolating
Optical Table Supports
User Guide
Original Instructions
2HA0320T Rev D Nov 2016
Contents
Chapter 1 Contents ..............................................................................................................................................2
Chapter 2 Safety ...................................................................................................................................................3
2.1 Safety Information ..............................................................................................................................................3
2.2 General Warnings ..............................................................................................................................................3
Chapter 3 Installation ...........................................................................................................................................4
3.1 General Description ............................................................................................................................................4
3.2 Parts List ............................................................................................................................................................4
3.2.1 Preparation ............................................................................................................................................................................4
3.3 Installation ..........................................................................................................................................................5
3.3.1 Mounting the Table on the Supports .....................................................................................................................................5
3.4 Set-up .................................................................................................................................................................6
Chapter 4 Joined Systems ...................................................................................................................................7
Chapter 5 Thorlabs Worldwide Contacts ...........................................................................................................9
3
Chapter 1 Safety
1.1 Safety Information
For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should
take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself.
The following safety symbols may be used throughout the handbook and on the equipment itself.
1.2 General Warnings
Shock Warning
Given when there is a risk of injury from electrical shock.
Warning
Given when there is a risk of injury to users.
Caution
Given when there is a risk of damage to the product.
Note
Clarification of an instruction or additional information.
Warnings
Do:
Ensure that the system is securely positioned prior to any work being undertaken.
If using the system with any electrical equipment, incorporate appropriate earthing and/or other safety circuitry
as required by national standards to protect the operator.
When lifting or moving components, ensure that the proper posture is maintained. Do not lift loads in excess of
nationally recognized safe working limits (25kg per operator in Europe). If in doubt use an appropriately designed
lifting device.
Before lifting the table top, ensure it is unpopulated.
Exercise particular caution if moving the system on a sloping surface.
Ensure all fixings are secure prior to use.
Ensure that proper airflow is maintained to any electrical equipment installed on the system.
Do not:
Use the system outdoors. The system is designed for indoor use only.
Get into any position where you can be trapped between a wall, door frame or other immovable object and the
system.
Go underneath the system when the unit is being moved.
Move the system when the table is floating on its supports.
Tow the system with any powered device.
Ride on the system.
Move the system over uneven ground.
Sit on the system.
4
Chapter 2 Installation
2.1 General Description
Thorlabs rigid nonisolating supports are designed for use in applications which do not warrant vibration isolation, such as an
ultra short pulse laser system. They provide an economical support structure for an optical table under heavy loading and
feature manual levelling adjustment on each support to compensate for uneven floors. Each nonisolating support has an
adjustment pad to level the optical table or adjust the table height over a +15 mm, -8 mm (+0.59", -0.31") range.
A choice of height allows any of the standard Thorlabs table tops to be mounted at a nominal working height of 910mm (36 in.)
above the floor.
.

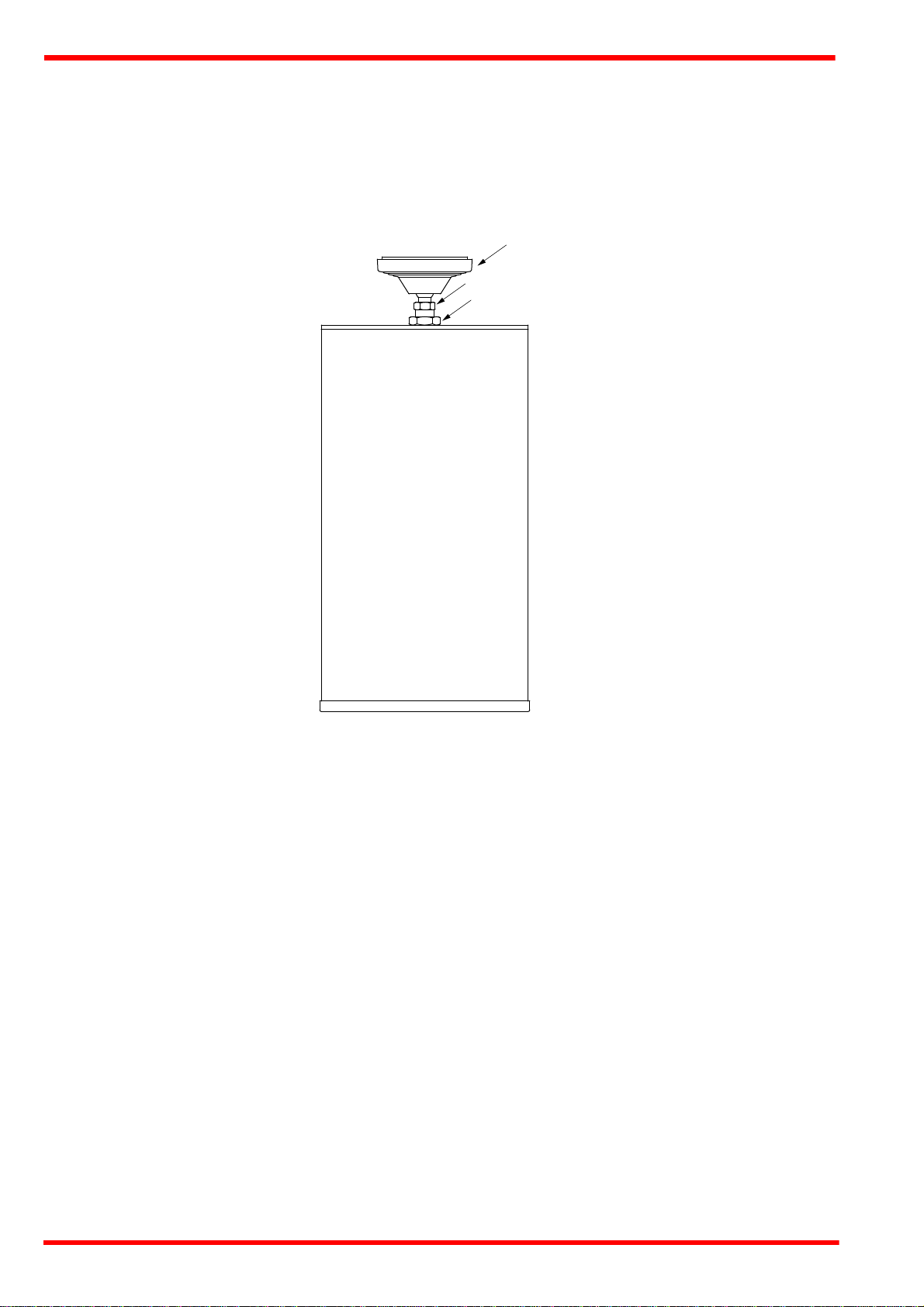

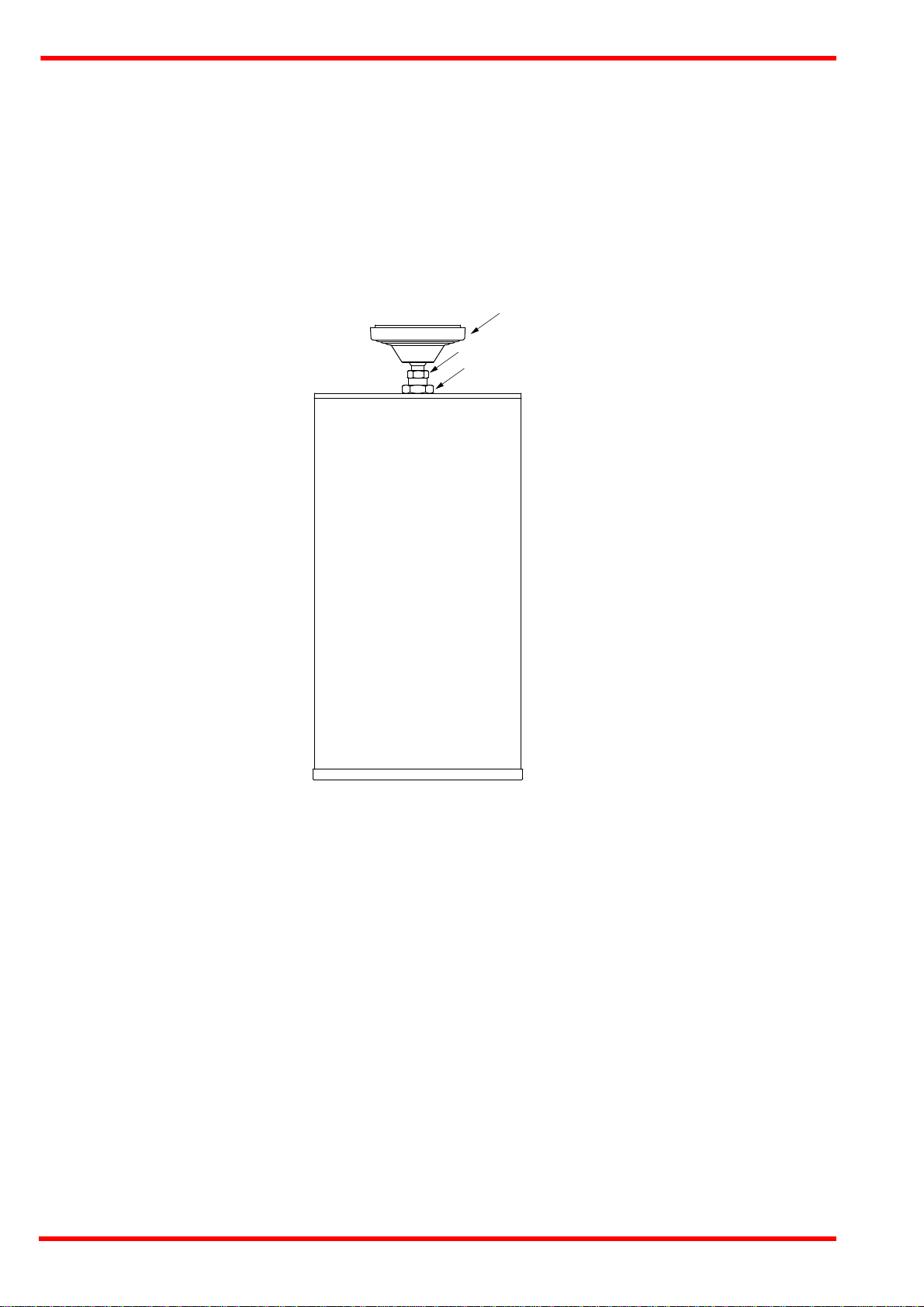

Fig. 2.1 Nonisolating support cross-section
2.2 Parts List
The following items are supplied as standard:
4 rigid supports
2 adjustment wrenches
2.2.1 Preparation
Ensure that the floor of the installation site is flat and horizontal to within 12 mm, (i.e. +/- 6.5 mm).
Height Adjustment Nut
Locking Nut
Support Pad
5
2.3 Installation
1) Position the supports in approximately the correct position for the table – see Fig. 2.2 for dimensions.

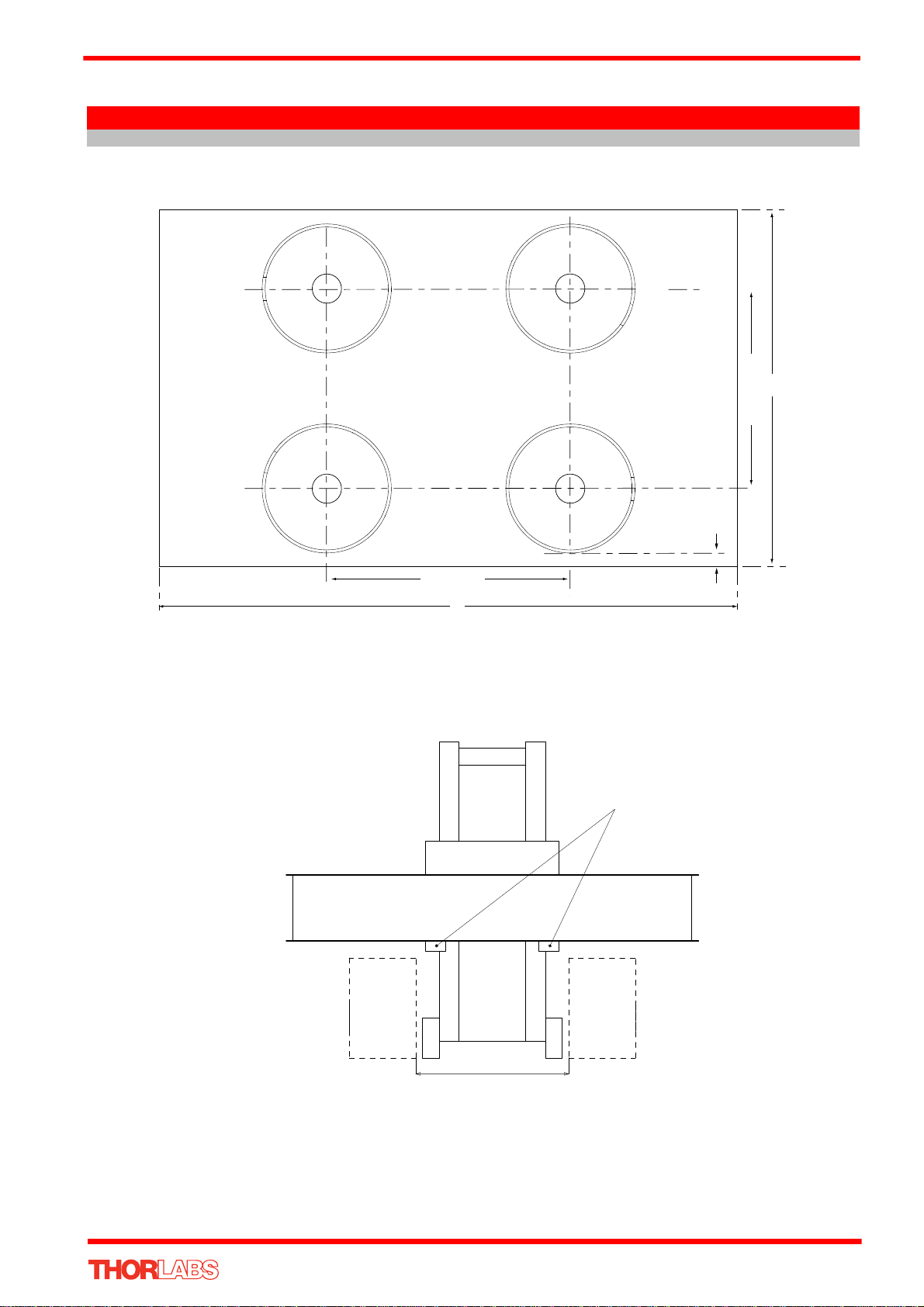

Fig. 2.2 Support positions
2.3.1 Mounting the Table on the Supports
1) Raise the table on a fork-lift truck, ensuring that the fork distance is set such that the forks can pass between the
supports when the table is lowered into position – See Fig. 2.3.
Fig. 2.3 Distance between forks
2) Manoeuvre the fork-lift truck until the table is over the supports. Carefully lower the table until it is around 20mm above
the supports.
3) Lower the table onto the supports.
4) When the table is resting on the supports, remove the fork-lift truck.
Note
During item 1, two people, one on each side, should be employed in positioning the supports.
0.55 x L
W - 280mm
L
W
5.0 mm
forks
distance between isolators
6HA0320T Rev D Nov 2016
Chapter 2
2.4 Set-up
1) Using the 24 mm wrench supplied, adjust the pad on top of one of the supports to the required height.
2) Repeat item 1) for the support diagonally opposite.
3) Repeat items (1) and (2) for the remaining two supports.
4) Using a bubble level or other suitable device, check that the work surface is level. Repeat items (1) to (3) as necessary. –
see Fig. 2.4.
Fig. 2.4 Levelling the system
5) Using the 36 mm wrench supplied, tighten the locking nuts.
Height Adjustment Nut
Locking Nut
Support Pad
7
Chapter 3 Joined Systems
The location and pneumatic connections for a joined system will depend on the configuration of the system. Some typical
examples are shown below. Please contact your local tech support office for more details.
3.1 Smaller Systems
Although single tables require four isolators, smaller joined systems may require only six rather than eight isolators. The
number of isolators required will depend upon the joiner configuration and the size of the tables. Contact tech support for
detmore details of a specific system attangement.

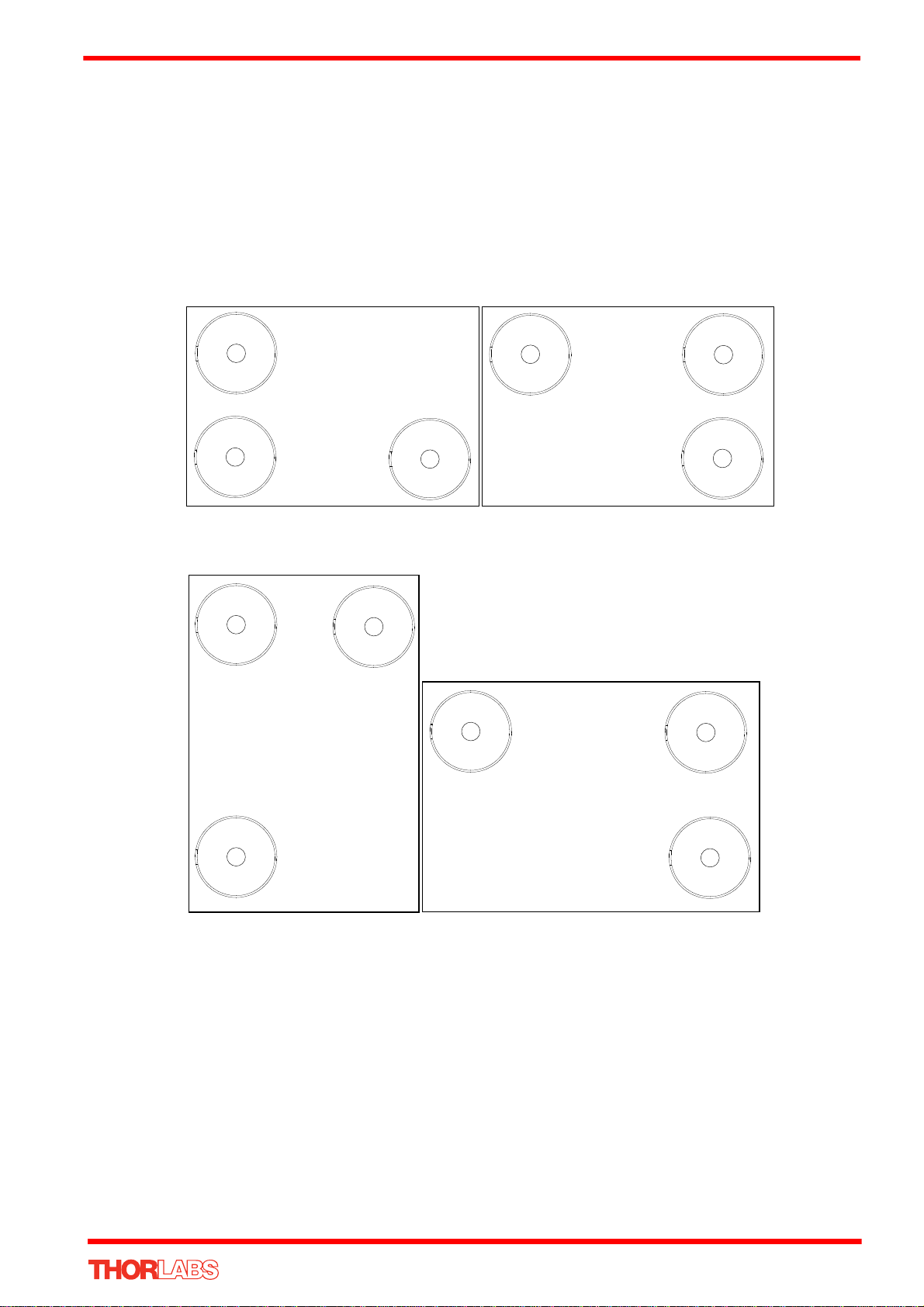

Fig. 3.1 Isolator posiitons and pneumatic connections - small systems
8HA0320T Rev D Nov 2016
Chapter 3
3.2 Larger Systems
Depending on the configuration of the joiner, larger systems may require eight or more isolators as shown below.

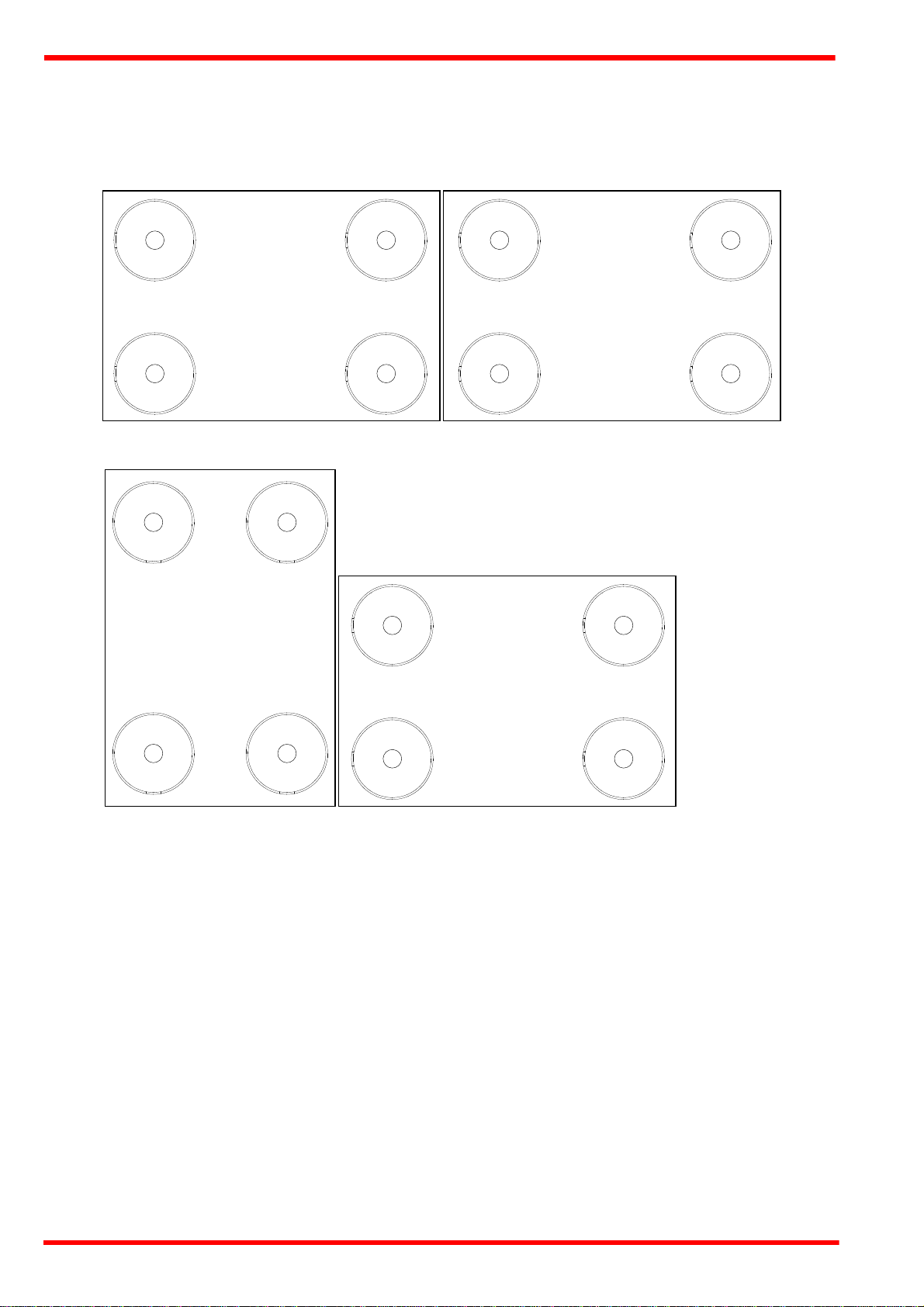

Fig. 3.2 Isolator posiitons and pneumatic connections - larger systems
9
Rigid, Non-isolating Optical Table Supports
Chapter 4 Thorlabs Worldwide Contacts
For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-
date contact information.
USA, Canada, and South America
Thorlabs, Inc.
techsupport@thorlabs.com
Europe
Thorlabs GmbH
France
Thorlabs SAS
Japan
Thorlabs Japan, Inc.
UK and Ireland
Thorlabs Ltd.
techsupport.uk@thorlabs.com
Scandinavia
Thorlabs Sweden AB
Brazil
Thorlabs Vendas de Fotônicos Ltda.
China
Thorlabs China
10
www.thorlabs.com
