instructions

1430Kit

NISSAN Frontier, 4-dr Crew Cab Pickup, 05–

NISSAN Frontier, 4-dr King Cab Pickup, 05–

NISSAN King Cab, 4-dr Pickup Double Cab, 05–*

NISSAN Navara, 4-dr Pickup Double Cab, 05–*

NISSAN Pathnder, 5-dr SUV, 05–*

* Without roof railing

754 Rapid System

480R Rapid Traverse (North America)

480 Traverse (North America)

ISO 11154-E

Kit

864 x4 174 x4 x1

7 kg

15,4 Ibs

xx kg

xx Ibs

km/h

Mph

0

80 km/h

50 Mph

40 km/h

25 Mph

130 km/h

80 Mph

instructions

Kit XXXX

x1 x4

x4

x4

x4 x4

x1 x4

x4

x2

x2

x2

x4

x4

x2

23 mm

x2

x4

x2

x2

x1

17 mm

23 mm

x2

23 mm

754 Rapid System

480R Rapid Traverse (North America)

480R Rapid Traverse

(North America)

754 Rapid System

480 Traverse (North America)

(North America)

Max.

165 Ibs

Max.

75 kg

503-1430-04

1

2

x4

x4

x4

x4

480

480R

754

Rapid Traverse

(North America)

Traverse

(North America)

Rapid System

10 mm10 mm

503-1430-04

X

NISSAN Frontier, 4-dr Crew Cab Pickup, 05– 46,5

NISSAN Frontier, 4-dr King Cab Pickup, 05– 46,5

NISSAN King Cab, 4-dr Pickup Double Cab, 05– 46,5

NISSAN Navara, 4-dr Pickup Double Cab, 05– 46,5

NISSAN Pathnder, 5-dr SUV, 05– 46,5

Y

NISSAN Frontier, 4-dr Crew Cab Pickup, 05– 45

NISSAN Frontier, 4-dr King Cab Pickup, 05– 45

NISSAN King Cab, 4-dr Pickup Double Cab, 05– 45

NISSAN Navara, 4-dr Pickup Double Cab, 05– 45

NISSAN Pathnder, 5-dr SUV, 05– 45

Xinch Xmm

NISSAN Frontier, 4-dr Crew Cab Pickup, 05– 43 7/8” 1116 mm

NISSAN Frontier, 4-dr King Cab Pickup, 05– 43 7/8” 1116 mm

NISSAN King Cab, 4-dr Pickup Double Cab, 05– 43 7/8” 1116 mm

NISSAN Navara, 4-dr Pickup Double Cab, 05– 43 7/8” 1116 mm

NISSAN Pathnder, 5-dr SUV, 05– 43 7/8” 1116 mm

Yinch Ymm

NISSAN Frontier, 4-dr Crew Cab Pickup, 05– 43 3/8” 1101 mm

NISSAN Frontier, 4-dr King Cab Pickup, 05– 43 3/8” 1101 mm

NISSAN King Cab, 4-dr Pickup Double Cab, 05– 43 3/8” 1101 mm

NISSAN Navara, 4-dr Pickup Double Cab, 05– 43 3/8” 1101 mm

NISSAN Pathnder, 5-dr SUV, 05– 43 3/8” 1101 mm

X

Y

3

3

4

754 Rapid System

480R Rapid Traverse 480 Traverse

X inch/mm

Y inch/mm

(North America)

503-1430-04

5

A B C

864864

864864

174

174

174

174

NISSAN Frontier, 4-dr Crew Cab Pickup, 05–

NISSAN Frontier, 4-dr King Cab Pickup, 05–

NISSAN King Cab, 4-dr Pickup Double Cab, 05–

NISSAN Navara, 4-dr Pickup Double Cab, 05–

NISSAN Pathnder, 5-dr SUV, 05–

503-1430-04

6i

A B

ok

Not ok

X mm Y mm X inch Y inch

NISSAN Frontier, 4-dr Crew Cab Pickup, 05– 260 mm 750 mm 10 1/4 ”29 1/2 ”

NISSAN Frontier, 4-dr King Cab Pickup, 05– 260 mm 610 mm 10 1/4 ”24 ”

NISSAN King Cab, 4-dr Pickup Double Cab, 05– 260 mm 750 mm 10 1/4 ”29 1/2 ”

NISSAN Navara, 4-dr Pickup Double Cab, 05– 260 mm 750 mm 10 1/4 ”29 1/2 ”

NISSAN Pathnder, 5-dr SUV, 05– 260 mm 750 mm 10 1/4 ”29 1/2 ”

XY

503-1430-04

7

≈ 3 Nm

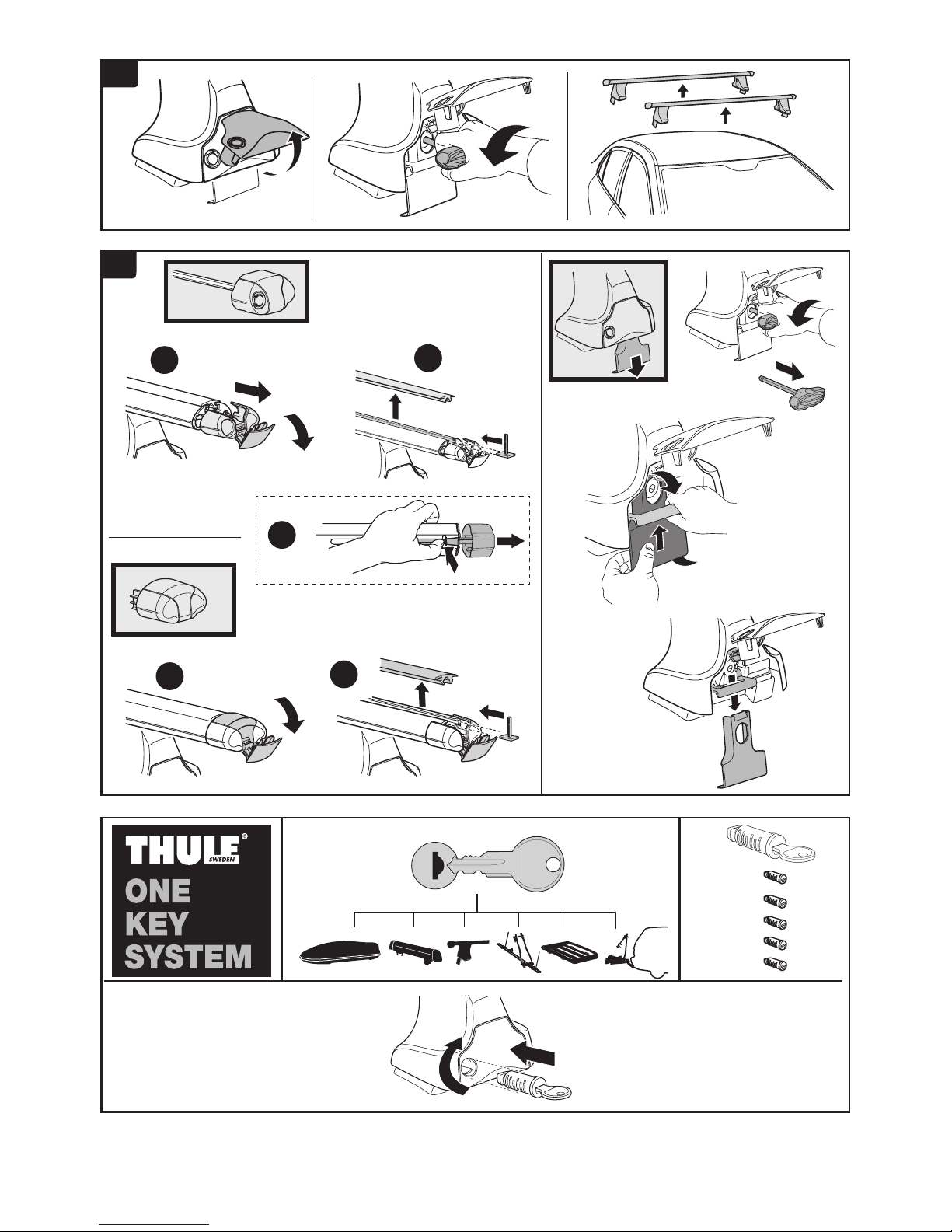

8

x1

17 mm

544 (x4)

596 (x6)

588 (x8)

452 (x12)

510 (x10)

NA

EUR

ASIA

i

i

B

A

B

B

A

A

B

12

AB

12

3A

B

AB
