ASSEMBLY AND MOUNTING INSTRUCTION
For 31914
Please read the Assembly lnstruction sheet carefully before proceeding.Carefully unpack and

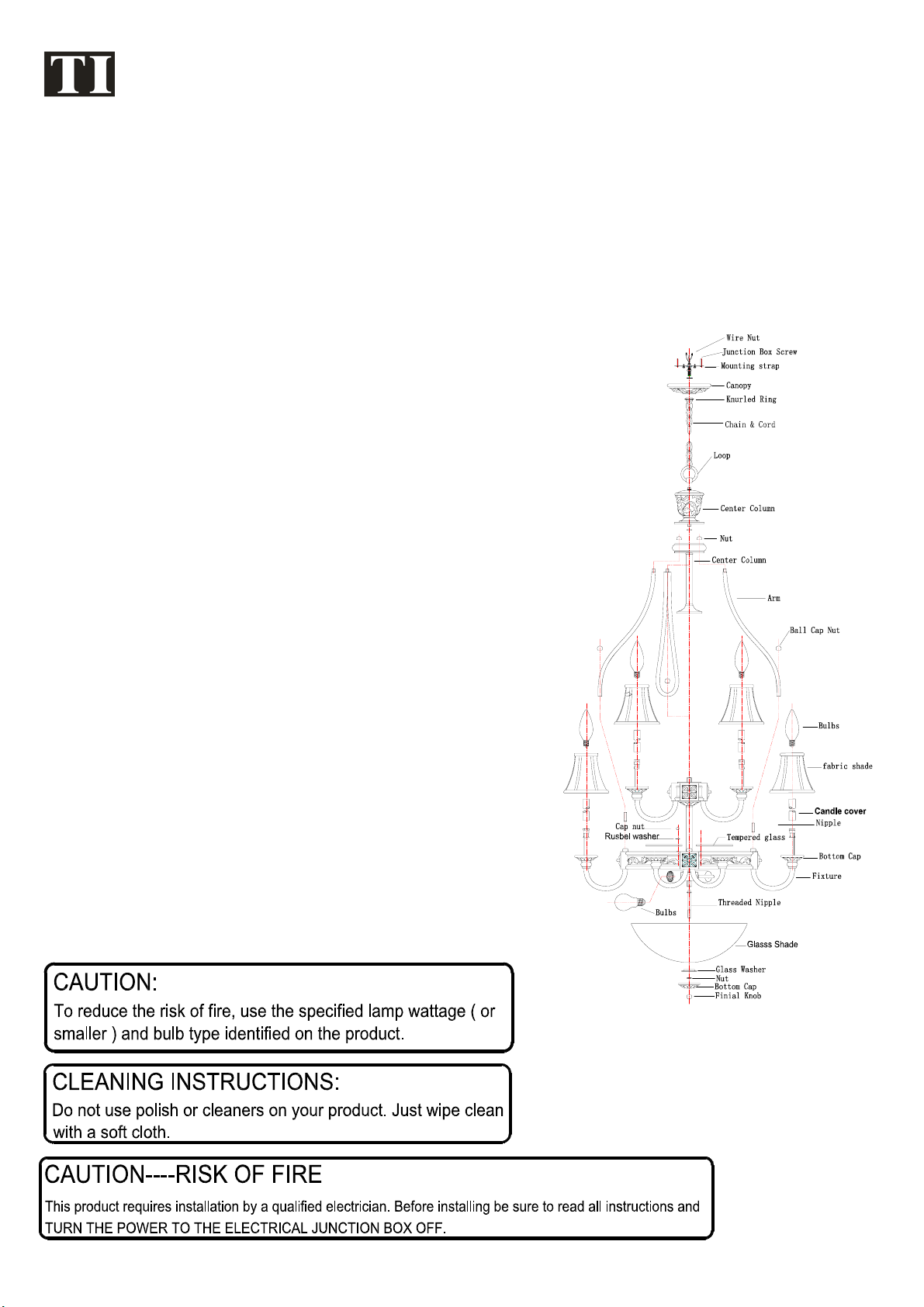

identify all parts prior to building the unit. Each part is identified on the drawing for reference.
DO NOT DISCARD THE ORIGINAL PACKAGING. If after careful inspection and you must return the item
for any reason. Please repack the unit using the original carton and inserts.
STEP 1: Unpack all the parts and classify them according to the illustration shown at
the side. Place the parts on a scratch free surface;
STEP 2: Make sure the power is turned off at the the
junction box where the fixture is to be installed.
Secure the mounting strap to the ceiling junction box
using junction box screws;
STEP 3: Use the wire nuts to connect the positive
and negative wires. Connect the ground wire to the
junction box ground port;
STEP 4: Secure the canopy to the ceiling with the
knurled ring;
STEP 5: lnstall the loop to the colum;
STEP 6: lnstall center pipe and arms to the fixture
with nut and ball nut as shown;
STEP 7:Install the tempered glass by using the rubber
washer and the cap nut screw in position ;
STEP 8: Install the correct bulb(not provided) ;
STEP 9: Install threaded nipple to the fixture glass
Shade ,glass washer and nut secure with bottom
cap and finial
STEP 10: Install candle cover and fabric shade
as shown ;
STEP 11: Install the correct bulbs(not provided).
