Timago RANGER Manuale utente
Strona 1z 8
INSTRUCTIONS FOR USE
Aluminium 4-wheeled rollator
Product code: RANGER
1. Characteristics
Four-wheeled, folding frame made of aluminum frame. Equipped with
parking brakes, seat with backrest, crutch/cane holder, cup/bottle
holder and handy bag. It has pneumatic 12'' diameter wheels and
height-adjustable handles finished with anatomical handgrips. The
structure is based on a crossover frame and an oval cross-section of
tubes, thanks to which the resistance to axial pressure is significantly
increased.
The set includes: frame with seat, front wheels, legs with rear wheels,
backrest, shopping bag.
Elementy podpórki:
1. Handgrip
2. Adjustable tubing handgrip
3. Parking brake
4. Adjustment clamp
5. Backrest
6. Seat with handle
7. Bag hook
8. Front wheel
9. Brake adjustment
10. Rear wheel
11. Safety clamp
12. Kerb climber
13. Crutch/cane holder
14. Locking pins
15. Cup holder
Strona 2z 8
2. Application
The rollator is designed for patients with reduced mobility who need
stable support and help while walking. It is also recommended to the
elderly as an aid in keeping balance, improving walking comfort and
ensuring safety from falling. The use of the rollator affects positively on
the return to activity of the people with locomotion and tilting to erect
position problems. It guarantees better stabilization, support and
security while walking.
3. Assembling, unfolding, folding and adjustment
Assembling
•Unpack all components from the box and lay out on a flat surface
(frame with 2 rear legs connected by brake lines, 2 front wheels,
backrest, shopping bag).
•Pressing the locking pins, insert both rear legs with wheels into the
holes in the frame of the rollator.
(the right and left legs are connected to the correct side of the
rollator’s frame by brake cables).
•Pressing the locking pins, insert both front wheels into the holes in
the front forks of the rollator’s frame.
•Install the backrest into the clamps on the inside of the handles.
•Hang the bag on the hooks.
Strona 3z 8

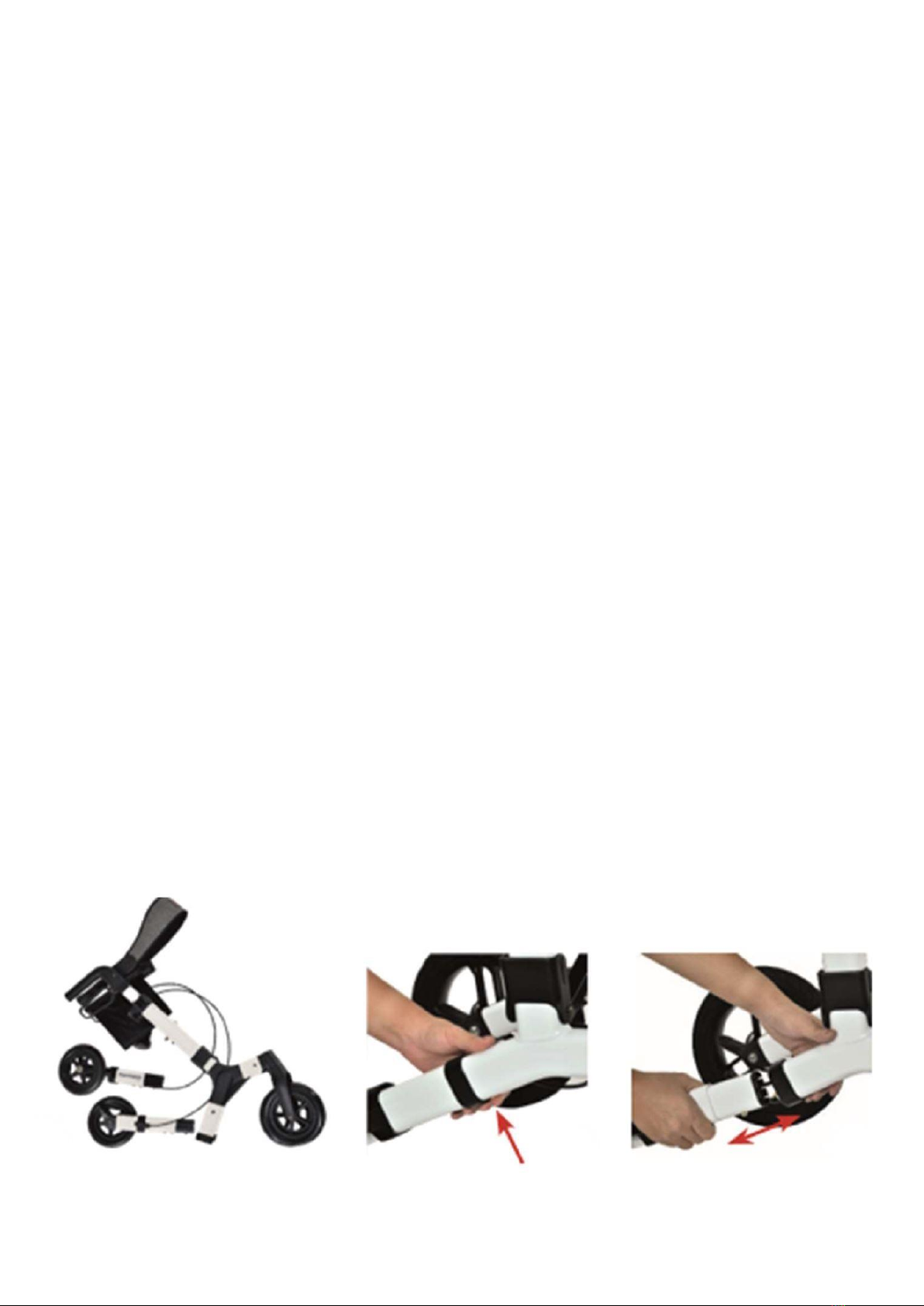

Unfolding
•To unfold the rollator, grab both handgrips and pull them outward.
•Press down on the seat rails until it is fully unfolded (click of the
locking mechanism).
Folding
•To fold the rollator, lift the seat by the handle and pull it up.
•Grab both handgrips of the rollator and press them inward.

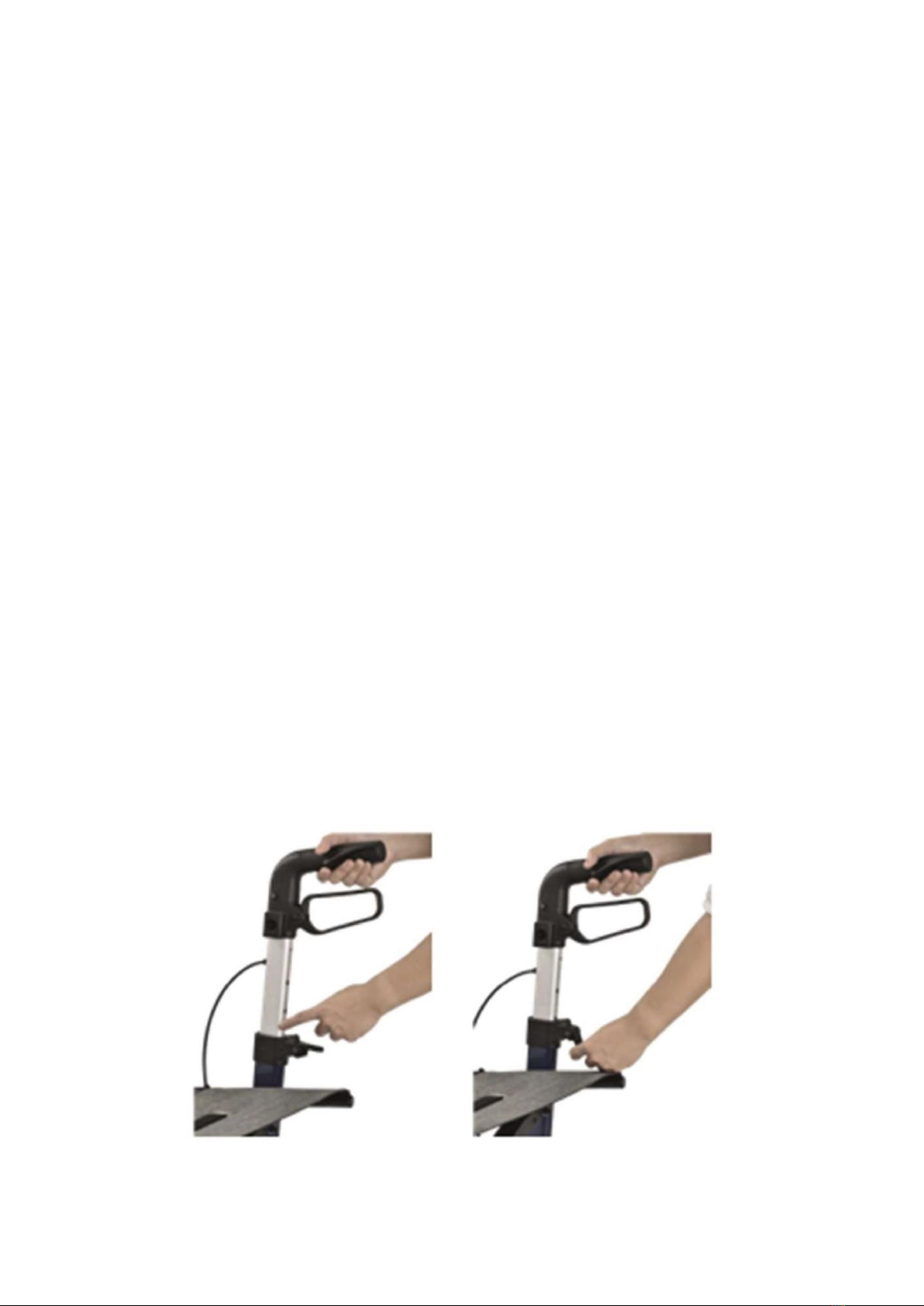

Handgrips height adjustment
To adjust the height of the handgrip:
•Press the brake down to set the parking mode and immobilize the
rollator.
•Pull and hold the adjustment clamp.
•Adjust the height of the handles
•Release the adjustment clamp to lock the adjusted height of the
handles. Pull the handle up and down several times to check the
correct height locking.
•Adjust the height of the second handgrip in a similar way.
•Both handgrips should be set at the same height.
Strona 4z 8

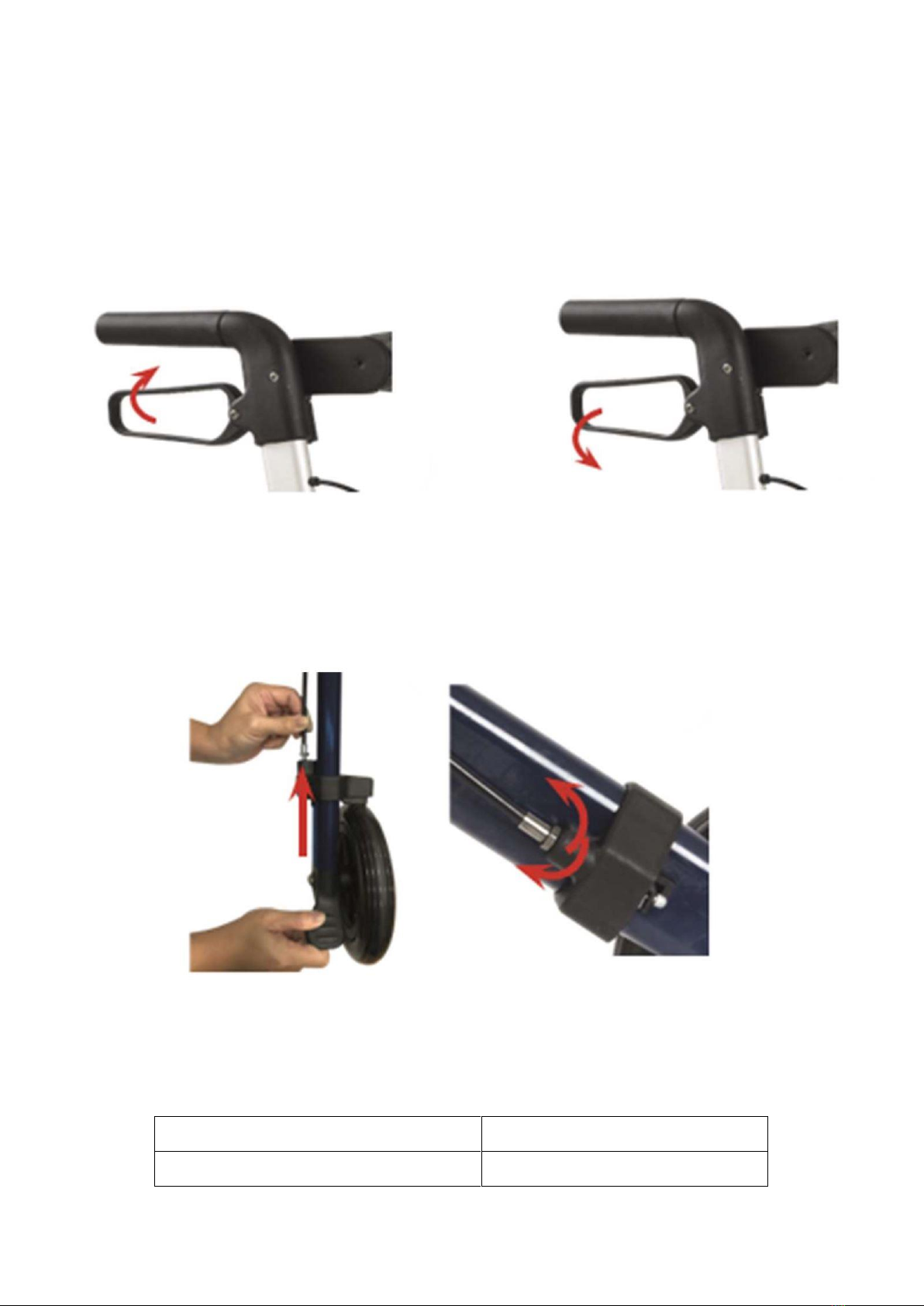

Brake function
•To stop the rollator, pull the brake handle up toward the handle,
then hold.
•When stationary or using the seat, lock the brake with the parking
clamp by pulling the brake handle down.
•To release the brake, pull the brake handle upward.
Brake adjustment
Unscrew the cable holder, pull it up to the desired distance and then lock
it by tightening the clamping screw.
4. Technical data
Overall width
67 cm
Overall depth
75,5 cm
Strona 5z 8
Seat width
21 cm
Total height
89,5-102,5 cm
Seat height from the
ground
59 cm
Weight
10,8 kg
Maximum capacity
136 kg
Maximum capacity of the
shopping bag
5 kg
Frame colour
White
5. Notes
Timago International Group does not bear responsibility of improper
use of the rollator, failure to comply safety regulations and misuse.
6. Maintenance
•Clean the frame with damp cloth and dry thoroughly.
•Do not use strong polishing agents due to the damage of protecting
coatings.
•Clean the dirt from moving parts of the rollator regularly (hinges,
clamping screws, locks).
7. Storage and transport conditions
Device should not be exposed to direct sunlight, water or moisture.
8. Warranty information
All products distributed by our company are covered by a warranty, the
terms of which are described in the warranty card available on our
website. Please contact the retailer from whom you purchased the
product. Please, keep in mind that for warranty purposes, the proof of
purchase (receipt or invoice) should be retained.
Strona 6z 8
9. Labels
Reference
number
Manufacturer
LOT number
Manufacture date
Serial number
Medical device
Note
Please read the
instruction
The manufacturer checked for compliance with
essential medical devices requirements.
Our complete line of products is available from our distributors.
Learn more at: www.timago.com. Thank you for choosing Timago!
