INSTRUCTIONS FOR USE

Aluminium 4-wheeled rollator

Product code: AMIGO-1 / AMIGO-2

1. Characteristics

Four-wheeled, folding frame made of aluminum frame. Coated with

paint with a metallic sheen. Equipped with parking brakes, seat with

backrest and handy bag. It has full 9'' diameter wheels and height-

adjustable handles finished with anatomical handgrips. The structure is

based on a crossover frame and an oval cross-section of tubes, thanks

to which the resistance to axial pressure is significantly increased.

The set includes: frame with seat and backrest, shopping bag.

Elements of the rollator:

a. Handgrip

b. Parking brake

c. Adjustment clamp

d. Brake cable

e. Seat with handle

f. Wheel

g. Seat rail

Strona 2z 8

2. Application

The rollator is designed for patients with reduced mobility who need

stable support and help while walking. It is also recommended to the

elderly as an aid in keeping balance, improving walking comfort and

ensuring safety from falling. The use of the rollator affects positively on

the return to activity of the people with locomotion and tilting to erect

position problems. It guarantees better stabilization, support and

security while walking.

3. Unfolding, folding and adjustment

Unfolding

•To unfold the rollator, grab both handgrips and pull them outward.

•Press down on the seat rails until it is fully unfolded (click of the

locking mechanism).

Folding

•To fold the rollator, lift the seat by the handle and pull it up.

•Grab both handgrips of the rollator and press them inward.

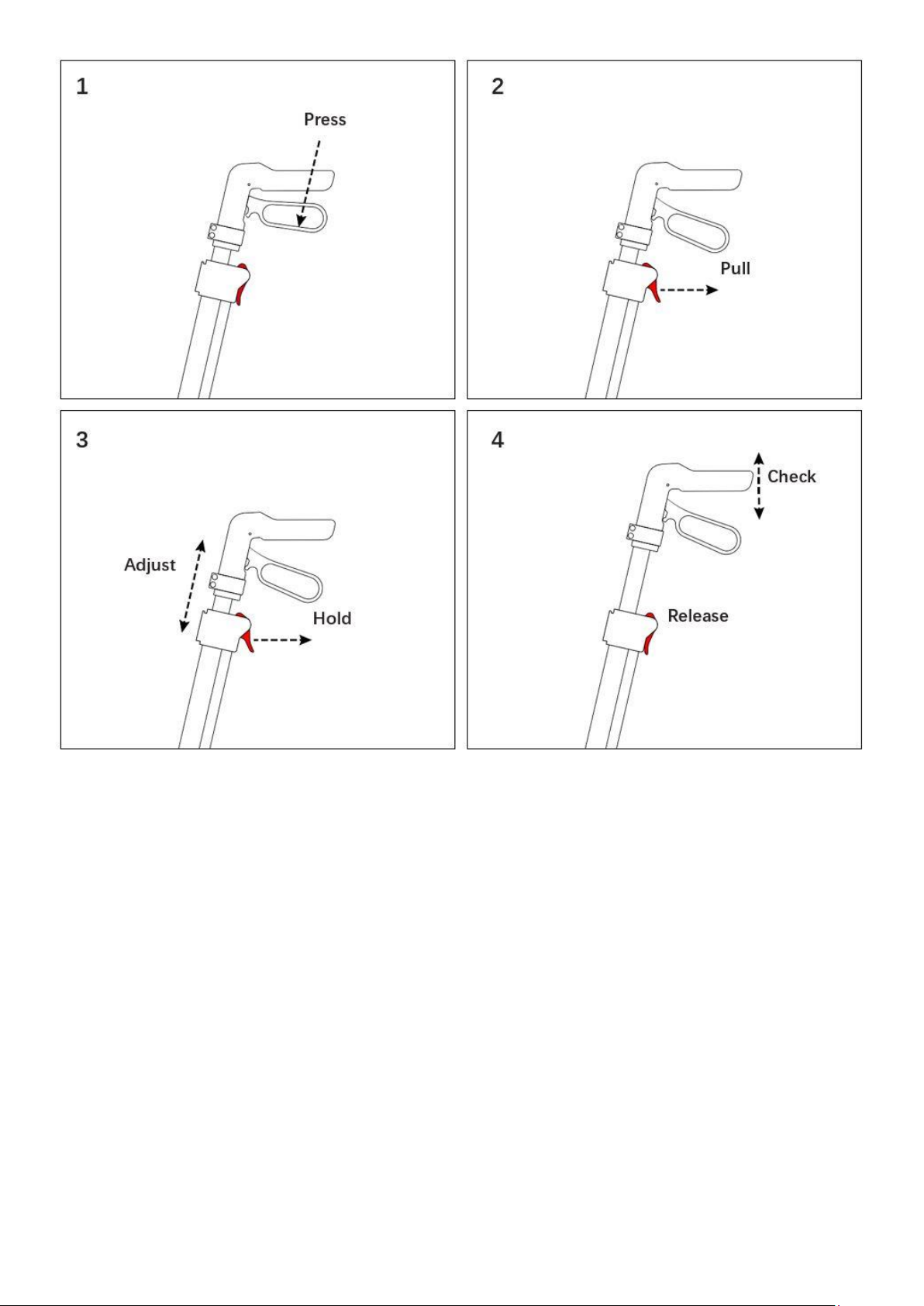

Handgrips height adjustment

To adjust the height of the handgrip:

•Press the brake down to set the parking mode and immobilize the

rollator (Fig. 1).

•Pull the adjustment clamp (Fig. 2).

•Hold the adjustment clamp and adjust the height of the handles

(Fig. 3).

•Release the adjustment clamp to lock the adjusted height of the

handles. Pull the handle up and down several times to check the

correct height locking (Fig. 4).

•Adjust the height of the second handgrip in a similar manner.

•Both handgrips should be set at the same height.

Strona 3z 8

Brake function

•To stop the rollator, pull the brake handle up toward the handle,

then hold.

•When stationary or using the seat, lock the brake with the parking

clamp by pulling the brake handle down.

•To release the brake, pull the brake handle upward.

Adjustment of lower brake

•To adjust the brake and increase the tension, unscrew the

adjustment screw with the use of appropriate tools and tighten the

locking screw by holding the adjustment screw.

Strona 4z 8

4. Technical data

Parameters

AMIGO-1

AMIGO-2

Overall width

60,5 cm

Overall depth

72 cm

Seat width

25 cm

Total height

70-82 cm

70-88 cm

Seat height from the

ground

55 cm

Weight

7,9 kg

8,1 kg

Maximum capacity

130 kg

Maximum capacity of

the shopping bag

5 kg

Frame colour

Silver

5. Notes

Timago International Group does not bear responsibility of improper

use of the rollator, failure to comply safety regulations and misuse.

6. Maintenance

•Clean the frame with damp cloth and dry thoroughly.

•Do not use strong polishing agents due to the damage of protecting

coatings.

•Clean the dirt from moving parts of the rollator regularly (hinges,

clamping screws, locks).

7. Storage and transport conditions

Device should not be exposed to direct sunlight, water or moisture.

8. Warranty information

All products distributed by our company are covered by a warranty, the

terms of which are described in the warranty card available on our

website. Please contact the retailer from whom you purchased the

Strona 5z 8

product. Please, keep in mind that for warranty purposes, the proof of

purchase (receipt or invoice) should be retained.

9. Labels

Reference

number

Manufacturer

LOT number

Manufacture date

Serial number

Medical device

Note

Please read the

instruction

The manufacturer checked for compliance with

essential medical devices requirements.

Our complete line of products is available from our distributors.

Learn more at: www.timago.com. Thank you for choosing Timago!

Strona 6z 8

NOTES:

Strona 7z 8

Strona 8z 8

Timago International Group

Spółka z o.o. i Spółka – Spółka komandytowa

ul. Karpacka 24/12

43-316 Bielsko-Biała, Polska

T.: +48 33 499 50 00

F.: +48 33 499 50 11

E.: [email protected]

07/2023(I)
