INSTRUCTIONS FOR USE
Aluminium 4-wheeled rollator
Product code: TGR-R RA 882
1. Characteristics
Folding 4-wheeled rollator is made of aluminium frame which is coated
with paint with metallic lustre. The rollator possesses wide upholstered
seat, soft backrest and removable basket. The product is equipped with
height adjustable handles with anatomic handgrips and brakes with
locking mechanism. The rollator is supplied with wheels with narrow
cross section 8’’ in diameter.
The set includes:
•Two handles with brakes
•Frame with seat
•Backrest
•Basket
•Locking knobs – 2 pcs
Elements of the rollator:
a. Push handle
b. Brake
c. Locking knob
d. Brake cables
e. Backrest
f. Locking pin
g. Side crossbar
h. Hinge of side crossbar
i. Strap for folding rollator
j. Basket
k. Upper adjustment of brake
l. Lower adjustment of brake
m. Cane holder
2
2. Application
The rollator is designed for patients with reduced mobility who need
stable support and help while walking. It is also recommended to the
elderly as an aid in keeping balance, improving walking comfort and
ensuring safety from falling. The use of the rollator affects positively on
the return to activity of the people with locomotion and tilting to erect
position problems. It guarantees better stabilization, support and
security while walking.
3. Assembly
Unfolding and folding the rollator
•To unfold the rollator, press the side crossbar, which is placed
under the seat, until the hinges are completely unfolded. Then, fix
the handles into the mounting openings and select appropriate
height by tightening the locking knobs. Brake cables should be
placed at the front. Lean the seat against unfolded frame.
•Fix the backrest into the mounting openings at the front of the
rollator until the pins are locked.
•The basket can be hanged on the frame or fixed under the seat.
•Remove plastic casing from wheels.
•To fold the rollator for transport, lower the seat and pull upwards
the strap which joins the side crossbar with frame until the frame
is completely folded.
NOTE! Be careful while folding or dismantling the rollator due to the
risk of smashing fingers in hinges.
Brakes
•To stop the rollator, pull the brake handle upwards and hold.
•While stop or using the seat, lock the brake with locking
mechanism by pushing down the brake handle.
•To release the brake, pull the brake handle upwards.
3
Height adjustment of handles
•To adjust the height of the handles, unscrew the locking knobs
which are located on the outer side of the frame, select
appropriate height and tighten the locking knobs.
Note! The handles must be set on the same level.
Adjustment of brakes
Adjustment of upper brake
Unscrew the nut of the cable, pull it up to the appropriate length and
lock it by tightening the locking screw.
Adjustment of lower brake
Loosen the mounting screw with the use of open-end wrench, pull the
black brake cable to adjust the tension of the cable, and then, tighten
the mounting screw.
4. Technical data
Overall width
60 cm
Overall depth
66 cm
Seat dimensions
35 cm x 32 cm
Seat height from the ground
53 cm
Handles height adjustment
77-88 cm
Weight
8.2 kg
Maximum capacity
110 kg
Maximum capacity of the basket
5 kg
Frame colours
red, blue, titanium
5. Notes
Timago International Group does not bear responsibility of improper
use of the rollator, failure to comply safety regulations and misuse.
4
6. Maintenance
Cleaning
•Clean the frame with damp cloth and dry thoroughly.
•Do not use strong polishing agents due to the damage of
protecting coatings.
•Clean the dirt from moving parts of the rollator regularly (hinges,
clamping screws, locks).
7. Storage and transport conditions
Device should not be exposed to direct sunlight, water or moisture.
8. Warranty information
All products distributed by our company are covered by a warranty, the
terms of which are described in the warranty card available on our
website. Please contact the retailer from whom you purchased the
product. Please, keep in mind that for warranty purposes, the proof of
purchase (receipt or invoice) should be retained

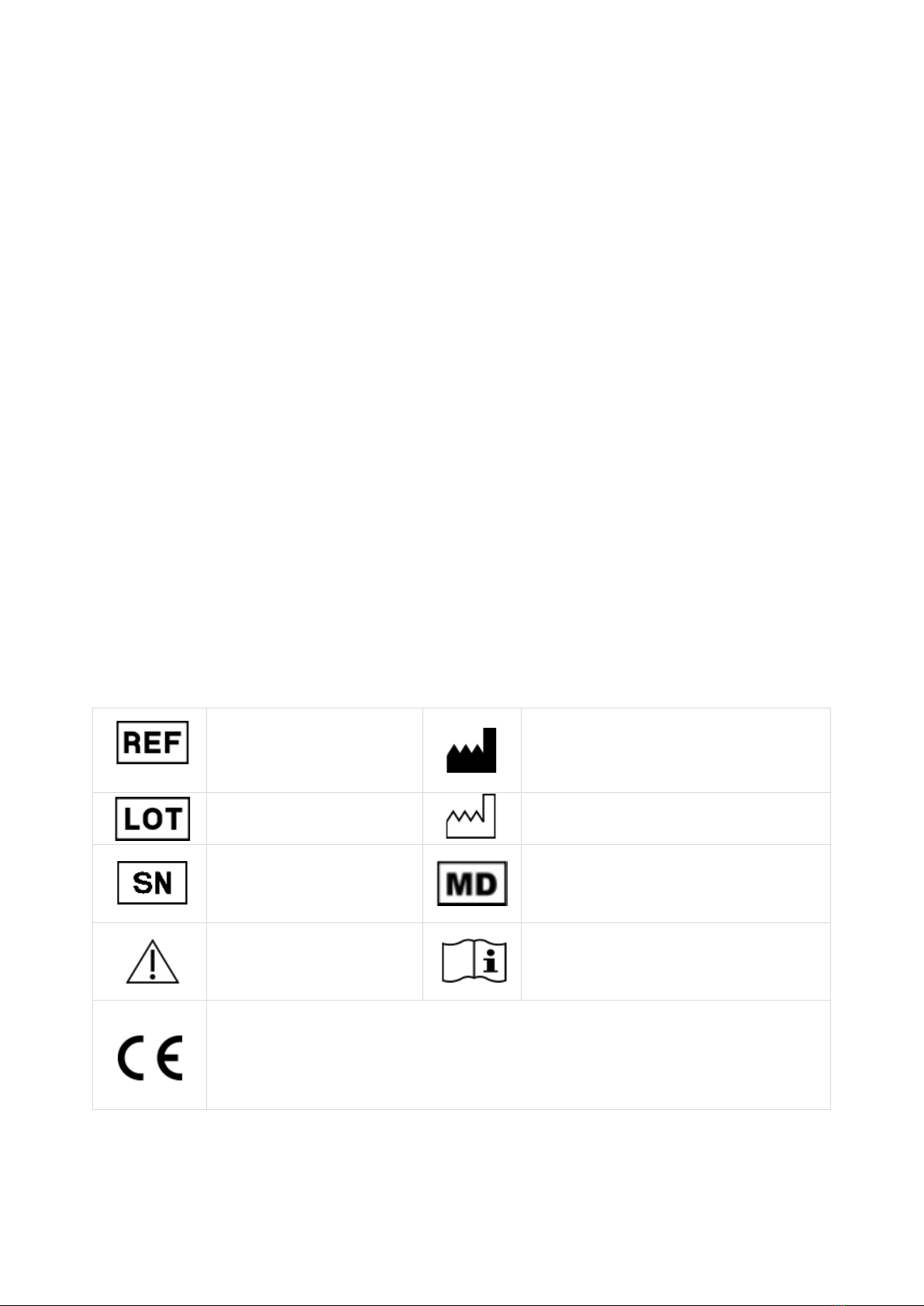

9. Labels
Reference
number
Manufacturer
LOT number
Manufacture date
Serial number
Medical device
Note
Please read the
instruction
The manufacturer checked for compliance with
essential medical devices requirements.
5
Our complete line of products is available from our distributors.
Learn more at: www.timago.com. Thank you for choosing Timago!
Timago International Group
Spółka z o.o. i Spółka – Spółka komandytowa
ul. Karpacka 24/12
43-316 Bielsko-Biała, Polska
T.: +48 33 499 50 00
F.: +48 33 499 50 11
E.: info@timago.com
Rev. II, date 20.05.2021
