Timberwolf TW-C12 Manuale utente

TW-C12, TW-C20, TW-C24,
TW-C26, TW-C30HD
www.timberwolfequip.com
OPERATOR’S
OPERATOR’S
MANUAL
MANUAL
Commercial Grade
Conveyors


TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD CONVEYORS OPERATOR’S MANUAL
TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD
Commercial Grade Conveyor
Operation Manual
Fill out and submit registration form to ensure warranty coverage and receive product updates.
Register online at www.timberwolfequip.com/warranty.html
This manual and all its contents Copyright © 2018
Timberwolf Firewood Processing Equipment
Record your fi rewood conveyor ID numbers here:
Model # ___________________________________________ Serial # __________________________________________
Engine # __________________________________________ VIN # ___________________________________________

Timberwolf Firewood Processing Equipment
2235 Clarks Corners Road
Marathon, NY 13803
Toll Free: 800-340-4386
E-mail: [email protected]
www.timberwolfequip.com
©Timberwolf is a trademark of Timberwolf Firewood Processing Equipment. All other brands or product names are
trademarks or registered trademarks of their respective holders.
©Timberwolf Firewood Processing Equipment 2018. Printed in the USA
No part of this work covered by copyright may be reproduced in any form. Reproduction, adaptation, or translation without prior written
permission is prohibited, except as allowed under the copyright laws.
Timberwolf Firewood Processing Equipment provides this document “as-is” without warranty of any kind, either expressed or implied.
This includes, but is not limited to, implied warranties or conditions of merchantability or fi tness for a particular purpose. Timberwolf
Firewood Processing Equipment shall not be liable for any errors or omissions that may occur in this document, nor for incidental or
consequential dam ages of any kind resulting from the furnishing, performance, or use of this document.
The information in this document refl ects current or planned product features, functions, and characteristics as of the publication date.
Because of on-going product improvements and feature additions, information in this document is subject to change without notice.
Revised February 15, 2018
Every eff ort has been made to ensure the accuracy of this document.
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT
TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD CONVEYORS OPERATOR’S MANUAL
Read Entire Manual Before Operating the Firewood Conveyor
Safety Note
Please take time to read this manual and learning how to operate and maintain your fi rewood conveyor safely. If you
have any questions regarding assembly, use, safety, or maintenance, please call Timberwolf at 1-800-340-4386. This
fi rewood conveyor is a powerful piece of equipment that can generate over 2,000 pounds of force. Incorrect use
of the fi rewood conveyor can cause serious injury or death.
About This Manual
Thank you for buying a Timberwolf fi rewood conveyor. This machine is made with high quality components and will provide years of
service under normal working conditions.
Please study this manual before operating the unit as it contains important information relating to safety, operation and maintenance.
Timberwolf Firewood Processing strongly suggests you keep it safely stored.
If you have questions regarding anything outlined in this manual, please call Timberwolf at 1-800-340-4386.

Caution! Residual Hydraulic Energy!
Residual energy must be released from the pressurized hydraulic fluid before any maintenance or repair
work is done on the firewood conveyor. Hydraulic fluid can remain highly pressurized even while the
conveyor’s motor is off. Escaping pressurized hydraulic fluid can penetrate skin and cause serious injury.
To release residual hydraulic energy:
1. Shut off engine
2. Move control valve back and forth, from one limit of travel to the other, at least four times
3. Hold valve for three seconds at each limit of travel
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT
TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD CONVEYORS OPERATOR’S MANUAL
Table Of Contents
Attention Rental Companies
It is extremely important that any person who operates this equipment has access
to and has read the operator’s manual. Timberwolf Firewood Processing Equipment
strongly urges you to keep the manual with the conveyor at all times, and to instruct
all persons who will operate this machine to read the manual.
Safety
Hydraulic Safety ........................................................................... 1-2
C12, C20, C24, C26 Decal Locations ............................................. 3
C30HD Decal Locations .................................................................. 4
General Information
General ........................................................................................... 5
Set Up and Take Down
Overview ......................................................................................... 6
Set Up Procedures ................................................................... 6
Take Down Procedures ............................................................ 6
Set Up Procedures .......................................................................... 7
Work Area Layout .................................................................... 7
New Location Set Up .............................................................7-8
C12, C20, C24, C26 Height Adjustment ................................... 8
C30HD Height Adjustment Overview ........................................ 9
C30HD Hyrdrauic Height Adjustment .................................... 10
Processor Hydraulic Power ............................................... 10-11
Take Down Procedures ..................................................................11
C12, C20, C24, C26 Lowering the Conveyor .................... 11-12
C30HD Lowering the Conveyor .............................................. 12
C12, C20, C24, C26 Tow Vehicle Hookup .............................. 13
C30HD Tow Vehicle Hookup .................................................. 14
Operating Instructions
Start Up Procedure ....................................................................... 15
Hydraulic Start Up ......................................................................... 16
Operation ...................................................................................... 16
Maintenance
General ............................................................................................... 17
Periodic Maintenance .......................................................................... 17
Conveyor Belt Adjustment (C12, C20, C24, C26) ............................... 18
Conveyor Chain Adjustment (C30HD) ................................................ 19
Specifi cations .................................................................................... 20
Limited Warranty ..........................................................................21-22
Maintenance Log ..........................................................................23-24

2
TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD CONVEYORS OPERATOR’S MANUAL
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT 1
Hydraulic Safety Hydraulic Safety
Hydraulic Safety
Escaping pressurized fl uid from hydraulic system leaks can have enough force to
penetrate skin and cause serious injury or death. Hydraulic fl uid can remain highly
pressurized while conveyor motor is off . Never use your hand or any part of your body
to check for hydraulic system leaks while the system is pressurized.
Get professional medical help at once if hydraulic oil penetrates anyone’s skin. Always
release residual energy from pressurized hydraulic fl uid before doing any maintenance
or repair work on the conveyor.
WARNINGS
What You SHOULD Do
• Inspect hydraulic hoses every day – check for worn, frayed, kinked, and cracked areas
• Replace any damaged or worn hoses
• Use sheet of cardboard or piece of wood to check for hydraulic leaks while system is running
• Depressurize system to release residual hydraulic energy before starting any repairs
1. Shut off engine
2. Move control valve handle back and forth, from one limit of travel to the other, at least four times
3. Hold valve for three seconds at each limit of travel
• Contact Timberwolf or an authorized Timberwolf dealer to replace worn components
What You SHOULD NOT Do
• Do not make any adjustments to the pressure relief valve.
• Never remove cap from hydraulic tank while motor is running or while tank is still warm after
motor is shut off . Hot pressurized oil can cause serious injury, so wait for hydraulic tank to cool
before removing cap.
• Never use any connectors, valves, or fi ttings that are diff erent from the ones originally installed
on the conveyor.

4
TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD CONVEYORS OPERATOR’S MANUAL
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT 3

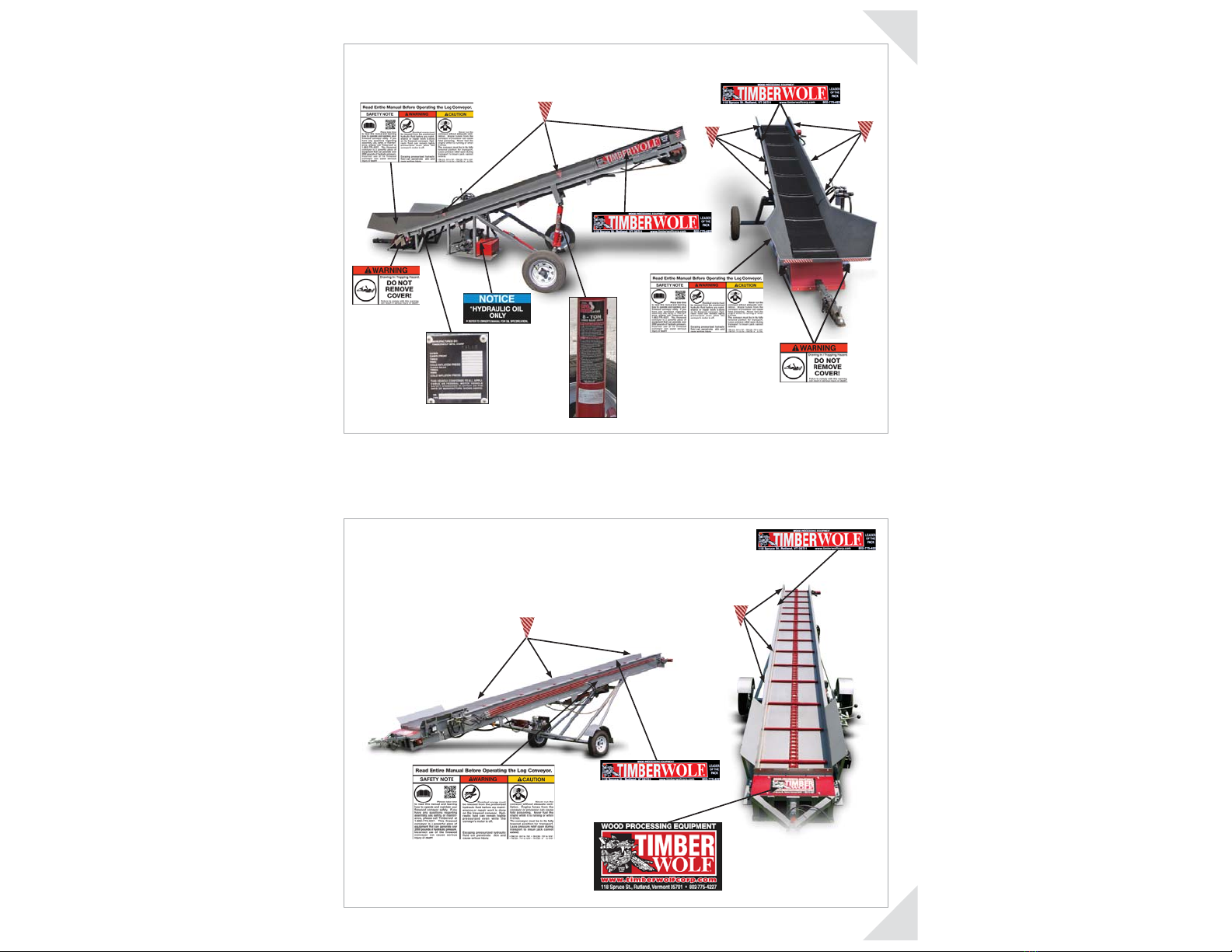

TW-C12, TW-C20, TW-C24, TW-C26 Decal Locations
TW-C30HD Decal Locations
TW-C30HD Decal Locations TW-C12, TW-C20, TW-C24, TW-C26 Decal Locations

6
TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD CONVEYORS OPERATOR’S MANUAL

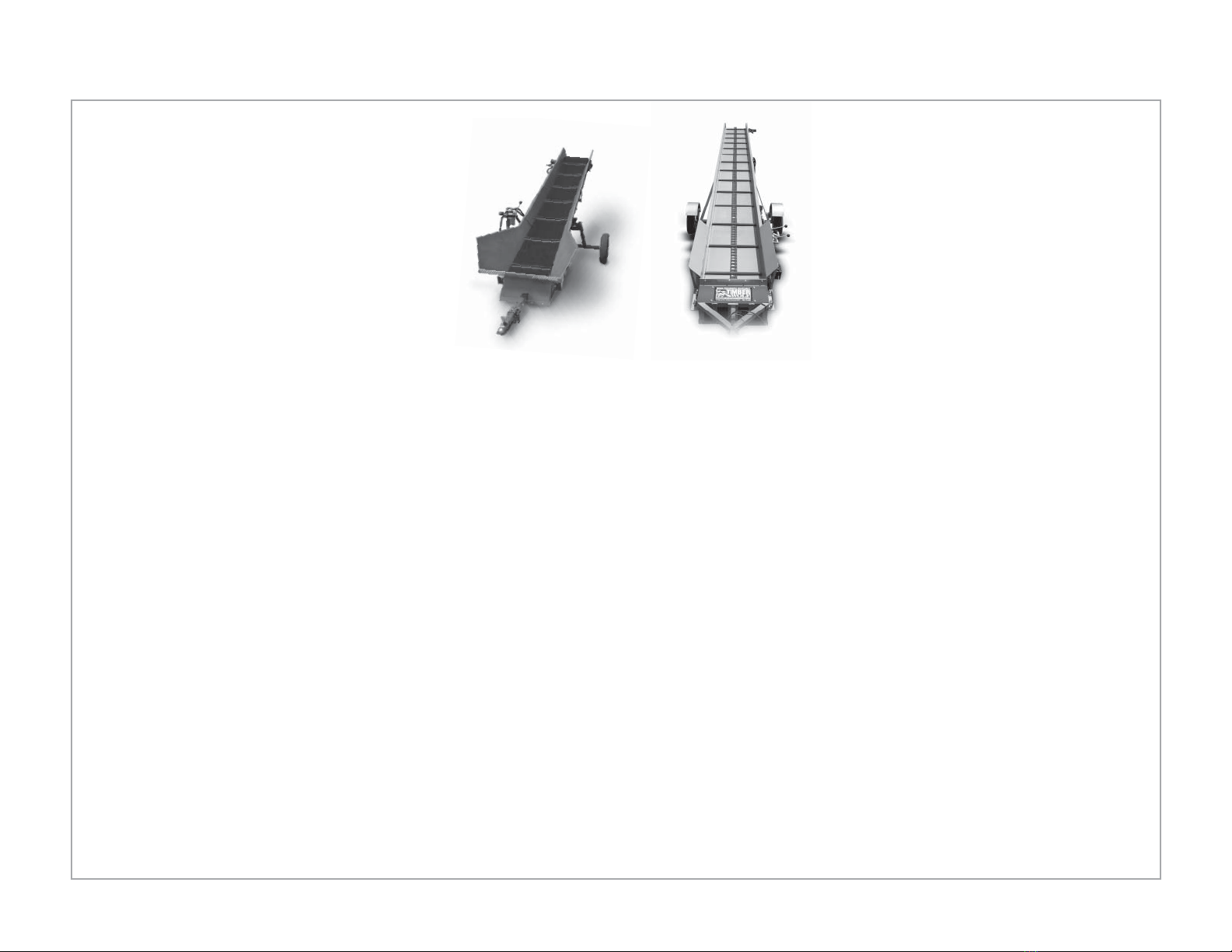

General Information
Set Up & Take Down
General Information
General
Timberwolf Firewood Processing Equipment commercial grade conveyors can be
used for a wide variety of applications. They are rugged and dependable units that
can be used in a woodlot or agricultural setting to move fi rewood, mulch, and hay.
Conveyors are available in 12, 20, 24 26 and 30-foot lengths. A hand operated 8-ton
hydraulic jack adjusts the conveyor’s height.
The hydraulic motor that drives the conveyor is located at the top for greater
effi ciency. Conveyor models are available with an onboard gasoline engine and
hydraulic pump to power the motor or with fi ttings for connection to an external
hydraulic system. Timberwolf fi rewood processors, for example, can be specially
equipped to power a conveyor.
The TW-C12, TW-C20, TW-C24 and TW-C26 conveyors feature heavy steel frame
construction and an I8-inch wide belt made of two-ply polyester Ruff Top™ belting.
The belt slides on continuous strips of polyurethane to insure smooth operation and
reduce wear. Optional T-cleat Ruff Top belting is also available on these models. The
I-inch cleats provide reliable transport even in extreme weather conditions.
The TW-C30HD conveyor employs a drive chain and cleats rather than a belt to move material. The chain is recessed below the
conveyor trough and rides on a nylon track to reduce friction.
The conveyors can be easily transported on public roads. They come standard with a 2-inch ball coupler, and feature high speed DOT
approved wheels and tires. A pintle hitch coupler is available as an option on the TW-C30HD.
Gasoline powered conveyors feature a Honda GX160 overhead valve engine, with the exception of the TW-C12, which sports a Honda
GC160. One tank of gasoline can run the conveyor for approximately eight hours.
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT 5
Set Up & Take Down

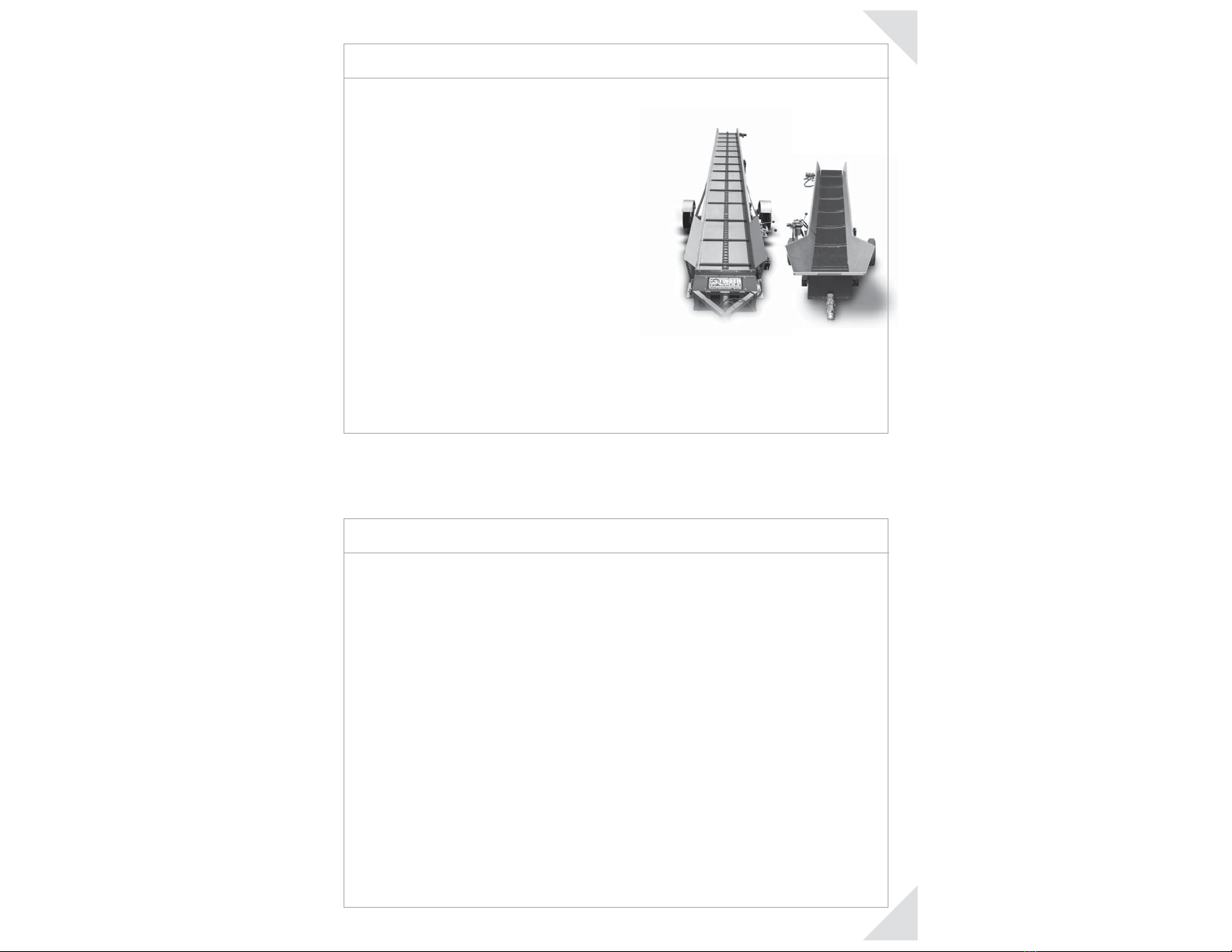

Overview
This part of the manual contains instructions for setting up the conveyor at the work site and taking it down for transport.
Set Up Procedures
• Work Area Layout
• New Location Set Up
• TW-C12, TW-C20, TW-C24, TW-C26 Height Adjustment
• TW-C30HD Height Adjustment Overview
• TW-C30HD Hydraulic Height Adjustment
• Processor Hydraulic Power
• Leveling Engine/Hydraulic Tank Platform
Take Down Procedures
• TW-C12, TW-C20, TW-C24, TW-C26 Lowering the conveyor
• TW-C30HD Lowering the Conveyor
• TW-C12, TW-C20, TW-C24, TW-C26 Tow vehicle hookup
• TW-C30HD Tow vehicle hookup
This part of the manual also includes directions for connecting and disconnecting hydraulic lines to a Timberwolf Firewood
Processing Equipment fi rewood processor. Both the conveyor and the processor require factory installed special
equipment for that application.

8
TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD CONVEYORS OPERATOR’S MANUAL
Set Up & Take Down
Set Up & Take Down
Never run the conveyor or processor without adequate
ventilation. Engine fumes from conveyor or processor can
cause fatal poisoning.
CAUTION
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT 7
Set Up Procedures
Set Up Procedures
Work Area Layout
• Locate conveyor on fi rm, level ground
• Select well-lit spot, outdoors or in well-ventilated area
New Location Set Up (Continued)
• Disconnect safety chains (TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD), emergency brake cable, and wiring harness for
conveyor lights and brakes (TW-C30HD)
• Lift conveyor ball coupler off tow vehicle’s trailer hitch
• Drive tow vehicle clear
TW-C12, TW-C20, TW-C24, TW-C26 Height Adjustment
To adjust conveyor height:
1. Insert jack handle in hydraulic jack.
2. Make sure jack’s pressure relief is closed.
3. Pump jack until conveyor reaches required height.
4. Place jack handle in storage position on conveyor frame.
• Check for hazards around the conveyor. Make sure area is free of slippery surfaces and objects to trip over
• Make sure there won’t be people or animals in the area around the conveyor
• Plan access for the trucks or trailers to be loaded by the conveyor

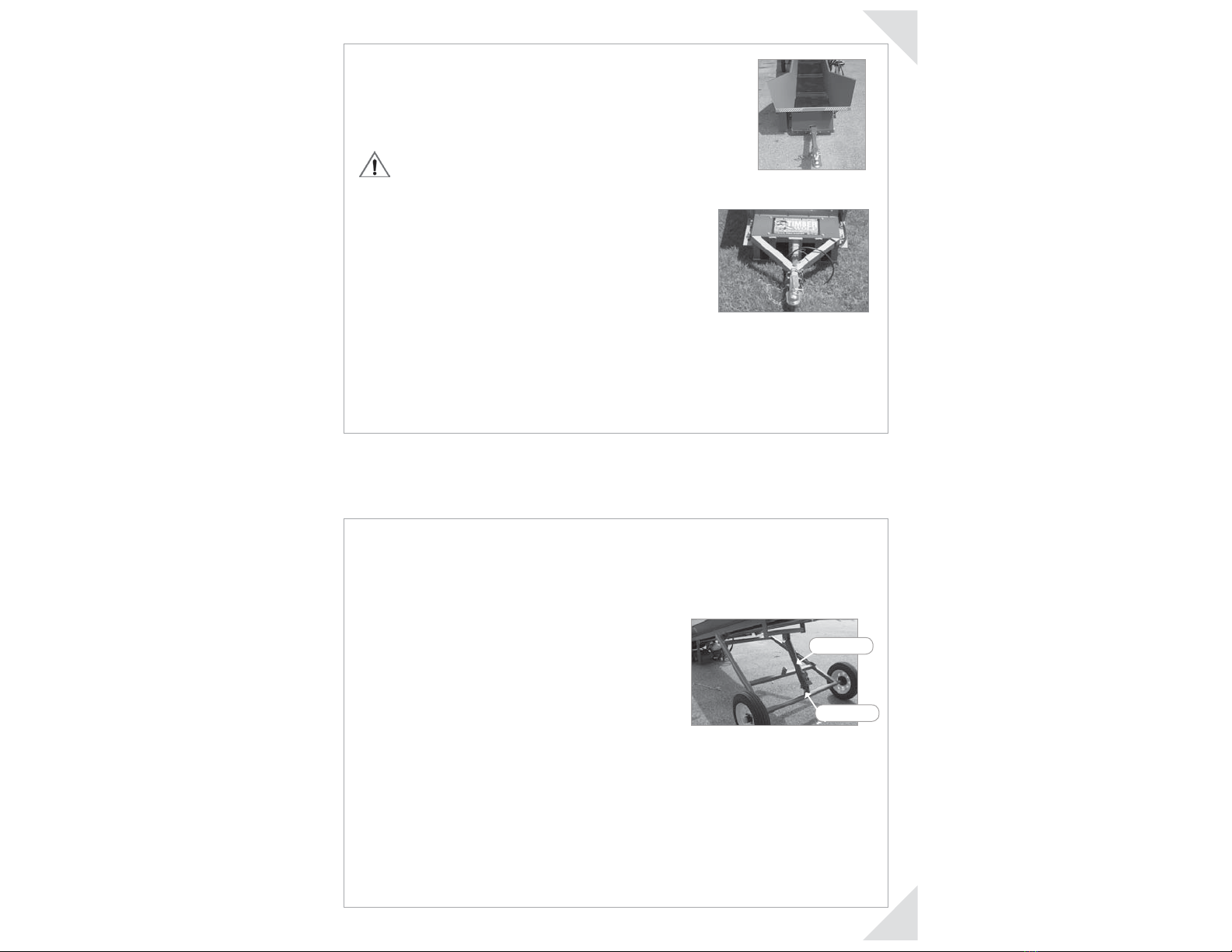

Conveyor Towing Hitch
(TW-C12, TW-C20, TW-C24, TW-C26)
Conveyor Towing Hitch
(TW-C30HD)
• Check for hazards around the conveyor. Make sure area is free
of slippery surfaces and objects to trip over
• Make sure there won’t be people or animals in the area around the conveyor
• Plan access for the trucks or trailers to be loaded by the conveyor
• If conveyor is equipped with optional chip separator, plan for collection and removal of
chips and other scraps; separator drops debris 2 - 3 feet back from top of conveyor
New Location Set Up
Position conveyor in the selected location, then disconnect tow vehicle:
• Firmly block wheels so conveyor can’t roll in either direction
(continued on next page)
Hydraulic Jack
Jack Handle
Height Adjustment Mechanism

10
TW-C12, TW-C20, TW-C24, TW-C26, TW-C30HD CONVEYORS OPERATOR’S MANUAL
Set Up & Take Down
Set Up & Take Down
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT 9
Set Up Procedure (Continued)
Set Up Procedure (Continued)
TW-C30HD Height Adjustment Overview
Timberwolf TW-C30HD conveyors are equipped with a hydrualically driven height
adjustment system:

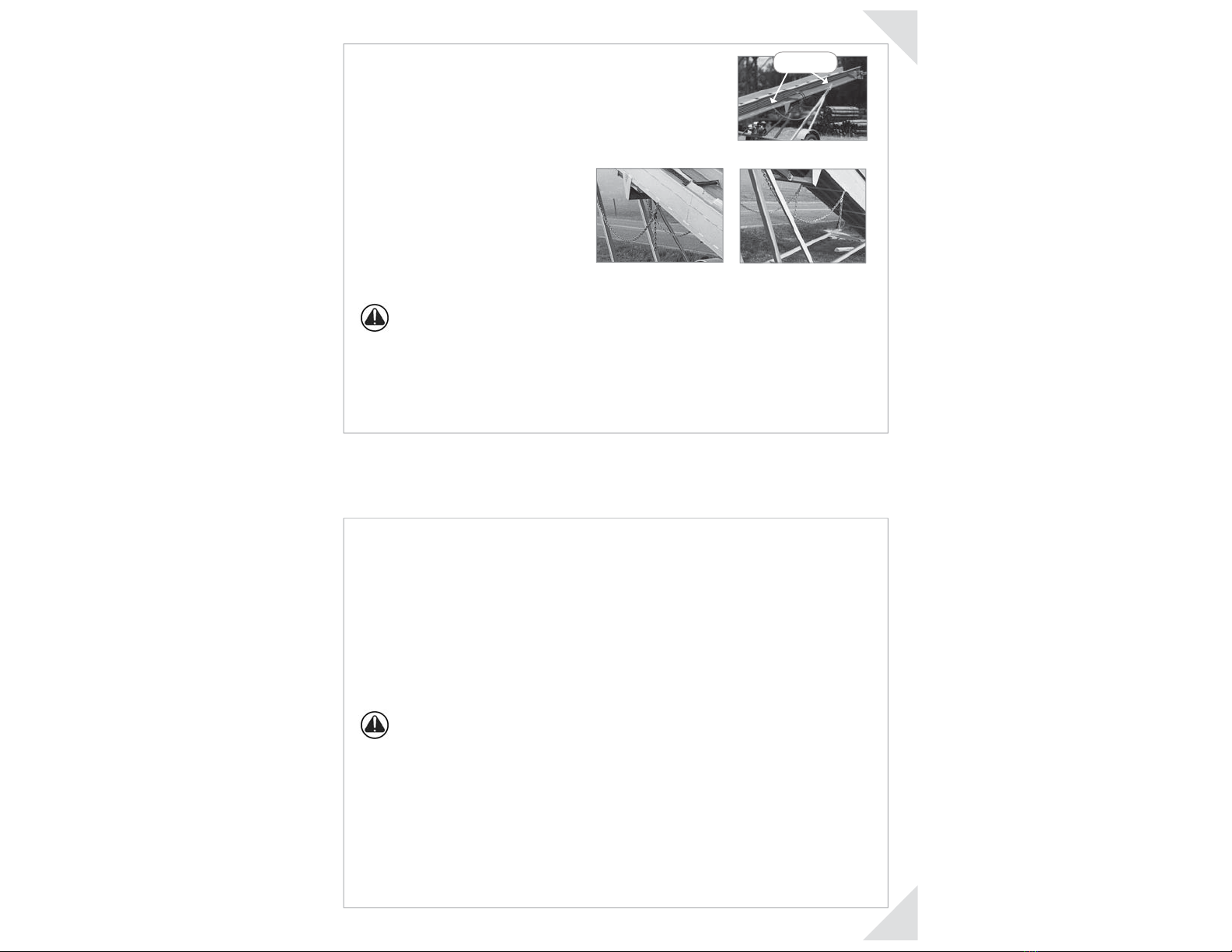

Safety Chain Securing Hooks
(TW-C30HD)
Safety Chain Securing Hooks-
Left Side (TW-C30HD)
Safety Chain Securing Hooks-
Right Side (TW-C30HD)
All conveyors have safety chains for securing the support
arms to the conveyor frame in order to prevent accidental
descent when raised.
There are also retainer bolts, one on each side, that fi rmly
secure the conveyor when it is in its retracted position.
The retainer bolts keep the conveyor from bouncing on
the support arms during transit, thereby reducing wear
and tear and risk of damage. They must be removed
before raising the conveyor, and should always be re-
installed before it is moved.
Retainer bolts must be removed before the conveyor can be raised. Attempting to raise the
conveyor with the bolts in place can damage the equipment and cause injury to the operator.
CAUTION
TW-C30HD Hydraulic Height Adjustment
A conveyor can be equipped for height adjustment powered by the hydraulic pump and operated by a control valve lever. The height
adjustment lever is located with the conveyor control; on the conveyor for a self-powered unit, or at the processor’s operator station for a
processor powered unit.
1. Start and warm up the conveyor or processor engine and hydraulic system.
2. Remove retainer bolts when starting from fully retracted position. Store them in a safe place.
3. Use the Conveyor Height control lever to raise the conveyor to the required height. Safety chains go slack as the conveyor rises.
4. Hook safety chains as tightly as possible when conveyor is at the required height.
5. When making any further adjustments, remember that conveyor can be raised higher with chains in place, but chains must be
unhooked before conveyor height can be adjusted downward.
Always secure safety chains when the conveyor is raised. Do not rely on
the hydraulic cylinder to maintain the conveyor in its raised position.
CAUTION
Safety Chain
(One Each Side)
Processor Hydraulic Power
Timberwolf hydraulic conveyors can be equipped to be powered and controlled by a Timberwolf fi rewood processor. An externally powered
conveyor does not have an engine and pump, hydraulic tank, or control valve lever. The fi rewood processor assumes the functions of
those components.
A processor set up to power a conveyor is equipped with a hitch adapter for connecting the conveyor to the processor, and a control lever
and set of hydraulic connectors for the conveyor.
(continued on next page)
Altri manuali per TW-C12
1
Questo manuale è adatto per i seguenti modelli
4
Indice
Altri manuali Timberwolf Attrezzature industriali
