Timeguard PDSM1500 Manuale

Installation & Operating Instructions

360° Surface Mount Ceiling

PIR Light Controller

Model: PDSM1500

1 2

1. General Information

These instructions should be read carefully and retained for further reference

and maintenance.

2. Safety

• Before installation or maintenance, ensure the mains supply to the PIR sensor

is switched off and the circuit supply fuses are removed or the circuit breaker

turned off.

• It is recommended that a qualified electrician is consulted or used for

the installation of this PIR sensor and install in accordance with the

current IEE wiring and Building Regulations.

• Check that the total load on the circuit including when this PIR sensor

is fitted does not exceed the rating of the circuit cable, fuse or circuit breaker.

3. Technical Specifications

• 230V AC 50 Hz

• This PIR is of Class ll Construction and must not be earthed

• Motion Detection Range: Up to 10 metres diameter (4.5m Radius)

at a mounting height of 3 metres

• Presence Detection Range: Up to 3 metres diameter (1.5m Radius)

at mounting height of 3 metres

• Detection Angle: 360°

• Maximum Switching Load: 1500W Halogen/Fluorescent Lighting

420W LED Lighting

420W Discharge Lighting (SON, HQI)

250W Fan Load

• Time ON Adjustment: 1 minute to 30 minutes

• Dusk Level Adjustment: Day and Night or Night time only operation

• Minimum depth of Back Box: 16mm

• IP55 Rated suitable for restricted internal applications

• CE Compliant

• EC Directives: Conforms to latest directives

2 3

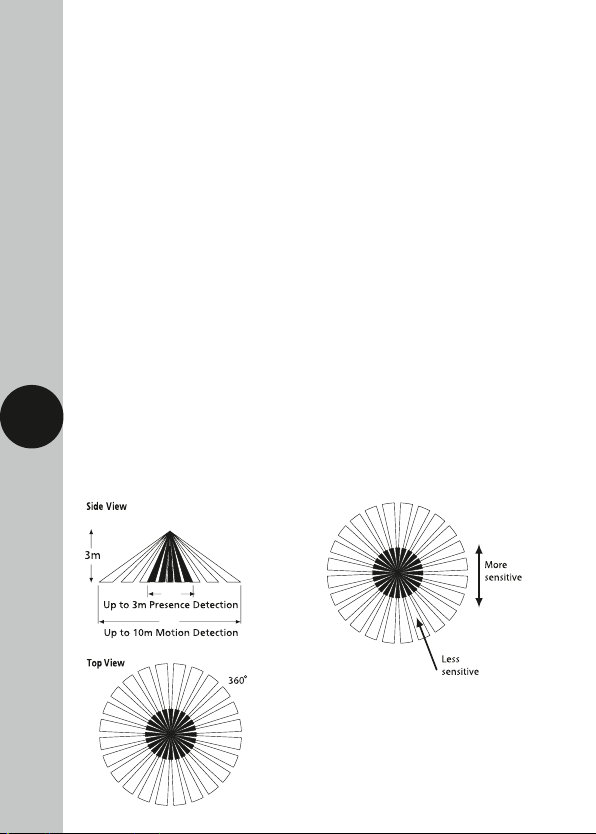

Diagram A Diagram B

• Multiple PIR Sensor Switching: A maximum of 4 PDSM1500 PIR sensors can be

wired in parallel, to enable any detector to turn

ON all the lights connected (The total load must

not exceed the lamp rating of a single

PDSM1500 unit).

4. Selecting a Location

• Careful positioning of the sensor will be required to ensure optimum

performance (See diagram “A” & “B” detailing detection range and direction).

• The best all-around coverage is achieved with the unit mounted at the optimum

height of 3 metres.

• The sensor is more sensitive to movement ACROSS its field of vision than to

movement directly TOWARDS (see diagram “B”). Therefore position the unit

so that the sensor looks ACROSS the likely approach path.

• Reflective surfaces (i.e. pools of water or white-painted walls) may cause

false activation under extreme conditions.

• During extreme weather conditions the motion sensor may exhibit unusual

behaviour. This does not indicate a fault with the sensor. Once normal

weather conditions return, the sensor will resume normal operation.

230V

50Hz

Mains

Supply

Switched

Load

OUT

230V

50Hz

Mains

Supply

Switched

Load

OUT

3 4

5. Installation

• Ensure the mains supply is switched off and the circuit supply fuses are removed

or the circuit breaker turned off.

• An isolating switch should be installed to enable the power to be switched ON

and OFF for maintenance purposes.

• Terminate the230V 50Hz mains supply and load cables into the terminal block

ensuring correct polarity is observed and that all bare conductors are sleeved

(See section 6. Connection Diagram).

• The adjustment knobs located beneath the sensor head (see diagram “C”)

are factory set to “Walk Test Mode”. Double check they are set as follows;

TIME – Fully anti-clockwise (Test mode).

DUSK – Fully clockwise.

• Fit the sensor to the wall box and secure it with the two fixing screws provided.

Diagram C Diagram D

230V

50Hz

Mains

Supply

Switched

Load

OUT

230V

50Hz

Mains

Supply

Switched

Load

OUT

6. Connection Diagram

• Connect cables to the terminal block as follows;

230V AC 50Hz Mains Supply

Live (Brown or Red) to L

Neutral (Blue or Black) to N

Load

Switch Live (Brown or Red) to L1

Neutral (Blue or Black) to N

LL1N

230V AC 50Hz

MAINS SUPPL

LOAD

ISOLATION SWITCH

230V

50Hz

Mains

Supply

Switched

Load

OUT

5 6

7. Setting Up

Walk Test Procedure

• Turn the power to the unit ON.The lamp will immediately illuminate

as the unit goes through its “warm-up” period. After approximately

1 minute the lamp will extinguish. This indicates the unit is

wired correctly and the unit is in Test Mode.

• Try to remain outside the detection area during the warm-up period.

• The unit will now operate during daytime as well as at night, illuminating the

lamp for approx. 5 seconds each time. This allows testing to be carried out

to establish whether the sensor is covering the required area.

• Walk across the location the sensor is fitted, to establish the detection area.

• The sensor will detect you approximately up to 9 metres forward at mounting

height of 1m.

• As you cross a detection “zone” the lamp will illuminate. Now stand still

until the lamp extinguishes (this should take approx. 5 seconds).

• Start moving again after 2 seconds. As you cross each “zone” the lamp

will illuminate.

• Repeat the above, walking at various distances and angles to the unit.

This will help you to confirm the detection pattern.

Setting Up for Automatic Operation

• When walk tests are complete, the unit can be adjusted for

automatic operation.

• The TIME setting controls how long the unit remains illuminated

following activation & after all motion ceases.

• Use a thin flat blade screwdriver to make adjustments.

• The Time control knob at fully anti-clockwise is Test Mode, slightly adjust

to above the T is minimum time approx. 1 min, whilst the maximum time

(fully clockwise) is approx. 30 minutes.

• Set the control to the desired setting between these limits.

• The DUSK control determines the level of darkness required for the unit

to start operating. The setting is best achieved by the procedure below;

1. Set the DUSK control knob fully anti clockwise.

2. When the ambient light level reaches the level of darkness at which

you wish the lamp to become operative (i.e. at dusk) SLOWLY rotate

the control in a clockwise direction until a point is reached where

the lamp illuminates.

3. Leave the control set at this point.

• At this position the unit should become operative at approximately

the same level of darkness each evening.

• Observe the operation of the unit. If the unit is starting to operate too early

(i.e. when it is quite light) adjust the control slightly anti-clockwise.

If the unit starts to operate too late (i.e. when it is very dark).

Adjust the control slightly clockwise.

• Continue to adjust until the unit operates as desired.

7 8

HELPLINE

020 8450 0515

8. Troubleshooting

Problem

• The lamp stays

ON all the time

at night.

• The PIR keeps

activating for no

reason at random.

• The PIR will not

operate at all.

Solution

Cover PIR lens with a thick cloth. If the light turns out,

check detection area for heat or reﬂective source.

If the light stays ON, check wiring (See section 6.

Connection Diagram).

Turn off at the isolation switch. Turn back ON again

after 30 seconds. Leave for approximately 15 minutes.

If light activates, check area for false activation from

heat, wind or reﬂective source.

Check that the power is switched ON at the power

supply or isolation switch.

Turn OFF the power to the unit and check the wiring

connections (See section 6. Wiring Diagram).

Check the lamp. If the lamp has failed, replace.

Ensure that the lamp is seated correctly in the lamp

holder. Please note that the unit will not detect

through glass. (e.g. in a glazed porch).

• The PIR sensor will

not operate at night

• The unit activates

during the daytime

The level of ambient light in the area may be too bright

to allow operation at the current DUSK setting.

During the hours of darkness, adjust the DUSK control

slowly clockwise until the lamp illuminates (See section

7. Setting Up).

Adjust the DUSK Control setting anti-clockwise to

lower the level of ambient light required for activation.

3 Year Guarantee

In the unlikely event of this product becoming faulty due to defective material

or manufacture within 3 years of the date of purchase, please return it to

your supplier in the first year with proof of purchase and it will be replaced

free of charge. For years 2 and 3 or any difficulty in the first year,

telephone the helpline on 020 8450 0515.

Note: A proof of purchase is required in all cases. For all eligible replacements

(where agreed by Timeguard) the customer is responsible for all shipping/

postage charges outside of the UK. All shipping costs are to be paid in

advance before a replacement is sent.
