Timeguard BoostMaster TGBT6 Manuale

Installation & Operating Instructions

2 Hour Electronic

Plug-In Boost Timer

Model No. TGBT6

1 2

1. General Information

These instructions should be read carefully and retained for further

reference and maintenance.

2. Safety

• Do not plug in any appliance that exceeds the capacity of the Timer.

• Always ensure the plug of any appliance is fully inserted into

the timer outlet.

• If cleaning of the timer is required, remove from mains power

and wipe timer with a dry cloth.

• Do not immerse in water or any other liquid.

• For indoor use only.

3. Technical Speciﬁcations

• 230V AC 50 Hz

• Switch Rating: 13A Resistive (3kW)

1000W ﬁlament or halogen lighting

500W Fluorescent lighting

100W low energy or LED Lighting

• Boost Times: ¼, ½, 1, 2 hours

• Operating Temperature: 0°C to +40°C

• CE Compliant

• Dimensions (H x W x D): 102 x 55 x 46mm

Note: Not suitable for use with Discharge Lighting

1hr

2hr

1/2

1/4

Boost

2 3

Also available in the Boost timer range:

• TGBT4 2 hour boost timer.

• TGBT5 4 hour boost timer.

• FBT4 2 hour fused spur boost timer.

• FBT5 4 hour fused spur boost timer.

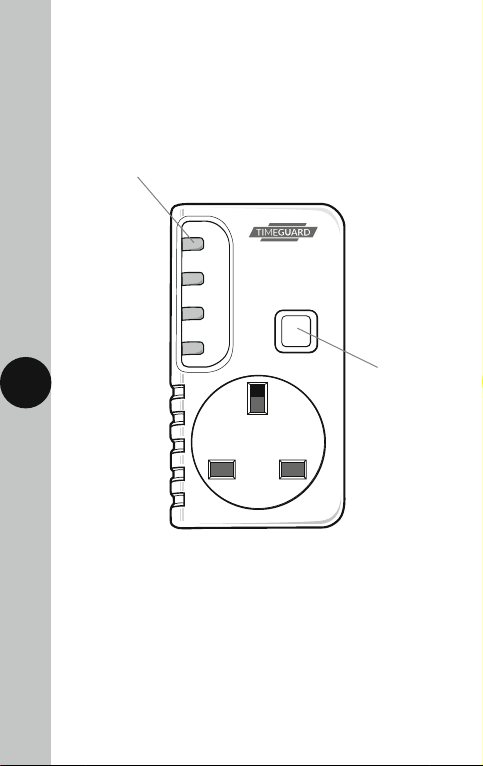

Boost time LED’s

Boost Button

4. Operation

• Plug the TGBT6 into a 13A socket and plug the load into the TGBT6.

• Press the button marked Boost repeatedly to select your desired

ON time.

• The LED’s adjacent to the time markers (above the Boost button)

will light up in the sequence;

First push gives ¼ hour boost (LED opposite ¼ hour is ON)

Second push gives ½ hour boost (LED opposite ½ hour is ON)

Third push gives 1 hour boost (LED opposite 1 hour is ON)

Fourth push gives 2 hour boost (LED opposite 2 hour is ON)

Fifth push returns to zero boost (all LEDs are OFF).

• Once the boost selected is underway, the LEDs will go out

sequentially, indicating the approximate boost time remaining.

The LED which is about to go out will ﬂash when there is less

than 2 minutes remaining of that period.

Example: 2 hour boost has been set, all LEDs are on;

After 58 minutes the 2 hour LED will ﬂash for two minutes,

and then go out indicating 1 hour remaining.

After a further 28 minutes, the 1 hour LED will ﬂash for two minutes,

and then go out indicating ½ hour remaining.

After a further 13 minutes, the ½ hour LED will ﬂash for two minutes,

and then go out indicating 15 minutes remaining.

After a further 13 minutes the ¼ hour LED will ﬂash for two minutes,

and then go out, indicating that the boost period has ﬁnished.

• In this way the user has an approximate guide to the remaining

duration of the boost.

3 Year Guarantee

In the unlikely event of this product becoming faulty due to defective

material or manufacture within 3 years of the date of purchase, please

return it to your supplier in the first year with proof of purchase and it

will be replaced free of charge. For the second and third years or any

difficulty in the first year telephone the helpline on 020 8450 0515.

Note: A proof of purchase is required in all cases. For all eligible

replacements (where agreed by Timeguard) the customer is responsible

for all shipping/postage charges outside of the UK. All shipping costs

are to be paid in advance before a replacement is sent out.

5. Stopping or Increasing Boost

• During the ﬁrst 15 seconds of activating the boost timer, it can be

stopped by pressing the boost button repeatedly until all the LEDs

are off.

• It can also be stopped during this time period, by holding down the

boost button until all the LEDs are off.

• After the ﬁrst 15 seconds of activation, the boost may be cancelled

with a single push of the boost button.

• The Boost periods can only be increased during the ﬁrst 15 seconds

of activation. At all other times, the boost must be cancelled ﬁrst,

and the required boost periods re-entered.

• If the boost button is pushed and held down, the LEDs will cycle

upwards with 1 second between each change, in sequence

¼, ½, 1, 2, OFF.

Zerofour – March 2016

67-058-385 (Issue 2)

Timeguard Limited.

Victory Park, 400 Edgware Road,

London NW2 6ND

Sales Ofﬁce: 020 8452 1112

or email csc@timeguard.com

For a product brochure please contact:

HELPLINE

020 8450 0515

or email helpline@timeguard.com

www.timeguard.com

Qualified Customer Support Co-ordinators will be on-line

to assist in resolving your query.
