TMI Products VD53B Guida rapida

SII Products

ANALOGUE QUART

TECHNICAL GUIDE

PARTS CATALOGU

Cal.VD53B

Revised on : 12. Nov. 2010

[SPECIFICATION]

3 Hands ( Hour , Minute , Second )

Chronograph , 24H indicator & Calendar

Two pole stepping motor

Step motor 2 pieces

Electronic circuit reset switch

Second setting device

[ Time ]

Indicated by Hour , Minute , Second and 24-Hour hands

[ Stop watch ]

Up to 60 minute in 1 second split time

SR920SW ( SEIZAIKEN ) Silver oxide battery

φ9.5 × t 2.0 mm

Battery life is approximately 2 years

Use 10-second gate

*Set the winding stem with crown at the normal position

0 Jewel

SII Products

Less than ± 20seconds : Monthly rate at normal temperature range

≧1600 A/m

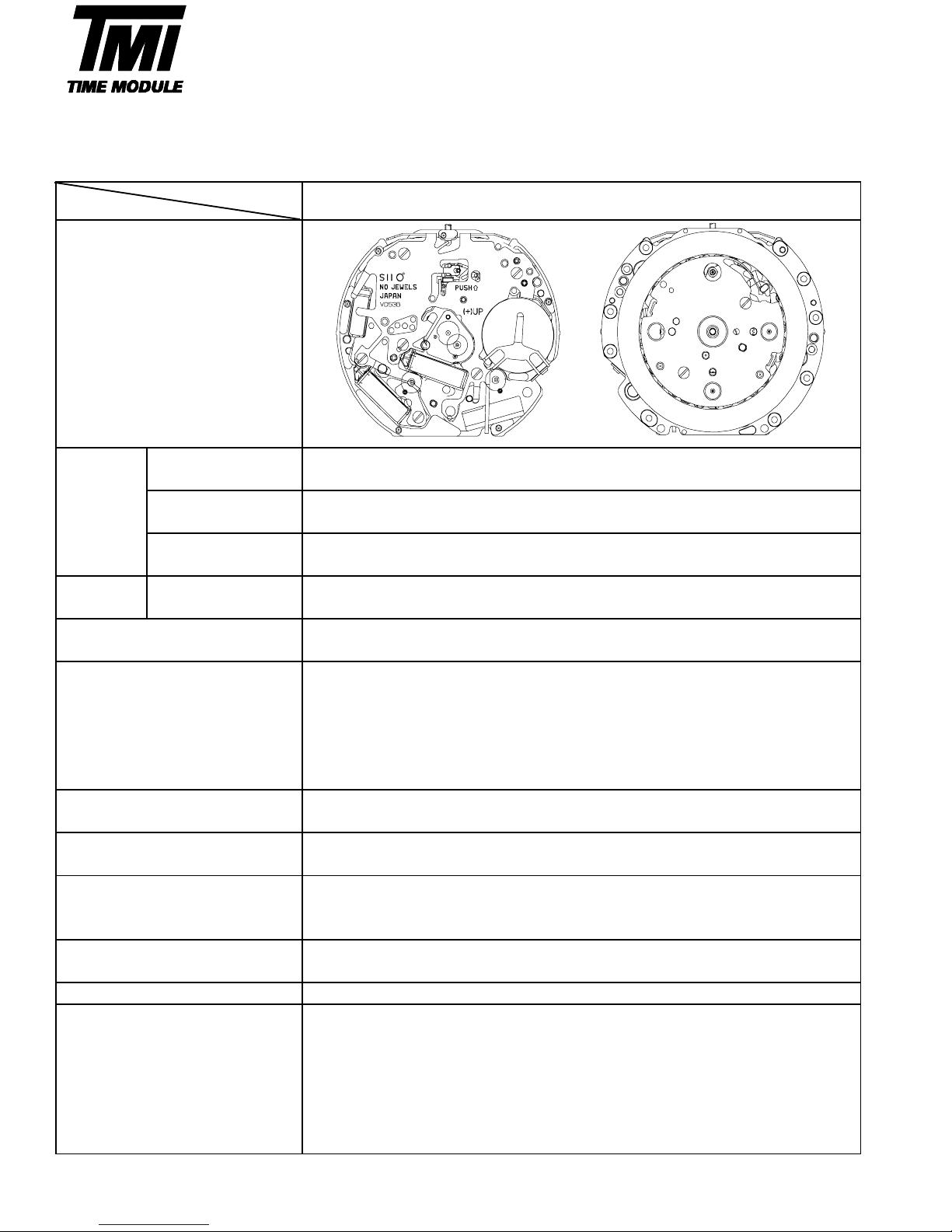

PARTS CATALOGUE / TECHNICAL GUIDE

VD53B

Cal. No.

Item

Cal.VD53B Version-03

Casing diameter

φ29.50 mm ( 12H - 6H ) × 26.00 mm

4.57 mm

Movement

　　　　size φ28.80 mm ( 12H - 6H )

Total height

Outside diameter

Time

indication

Driving　System

Jewels

Measuring gate by

　　　　　　　quartz tester

Battery

Accuracy

Antimagnetic

Additional mechanism

Disassembling procedures Figs. Lubricating : Types of oil Oil quantity

Reassembling procedures Figs. Moebius A Normal quantity

Moebius Ｆ

0012 079

Hour, minute Auxiliary Train wheel bridge screw

second hands 0808 368

Chronograph minute Date dial guard

second hands

24-Hour indicator

*Date dial

0126 368

Dial Auxiliary train wheel bridge

0806 368 0810 368

Date correction wheel Date jumper

0836 369 0157 006

Intermediate wheel for date corrector holder Small hour hand wheel

0737 891 0817 368

Intermediate wheel for date corrector ( C )

0886 003

Intermediate chronograph minute wheel 0962 891

and pinion (B) Intermediate wheel for date

corrector (B)

0902 008

Chronograph minute wheel 0885 002

0886 001 Intermediate chronograph

second wheel

0271 407 0888 009

Hour wheel Chronograph second wheel

17 Intermediate chronograph minute wheel and pinion (A)

1920

11 Intermediate date driving wheel

Version-04

D53B

PARTS CATALOGUE

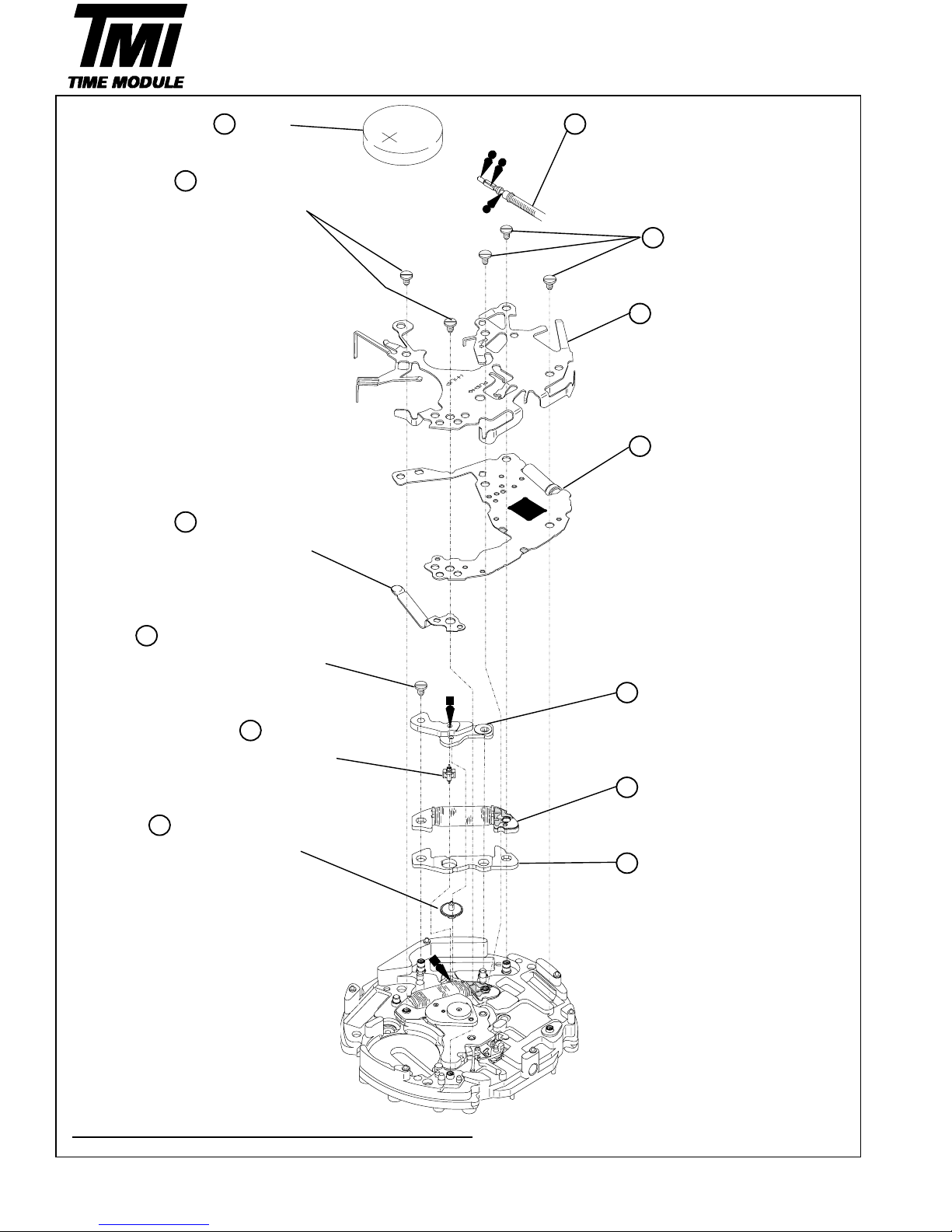

1⇒

47 ⇒

SII Products

Battery 0351 177

winding stem

0012 079

Switch spring screw

0012 079

Switch spring screw

4245 340

Switch spring

4004 258

Circuit block

4270 358

Battery connection (-)

0012 079

Train wheel bridge (B) screw

0125 331

Train wheel bridge (B)

4146 177

Step rotor (B)

4002 923

Coil block (B)

0701 014

Fifth wheel and pinion (B) 4239 357

Rotor stator (B)

*All parts code are subject to change without notice.

SII Products

Version-04

D53B

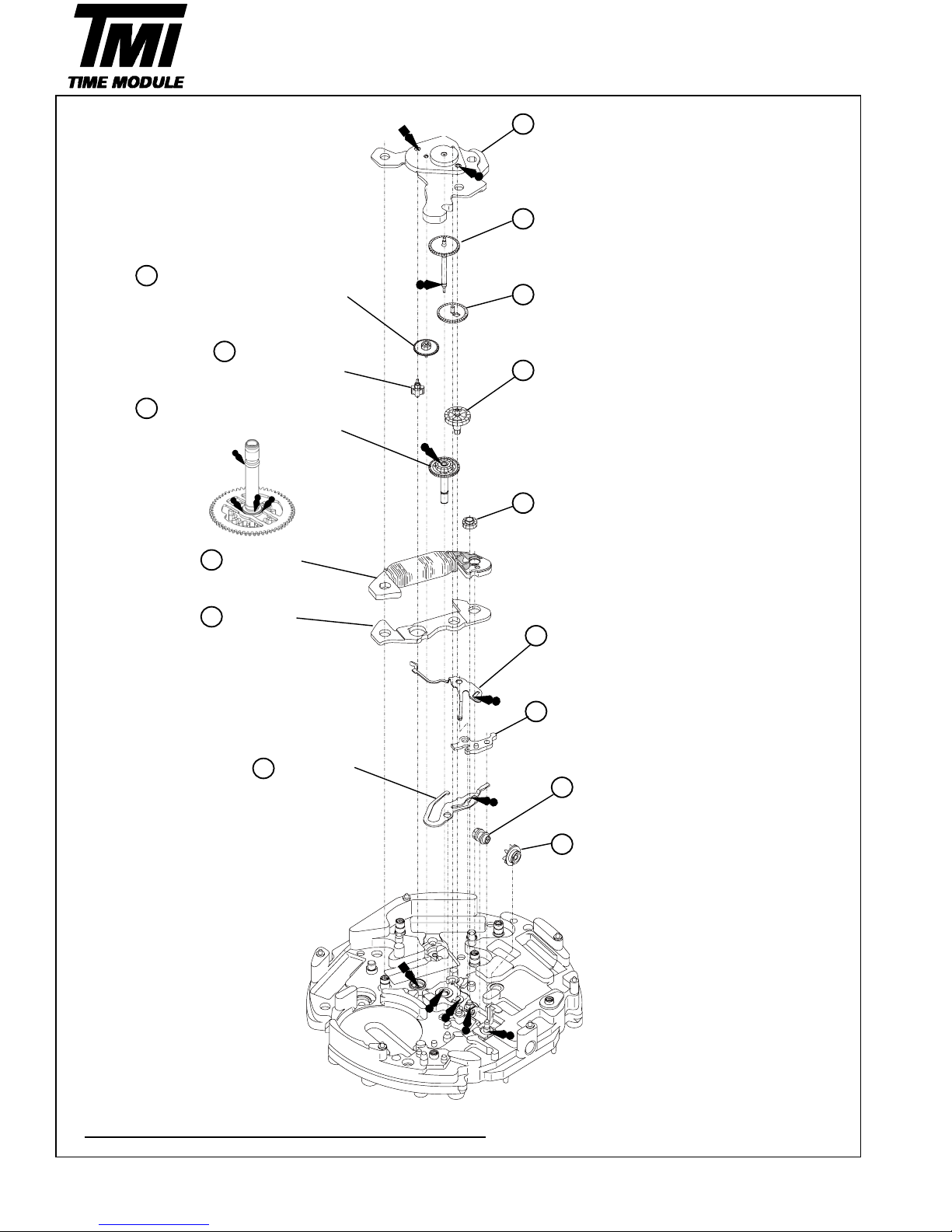

PARTS CATALOGUE

0125 248

Train wheel bridge (A)

0241 178

Fourth wheel and pinion

0701 904

Fifth wheel and pinion (A) 0231 904

Third wheel and

inion

4146 890

Step rotor (A) 0261 034

Minute wheel and pinion

0221 157

Center wheel and

inion

0281 904

Settin

wheel

4002 904

Coil block (A)

4239 357

Rotor stator

(

)

0391 368

Train wheel settin

lever

0383 368

Setting lever

0384 470

Yoke 0282 890

Clutch wheel

0962 890

*All parts code are subject to change without notice.

42 43

SII Products

Version-04

D53B

PARTS CATALOGUE

Intermediate wheel for date corrector (A)

Remarks:

Date dial

*All parts code are subject to change without notice.

SII Products

Version-03

D53B

PARTS CATALOGUE

Position of

date frame

4.5H

Color of

figure

Black

Color of

background

Part code

0878 220 3H

Position of

Crown

White

0878 165 3H 6H Black White

・The ex

lanation here is onl

for the

articular

oint of Cal.VD53B Tweezers

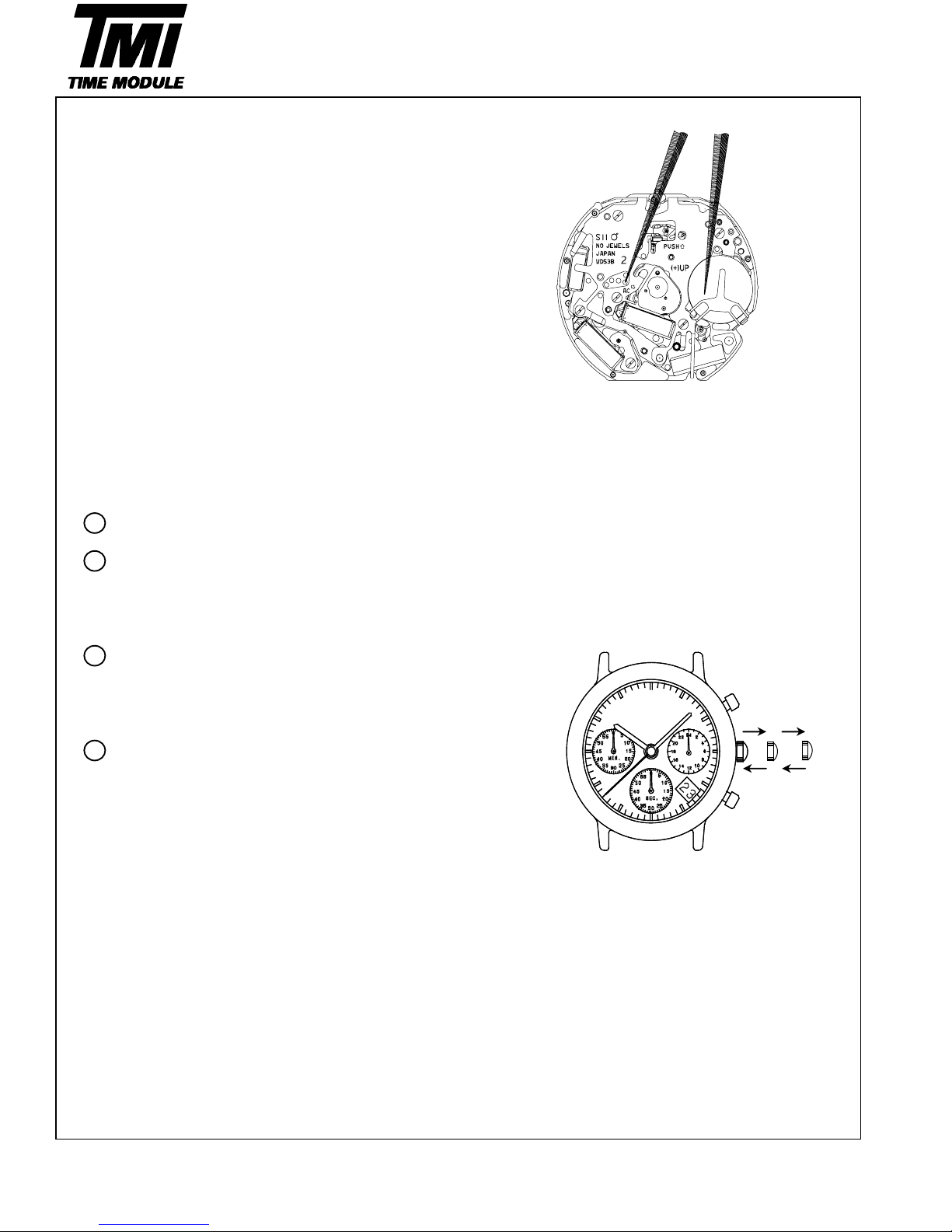

1.REMARKS ON INSTALLING THE BATTERY

1) After the battery is replaced with a new one or after the

battery is reinstalled following the repairing procedures,

Be sure to touch the short-circuit the AC terminal of circuit

block and the switch spring with conductive tweezers

to reset the circuit as illustrated at right.

)

When the batter

laced with a new one, the time information stored in the built-in IC and

the time indicated by the stopwatch hands do not correspond with each other.

Reset the stopwatch hands to "0" position following the procedure below.

If the stopwatch hands should move improperly, also follow the same procedure.

ORDER

Pull the crown out to the second click

osition.

Keep the buttons "A" and "B" pressed at the same time

more than 2 seconds, and then, release the buttons.

The stopwatch second hand move back and returned

to where it was.

Press button "A" or "B" to reset the sto

watch second

and minute hands to"0" position.

* B

ressin

button "A" , the hands move counter clockwise.

* By pressing button "B", the hands move clockwise.

Turn the crown to set the hour, minute and 24-hour

hands to the desired time, and push the crown back

to the normal position.

SII Products

Version-02

D53B

TECHNICAL GUIDE

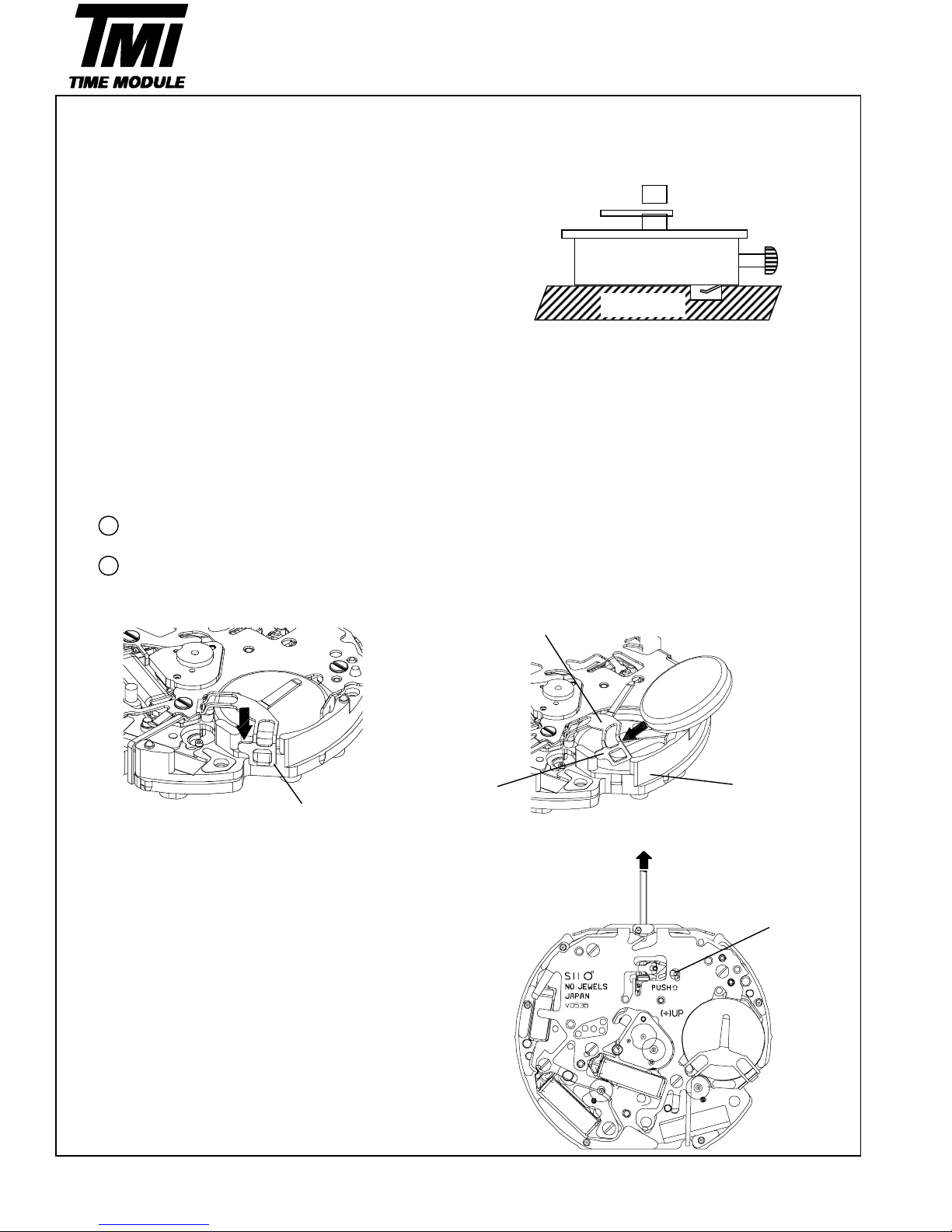

1.REMARKS ON INSTALLING THE BATTERY

(1) HAND

・How to install the hands

Place the movement directly on a flat metal plate or

the like and press in the hands.

*install the hour , minute and second hands at the

"12"o'clock position.

*install the chrono minute and second hands at the

"0"o'clock position.

*Install the 24-Hour indicator at the "24" position.

[ Reference ] The power of press hands

Minute & Hour Hands < 5kg

Second Hand < 5kg

Chrono Minute & Second < 3kg

24-Hour indicator < 3kg

(2) Battery

・How to install the batter

Remove the hook of the switch springs battery

clamp portion.

Insert the battery sideways, and have the hook of

the switch springs battery clamp portion catch

the main plate. Battery clamp position

Hook Main plate

Hook

(3) Winding stem

・How to remove

While pushing the indented portion of the arrow, pull out

the winding stem. Push

SII Products

Version-03

D53B

TECHNICAL GUIDE

Metal plate

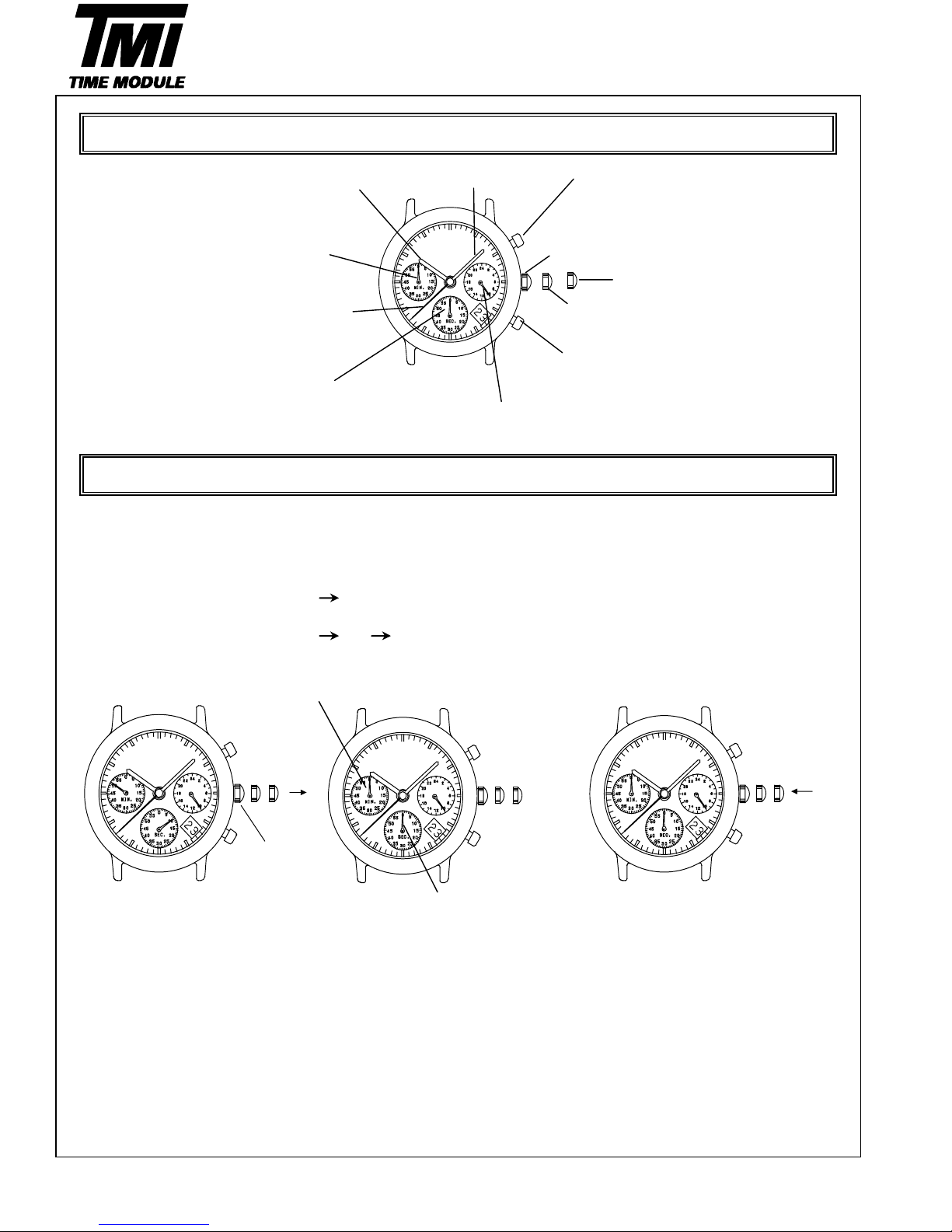

Hour hand Minute hand Button A

In stopwatch function

Start / Stop

Stopwatch minute hand Crown at normal position

(Move in minute increments) Second click

(

Time settin

)

Second hand First click ( Date setting )

Button B

In stopwatch function

Stopwatch second hand S

lit / S

lit release / Reset

(Move in second increments) 24-hour hand

(Indicates the time on a 24-Hour basis)

Before settin

the time , check if the sto

watch second and minute hands are in the "0"

(

12 o'clock

)

osition.

*if the stopwatch is in use , press the button in the following order to reset it , and then , check if the hands

return to "0" position. (For details , see "HOW TO USE THE STOPWATCH")

* If the stopwatch is counting :

* If the stopwatch is stopped :

* If the split time is displayed :

If either of the stopwatch hands are not in the "0" position , reset them following the procedure below.

Stopwatch minutes hand

Crown

Sto

watch second hand

1.Pull the crown out to 2.Press button A or B to reset the 3.Push the crown back to

the second click. sto

watch second and minute the normal

osition.

hand to "0"position.

*By pressing button A the hands

move counter clockwise.

*By pressing button B the hands

move counter clockwise.

SII Products

Version-03

D53B

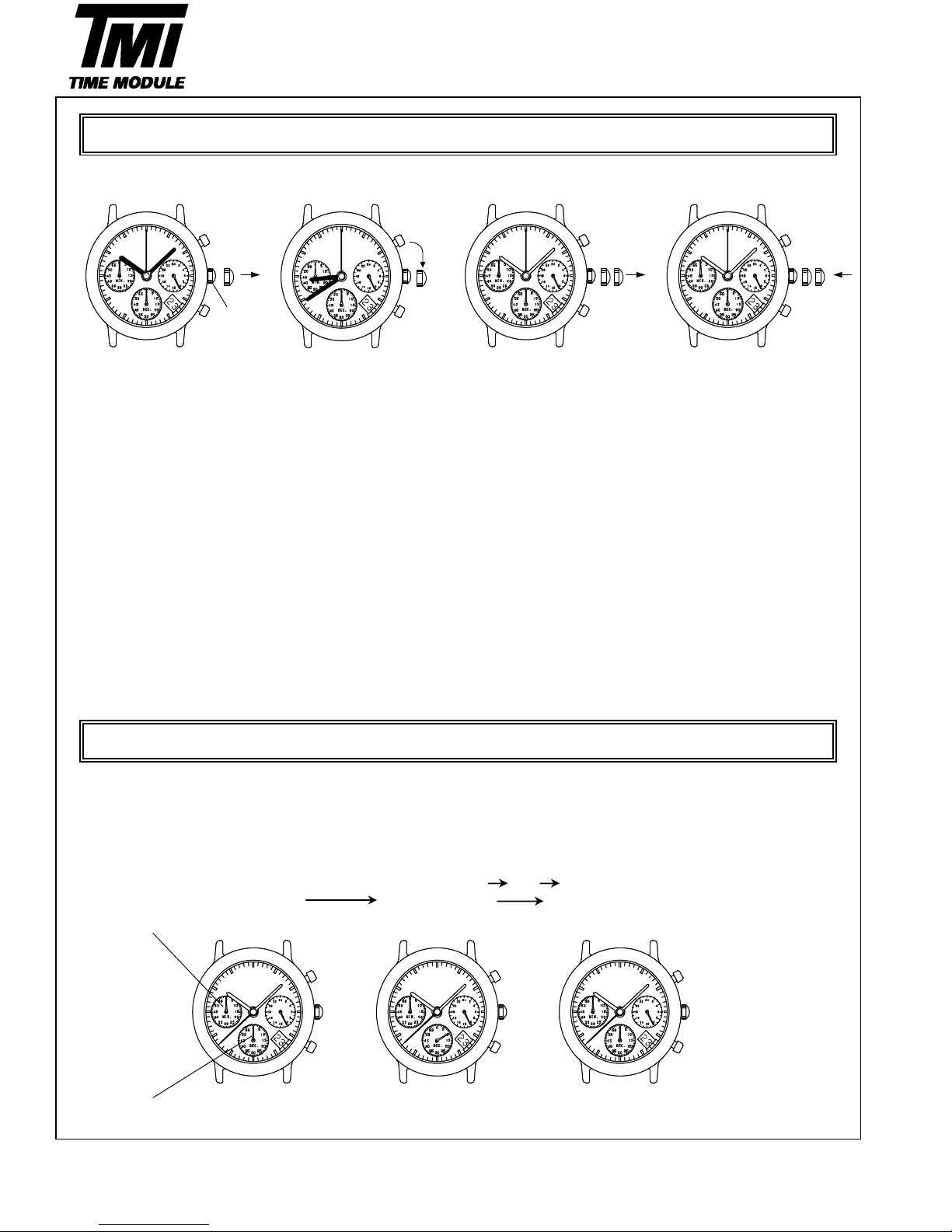

OPERATION

DISPLAY AND CROWN / BUTTON OPERATION

ADJUSTING THE STOPWATCH HAND POSITION

* Before setting the time , check that the chronograph measurement is stopped.

Crown

1.Pull out the crown to 2.Turn the crown clockwise 3.Pull out the crown to the 4.Push the crown back

the first click. until the previous day's second click when the in to the normal position

date appears. second hand is at the in accordance with a

12 o'clock position. time signal.

It will stop on the spot

and advance the hour

and minute hands by

turning the crown.

(Check that 24-hour hand

is set correctly.)

*When the crown is at the

click position. Do not press

any button. Otherwise, the

chronograph hands will move.

*Do not set the date between 9:00 P.M. and 1:00 A.M.

Otherwise, the day may not change properly. If it is necessary to set the date during that time period,

First change the time to any time outside it, set the date and then reset the correct time.

・The measured time is indicated by the stopwatch hands that move independently of the center and 24-hour hands.

・The stopwatch can measure up to 60 minutes in seconds.

(The watch indicates the measured time in second increments by ignoring off the 1/10 seconds obtained.)

(Standard measurement)

Ex) 100m race (Press the buttons in the following order )

stopwatch minute hand

stopwatch second hand

HOW TO USE THE STOPWATCH

Version-02

D53B

OPERATION

TIME SETTING

SII Products

10 second

RESET (Reset to "0'00")

AAB

START STOP (Finish)
