TMS LITE SDH-1000-D1 LIGHTING CONTROLLER UNIT
1 Channel 5V Analog Controller:
SDH-1000-D1
USER MANUAL
TMS LITE SDH-1000-D1 LIGHTING CONTROLLER UNIT
- i-
Contents
General Description..................................................................................................................................1
Front Panel ...........................................................................................................................................1
Specification of SDH-1000-D1............................................................................................................1
Specification of Adaptor 24VDC .........................................................................................................1
Configuration ...................................................................................................................................2
Connections......................................................................................................................................2
Panel Label:......................................................................................................................................2
Current DIP Switch Settings.............................................................................................................3
Power ON.............................................................................................................................................3
Constant................................................................................................................................................4
Dimension Layout ....................................................................................................................................4
Schematic SDH-1000-D1.........................................................................................................................4
Accessories...............................................................................................................................................5
Power Cord Information...........................................................................................................................6
Revision Notes
Rev
Date/Author
Comment
1.0
YVONNE
First Editor
1.1
KWNG
Update Information
TMS LITE SDH-1000-D1 LIGHTING CONTROLLER UNIT
- 1-
General Description
Introduction
The SDH-1000-D1controller provides analog intensity control of 5V LED lighting for
machine vision applications. The SDH-1000-D1 provides single channel output, with
current output selection.

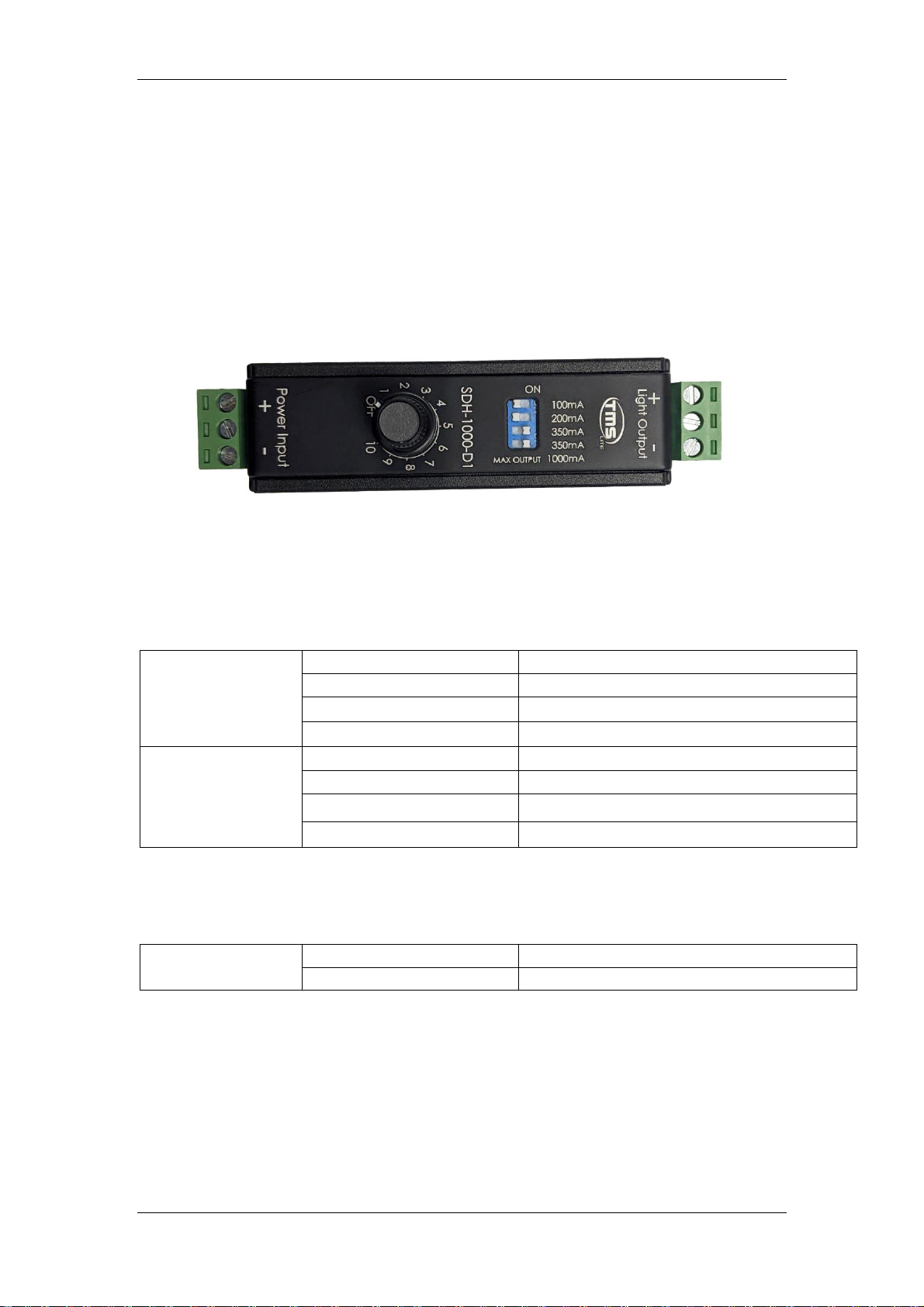

Front Panel
The front panel consists of VR KNOB (Control LED Intensity range from 1~10) and Dip Switch
4 Way (Current Selector)
Specification of SDH-1000-D1
Power
Controller Supply Voltage
24 VDC
Lighting Output
5 VDC
Input Current
Min 1.2A
Output current
Max 1.0A / channel
Function
No. of Channel
1
Intensity Control
VR Adjustable
Intensity Range
1 ~ 10 steps
Current Output Selection
100mA –1000mA
Specification of Adaptor 24VDC
Input Power
Supply
Input Power rating
100V - 240V AC, 50/60 Hz, 2.0A
Output Power rating
24VDC, 2.7A
Remark:
The Intensity of light is affected by the length of the lighting cable.
TMS LITE SDH-1000-D1 LIGHTING CONTROLLER UNIT
- 2-
Configuration
Connections
For SDH-1000-D1 to operate properly, the unit terminals must be connected correctly.
The terminals voltage polarity must be followed accordingly to prevent damage to the
unit.
Power Input Terminals
These terminals are to be connected to a 24V DC power supply with minimum
1200mA capability.
Light Output Terminals
These terminals are to be connected to 5V-Lightings for a 24V DC power supply at
Lightings Input Power Terminals.
Panel Label:
(TOP View)
Current Output
Selector
VR KNOB Control
LED Intensity
Lighting Output
Terminals
(+5VDC)
Power Input
Terminals
(+24VDC)
TMS LITE SDH-1000-D1 LIGHTING CONTROLLER UNIT
- 3-
Current DIP Switch Settings
The DIP Switches sets the maximum output current to the Lighting Output for over current
protection for each respective channel.
Factory default for each channel is 300mA.
Caution: Make sure the selected maximum current output is suitable for
lighting to prevent damage to both the lightings & Controlle
Switch
Output Current (mA)
1
(100mA)
2
(200mA)
3
(350mA)
4
(350mA)
OFF
OFF
OFF
OFF
INVALID
ON
OFF
OFF
OFF
100
OFF
ON
OFF
OFF
200
ON
ON
OFF
OFF
300
OFF
OFF
ON
OFF
350
OFF
ON
ON
OFF
550
ON
ON
ON
OFF
650
OFF
OFF
ON
ON
700
ON
OFF
ON
ON
800
OFF
ON
ON
ON
900
ON
ON
ON
ON
1000
DIP Switch Settings for Maximum Lighting Output Current
Power ON
The default current setting for the controller is 600mA. If other current settings are desired,
please make sure LED Lighting Current can support before power on the unit.
Connect the lighting connectors to the lighting connection terminals.
Connect a power +24 VDC to terminal block with label POWER INPUT ( +) and ( -)at
casing. The POWER LED at Board will be ON when user have switch “ON” the VR by turning.
TMS LITE SDH-1000-D1 LIGHTING CONTROLLER UNIT
- 4-
Operating Modes
Constant (Analog VR intensity control)
Constant
The unit has constant mode intensity from 1 to 10 (Analog).
Independent VR controls the lightings intensity of each channel.
The Lightings intensity is set by manually adjust the position of VR Knob (label 1-10) on the
casing.
When VR Knob position at '1', it sets the lightings intensity at minimum.
When VR Knob position at '10', it sets the lightings intensity at maximum.
Dimension Layout
Unit = mm
Schematic SDH-1000-D1
TMS LITE SDH-1000-D1 LIGHTING CONTROLLER UNIT
- 5-

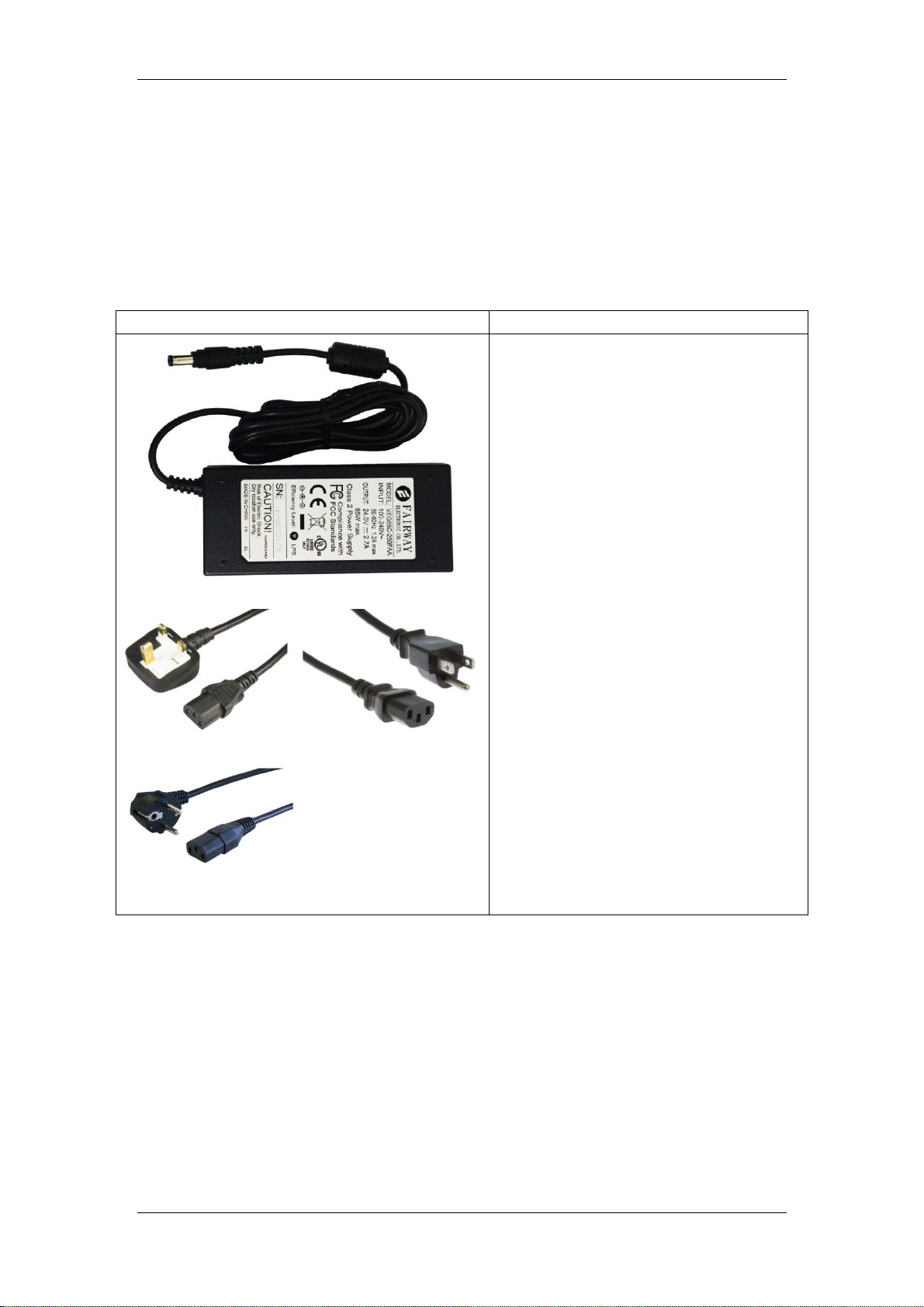

Accessories
Additional accessories that can be used with SDH-1000-D1 controllers.
24V Adaptor power supply
Choose one Power Cord UK, US or EU
MODEL
SPECIFICATIONS
24V ADAPTOR POWER SUPPLY WITH
POWER CORD
SDH-1000-D1-PS2.7A-UK
(CONTROLLER WITH 24V
ADAPTOR AND UK POWER
CORD)
SDH-1000-D1-PS2.7A-US
(CONTROLLER WITH 24V
ADAPTOR AND US POWER CORD)
SDH-1000-D1-PS2.7A-EU
(CONTROLLER WITH 24V
ADAPTOR AND EU POWER CORD)
TMS LITE SDH-1000-D1 LIGHTING CONTROLLER UNIT
- 6-
Power Cord Information
The cable length is 1.8 Meter length of power cord.
240VAC Power Cord (UK)
220VAC Power Cord (EU)
110VAC Power Cord (US)
