TOA 9000 Series Application Guide
Table of Contents
Introduction ................................................................................................................................................ 3
Chapter 1: Matrix Mode Applications
1) Office/retail store: Telephone paging and Music-On-Hold .................................................. 4
2) Office/retail store/factory: Multi-zone paging ....................................................................... 5
3) Retail store: Multi-zone paging with night ringer and music-on-hold ................................... 6
4) Restaurant/Bar: Multiple A/V sources, jukebox and zone paging ....................................... 7
5) Fitness club: Multiple music sources, zone paging and digital message repeater .............. 8
Chapter 2: Mixer Mode Applications
1) Hotel/banquet: Room combining ......................................................................................... 9
2) Conference room: 4 microphone conference w./teleconferencing .................................... 10
3) Church/auditorium: 8 microphones with auto-mixing ........................................................ 11
3
TOA 9000 Series Application Guide
Welcome to the TOA 9000 Series Application Guide!
In this guide, you'll find several application examples to help you take advantage of the powerful flexibility of the
9000 series.
If you're designing a system to be used primarily for zone paging, you will find some examples in Chapter 1, using
the 9000 series "Matrix mode. "This mode provides a unique paging-oriented feature-set affording a high degree of
flexibility for the routing of paging audio, as well as the ducking of background music, with variable mute depth and
up to 8 priority levels.
If the system is for a more traditional mixing application, such as a board room, training room, auditorium, church,
or hotel meeting room, or any application where zone paging is not needed, the 9000 series "Mixer mode"
provides full matrix-mixing capability with easy-to-use front panel controls and a rich feature set including auto-
mixing, cross-point gain controls, up to 32 complete "scene" presets, and one level of priority paging.
We hope you enjoy exploring the examples in this guide and that you'll find the 9000 Series mixer/amplifiers to be
a helpful partner in your work.
4
TOA 9000 Series Application Guide

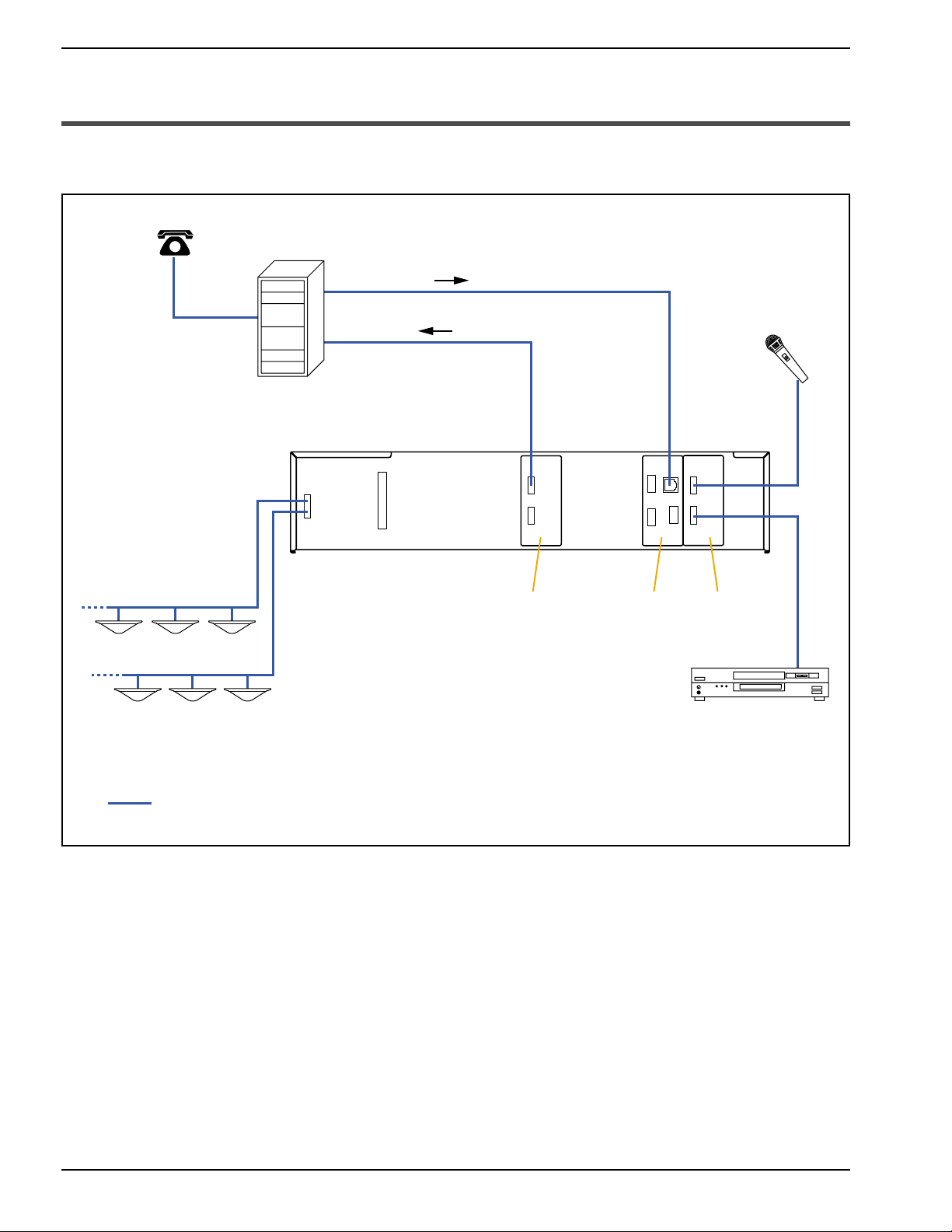

1) Office/retail store: Telephone paging and Music-On-Hold
• Route the CD player music to Output 1 (Zone 1), Output 2 (Zone 2) and T-001T output. The T-001T output is
connected to the MOH (Music-On-Hold) input of the PBX.
• Route the ZP-001T paging input to both Output 1 (Zone 1), Output 2 (Zone 2).
• A caller from one of the telephone extension lines of the PBX can page through the amplifier by dialing the
extension number connected to the ZP-001T and the zone number.
• MOH music will never stop even when Zone 1 or Zone 2 is paged.
D-001TZP-001TT-001T
Extension line
MOH input
Zone 1
Zone 2
PBX
CD player
Microphone
Audio
A-9060DH
Chapter 1: Matrix Mode Applications
T-001T D-001T
Microphones
AM/FM tuner
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Zone 6
CD player
Cassette player
Audio
A-9060DH
Power
amplifier
Power
amplifier
5
TOA 9000 Series Application Guide
2) Office/retail store/factory: Multi-zone paging
•Route each input to desired outputs (zones). Assign a higher priority for each microphone input over BGM
sources.
•Also activate "VOX" function for each microphone input to enable "paging over BGM."
6
TOA 9000 Series Application Guide
D-001T
ZP-001T
S-04S
T-001T
Satellite BGM player
Extension line
MOH input
Door bell
Switch
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Zone 6
Night ringer output
PBX
CD player
Audio
A-9060DH
Control
Power
amplifier
Power
amplifier
3) Retail store: Multi-zone paging with night ringer and music-on-hold
•Combination of multi-zone paging and telephone paging system, adding night ringer function.
•BGM from the satellite BGM player or the CD player is distributed to each zone.
•BGM from the satellite BGM player or the CD player is also distributed to the MOH input of the PBX.
•Program an "event" that the S-04S signal will be distributed to a designated zone to hear the door bell ring.
Assign the door-bell switch control input to activate the "event" as well as control output to drive the S-04S
contact closure input.
•Program another "event" that the other S-04S signal will be distributed to a designated zone to hear the night
ringer. Assign control input connected to "night ringer output" from the PBX system to activate the "event" as well
as other control output to drive the S-04S contact closure input.
7
TOA 9000 Series Application Guide
Audio
Control
Patio
Dining area
Kitchen
Waiting area
Bar area
Jukebox
Satellite TV
DVD player
Satellite TV
CD player
Satellite receiver
Satellite receiver
Bar/patio BGM source selector
Dining/waiting area
BGM source selector
T-001T
C-001T
A-9060DH
D-001T
Power
amplifier
Subwoofer
Power
amplifier
Satellite receiver
AM/FM tuner
CD player
DVD player
Mic 1
Mic 2

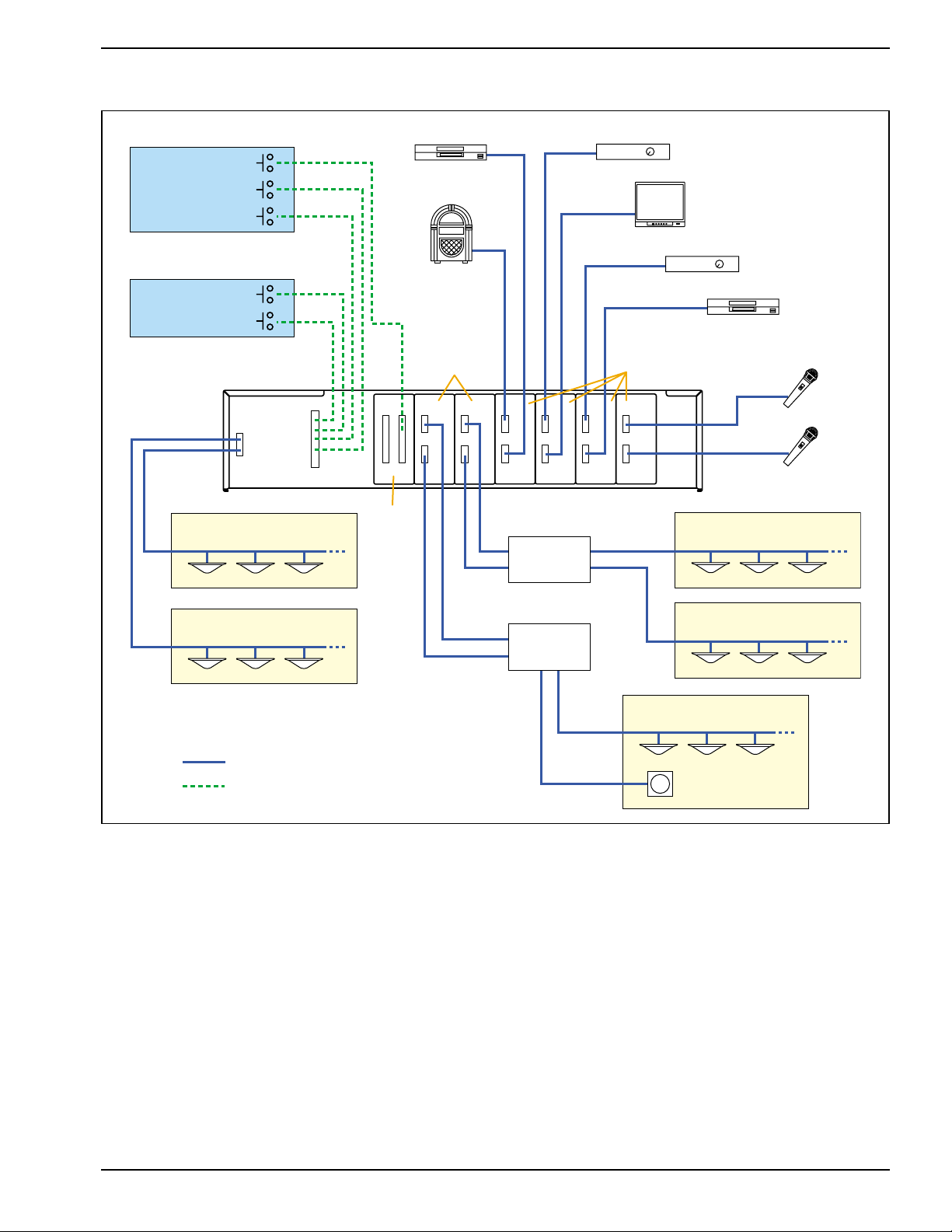

4) Restaurant/Bar: Multiple A/V sources, jukebox and zone paging
•Multiple A/V sources distributed to dining area, bar area, waiting area, patio and kitchen.
•Subwoofer will be installed in the bar area to have better low-boosted sound.
•Routing patterns are as follows.
·Mic 1: waiting area, bar area and patio
·Mic 2: kitchen
·CD player and satellite receiver: dining area, bar area, waiting area and patio
·DVD player and satellite TV: bar area and patio
·Jukebox: bar area
·AM/FM tuner: kitchen
•Two input selectors will work as follows.
·Switches for Satellite Receiver and CD Player will be used to select the background music source for the
dining and waiting areas.
·Switches for Satellite Receiver, Satellite TV, and DVD Player will be used to select the background music
source for the bar and patio. In these areas, the Jukebox will automatically override the background music.
•Set "speaker EQ" for each output to Bar area. For the subwoofer, assign a subwoofer preset EQ pattern, for
example, "FB-120".
8
TOA 9000 Series Application Guide
Audio
Weight room
Cycle room
Front desk
Lounge
Dance studio
T-001T
A-9060DH
D-001T
Power
amplifier
Men's locker room
Women's locker room
Power
amplifier Subwoofer
Power
amplifier
Satellite receiver
PC sound card
Message repeater CD player
Mic 1
5) Fitness club: Multiple music sources, zone paging and digital message repeater
•Multiple music sources distributed to front desk, lounge, dance studio, weight room, cycle room and
men's/women's locker rooms.
•Routing patterns are as follows.
·Satellite receiver/PC audio: front desk, lounge and men's/women's locker rooms
·CD player: dance studio
·Mic 1: all areas
·Message repeater: for pre-programmed announcement to all areas except dance studio
•Program Mic1 and message repeater to take priority over the music.
•Set "speaker EQ" for each output to dance studio. For the subwoofer, assign a subwoofer preset EQ pattern, for
example, "FB-120".
•Set limiter function for each output.
9
TOA 9000 Series Application Guide
•Create two different preset "scenes."
•Scene 1 –Rooms separate: Route room 1 inputs to room 1 speakers, and route room 2 inputs to room 2
speakers.
•Scene 2 –Rooms combined: Route all inputs to both outputs.
•Connect two momentary switches to the control input terminals, and program the first control input to activate
scene 1 and the second control input to activate scene 2. The control outputs can be used to control LEDs
indicating the system status. Alternatively, a toggle switch may be used.
D-001TZP-001T
From PBX extension
Scene 1 switch
Scene 2 switch
Audio
A-9060DH
Control
ROOM 1
CD player
Microphone
ROOM 2
CD player
Microphone
1) Hotel/banquet: Room combining
Chapter 2: Mixer Mode Applications
10
TOA 9000 Series Application Guide
T-001T
D-001T
Audio
A-9060DH
Output
Input
DVD/VCR
Teleconference
unit
Meeting Table area
Audience area
Mic 1
Mic 2
Mic 3
Mic 4
PC 1
PC 2
2) Conference room: 4 microphone conference w./teleconferencing
•Microphone audio will be routed to meeting table area as well as audience area and teleconference unit.
Microphone audio level in meeting table area will be 6 dB quieter.
•DVD/VCR, PC 1 and PC 2 audio will be routed to meeting table area, audience area and teleconference unit.
•Teleconference unit output will be routed only to meeting table area and audience area.
•The microphones will be controlled under NOM (number of open microphones) auto-mixing function.
•The input channel connected to teleconference unit output will be set for compressor #4.
