TomTec ATF3417 Manuale utente

User Manual

10” Tablet

ATF3417

Note：We have pasted transparent protector on the screen, it's

up to the user whether to keep it or remove it when they get

the device

Our Company spares no efforts to improve the product

quality. Therefore, if there is any difference between the

delivered product and the contents of the User’s Guide

because of the upgrading of the software, the former shall

prevail. Thank you for your understanding in this respect!

Table of Contents

Table of Contents ........................................................................... 2

1 Outlook Description .................................................................... 4

2 Power Button Usage.................................................................... 4

3 Touch-Screen Navigation .......................................................... 5

4 Transfer Box.................................................................................. 5

5 Using microSD Card .................................................................... 6

6 Getting Started ............................................................................ 7

Charge the device .............................................................. 7

Turn the device on ............................................................... 7

Wi-Fi Network Setup............................................................. 7

7 DESKTOP ....................................................................................... 8

8 Screen Lock ................................................................................. 8

9 Pre-loaded Applications ............................................................ 9

10 Desktop Function Menu ......................................................... 10

11 Application Management ..................................................... 12

Install Android Applications.............................................. 12

Download Android Applications direct from a Website 13

Uninstalling Android Applications.................................... 13

12 WmtWeather ............................................................................ 14

13 CLOCK ...................................................................................... 14

Alarm ................................................................................... 14

14 APP MARKET ............................................................................. 16

Download Applications..................................................... 16

App Market Function Menu Error! Bookmark not defined.

15 BROWSER .................................................................................. 17

ATF3417

16 CALENDAR................................................................................ 17

Add Event............................................................................ 17

17 CAMERA ................................................................................... 18

Function Menu.................................................................... 18

18 CALCULATOR ........................................................................... 18

19 EMAIL ........................................................................................ 19

Add Email accounts .......................................................... 19

Email Inbox ......................................................................... 19

Edit Email Account............................................................. 21

Delete Email Accounts ...................................................... 21

20 FILE BROWSER........................................................................... 22

Copy Media between Computer and Tablet ................. 23

Delete files .......................................................................... 24

21 MY MUSIC................................................................................. 24

Play Music........................................................................... 24

The Operation with Music and Playlist............................. 24

22 MY VIDEO ................................................................................. 25

Play Video........................................................................... 25

The Operation with Video and Playlist............................. 26

23 MY PHOTO................................................................................ 26

Doodle................................................................................. 27

24 CONTACTS................................................................................ 27

Add New Contacts ............................................................ 27

Add Contact to Favorites.................................................. 27

Edit Contacts ...................................................................... 28

Delete Contacts ................................................................. 28

25 PICTURE CAPTURE .................................................................... 28

26 PK MANAGER ........................................................................... 29

Stopping Applications ....................................................... 29

Uninstall Applications ........................................................ 29

27 YouTube ................................................................................... 30

28 SETTINGS ................................................................................... 30

Frequently Asked Questions ....................................................... 34

Battery Management .................................................................. 34

Important Safety Precautions ..................................................... 35

ATF3417

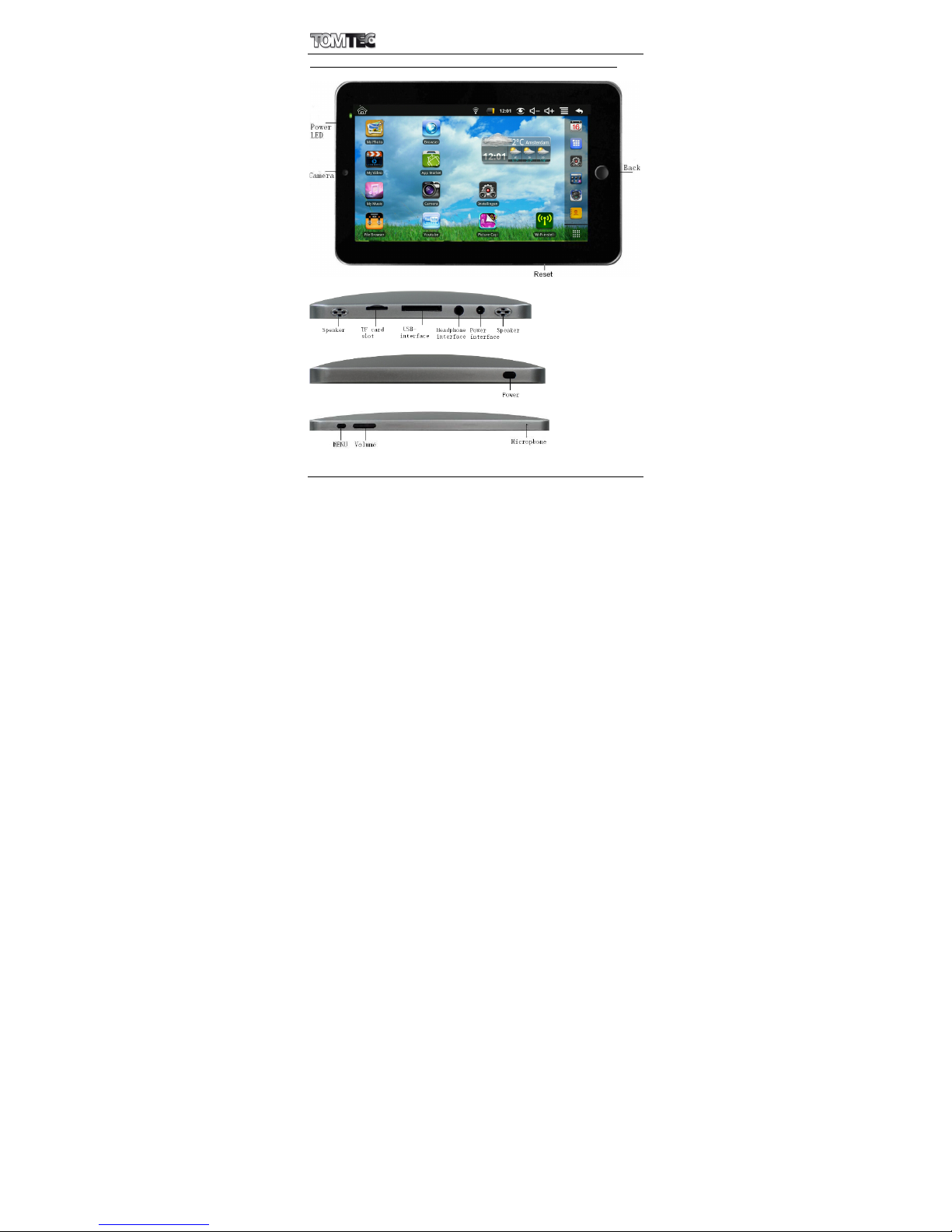

1 Outlook Description

Front:

Right side:

Left side:

Top:

2 Power Button Usage

Turn On: Press the power button and hold for 2 seconds.

Turn Off: Press the power button and hold for 2 seconds, →tap

Power off.

Sleep Mode On/Off: Press & release the power button quickly

ATF3417

to turn sleep mode on and off.

Force Off: If device does not respond, press and hold the

power button for 8 seconds.

Note: If it is necessary, we don’t suggest use Force Off. You

should follow the steps to perform the shutdown.

Reset Button: Press the reset button to reset the device. Reset

will erase all data on the device, please caution this feature.

(Note: Current the reset function can not be restart, so after

reset you need to press the power button to re-boot.)

3 Touch-Screen Navigation

The touch-screen allows for quick, easy and convenient

navigation for all applications.

☆The smaller the point that comes in contact with the

screen, the more precise object selection can be. If

you do not have long enough fingers nails to be used

for precise tapping, we recommend using the stylus

or non-sharp pointed instrument to increase the

precision of navigation.

Throughout the User Guide, you are instructed to use the

following tap or touch navigation methods:

Tap: Quick tap & release on an item on the screen.

Finger slide: Touch & slide your finger across the screen

and then release.

Touch & hold: Touch and hold in place approx 2 seconds,

and then release to display an options window.

☆To avoid scratching or crushing, do not place objects

on the touch screen surface.

4 Transfer Box

You must use the transfer box if you want to use a USB

storage device (U-disk) for accessing/storing your photos,

musics or video files.

ATF3417

U-Disk

Insert your U-disk to the transfer box, →insert the

transfer box into the Tablet. When ready for use, it’s

OK.

☆Don’t insert and remove the U-disk repeatedly in

a short time, as this may cause damage to the

U-disk.

The transfer box is also used for Ethernet network

connections.

5 Using microSD Card

☆The device supports a maximum 32GB microSD card.

Insert your card into the microSD slot until it clicks into

place. it’s OK

Remove microSD Card

Use one of the following methods for moving the

microSD card.

Close all applications or documents which have

been opened on the card. Tap →

Settings →SD card & device storage →

Unmount SD card. Press the card lightly; it is

partially ejected allowing you to pull the card

out.

☆Don’t insert and remove the U-disk repeatedly

ATF3417

in a short time, as this may cause damage to

the card.

☆We recommend using major brands of memory

cards to avoid incompatibility.

6 Getting Started

Charge the device

☆You cannot charge the battery using the USB

cable.

☆You can use the device while the battery is

charging, although the charging time is longer

when operating and charging at the same

time.

Plug the power adapter into an electrical wall outlet,

and then connect to the device to fully charge the

battery before use.

While charging, the battery indicator light is red. When

fully charged, the battery indicator light is green.

Turn the device on

Press the power button and hold for 2 seconds.

Wi-Fi Network Setup

Since many features require a Wi-Fi connection,

we recommend you set up your Wi-Fi network now.

1. Tap , →Settings, →Wireless & network.

2. Select Wi-Fi to turn on.

The device automatically scans and lists all local

Wi-Fi Network found. A indicates secure

networks that require login name/password to

connect.

3. Tap the desired network to which you want to

connect, →enter the Network Password if

applicable, →tap Connect.

ATF3417

4. Tap to return to the Desktop screen.

☆If your Wi-Fi network is set as hidden, it won’t be

found by the auto scan. Tap Add Wi-Fi network

and follow the prompts to add your network.

7 DESKTOP

①Return to Desktop from other apps

②SD card or U-disk is inserted and ready for use

③Battery charge status

④Current Time

⑤Picture capture icon

⑥Volume reduction icon

⑦Volume increase icon

⑧Function Menu icon

⑨Back icon

☆Tap on any application icon to launch it.

☆Touch, hold and then slide icons to reposition then on

the screen.

☆Touch, hold and slide icons onto to remove

them from the Desktop screen.

8 Screen Lock

Can be set to automatically lock screen or quickly press

the power button to manually lock screen. Lock screen

ATF3417

displays the following:

Tap the icon to enter My Photo to do slide show.

And slide the track like the picture to unlock.

9 Pre-loaded Applications

Wmtweather

Display the weather.

Clock

Use as alarm clock with scheduled

alarms.

App

Market

Downloaded applications quickly

& easily.

Browser

Access the Internet and “surf the

web” whenever desired.

Calendar

Calendar with ability to set events.

Camera

Take photos and save to internal

memory or your memory device.

Calculator

Do calculation.

Send/Receive email using your

existing email addresses.

ATF3417

File

Browser

File manager application for

viewing and managing files and

apps. Use to install Android apps,

and to backup files to your SD

card.

Music

Play and manage audio files.

Video

Play and manage video files.


View and manage photo files.

Contacts

Create a list of personal contacts,

which can also be linked with your

email.


Capture

Capture image of the screen.

Manager

Application manager for

managing processes.

YouTube

Quick launch to YouTube.com

videos.

Settings

Multiple settings for personalizing

and enhancing your Device.

☆To move an icon to the Desktop screen, touch & hold on the

icon, and then release it when it appears on the Desktop

screen.

☆Touch, hold and then slide icons to reposition then on the

screen.

☆Touch, hold and slide icons onto to remove them

from the Desktop screen.

10 Desktop Function Menu

On the Desktop screen, you can tap to display

Indice

Altri manuali TomTec Tavoletta

TomTec

TomTec ATP7658 Manuale utente

TomTec

TomTec Excellent 8 Manuale utente

Manuali Tavoletta popolari di altre marche

Laser

Laser MID-1060 Guida utente

MUNBYN

MUNBYN IRT09J Guida rapida

Motorola

Motorola MC3090R - Win CE 5.0 Professional 520 MHz Manuale utente

Dell

Dell Latitude ST Manuale del proprietario

Lenovo

Lenovo IdeaTab S6000L Manuale del proprietario

Venturer

Venturer WT9L11 Manuale utente

EDUGEAR

EDUGEAR UnoBook Manuale utente

Philips

Philips PI3210G/58 Manuale utente

ADLINK Technology

ADLINK Technology IMT-BT Manuale utente

TwinMOS

TwinMOS TwinTAB-T102D1 Manuale utente

Archos

Archos 9.7 xenon Manuale utente

Getac

Getac E100 Manuale utente

HANNspree

HANNspree HANNspad SN70T3 Manuale utente

Philips

Philips PI3105W2/55 Manuale utente

LG LG-V935 Manuale utente

Zeki

Zeki TBDB763B Manuale utente

Ricoh

Ricoh eQuill Manuale utente

DT Research

DT Research DT365CT Istruzioni per il montaggio
