Topens LC1100 Manuale utente

Sliding Gate Opener

User’s Manual

Model:

TOPENS Website

www.topens.com

Email: supp[email protected]m

VER 23b

C030688

★Please read and follow all warnings, precautions and instructions before

installation and use.

★Periodic checks of the opener are required to ensure safe operation.

★Save this manual.

LC1100

Visit: www.topens.com

Please record the product model, your email address etc.

in the spaces provided below. Refer to this list when contacting TOPENS

for technical service or assistance with your automatic gate opener.

Where did you purchase? (Amazon.com; Amazon.ca: Amazon.co.uk, Amazon.de; Other, Please

Specify)

Order#

Product Model

Purchase Date

Full Name

Phone#

Email Address (VERY

IMPORTANT)

Street Address, Apartment /Unit, City, State /Province, Zip Code

Country/Region

Approximate Gate Weight

(pounds; kg: Other. Please

Specify)

Approximate Gate Length

(feet; meter; Other. Please

Specify)

Did you purchase any

accessories? (Please list

below)

Issue Details

Email Us: support@topens.com

Call: +1 (888) 750 9899 (Toll Free USA & Canada)

Table of Contents


Check Your Gate before Installation ................................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS .........................................................................................................1
Parts List...........................................................................................................................................................2
Accessories Parts (Included in some models, refers to the actual package) .......................................................2
Optional Accessories Parts List (Available at TOPENS Store).............................................................................2
Replacement Parts ...............................................................................................................................................3
Tools Needed ................................................................................................................................................... 3
Technical Specifications & Features ................................................................................................................3
Opener Installation ........................................................................................................................................... 4
Installation Overview.............................................................................................................................................4
Foot Pedal Release ..............................................................................................................................................4
Mounting Opener to Concrete Pad .......................................................................................................................5
Correct Chain Installation......................................................................................................................................5
Types of Installations ............................................................................................................................................6
Adjust the Limit Switches ......................................................................................................................................7
Connection of Power Supply............................................................................................................................8
Connection between Master and Slave Gate Opener .....................................................................................9
Connection of the Control Board...................................................................................................................... 9
How to Program or Erase the Remote...........................................................................................................12
Setting of the Control Board........................................................................................................................... 12
1. DIP Switches...................................................................................................................................................13
2. Potentiometers................................................................................................................................................14
How to Use the Remote to Operate Your Gate Opener ................................................................................ 15
Wireless Keypad Programming......................................................................................................................15
Trouble Shooting ............................................................................................................................................16


Thank you for purchasing our gate opener. We are sure that the products will be greatly satisfying as soon

as you start to use it.

The product is supplied with a user’s manual which encloses installation and safety precautions. These

should be read carefully before installation and operation as they provide important information about

safety, installation, operation and maintenance. This product complies with the recognized technical

standards and safety regulations.

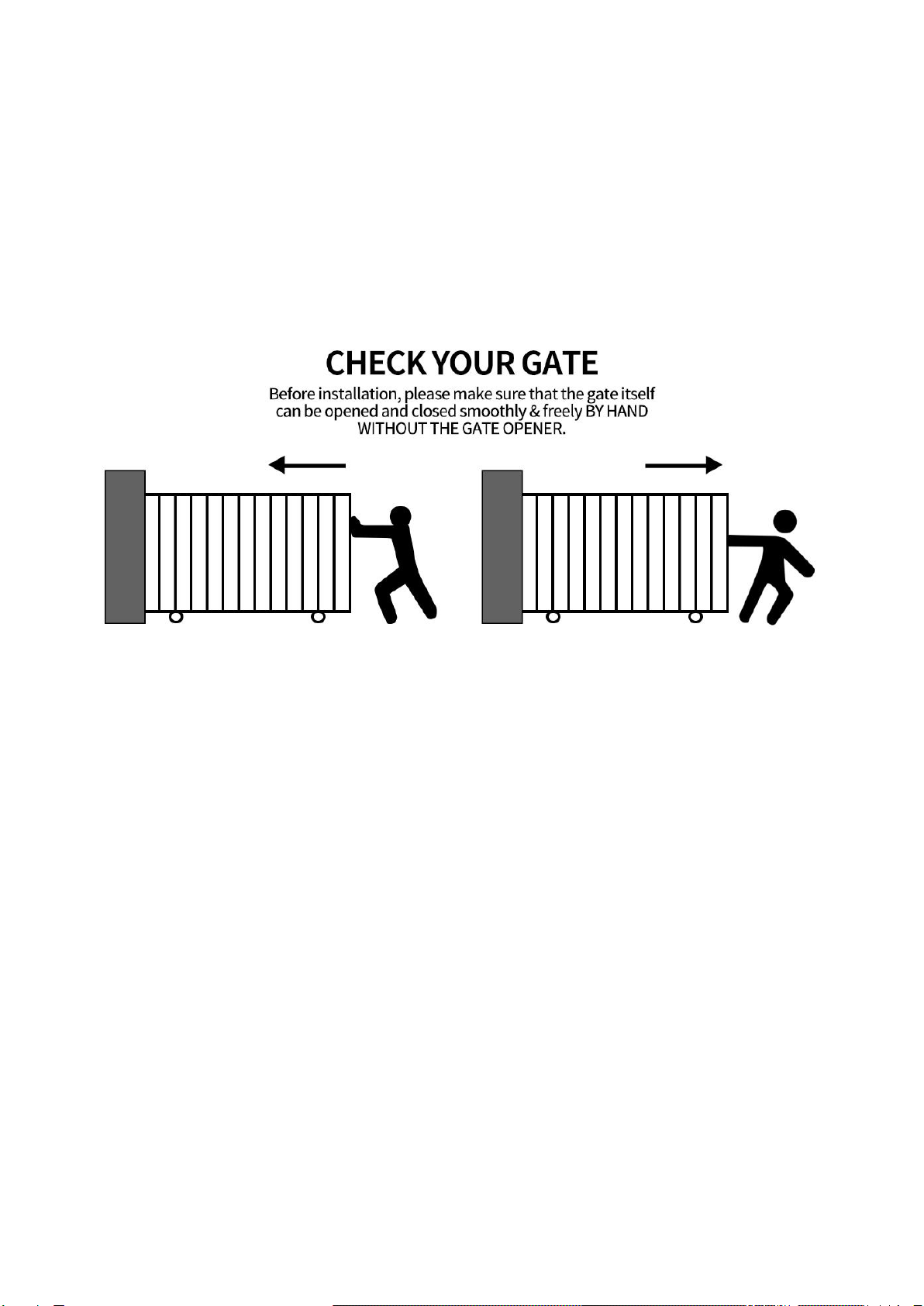

Check Your Gate before Installation

IMPORTANT SAFETY INSTRUCTIONS

WARNING – To reduce the risk of severe injury or death:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Installation should be performed by a professional installer.

3. Should electricity be required, use a certified electrician only.

4. Never let children operate or play with gate controls. Keep the remote control away from children.

5. Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE

MOVING GATE.

6. Do not operate the gate unless area around gate is in full view.

7. Always disconnect the power source when making adjustments or repairs to any part of the opener.

8. Use the manual release only when the gate is not moving.

9. The entrance is for vehicles only. Pedestrians must use separate entrance.

10. SAVE THESE INSTRUCTIONS.

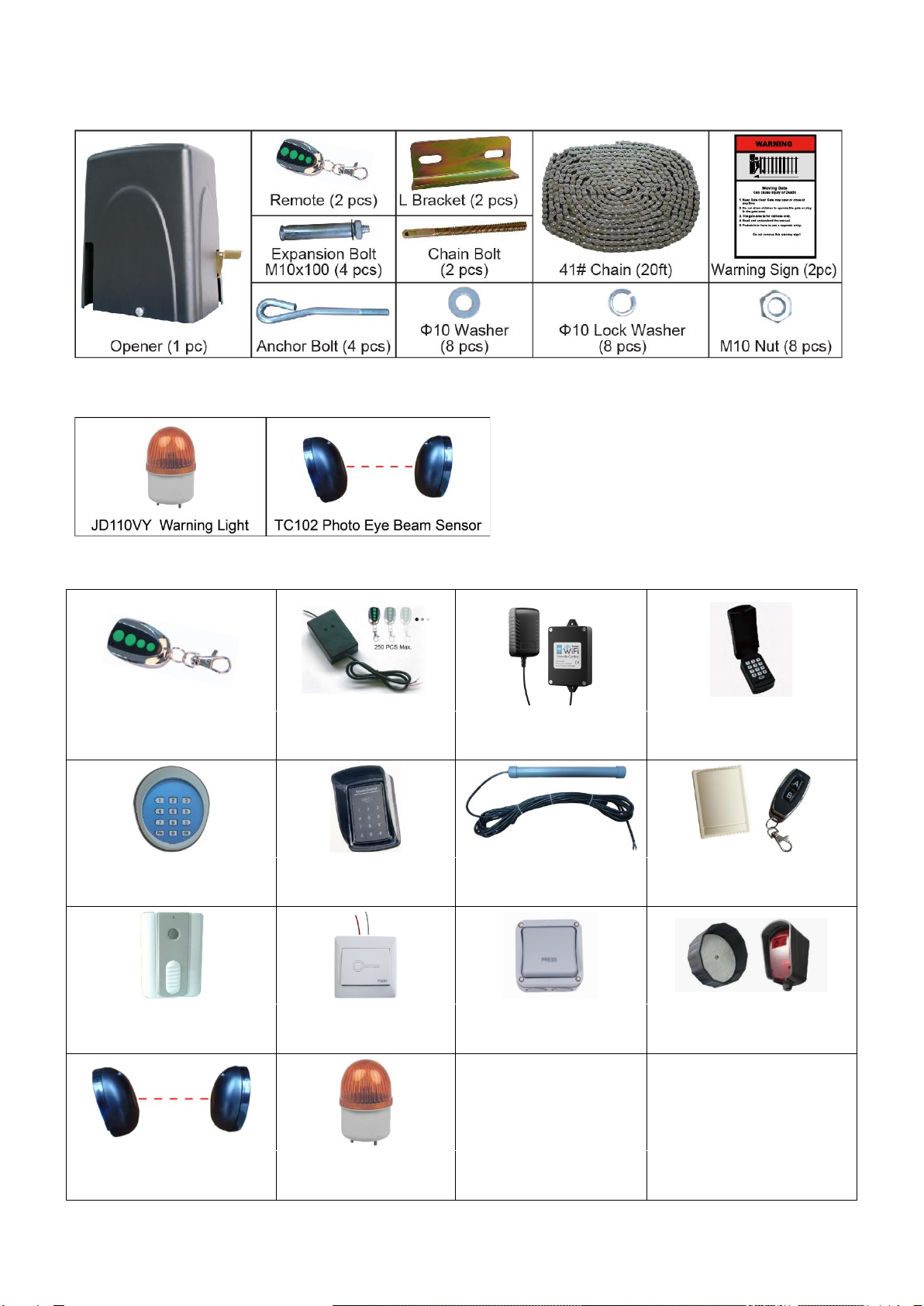

Parts List

Accessories Parts (Included in some models, refers to the actual package)

Optional Accessories Parts List (Available at TOPENS Store)

M12 Remote Control

ERM12 External

Receiver

TC196 Tuya WIFI

remote control

TC188 Universal Wireless

and Wired Keypad

TKP3 Wireless Keypad

TC175P Wired

Keypad

TEW3 Vehicle Sensor

Exit Wand

HLR01 HomeLink Remote

Control Kit

TC173 Wireless Push

Button

TC147 Wall Push

Button

TC148 Waterproof Wall

Push Button

TRF3 Reflection Photocell

Sensor

TC102 Photo Eye Beam

Sensor

JD110VY AC Warning

Light

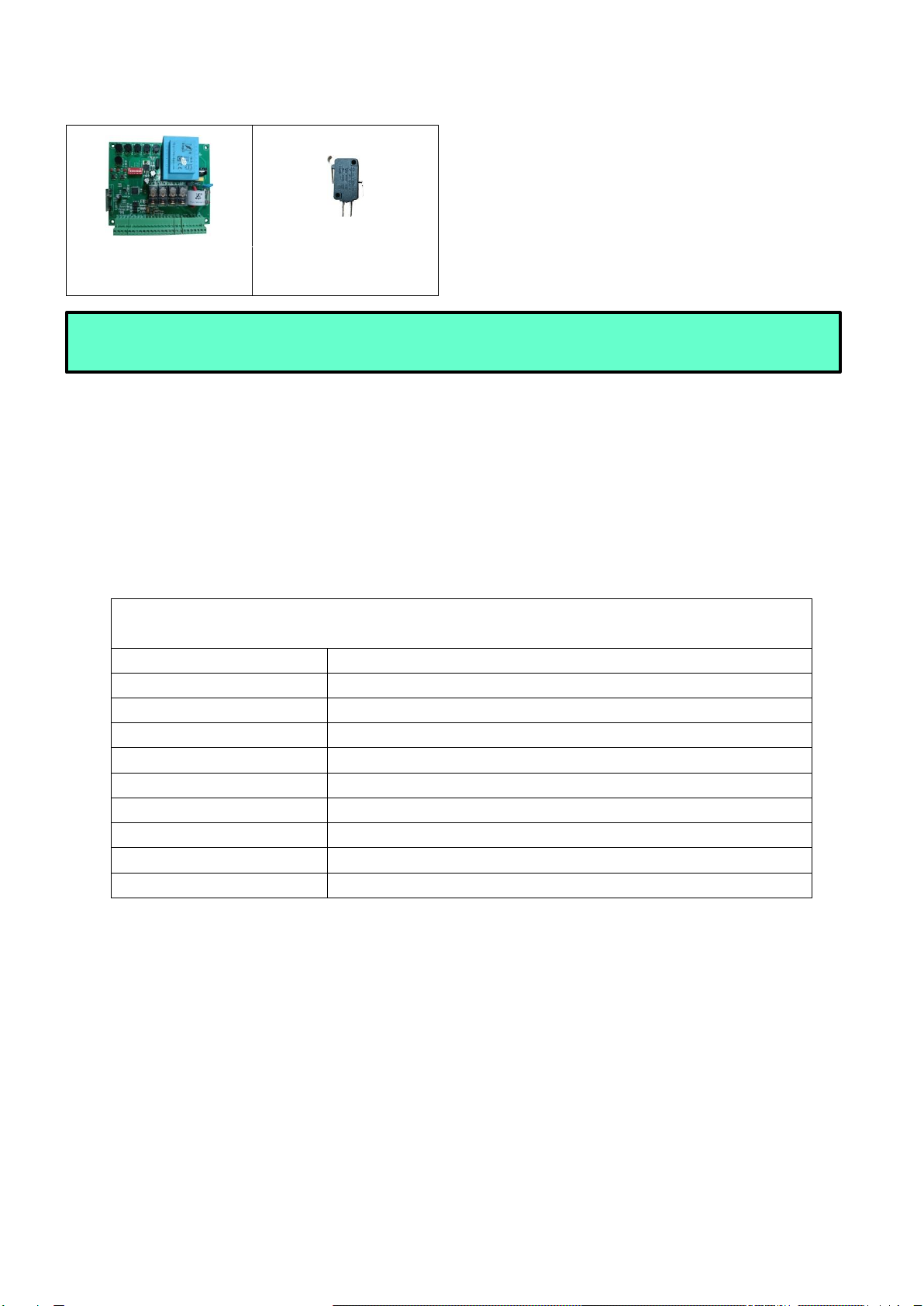

Replacement Parts

ACPYMJ9A

Control Board (120V)

MS8013A1BBC1

Limit switch

Tools Needed

·Power Drill ·Portable Electric Welder ·Tape Measure ·Level ·Hammer ·Wire Strippers

·Screwdriver ·Hex Key Wrench ·Open End Wrenches or Adjustable Wrenches

·An extra person should be needed

Technical Specifications & Features

Specifications

Input:

110V~120V/60Hz

Motor:

3/4 HP(550W), 120VAC

Current:

8.5A

Gate travel speed:

24 cm/s(9.4 in/s)

Max. Gate travel:

13.7 m(45 feet)

Max. Gate weight:

1300 kg(2800 lbs)

Duty cycle:

100%

Power failure release:

Exclusive foot pedal release

Ambient temperature:

-20℃~ +50℃ (0°F to 120°F)

Protection class:

IP44

Features:

·Emergency Exclusive foot pedal release in case of power failure

·Easy to install, and minimum maintenance requirement

·Midway mode

·Quick selection for gate open/close direction

·Get the desired chain tension by adjusting the chain bolts

·Reliable rolling code technology for remote control

·Stop in case of obstruction during gate opening

WARNING: Changes or modifications not expressly specified by this user manual, TOPENS could void

the warranty of this equipment.

·Reverse in case of obstruction during gate closing

·Built in adjustable auto-close (0-99 seconds)

·Built in max. Motor Running Time (MRT) for multiple safety protection (90 seconds)

·Reliable microswitch limit for easy adjustment

·Can be equipped with wide range accessories

Opener Installation

Prior to beginning the installation of sliding Gate opener, we suggest that you become familiar with

instructions and illustrations in this manual. This will help insure that your installation is performed

in an efficient and professional manner.

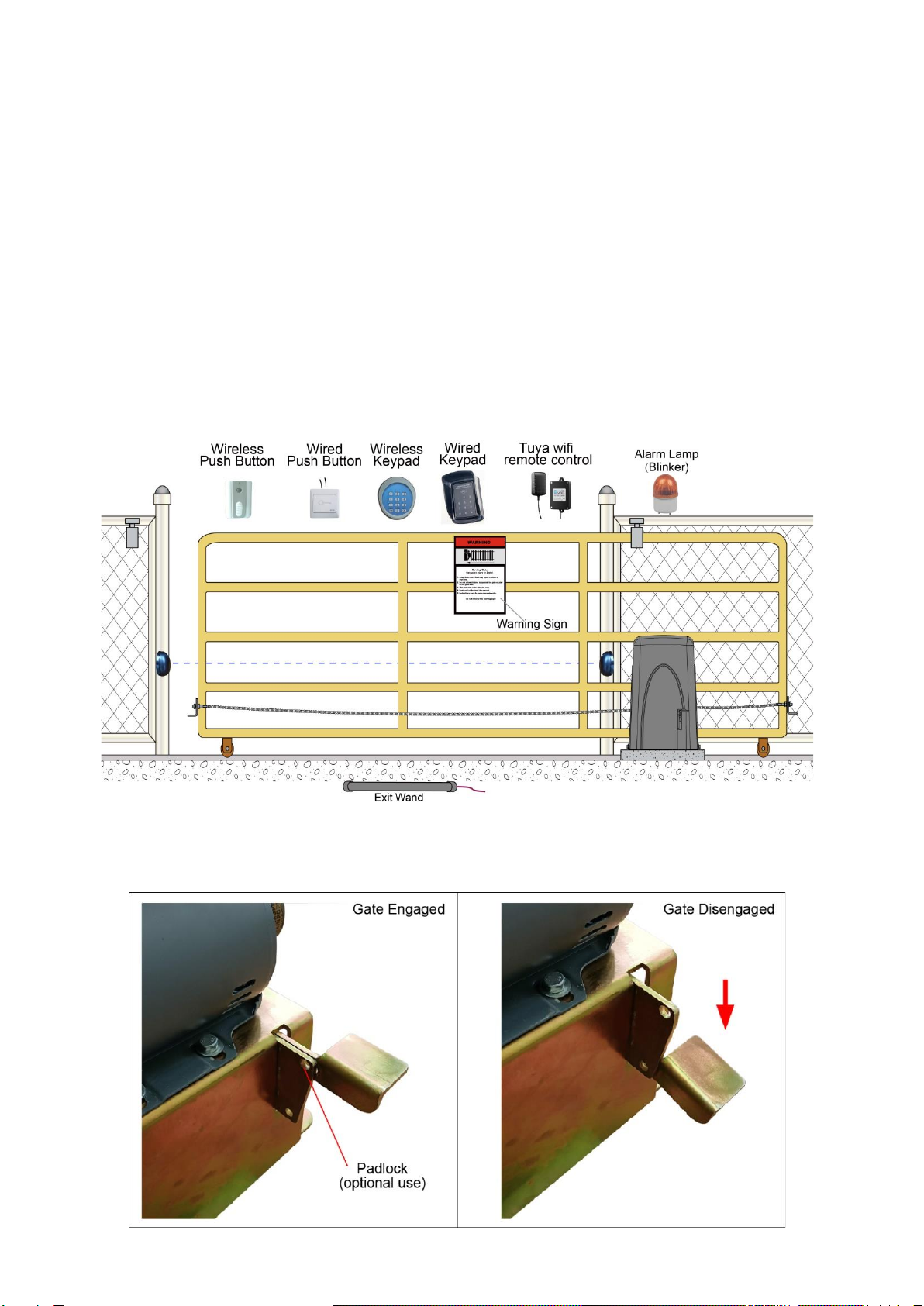

Installation Overview

Foot Pedal Release

EMERGENCY RELEASE

1. Exclusive foot pedal release disengages the gate from the motor so it can be opened manually.

2. After proper use of the foot pedal, be sure to lightly kick the pedal towards the right side to spring the

pedal up and re-engage your gate.

WARNING – We do not recommend use of the foot pedal on installations with steep inclines.

Always make sure the gate is secured when using the foot pedal to avoid sudden movements from

the gate.

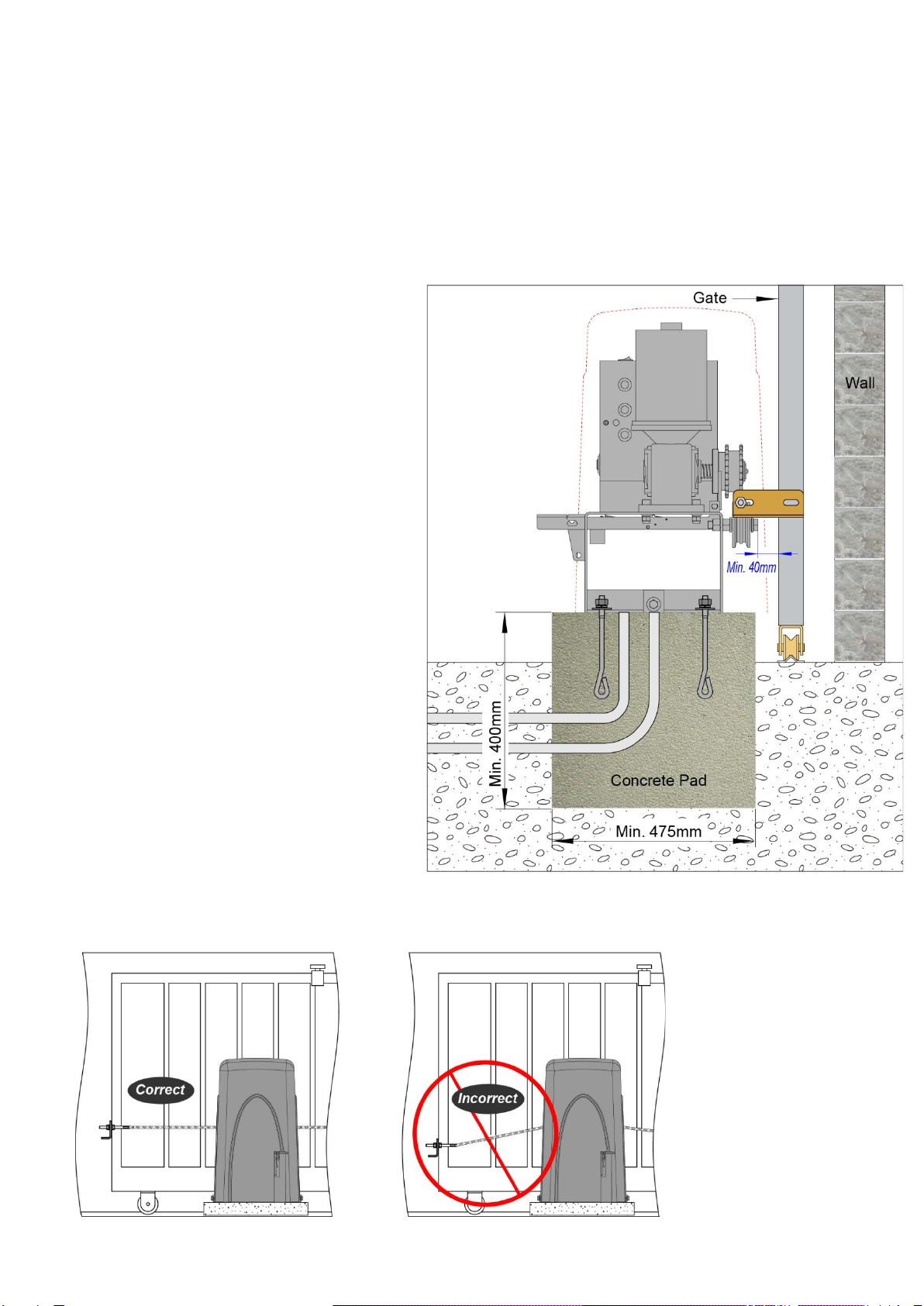

Mounting Opener to Concrete

Pad

Be sure that the opener is installed in a level

and paralleled position and is properly

secured. Improper installation could result in

property damage, severe injury, and/or

death.

Concrete Pad dimensions are Min.

490*475*400mm

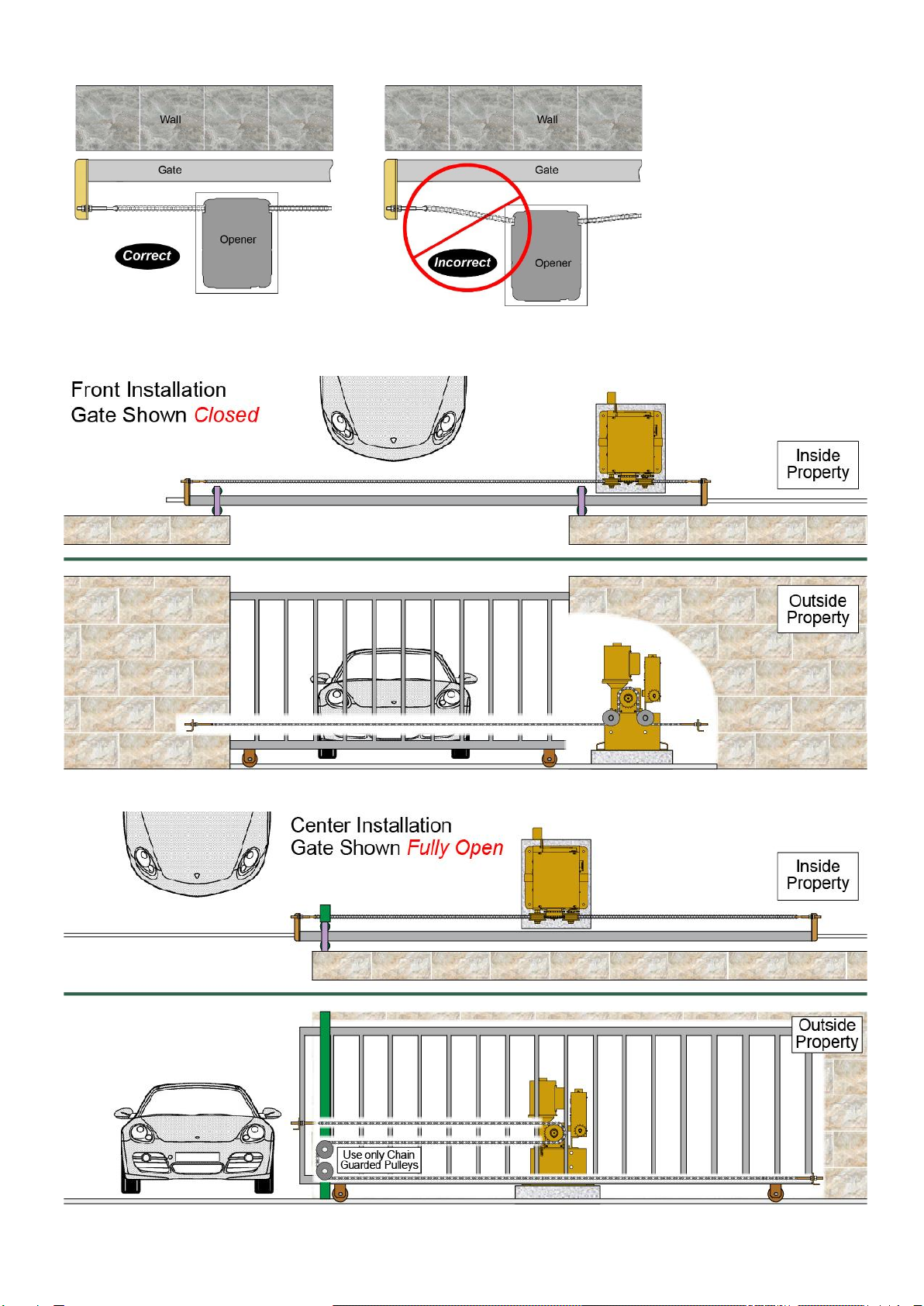

Correct Chain Installation

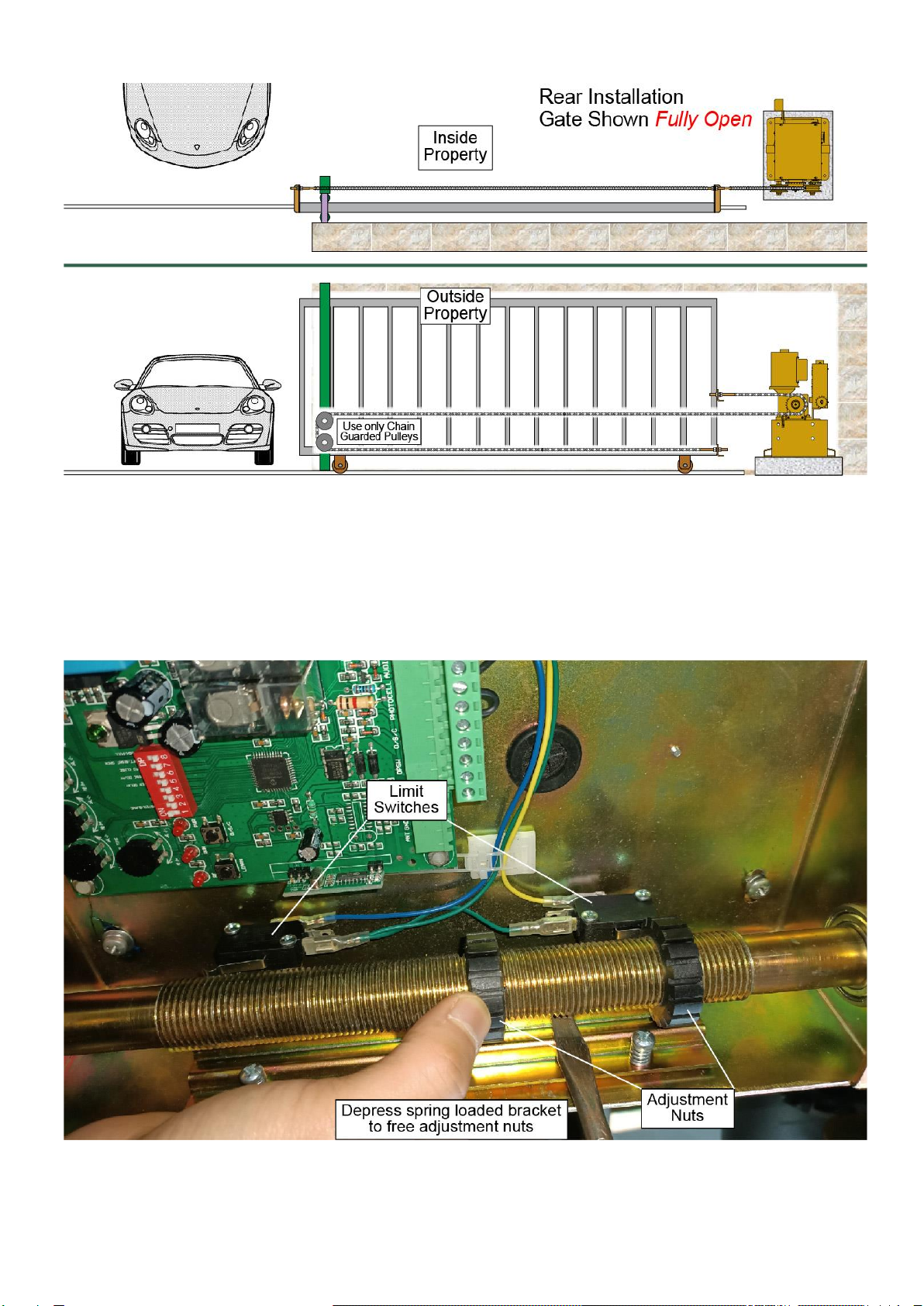

Types of Installations

................................................................................................................................................................................................
