Topfield TF 6100 VI Manuale utente
TOPFIELD
TF 6100 VI
User Guide
Digital Satellite Receiver
manufactured by TOPFIELD
under VIACCESS license
Contents iii
Contents
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
2 Setup 6
2.1 Unpacking .............................. 6
2.2 Safety precautions ......................... 6
2.3 Rear panel connections ....................... 8
2.4 Connecting up your digital receiver ............... 9
2.4.1 Connecting the antenna .................. 9
2.4.2 Connecting to your television .............. 10
2.4.3 Connecting to your video cassette recorder ....... 12
2.5 Switching on for the first time ................... 12
2.5.1 Inserting batteries in the remote control ......... 12
2.5.2 Powering on and checking picture ............ 13
iv Contents
3 Preference Settings 14
3.1 Language settings .......................... 14
3.2 Video and audio settings ...................... 15
3.2.1 Television standard .................... 15
3.2.2 Colour model ........................ 16
3.2.3 Video cassette recorder .................. 16
3.2.4 Television aspect ratio ................... 17
3.2.5 Audio mode ........................ 17
3.2.6 Radio frequency output .................. 18
3.3 Local time setting .......................... 18
3.4 Parental control ........................... 19
3.5 Adjusting the on-screen display .................. 21
4 Service Search 23
4.1 Searching broadcasting services .................. 23
4.1.1 Configuring LNB settings ................. 23
4.1.2 Configuring DiSEqC 1.2 settings ............. 26
4.1.3 Configuring USALS settings ............... 27
4.1.4 Searching services ..................... 28
4.2 Editing the transponder list .................... 31
4.3 Resetting to factory settings .................... 32
5 Daily Usage 33
5.1 Volume control ........................... 33
5.2 Watching television ......................... 33
5.2.1 The services list ....................... 33
5.2.2 Watching on multi-picture screens ............ 34
5.2.3 Viewing programme information ............ 35
5.2.4 Selecting audio tracks ................... 36
5.2.5 Selecting subtitle tracks .................. 36
Contents v
5.2.6 Viewing teletext ...................... 36
5.3 Viewing electronic programme guide .............. 37
5.4 Watching multifeed programme ................. 38
5.5 Making timer events ........................ 38
6 Firmware Update 41
Index 42
1
Chapter 1
Introduction
The TF 6100 VI digital receiver is fully compliant with the in-
ternational Digital Video Broadcasting (DVB) standard, and
thus is able to receive digital broadcasts of that standard. For
its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 6100 VI digital receiver has the following features:
•
Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.
2 Introduction
• Can store up to 5000 television and radio services.
•
You can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
•
You can update the firmware of the digital receiver to the
latest version which would be provided by the manufac-
turer.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2 Controlling the digital receiver 3

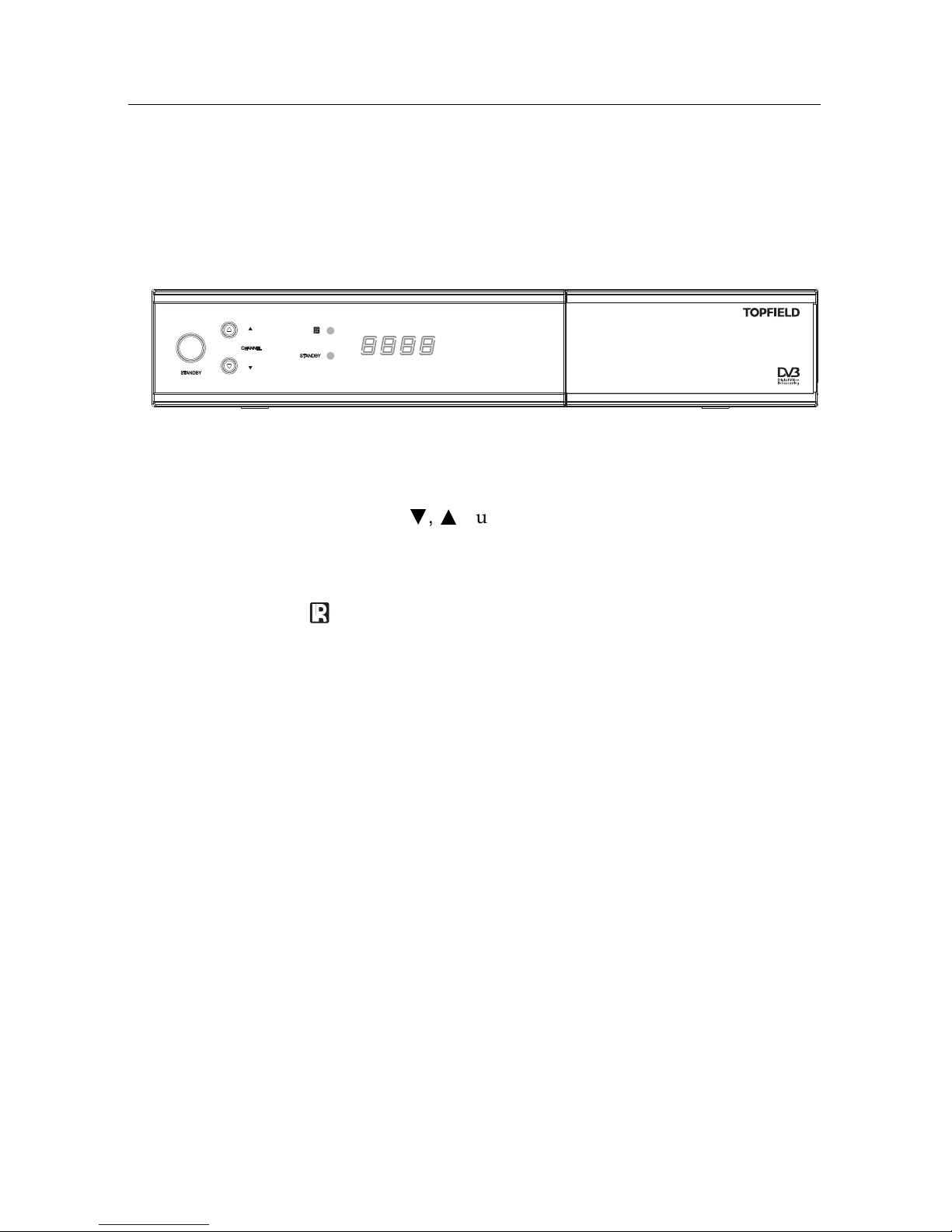

1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY
button switches the digital receiver between
standby mode and operation mode.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
lamp lights up whenever you press a button on the
remote control.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
Front display
displays the current time in standby mode,
and displays the current service in operation mode.
Pull the right edge of the front panel to open the flap. You have
to insert your subscription card into the front slot to watch pay
services.
4 Introduction

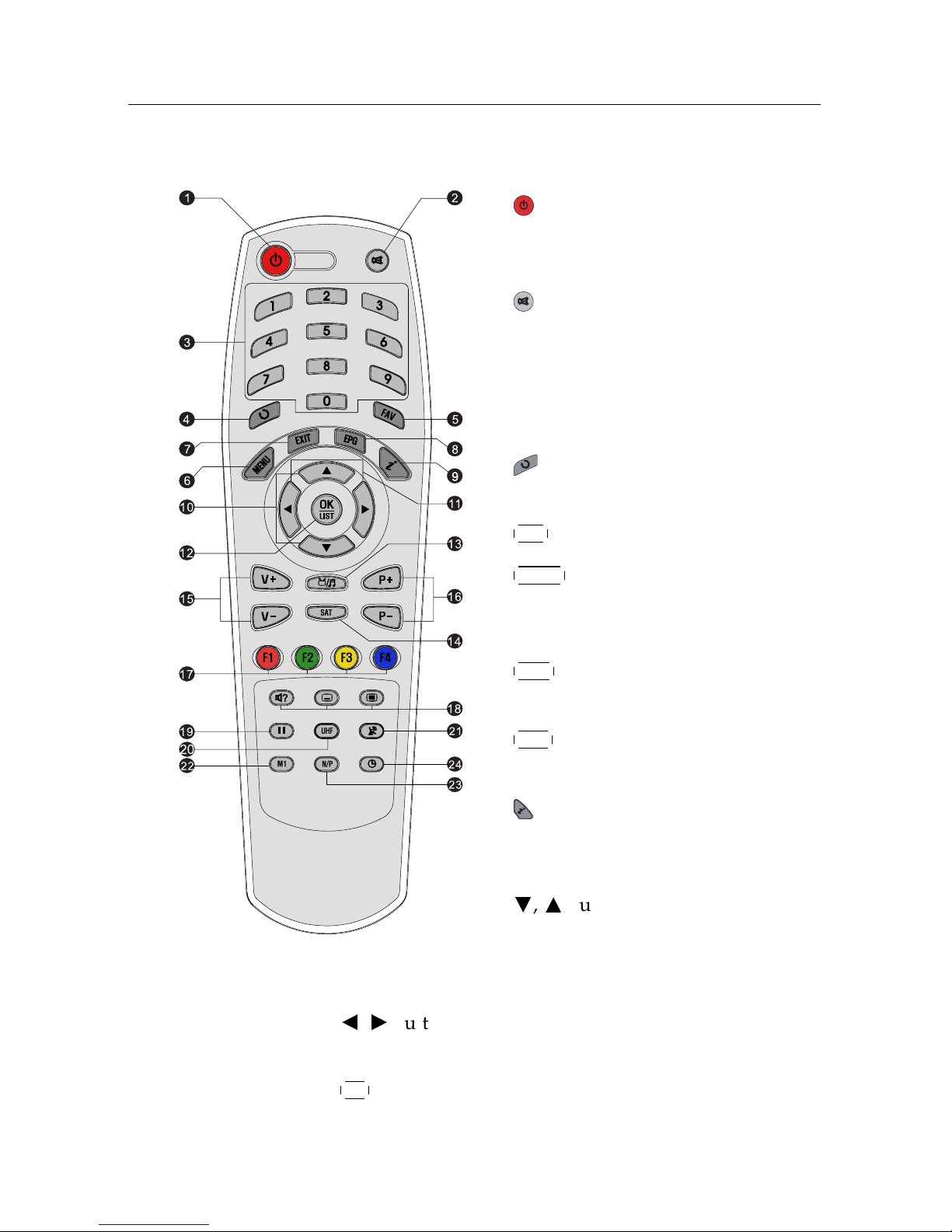

1.2.2 The remote control
1
button switches the digital re-
ceiver between standby mode and
operation mode.
2
mutes the sound. Press again to
switch it back on.
3
Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
4
switches between the current ser-
vice and the previously viewed one.
5
FAV is not used in this model.
6
MENU
displays the main menu. It is
also used to return to the previous
menu from a submenu.
7
EXIT
is used to exit the current
screen.
8
EPG
displays the electronic pro-
gramme guide.
9
displays the service information
box. It is also used to display more
information about a programme.
10
c
,
a
buttons switch to previous or
next service. They are also used to
navigate in menus and interactive
screens.
11
b
,
d
buttons decrease or increase the volume. They are
also used to change values for menu options.
12
OK
displays the services list. See
§
5.2.1 for more details.
