TOSVERT VF-FS1 series

BACnet®option unit

Instruction Manual

NOTICE

1. Make sure that this instruction manual is delivered to the end user of BACnet

option

unit.

2. Read this manual before installing or operating the BACnet

option unit. Keep it in a

safe place for reference.

3. All information contained in this manual are subject to change without notice. Please

confirm the latest information on our web site ³www.inverter.co.jp´.

E6581402c

-1-

Safety precautions

On the inverter and in its instruction manual, important information is contained for preventing

injuries to users, damages to assets, and for proper use of the device.

Read the instruction manual attached to the inverter along with this instruction manual to

completely understand the safety precautions, the symbols and indications shown below. Please

adhere to the contents of these manuals at all times.

Explanation of markings

Marking Meaning of marking

Danger Indicates that errors in operation may lead to death or serious injury.

Warning

Indicates that errors in operation may lead to injury (*1) to people or that these errors may

cause damage to physical property. (*2)

(*1) Such things as injury, burns or shock that will not require hospitalization or long periods of

outpatient treatment.

(*2) Physical property damage refers to wide-ranging damage to assets and materials.

Meanings of symbols

Marking Meaning of marking

Indicates prohibition (Do not do it).

What is prohibited will be described in or near the symbol in either text or picture form.

Indicates something mandatory (must be done).

What is mandatory will be described in or near the symbol in either text or picture

form.

Indicates danger.

What is dangerous will be described in or near the symbol in either text or picture

form.

Indicates warning.

What the warning should be applied to will be described in or near the symbol in either

text or picture form.

E6581402c

-2-

Limitation of use

Safety precaution

Never use this unit with any device other than TOSVERT VF-FS1 series inverters. Doing so may cause

an accident.

Handling in general

Danger

Never

Disassemble

Never disassemble, modify or repair the product.

Disassembling the product may cause electric shocks, fire or injuries.

For repairs, call your sales/repair agency.

Prohibited

Do not open the front cover on the inverter while the inverter power is on.

It may lead to electric shocks.

Do not remove this option from VF-FS1 while the power is on.

It may lead to electric shocks.

Do not put or insert foreign objects such as waste cable, bars or wires into the product.

It may lead to electric shocks or fire.

Do not splash water over the product, and do not wipe the body with a wet cloth.

It may lead to electric shocks or fire.

Mandatory

Turn off the power immediately in case of any abnormalities such as smoke, smell or

abnormal noise.

Neglect of these conditions may lead to fire.

For repairs, call your sales/repair agency.

Do not touch the sharp portions (such as leads of parts on the board, the corner of board,

or etc.) on this option.

It may lead to injuries.

Warning

Mandatory

This option is an electrostatic discharge sensitive device. Handle it, where the

environment is protected against electrostatic electricity.

Otherwise, permanent damage to device will result.

Transportation and installation

Danger

Prohibited

Do not apply a dropping shock or other physical shocks.

Otherwise, damage or malfunction will result.

Do not install or operate the inverter if it is damaged or any part of it is missing.

Operating a defective inverter may lead to electric shocks or fire.

For repairs, call your sales/repair agency.

Do not put any flammable material near the product.

It may catch fire due to the product sparking in the case of a malfunction.

Mandatory

Use this product under the environmental conditions prescribed in the instruction manual.

Usage it under any other conditions may result in malfunction.

An emergency stop device must be installed that fits with system specifications

(e.g. shut off input power then engage mechanical brake).

Operation cannot be stopped immediately by the inverter or this unit alone, thus risking an

accident or injuries.

Install this option into VF-FS1 and secure it by tightening the terminal board fixing

screws to the specified torque. Otherwise, it may cause the product falling, the damage,

or malfunctions.

When installing this option, do not touch its sharp portions such as leads of parts on the

board, the corner of board or etc.

It may lead to injuries.

E6581402c

-3-

Wiring

Warning

Mandatory

Electrical construction work must be done by a qualified expert.

Connection of input power by someone who does not have expert knowledge may result

in electric shocks or fire.

Turn off input power before wiring.

Wait at least 10 minutes and make sure that the charge lamp (on the inverter unit) is no

longer lit. Otherwise, it may lead to electric shocks.

Tighten the screws on the terminal blocks to the specified torque when connecting cables

to terminal blocks.

Otherwise, it may lead to fire.

Operations

Danger

Prohibited

Do not pull on the cable and connector.

It may cause damage or malfunctions.

Mandatory

Use this option under the environment specified in the instruction manual.

Usage under the environment other than them may cause damages or malfunctions or

an accident.

Use an additional safety device with your inverter or system to prevent a serious

accident due to the unit malfunctions.

Usage without an additional safety device may cause an accident.

Warning

Mandatory

Set up ³Communication error trip function (see below)´to stop the inverter when the

option unit is deactivated by an unusual event such as an operating error, power outage,

failure, etc.

- Communication error trip time (Between the inverter and option board) (f803)

- Network timeout (f892)

(See the VF-FS1 BACnet®Communication Function Manual for details)

Deactivated option unit may cause an accident, if the ³Communication error trip

function´is not properly set up.

Make sure that the operation signals are STOP before resetting inverter¶s fault. The

motor may suddenly start and that may result in injuries.

Disposal

Warning

Mandatory

If you dispose off this unit, have it done by a specialist in industrial waste disposal*.

Improper disposal may result in explosion of capacitors or produce noxious gases,

resulting in injuries.

(*) Persons who specialize in the processing of waste and known as ³Industrial Waste

Product Collectors and Transporters´or ³Industrial Waste Disposal Persons.´If the

collection, transport and disposal of industrial waste is done by someone who is not

licensed for that job, it is a punishable violation of the law (Laws in regard to cleaning and

processing of waste materials).

Notes on operation

Notes

Avoidinstalling in a place where ambient temperature or/and humidity change sharply.

Keep the transmission cable separate from the power cable of the inverter to prevent the

inverter from malfunctioning due to electromagnetic noise.

Ground of SCR terminal on this option at the grounding terminal separated from those of

inverters and motors. It may cause malfunction due to noise.

E6581402c

-4-

Preface

Thank you for purchasing the

³BACnet®option

(BCN002Z)´for TOSVERT VF-FS1 inverter. By

Installing this board into the VF-FS1, data communication can be made with a host computer or

other device via

BACnet

network.

Before using this unit, carefully read this instruction manual in order to completely and correctly

utilize excellent performance of this unit. Besides this instruction manual, the ³VF-FS1

BACnet®

Communication Function Manual´which includes the contents to install into

BACnet®

network is

prepared. If it is required, please contact with our branch offices, sales offices or web site

³www.inverter.co.jp´.

(³VF-FS1

BACnet

®Communication Function Manual´: E6581404)

After reading this instruction manual, please keep it handy for future reference.

BACnet

is a registered trademark of ASHRAE.

- Part numbering

BCN 002 Z ±0

Revision number

Cable length ( ³Z´means ³without cable´)

Model number of BACnet

option

Symbol of BACnet

option

- Accessory check list

BACnet

communication option is shipped together with the following accessories. On opening the

packing case, check to see if the following accessories are contained or not.

(1) BACnet option board (BCN002Z)

Board (BCN002Z) ............................................1 pcs

Connector: MSTB2.5/4-ST-5.08

Manufactured by PHOENIX CONTACT

(2) Instruction manual

English (E6581402).......................................1 copy (This book)

(3) Cabling label & Name plate ............................1 sheet

(1 cabling label and 2 name plates)

(4) Insulating sheet ...............................................1 sheet

Instruction

Manual

E6581402c

-5-

Table of Contents

1. Overview 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 6

2. Names and functions 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 6

2.1. Outline㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 6

2.2. Use of RS485 communication port㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 6

2.3. LED indicator 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯7

3. Installation and Setup 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 8

3.1. Installation method 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 8

3.2. Description of terminals 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 9

3.3. Network cable connection 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 10

3.4. Network configuration㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 10

3.5. Wiring of a control terminal 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 11

4. Parameters 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 12

4.1. Communication parameters 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 12

5. Specifications 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 13

6. Warranty 㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯㨯 14

E6581402c

-6-

1. Overview

The BACnet (BCN002Z) interface allows the VF-FS1 inverter to be connected into a BACnet network.

BACnet MS/TP supports a maximum of 32 nodes for one segment.

2. Names and functions

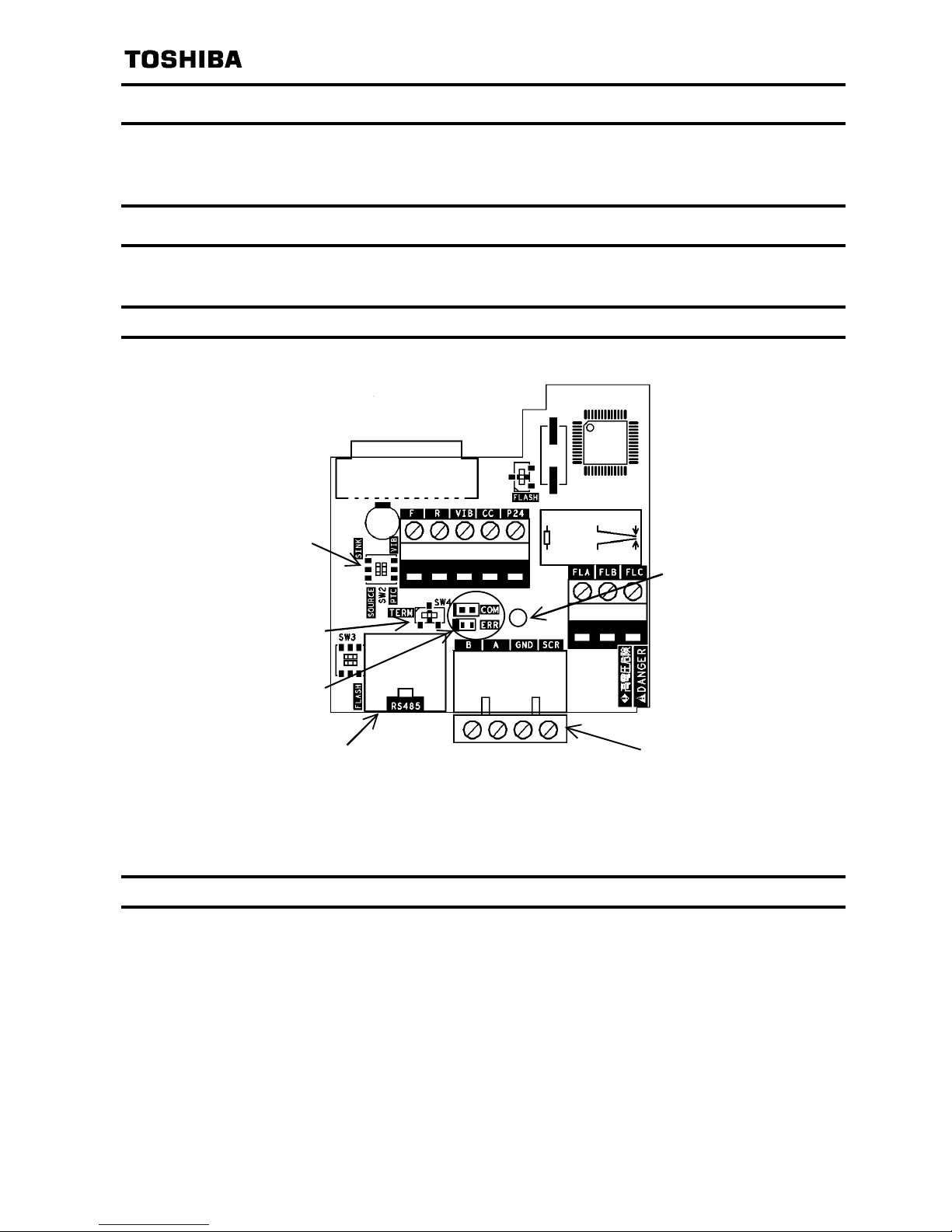

The drawing below shows names and functions of main parts.

2.1. Outline

2.2. Use of RS485 communication port

Serial communication (2-wire RS485) option can be used. However, while it is connected, the

internal communication line is switched to RS485 then the communication via BACnet network is

disabled. In this case, communication error trip time (f803) is also active. Use RS485 serial

communication option specified by Toshiba.

Detachable terminal

Network

communication

Communication

condition monitor LED

Input terminal

SINK/SOURCE

VIB/PTC select SW

Optional RS485 communication port

RS485 communication option can be

used. However it makes BACnet

Communication be disabled.

BAGNDSCR

Connector

Termination

resistor SW

Terminal board fixing

screw hole

(M3 screw)

E6581402c

-7-

2.3. LED indicator

The option has two LEDs. Those functions are below table.

State LEDs Comment

AGreen LED : OFF

RedLED :Flashing5timesin1second BACnet board failure

Green LED : OFF

Red LED :

Flashing 3 times in 2 seconds, Off for 1

second

Communication loss detected. Confirm the

network condition and connection of the cable.

CGreen LED : ON

Red LED : OFF 0.5s, ON 0.5s

Invalid configuration detected (ADR > max

master), or an option is connected to RJ45.

Green LED :

Flashing 3 times in 2 seconds, Off for 1

second

Red LED : OFF

Waiting for Auto baud rate detection

EGreen LED : Flashing Intermittent Green

Red LED : --- Valid message received for this node

FGreen LED : ---

Red LED : Flashing Intermittent Red Invalid message received (any node)

COM

Green

ERR

Red

OFF

1s 1s

ABC EF

OFF

E6581402c

-8-

3. Installation and Setup

3.1. Installation method

Install the BACnet communication option to VF-FS1 as follows.

(1) Turn off the input power of VF-FS1 and wait for at least 10 minutes and then check that the

CHARGE lamp on VF-FS1 is no longer lit.

(2) Open the VF-FS1 front cover, remove the terminal board fixing screw and take off the VF-FS1

standard terminal board.

(Be careful not to lose the terminal board fixing screw when removed since it may be used again.)

(3) Perform wiring an inverter before installing BACnet communication option.

(4) Please attach the insulating sheet in VF-FS1.

(Fix to the terminal board fixing screw hole and PWB catch pin.)

(5) Install the BACnet communication option over the insulating sheet and secure it with the board

fixing screw (tightening torque of M3 tapping screw: 0.7 to 0.8Nm).

(6) Set up the SW of the board with the input terminal for sink or source.

(7) Stick the cabling label for BACnet communication option on the standard cabling label stuck on

the reverse side of the VF-FS1 front cover. And stick the BACnet communication option

nameplate near the standard nameplate. (Be careful not to cover slits on the VF-FS1 enclosure.

N.B.: To install or remove the terminal board, make it slide in or out in parallel with board.

VF-FS1 name plate

BACnet communication option

(

BCN002Z

)

VF-FS1 Standard terminal board

VF-FS1 unit

Stick the BCN002Z nameplate

like bellow figure.

BCN002Z

Insulating seat

(attached)

Board catching pin

Board fixing screw hole

BCN002Z

Terminal board fixing screw

(M3 screw tightening torque: 0.7 to 0.8Nm)

Cabling label position

Example

E6581402c

-9-

3.2. Description of terminals

Terminal

symbol Function Electrical specifications Internal circuits

B Communication signal (+)

A Communication signal (-)

GND Signal common

SCR

BACnet communication

signal

EIA-485 Shield terminal.

Connect to network ground.

GND

SCR

47k

4.7k

120

SW4

TERM

Multifunctional programmable

contact input.

SINK/SOURCE can be

selected with SW.

No voltage contact input

24VDC,5mAorless

N.B. Use contact parts for low

current. F, R

P24

4.7k

P24

PTC

SOURCESINK

820

VIB

Multifunction programmable

analog input.

with internal pull-up resistor

for PTC

0to10V

DC input

Using this terminal as PTC

input, set SW2 to PTC side

and set the parameters

(f645 and f646)to

proper value.

VIB

15k

VIB

P10

15k

3.3k

CC Control circuit¶s equipotential

terminal

P24 24 V

DC power supply output 24VDC-50mA P24

P24

PTC

FLA

FLB

FLC

Multifunctional programmable

relay contact outputs

1c contact

30V

DC-0.5A

250VAC-1A (cosI=1㧕

250VAC-0.5A (cosI=0.4)

FLB

FLC

Danger

Prohibited

Do not change switches settings while the power is on.

It may lead to electric shocks or damage.

Mandatory

Turn off the motor operation signals before setting the parameter and the switch

(SW), when changing the VIB function. Otherwise, the motor may suddenly start

and that may result in injuries.

Indice

Altri manuali Toshiba Hardware per computer

Toshiba

Toshiba B-EP700-WLAN-QM-R Manuale utente

Toshiba

Toshiba Stratagy IVP8 Manuale utente

Toshiba

Toshiba CEX0122B Manuale utente

Toshiba

Toshiba DA364/DA374 Manuale utente

Toshiba

Toshiba D660 Manuale utente

Toshiba

Toshiba TCB-PCIN3E Manuale utente

Toshiba

Toshiba TCB-PSMT1E Manuale utente

Toshiba

Toshiba TOSVERT VF-MB1/S15 IPE002Z Manuale elenco delle parti

Toshiba

Toshiba C3PU35 Manuale utente

Toshiba

Toshiba TOSVERT VF-MB1 Manuale elenco delle parti

Toshiba

Toshiba GX7 Series Manuale utente

Toshiba

Toshiba TOSVERT VF-MB1/S15 IPE002Z Manuale elenco delle parti

Toshiba

Toshiba G7 Manuale di istruzioni

Toshiba

Toshiba RemotEye III Manuale utente

Toshiba

Toshiba Stratagy Flash Manuale utente

Toshiba

Toshiba G7 Manuale utente

Toshiba

Toshiba Memory Module Manuale elenco delle parti

Toshiba

Toshiba SD-BT00A Manuale utente

Toshiba

Toshiba WN4301A-LF-JT Manuale utente

Toshiba

Toshiba Libretto 50CT Manuale utente

Toshiba

Toshiba TX49 TMPR4937 Manuale utente

Toshiba

Toshiba TMP92CM22FG TLCS-900/H1 Series Manuale utente

Toshiba

Toshiba ETB003Z Manuale utente

Toshiba

Toshiba GN-1060 Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
