Toshiba RBC-AMT32E Manuale utente

Pocket Quick Reference

Guide 2012

On the TOSHIBA

RBC-AMT32E / RBC-AMS41E

Remote Controllers

Quick Reference Guide

To assist service engineers working on Toshiba air conditioning equipment, there is a large quantity of

data available via the standard remote controller, either the RBC-AMT32E or the RBC-AMS41E, this

data is NOT available via an Infra Red remote or the RBC-AS21E2 simplified remote controller.

Accessing the data is a simple process of pressing a sequence of buttons on the remote controller.

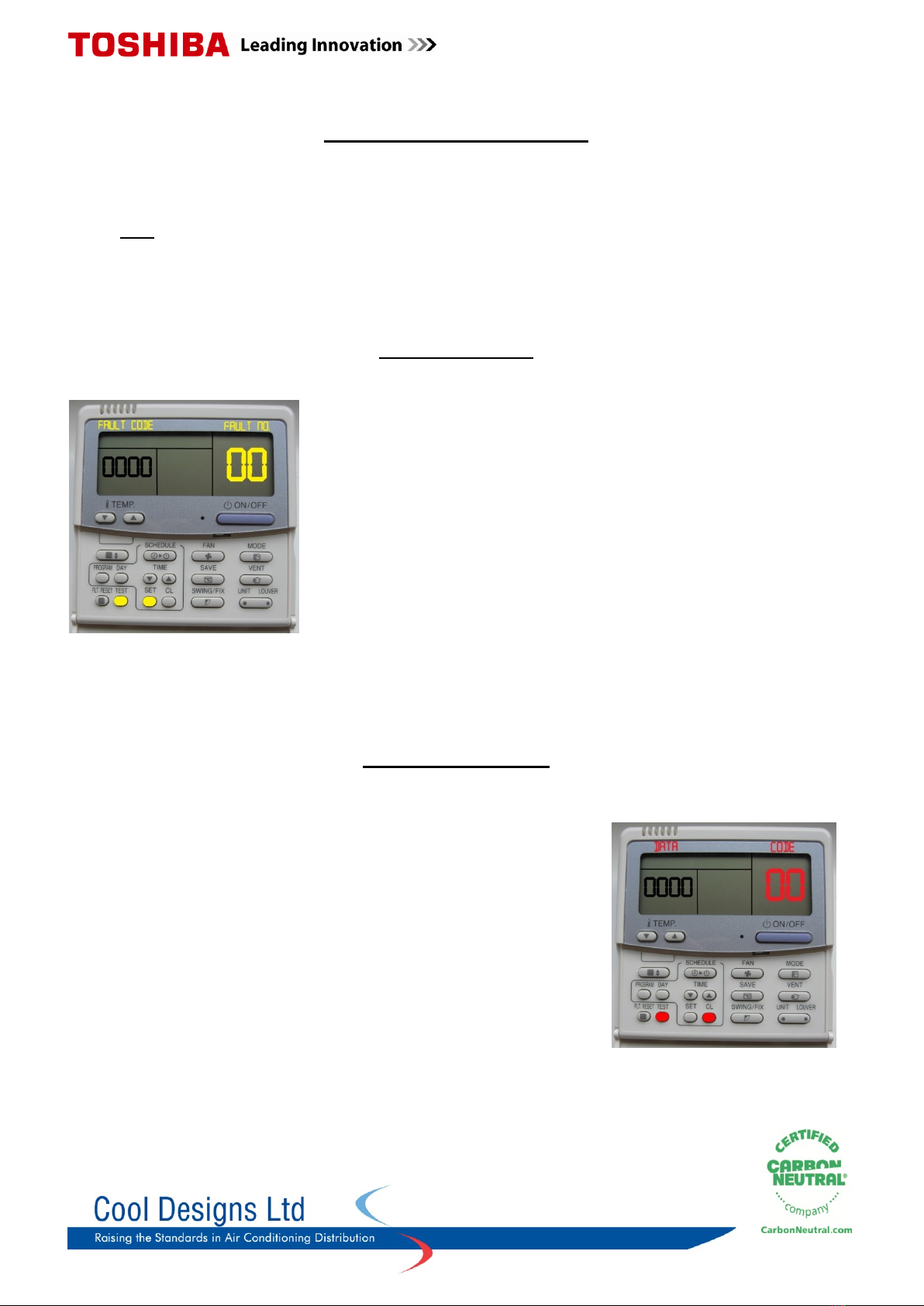

Fault Code Guide

Current fault codes are displayed automatically on the left

of the remote controller, (Four figure display in Black) fault

code history can be accessed by pressing “Test and Set”

(The two yellow buttons) together and holding for 4

seconds.

Each controller will hold four fault codes per unit

controlled, the first displayed fault code is the youngest

and the fourth will be the oldest.

To scroll through the faults use the “TEMP” buttons.

Refer to the Technical Handbook for fault code diagnosis and descriptions

Data Retrieval Guide

System data can be obtained by pressing “Test and CL”

together and holding for 4 seconds

Codes are displayed on the right of the remote display

To scroll through the codes use the “TEMP ” buttons.

Data is displayed on the left of the remote controller.

Data is available for “0, 1, 2, 3 & 4 Series” Digital/Super Digital

Inverter and VRF equipment (SMMS, SHRM & SMMSI).

Digital/Super digital “0-1-2-3” series data

Code

Indoor Data

Code

Outdoor Data

Room Temp (Control Temp) (oC)

TE Sub-cooled Liquid Temp. (oC)

Room Temp. (Remote Controller) (oC)

TO Ambient Temp. (oC)

TA Return Air Temp. (oC)

TD Discharge Temp. (oC)

TC Coil –Vapour Temp. (oC)

TS Suction Temp. (oC)

TCJ Coil –Liquid Temp. (oC)

THS –Inverter Heat Sink Temp. (oC)

Digital/Super digital “4” series

Code

Indoor Data

Code

Outdoor Data

Room Temp (Control Temp) (oC)

TE Sub-cooled Liquid Temp. (oC)

Room Temp. (Remote Controller) (oC)

TO Ambient Temp. (oC)

TA Return Air Temp. (oC)

TD Discharge Temp. (oC)

TC Coil –Vapour Temp. (oC)

TS Suction Temp. (oC)

TCJ Coil –Liquid Temp. (oC)

THS –Inverter Heat Sink Temp. (oC)

Fan Speed (rpm)

Operation Current (A)

Fan Run Time (x 100h)

Compressor Frequency (Hz)

Filter Duration Timer ( x 1h)

Fan Speed (Lower) –(rpm)

Discharge Temp. (Indoor –If fitted) (oC)

Fan Speed (Upper) –(rpm)

Compressor Run Time (x 100h)

VRF indoor data for Mini SMMS / SMMS / SMMSI & SHRM equipment

Code

Indoor Data

Code

Indoor Data

Room Temp (Control Temp) (oC)

Indoor Discharge Temp (If Used) - (oC)

Room Temp. (Remote Controller) (oC)

PMV Position (0 –10)

TA Return Air Temp. (oC)

Number of Connected Indoor Units (No.)

TCJ Coil –Liquid Temp. (oC)

Indoor Capacity (x 10 = HP)

TC2 Coil –PMV Pipe Temp. (oC)

Number of Outdoor Units (No.)

TC1 Coil –Vapour Temp (oC)

Outdoor Capacity ( x 10 = HP)

VRF Outdoor data for Mini SMMS / SMMS & SHRM equipment

Code

Outdoor Data

Code

Outdoor Data

Td1 - Compressor 1 Discharge Temp. (oC)

TU –Low Pressure Saturated Temp. (oC)

Td2 - Compressor 2 Discharge Temp. (oC)

Compressor 1 Current (A)

Pd –High Pressure Sensor (MPa)

Compressor 2 Current (A)

Ps - Low Pressure Sensor (MPa)

PMV1 + 2 Opening (0 –100)

TS –Suction Temp. (oC)

Compressor 1, 2 ON/OFF

TE - Outdoor Heat Exchanger Temp. (oC)

Outdoor Fan Mode (0 –31)

TL –Liquid Temp. (oC)

Outdoor Unit Size (HP)

Note. * Would be replaced with 1, 2, 3 or 4 to obtain data from respective outdoor unit.

VRF Outdoor data for SMMSI equipment

Code

Outdoor Data

Code

Outdoor Data

Pd –High Pressure Sensor (MPa)

Compressor 1 Revolutions (rps)

Ps –Low Pressure Sensor (MPa)

Compressor 2 Revolutions (rps)

Td1 –Compressor 1 Discharge Temp. (oC)

Compressor 3 Revolutions (rps)

Td2 –Compressor 2 Discharge Temp. (oC)

Outdoor Fan Mode

Td3 –Compressor 3 Discharge Temp. (oC)

Compressor IPDU 1 Heat Sink Temp. (oC)

TS –Suction Temp. (oC)

Compressor IPDU 2 Heat Sink Temp. (oC)

TE1 –Outdoor Coil Temp. (oC)

Compressor IPDU 3 Heat Sink Temp. (oC)

TE2 –Outdoor Coil Temp. (oC)

Outdoor Fan IPDU Heat Sink Temp. (oC)

TL –Liquid Temp. (oC)

Heating / Cooling Recovery Controlled

TO –Outdoor Ambient Temp. (oC)

Pressure release

PMV 1 + 2 Opening

Discharge Temp. Release

PMV 4 Opening

Follower Unit Release

Compressor 1 Current (A)

Outdoor Unit Size (HP)

Compressor 2 Current (A)

Note. * Would be replaced with 1, 2, 3 or 4 to

obtain data from respective outdoor unit.

# would be replaced with either 5, 6, 7, 8 to

obtain data from outdoor units 1,2,3 or 4

Compressor 3 Current (A)

Outdoor Fan Current (A)

For more detailed descriptions please refer to the relevant technical service manual.

NOTES:

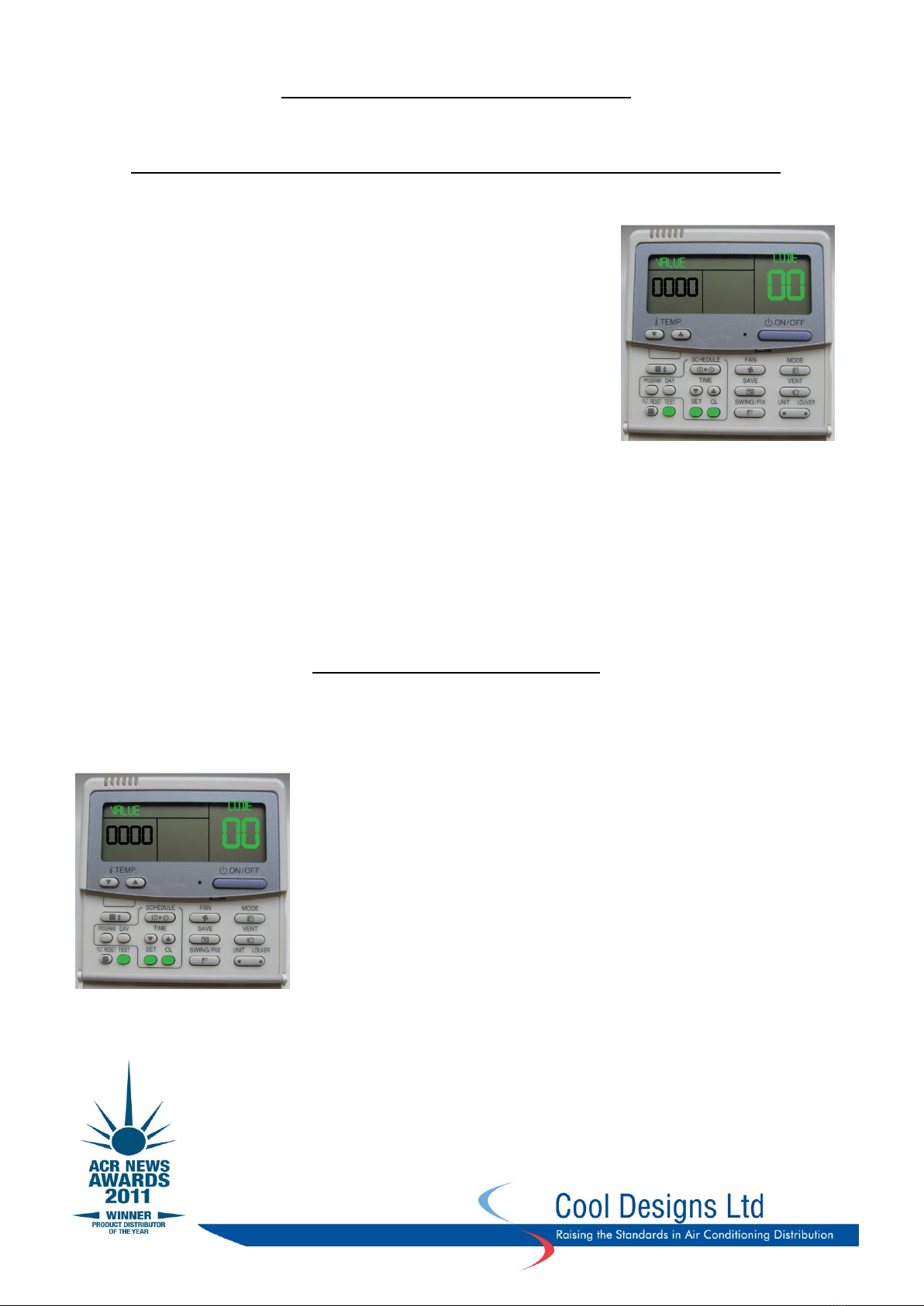

Common Configurable Control Options

*Accessed via Toshiba hard wired remote controller RBC-AMT32E and RBC-AMS41E

Relocation of room temperature sensing from return air to remote controller sensor

Press and hold the TEST, SET & CL Buttons simultaneously for 4 seconds

The Engineering Menu is accessed at item code 10

Use the Temperature  Buttons to navigate to item code 32

Use the Timer  Buttons to adjust the value from 0000 to 0001

Press SET to acknowledge the change

Press Test to exit the Engineering Menu

The display will go blank and then flash SETTING whilst the system reconfigures

When SETTING stops flashing press ON/OFF Button to restart the operation

Automatic restart after power failure

Press and hold the TEST, SET & CL Buttons simultaneously for 4 seconds

The Engineering Menu is accessed at item code 10

Use the Temperature Buttons to navigate to item 28

Use the Timer  Buttons to adjust the value from 0000 to 0001

Press SET to acknowledge the change

Press Test to exit the Engineering Menu

The display will go blank and then flash SETTING whilst the system

reconfigures

When SETTING stops flashing press ON/OFF Button to restart the

operation

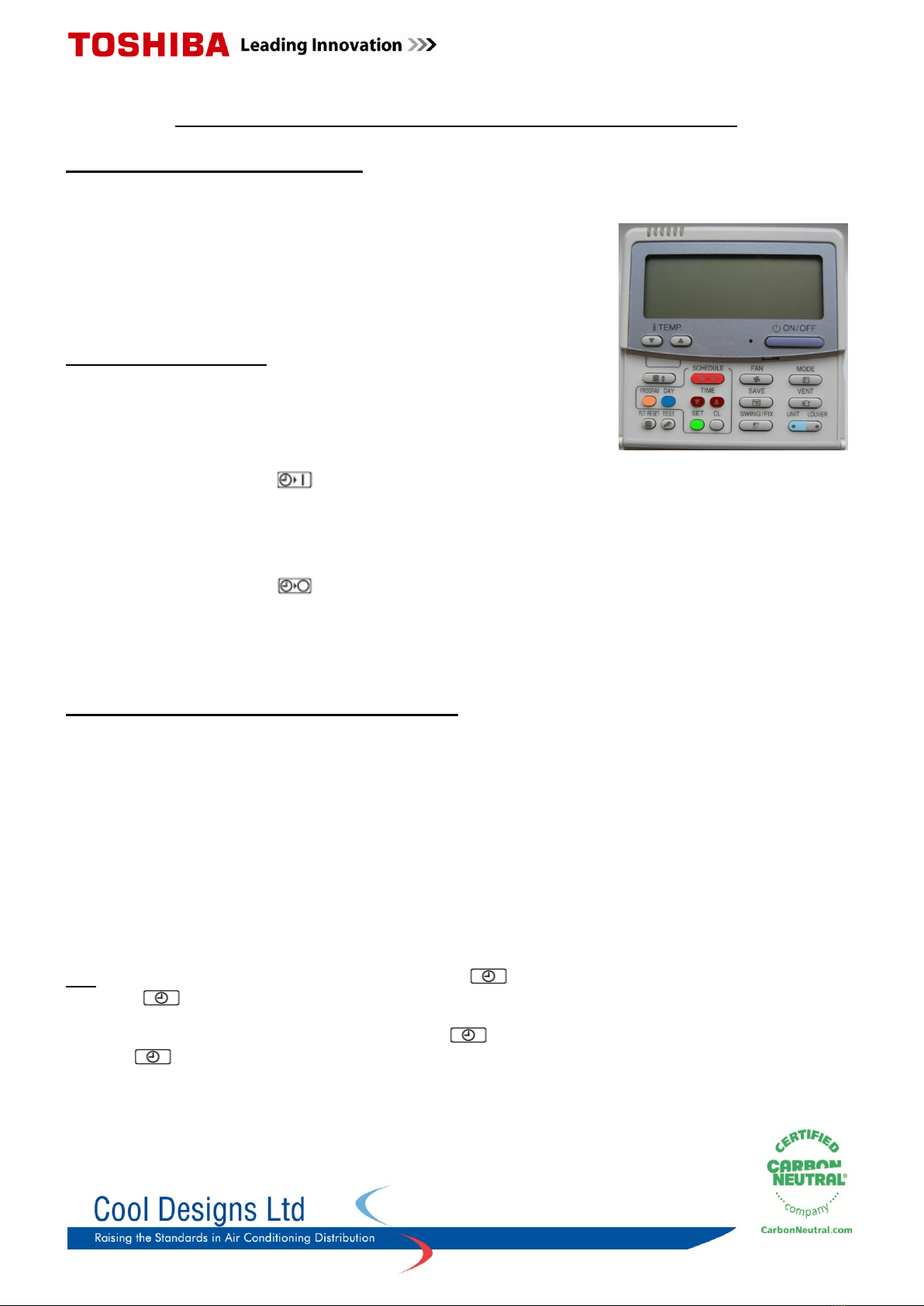

Simplified Instructions for the RBC-AMS41E Remote Controller

Setting Present Time and Day of Week

Press and hold SCHEDULE for 4 seconds, (setting appears on screen)

Press DAY until the correct day of the week is indicated

Press TIME up and down keys to set current time

Press SET to confirm entries. Day and time now set.

Setting ON and OFF Times (scheduled operations)

1. Press PROGRAM, display will flash PG-01

2. Press DAY until Monday is selected then Press SET

3. Press SET, PG-01 will stop flashing

4. Press TIME up and down keys until required ON TIME is displayed

5. Press SCHEDULE until blinks (symbol denotes start operation)

6. Press SET

7. Press UNIT, PG-02 will appear

8. Press SET, PG-02 will stop flashing

9. Press TIME up and down keys until required OFF TIME is displayed

10. Press SCHEDULE until blinks (denotes stop operation)

11. Press SET and then PROGRAM

The bar now underlining MONDAY indicates that times have now been entered

Copying From Monday to Remaining Days of Week

1. Press PROGRAM, display will flash PG-01

2. Press DAY key and select Monday

3. Press SET

4. Press UNIT key until PG-CP appears (program copy)

5. Press SET

6. Press DAY and select Tuesday

7. Press SET (Monday times have now been copied into Tuesday) to continue copying return to step 4

8. Press PROGRAM

The times have now been programmed into the controller

N.B. To activate the programmed times press SCHEDULE, will flash,

Press SET, remains displayed, scheduled programming now activated.

To deactivate the programmed times press SCHEDULE, will flash,

Press CL, disappears from screen.

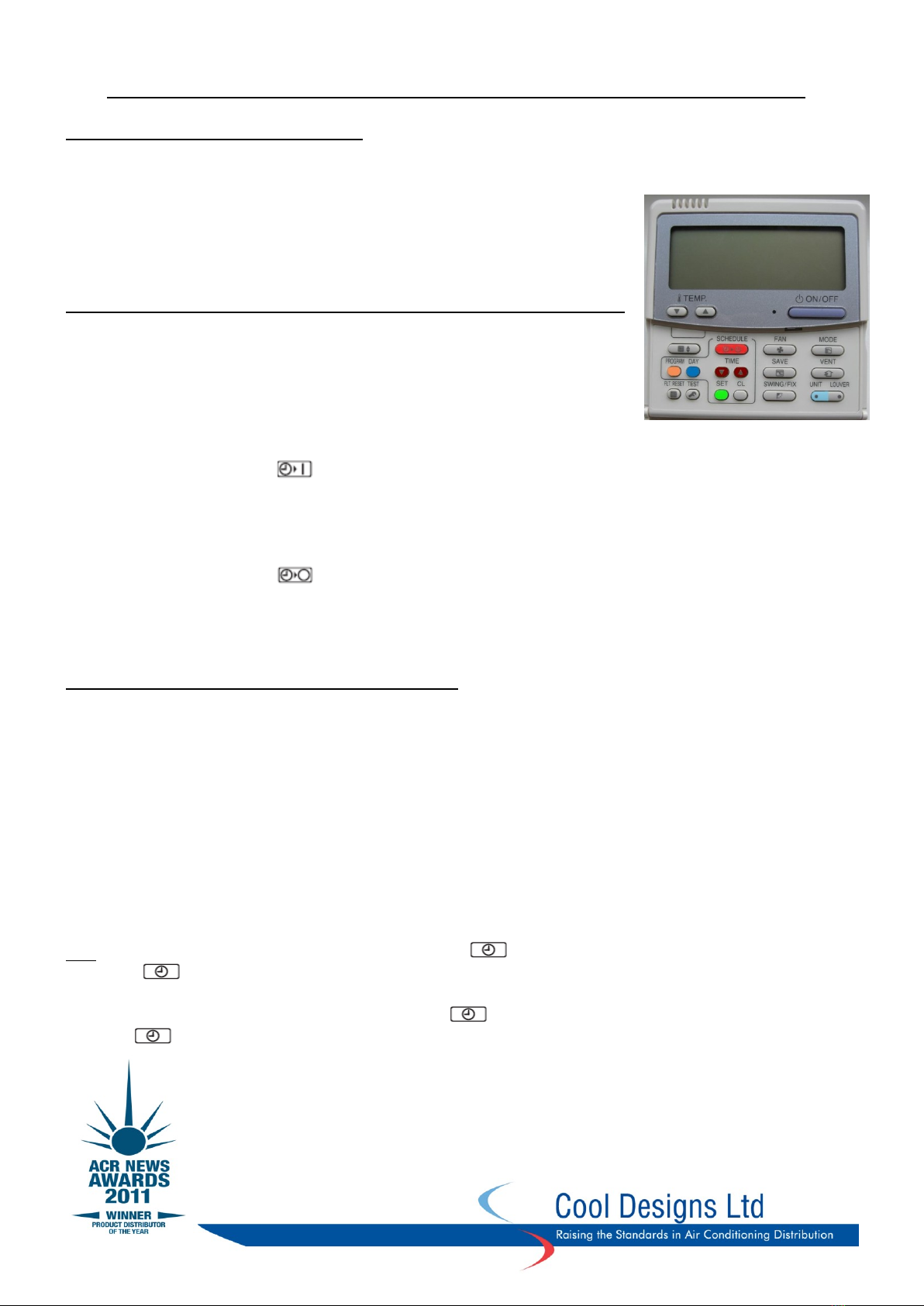

Time, Temperature and Mode Selection when Programming the RBC-AMS41E

Setting Present Time and Day of Week

Press and hold SCHEDULE for 4 seconds, (setting appears on screen)

Press DAY until the correct day of the week is indicated

Press TIME up and down keys to set current time

Press SET to confirm entries. Day and time now set.

Setting Scheduled Operations with Mode and Temperature functionality

12. Press PROGRAM, display will flash PG-01

13. Press DAY until Monday is selected then Press SET

14. Press SET, PG-01 will stop flashing

15. Press TIME up and down keys until required ON TIME is displayed

16. Press MODE key selecting desired mode of operation

17. Press TEMPERATURE up & down arrows to set desired temperature

18. Press SCHEDULE until blinks (symbol denotes start operation)

19. Press SET

20. Press UNIT, PG-02 will appear

21. Press SET, PG-02 will stop flashing

22. Press TIME up and down keys until required OFF TIME is displayed

23. Press SCHEDULE until blinks (symbol denotes stop operation)

24. Press SET and then PROGRAM

The bar now underlining MONDAY indicates that times have now been entered

Copying From Monday to Remaining Days of Week

9. Press PROGRAM, display will flash PG-01

10. Press DAY key and select Monday

11. Press SET

12. Press UNIT key until PG-CP appears (program copy)

13. Press SET

14. Press DAY and select Tuesday

15. Press SET (Monday times have now been copied into Tuesday) to continue copying return to step 4

16. Press PROGRAM

The times have now been programmed into the controller

N.B. To activate the programmed times press SCHEDULE, will flash,

Press SET, remains displayed, scheduled programming now activated.

To deactivate the programmed times press SCHEDULE, will flash,

Press CL, disappears from screen.

Contact details:

Cool Designs Ltd Technical Support

0844 800 0250

Toshiba Air Conditioning

24/7 technical support

0870 843 0333

Text back service

07624 803 017

(Type fault code in lower case no spaces)
