Toshiba IK-53V Manuale utente

CCD CAMERA

IK-53V/IK-52V

OPERATING GUIDE

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must ac-

cept any interference received, including interference that may cause undesired operation.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own ex-

pense.

USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be

voided if you make changes or modifications not expressly approved by the party responsible for

compliance to Part 15 of the FCC rules.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est comforme à la norme NMB-003 du Canada.

CONTENTS

1. GENERAL ....................................................................................................................2

2. CAMERA PARTS AND FUNCTIONS ......................................................................... 3

3. CONNECTIONS ......................................................................................................... 5

4. SETTING .....................................................................................................................6

4-1. Video Scanning Modes......................................................................................6

4-2. Electronic Shutter ...............................................................................................8

4-3. Reset Restart ...................................................................................................... 9

4-4. External Trigger Mode..................................................................................... 10

5. Input Output Signal Specifications ....................................................................... 15

6. CCD Output Waveform Timing Chart ................................................................... 17

7. EXTERIOR VIEW ...................................................................................................... 18

8. SPECIFICATIONS ..................................................................................................... 19

1. GENERAL

The IK-53V/IK-52V is a monochrome video camera using a solid image sensor CCD (Charged

Coupled Device).

High Picture Quality

The VGA-applicable CCD of 330,000 pixels provides a fine picture equivalent to VGA. The

square pixel CCD eliminates the necessity of conversion to aspect ratio when processing im-

ages.

Various Modes Setting

The following modes can be set by the switches on the rear panel.

• Gain: Fixed/manual adjustment (0 to +18 dB)

• Partial scanning Function

• Synchronized input/output (HD/VD)

• 75Ωterminal (at external synchronous input)

• Shutter function: Normal/external trigger shutter

• Shutter speed

External Synchronization

External HD/VD signals are analyzed and the synchronization mode is automatically selected

to match the input signals.

Internal Synchronizing Signal Output

HD and VD signals can be outputted from the 12-pin connector by changing the switch posi-

tion on the rear panel.

Electric Shutter Speed

A variety of shutter speeds (1/100 to 1/100,000 sec) is provided to permit choice suitable for

shooting conditions.

External Trigger Function

A trigger input provides one still image. This function exactly captures a subject moving at a

high speed.

Partial Scanning Function

The number of effective video output lines is limited to provide a high frame rate video output

suitable for speedy image processing.

Cabinet Fixing

The cabinet fixing screw hole is provided below the front panel which includes the CCD datum

level. Fix the camera using this screw hole to minimize shifts in the optical axis.

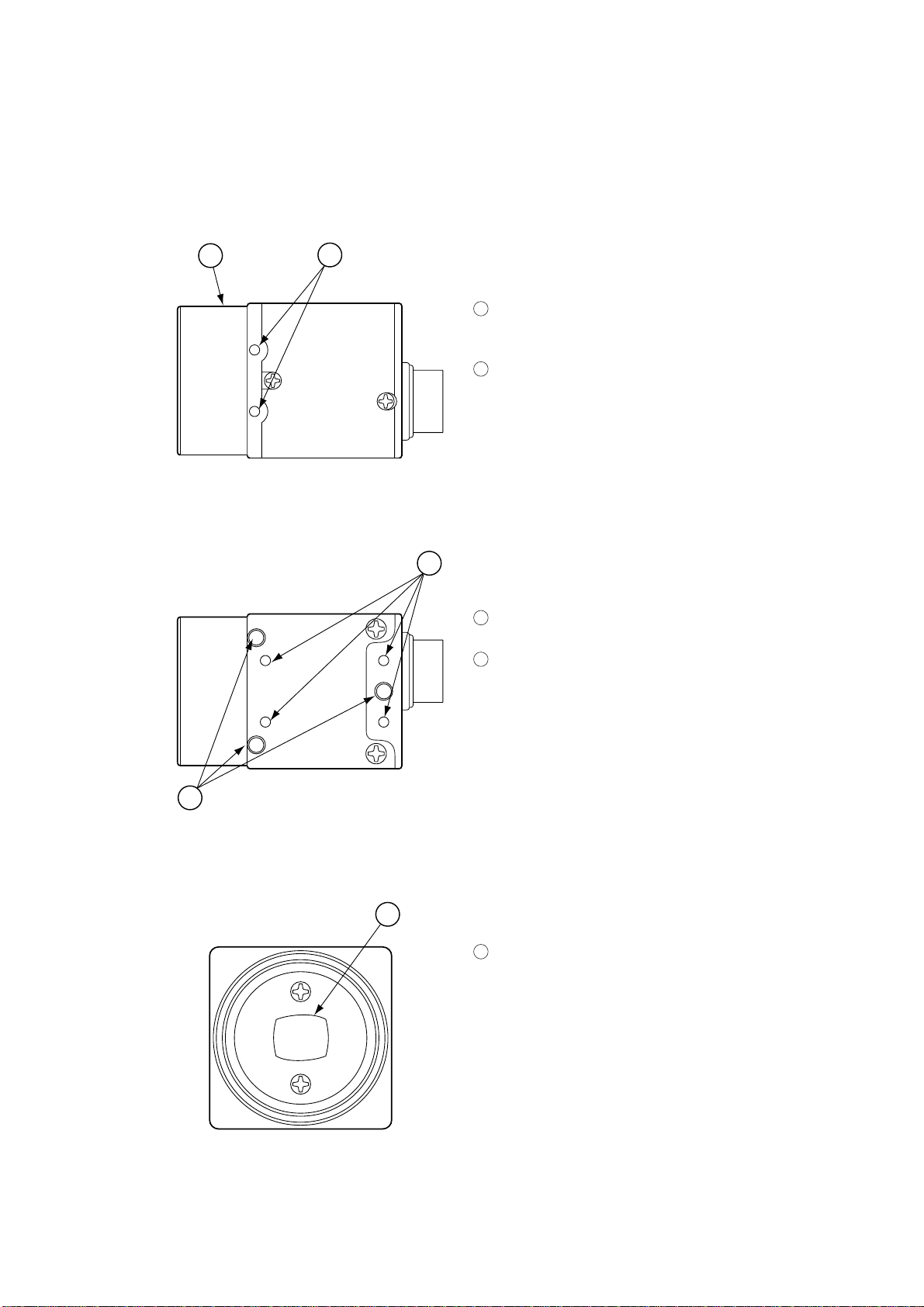

2. CAMERA PARTS AND FUNCTIONS

Top/Bottom/Front Side

[Top]

4[Bottom]

[Front]

Lens mount (C mount)

This is used to mount a C-mount type lens or

optical equipment.

Camera fixing reference hole (top side)

Camera fixing reference hole/Tripod fixing metal

screw hole (bottom side)

Camera fixing reference hole/Tripod fixing metal

screw hole (bottom side)

Imaging area

The protection cap is attached on the lens mount

portion. After removing the cap, mount the lens.

Be careful not to scratch or touch the optical

area.

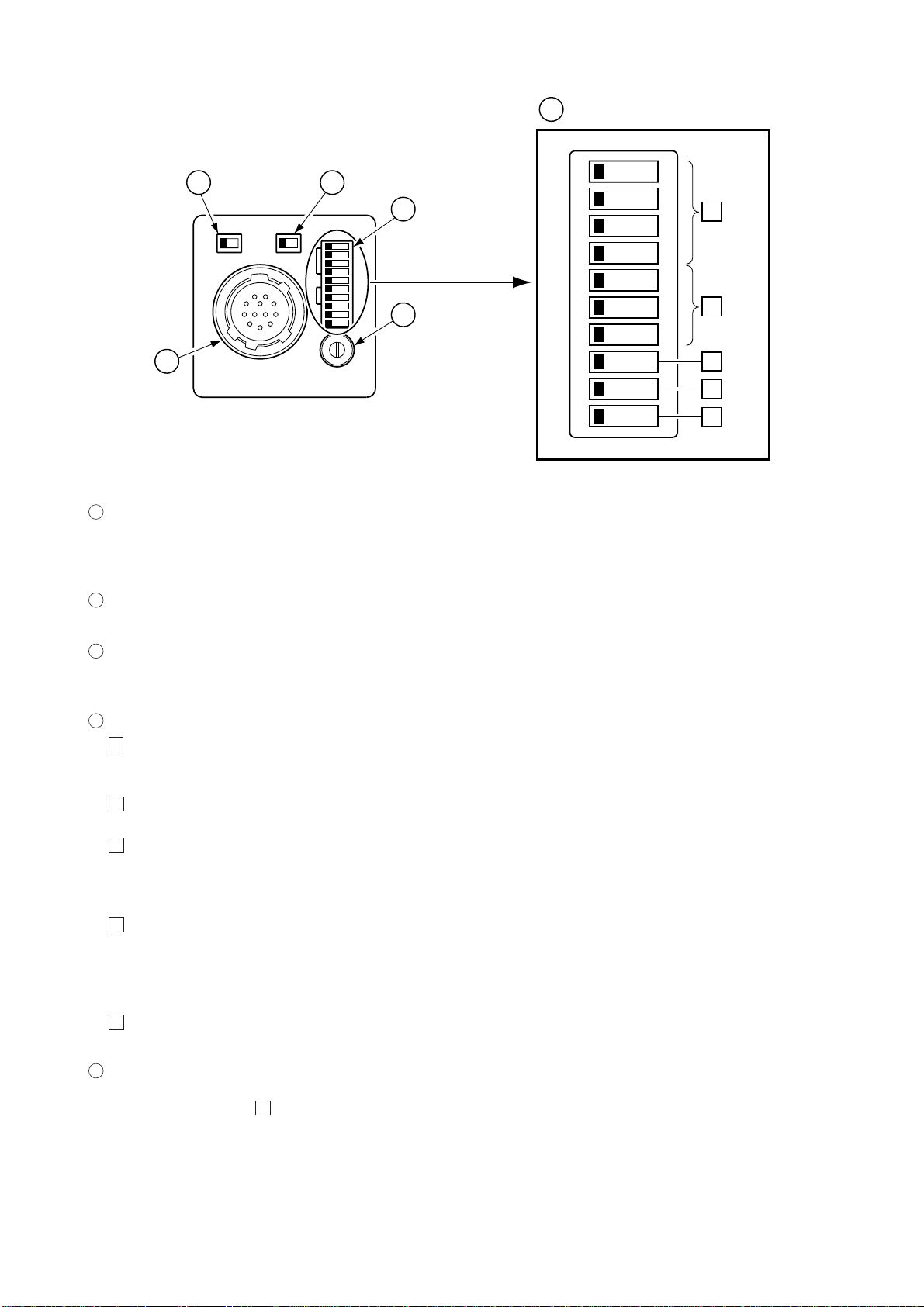

Rear Side

ON OFF

EXT INT

HD/VD

75Ω

SHT

TRG

M.G

MIN MAX

M GAIN

VIDEO OUT

DC IN/SYNC

P.S

Enlarged

VIDEO OUT DC IN/SYNC plug (12-pin connector)

This receives +12 VDC, and sends a video signal from the camera. When a synchronizing signal

generator is connected to this plug and an external synchronizing signal (HD/VD signal) is applied,

the camera can be operated synchronously with the external signal.

75Ωterminal switch (Terminal of external synchronizing HD/VD input signal)

Set this switch to OFF when not terminated. The factory setting is ON.

HD/VD signal input/output selector switch

Set to INT to output the HD/VD signals from the camera, and EXT to input external HD/VD signals.

The factory setting is EXT.

MODE SELECT switch

Shutter speed setting (MODE SELECT switch bit 1 to 4)

Set to the shutter speed suitable for the shooting conditions. For each setting position, refer to

P. 8. The factory setting position is shutter OFF.

Reset restart/External trigger mode setting (MODE SELECT switch bit 5 to 7)

For each setting position, refer to P. 9 to 14. The factory setting position is NORMAL.

3Trigger polarity setting (MODE SELECT switch bit 8)

Selects the polarity of an externally inputted trigger.

OFF: Positive ON: Negative

The factory setting position is OFF.

4Partial scanning mode setting (MODE SELECT switch bit 9)

Use Pin 9 (PART input) of the 12-pin connector on the rear panel. For the mode setting, refer to

P. 6. The factory setting is OFF.

(PART input; H: 2 to 5V, L: 0 to 0.4V)

During partial scanning mode, 134 lines are output to the screen center (frame rate 180 fps).

5Gain selector switch setting (MODE SELECT switch bit 0)

This switch selects the modes OFF (fixed) or ON (manual). The factory setting is OFF (fixed).

Manual gain (M GAIN) control knob

This adjusts the gain of a video signal when the gain mode is set to ON by the MODE SELECT

switch bit 0 on step 5. The factory setting is the fully counterclockwise position.

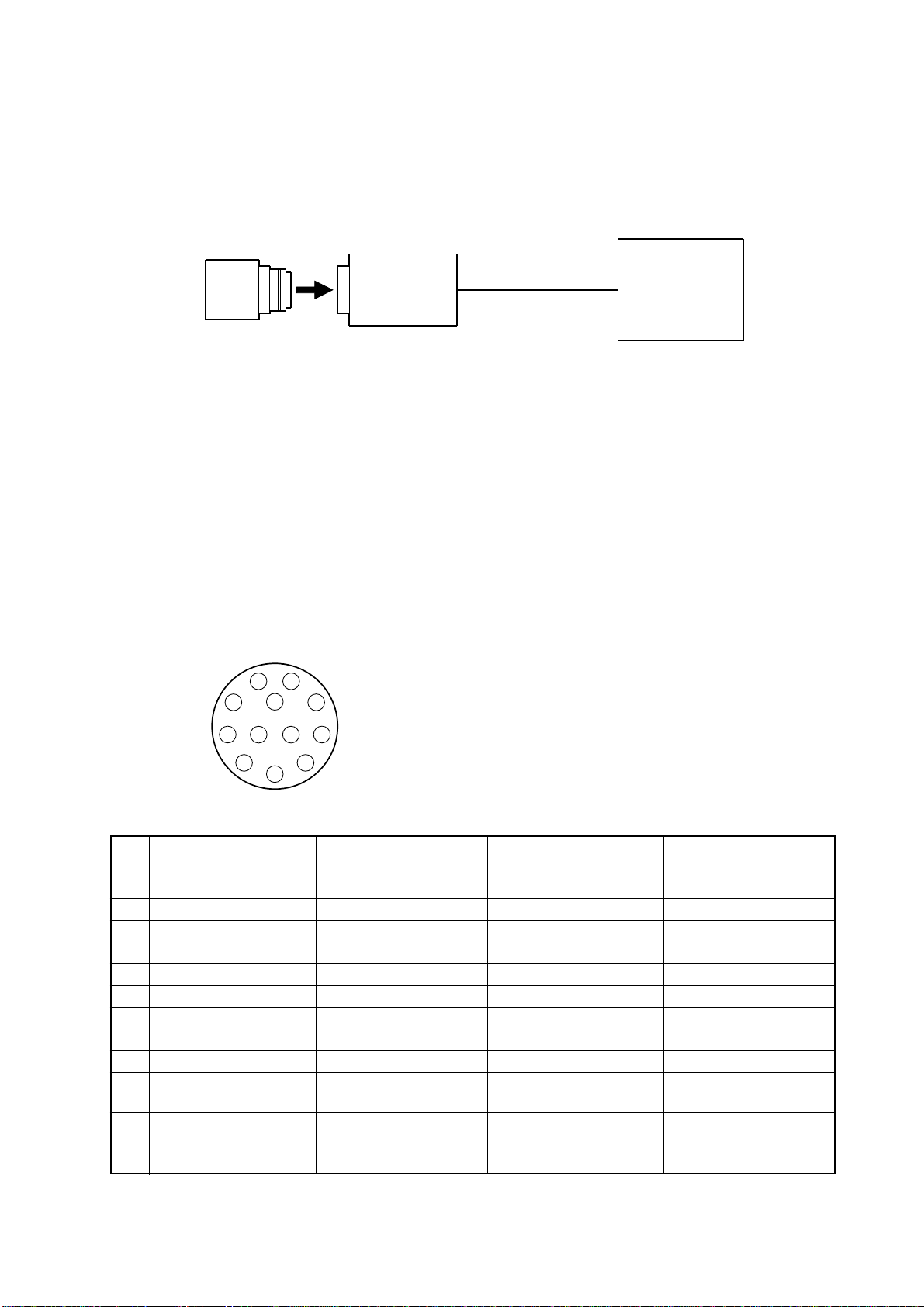

3. CONNECTIONS

Standard Connection

Camera Cable

(optional)

Image processor

Lens

IK-53V

IK-52V

456

11 12

Cautions on Connection

• When connecting the camera cables, be sure to turn off the camera and the other equipment

connected.

• When using another lens, the best camera performance of this camera may not be obtained.

(For example, low resolution may occur, and flare, ghost or shading may occur)

• Use the DC power source described below.

• Power supply voltage: +10.5V to +15V

• Current rating: More than 830 mA

• Ripple voltage: Less than 50 mV(p–p)

Connector Pin Assignments

No.

External synchroniza-

tion mode (HD/VD)

GND

DC+12V

Video output (GND)

Video output (signal)

HD input (GND)

HD input (signal)

VD input (signal)

GND

PART input (signal)

–

VD input (GND)

Reset restart

GND

DC+12V

Video output (GND)

Video output (signal)

HD input (GND)

HD input (signal)

Reset (signal)

GND

PART input (signal)

VIDEO INDEX output

(signal)

–

Reset (GND)

External trigger mode

GND

DC+12V

Video output (GND)

Video output (signal)

HD input (GND)

HD input (signal)

VD input (signal)

GND

PART input (signal)

VIDEO INDEX output

(signal)

Trigger pulse input

(signal)

VD input (GND)

Connector:

HR10A–10R–12PB by HIROSE electronics Co. Ltd

Internal synchroniza-

tion output signal

GND

DC+12V

Video output (GND)

Video output (signal)

HD output (GND)

HD output (signal)

VD output (signal)

GND

PART input (signal)

–

VD output (GND)

4. SETTING

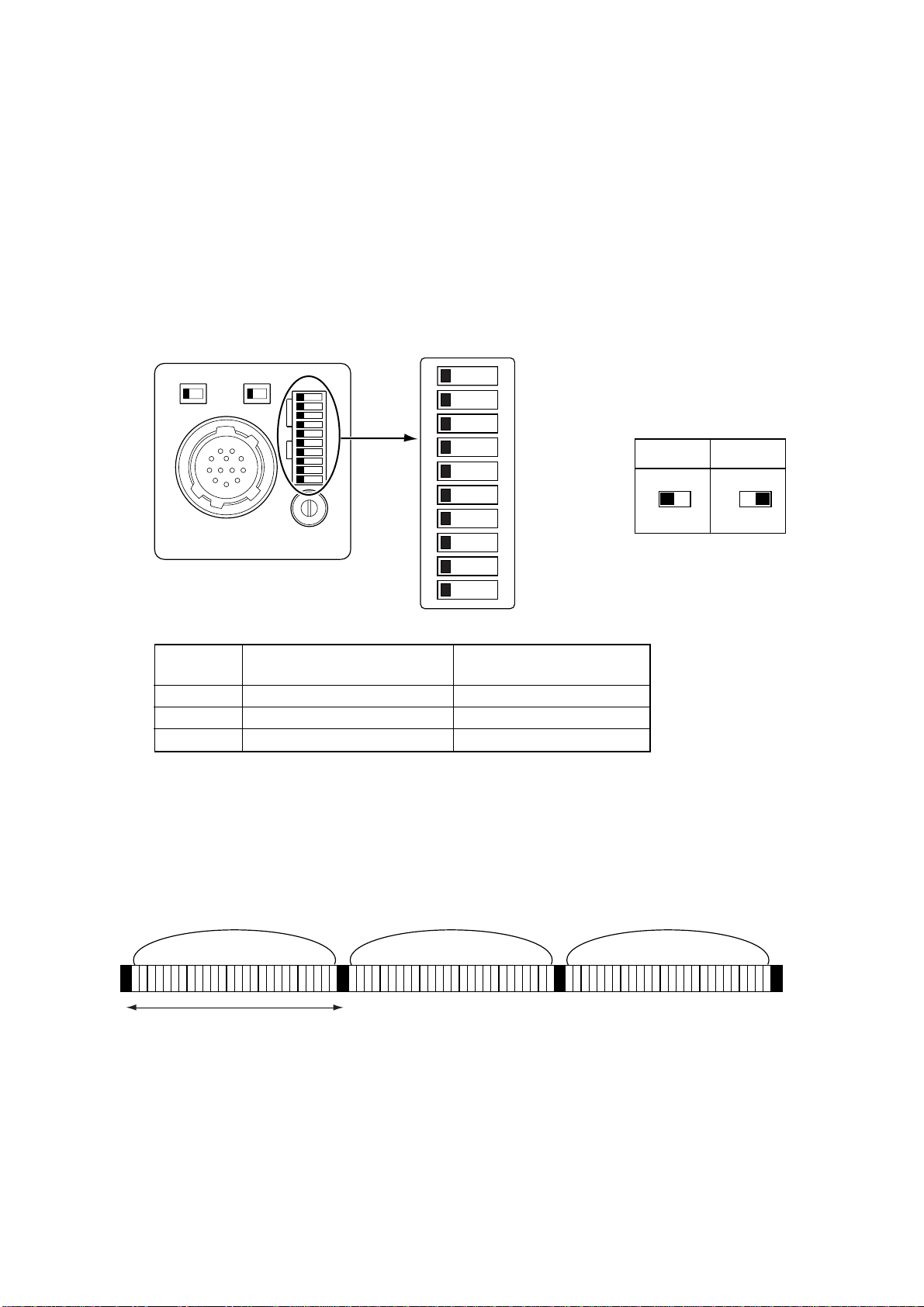

4-1. Video Scanning Modes

This camera has two types of video signal scanning modes. Select the mode with the partial

scanning switch (MODE SELECT switch bit 9) located and the setting of Pin 9 (PART input) of

the 12-pin connector on the rear panel of the camera.

Partial Scanning OFF (All pixels scanning)

In this mode, all pixels independent signal from the VIDEO OUT connector is output each 1/60

second (Line order output).

External HD/VD sync is permitted.

ON OFF

EXT INT

HD/VD

75Ω

SHT

TRG

M.G

MIN MAX

M GAIN

VIDEO OUT

DC IN/SYNC

P.S

OFF ON

Rear MODE SELECT Switch

Partial scanning

Frame image

1/60s (525H)

Frame image Frame image

Bit 9

OFF

Pin 9 of the 12-pin connec-

tor on the rear panel

H or OPEN

Mode

Partial scanning OFF

Partial scanning ON

*1: Either H or L is permitted.

Blankinginterval

Videooutput

23H Blankinginterval

Total

175H

18H

Videointerval

134H

Video period

When Partial Scanning Mode is ON

Partial Scanning ON

In this mode, the pixel signal of the vertical center portion from the VIDEO OUT connector is

output each 1/180 second.

External HD/VD sync is permitted.

1/180s (175H)

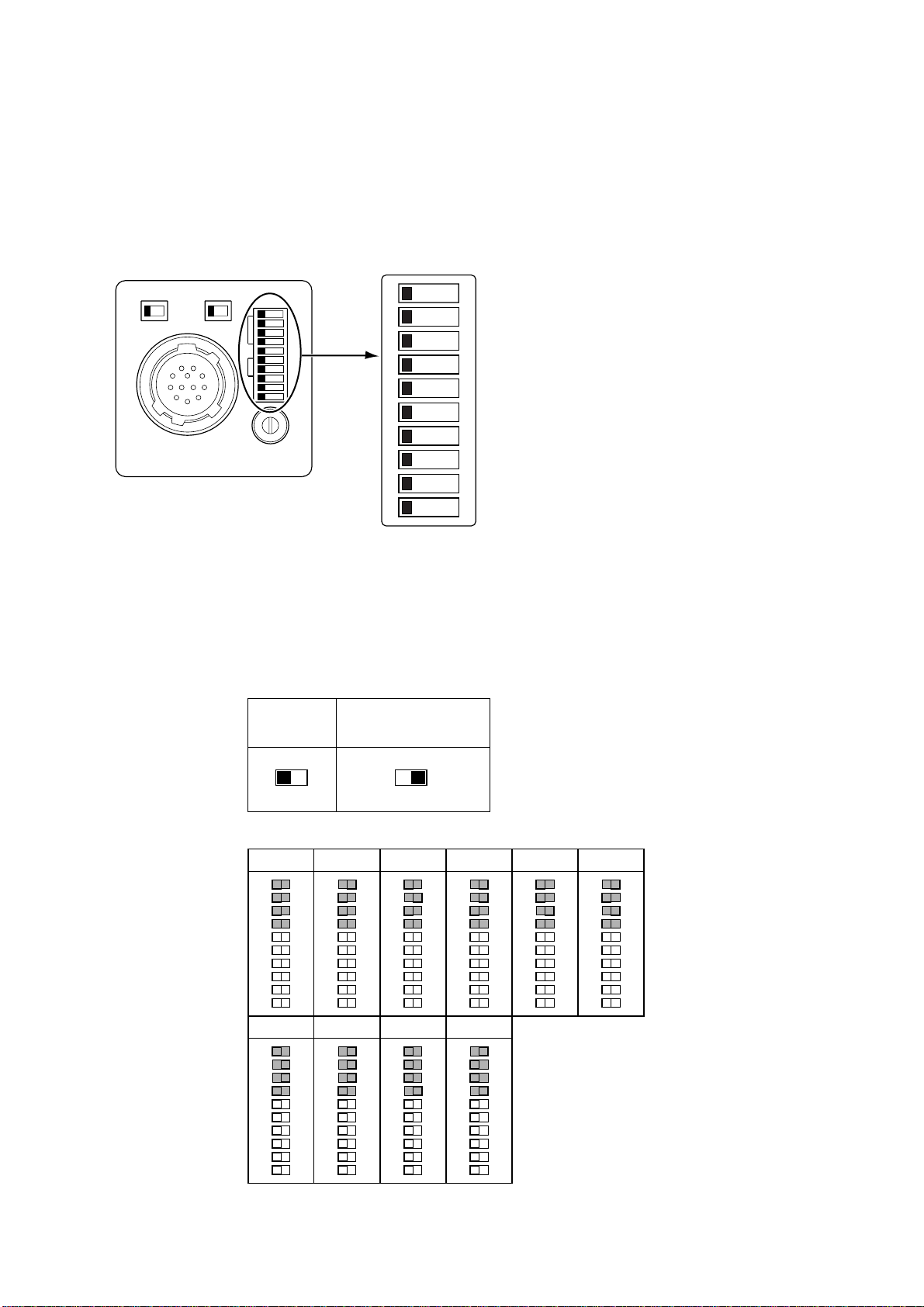

4-2. Electronic Shutter

This can be set with the MODE SELECT switch located on the rear panel.

Description of the MODE SELECT Switch

*The electronic shutter cannot be used in the reset-restart operation.

ON OFF

EXT INT

HD/VD

75Ω

SHT

TRG

M.G

MIN MAX

M GAIN

VIDEO OUT

DC IN/SYNC

P.S

Rear MODE SELECT Switch

Bits 1 to 4 : Shutter speed selection*

Bits 5 to 7 : External trigger mode selection

Bit 8 : Trigger polarity selection (Positive/Negative)

Bit 9 : Partial scanning mode selection (OFF/ON)

Bit 0 : Gain selection (OFF/ON)

Normal Shutter

This mode permits a high-speed moving subject to be captured clearly with a shutter function

incorporating a continuously available video signal. Set bit 5 of the MODE SELECT switch to

OFF (i.e., the left side) as illustrated in the table below.

Normal

shutter

Reset restart

external trigger mode

OFF

1/100*

1/250

1/500

1/4000

1/10000

1/50000

1/100000

1/1000

1/2000

(unit：second)

* The shutter will be OFF when partial scanning is ON.

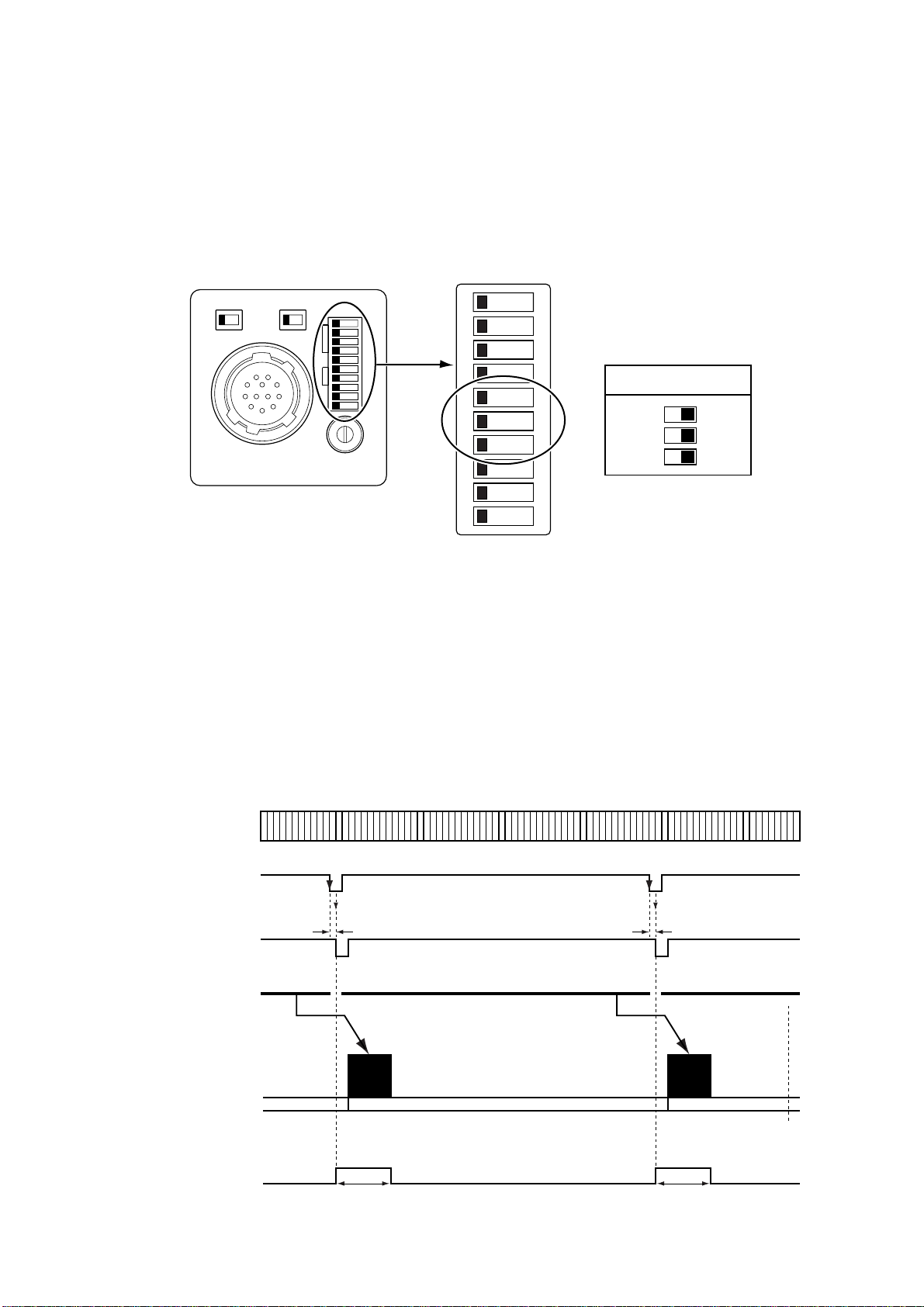

4-3. Reset Restart

Input of an external reset-restart signal (VD) permits one screen of information to be output at

an arbitrary timing. To set this mode, set the external trigger mode selection switch (i.e., MODE

SELECT switch bits 5, 6, and 7) as illustrated in the diagram below.

Long Term Exposure

When the camera is used and sufficient sensitivity cannot be obtained for the reset-restart

function under normal operating conditions, or when observation of the trail of a moving

subject is desired, the exposure time can be extended to allow high-sensitivity images to be

obtained. To achieve this, please input from an external source a VD signal that has an ex-

panded VD pulse and VD pulse interval.

Input Timing Chart Example

ON OFF

EXT INT

HD/VD

75Ω

SHT

TRG

M.G

MIN MAX

M GAIN

VIDEO OUT

DC IN/SYNC

P.S

Reset restart

Rear

MODE SELECT Switch

External HD

External VD

(Internal VD)

VIDEO INDEX

VIDEO OUT

About 1H

V reset

Exposure period

External VD interval:more than 1V

Exposure period Exposure period

1V 1V

About 1H

V reset

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Toshiba Telecamera di sicurezza

Toshiba

Toshiba IK - TF7H Manuale utente

Toshiba

Toshiba IK-6550A - Analog Camera, 540 TV Lines Manuale utente

Toshiba

Toshiba IK-WR14A Manuale utente

Toshiba

Toshiba IK-WR12A Manuale utente

Toshiba

Toshiba CCD Color Camera IK-645A Manuale utente

Toshiba

Toshiba IK-DP01A Manuale utente

Toshiba

Toshiba IK-DP20A Manuale utente

Toshiba

Toshiba IK-629A Manuale utente

Toshiba

Toshiba IK-6200A Manuale utente

Toshiba

Toshiba IK-WD14A Manuale utente

Toshiba

Toshiba IK-6420A Manuale utente

Toshiba

Toshiba IK-TF7C Manuale utente

Toshiba

Toshiba IK-WB02A - PoE Network Camera Manuale utente

Toshiba

Toshiba IK-WD04A Guida

Toshiba

Toshiba IK-52N Manuale utente

Toshiba

Toshiba Teli CSGV90BC3 Manuale utente

Toshiba

Toshiba IK-628A Manuale utente

Toshiba

Toshiba IK-WD12A Manuale utente

Toshiba

Toshiba IK-WB21A - IP Network PTZ Camera Istruzioni per il montaggio

Toshiba

Toshiba 6410A - CCTV Camera Manuale utente

Toshiba

Toshiba IK-64DNA Manuale utente

Toshiba

Toshiba IK-WB70A - IP/Network Camera, PoE Manuale utente

Toshiba

Toshiba IK-WR01A Manuale utente

Toshiba

Toshiba CS3910BH Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
