TOTALINE 1 For All Manuale utente
OWNER'S MANUAL
P/N P374-2300FM
Programmable
Digital Thermostat
Mounts flush to the wall
7 Day Programmable
3 Occupied, 1 Unoccupied
Auto-Changeover
Large, Easy To Read Display
Thermoglow Backlight
Remote Sensor Ready
Dry Contact Equipped
Energy Saving Smart Fan
Fan Purge, IAQ Feature
Includes Locking Cover
Replacement Components Division Carrier Corporation 11/06
1 For All
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & Gas Heating, Heat Pump, Electric or Hydronic Heat.
Meets California Title 24
OVERRIDE
MODE
Am
OFF
Mo
I2:00
TOTALINE
Table Of Contents
FRONT PANEL
DISPLAY
QUICK START Set the clock and go
BASIC OPERATION
PROGRAMMING Occupied / Unoccupied
OVERRIDING THE DAILY
SCHEDULE
ADVANCED SETUP
ABOUT ADVANCED FEATURES
& OPERATION
WARRANTY
P/N P374-2300FM
2
3
6
8
9
14
19
26
Replacement Components Division Carrier Corporation 11/06
Page 1
13
CAUTION Follow Installation Instructions carefully.
DISCONNECT POWER TO THE HEATER -
AIR CONDITIONER BEFORE REMOVING
THE OLD THERMOSTAT AND INSTALLING
THE NEW THERMOSTAT.
WARNING
SELECTING THE HEAT
OR COOL MODE
7

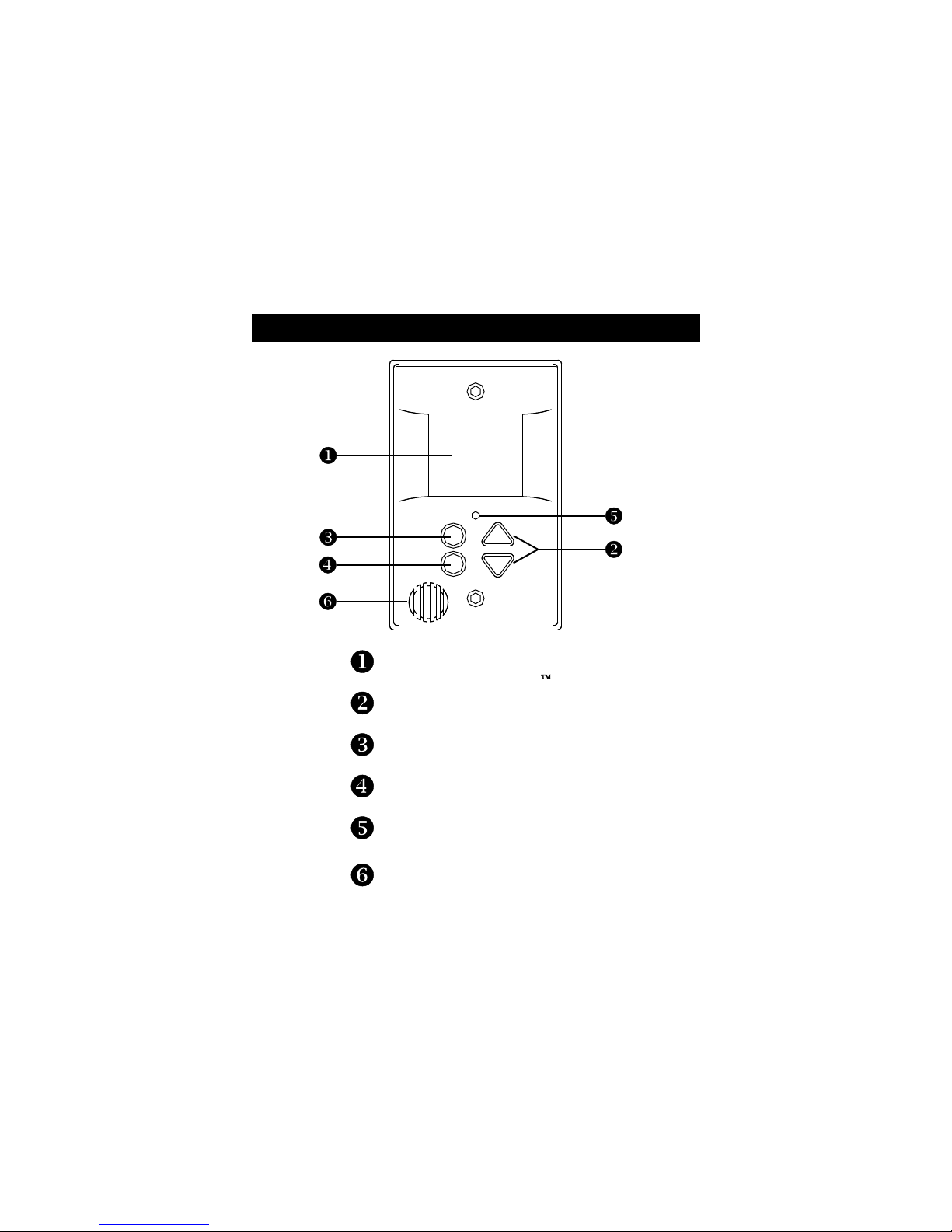

Front Panel
Liquid Crystal Display
with Thermoglow
Up/Down Buttons
Mode Button
Override Button
Heat or Cool Indicator
Red = Heat, Green = Cool
Temperature Sensor
Page 2
Mode Indicators - Page 7
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
AUTO - Indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
PROGRAM ON - Indicates the time period
program is enabled to run.
OFF - Indicates heating and cooling are turned off.
Clock with Day of the Week - Page 6
Indicates the current time and day. This clock is
also used to program the time period schedules.
Room Temperature Display
Indicates current room temperature and displays
the outside temperature when selected (page 17).
Desired Set Temperature - Page 8
Indicates desired room temperature(s).
Display
88
88
88
unoccupied
Program
Fan On Service Filter
On
Am
Pm
COOL
HEAT
Override
Locked
ONOFF
AUTO
Stop
Start
SetupSuMoTuWeThFrSa
123
I2:00
Page 3
Display
88
88
88
unoccupied
Program
Fan On Service Filter
On
Am
Pm
COOL
HEAT
Override
Locked
ONOFF
AUTO
Stop
Start
SetupSuMoTuWeThFrSa
123
I2:00
Page 4
Override icon - Page 13
Indicates the program is currently being overridden
for up to four hours.
Occupied & Unoccupied icons - Pages 9-12
Indicates the program number: Occupied 1,2,3 or
Unoccupied.
Setup icon - Pages 14-18
Indicates the thermostat is in the advanced setup
mode.
Fan On icon - Page 14 Indicates constant,
continuous fan operation. When Fan On is
not lit - indicates the fan will only operate when
necessary to heat or to cool.
88
88
88
unoccupied
Program
Fan On Service Filter
On
Am
Pm
COOL
HEAT
Override
Locked
ONOFF
AUTO
Stop
Start
SetupSuMoTuWeThFrSa
123
I2:00
Display
Page 5
Service Filter icon - Page 16
Appears when the filter should be serviced under
normal conditions. Adjustable from 0 - 1950 hours
or blower operation.
Locked icon - Page 24
Indicates keypad has been locked.
Start &Stop icons - Pages 10-11
Appear when programming occupied time periods.

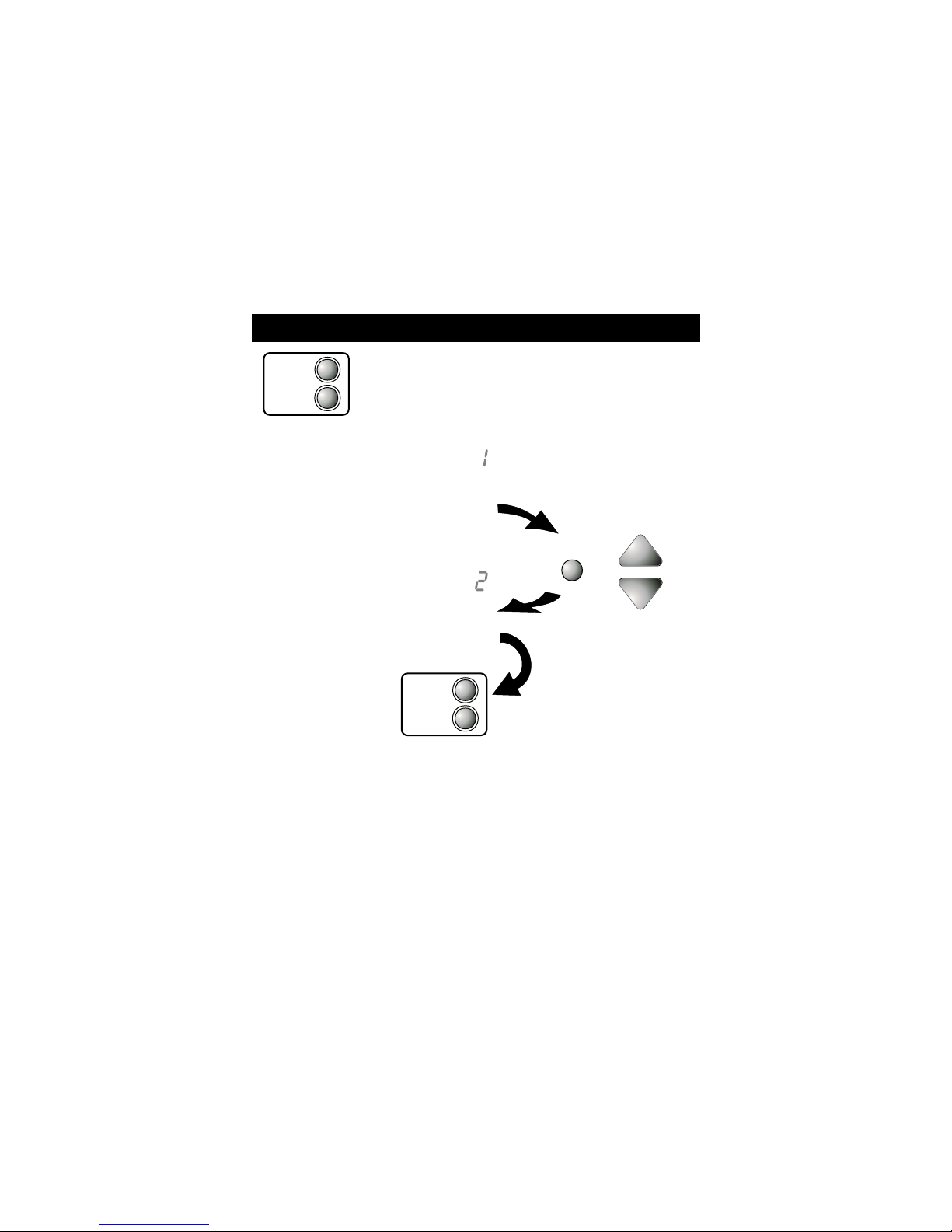

Press the MODE and OVERRIDE
buttons at the same time for two
seconds to enter Setup screens.
Press the MODE and
OVERRIDE buttons
at the same time to
return to normal
operation.
Quick Start Set the Clock and Go
The thermostat is preprogrammed from the factory to operate
one or two stage equipment* without the need for further
programming. To optimize the installation of this thermostat,
follow the instructions in the Advanced Setup section.
* The thermostat is not preprogrammed from the factory to operate
electric heat or heat pump systems. To control these systems,
follow the steps in the Advanced Setup section, pages 14 & 15.
Press
MODE
Page 6
Setting the ClockSetting the Clock
Setting the DaySetting the Day
MODE
OVERRIDE
MODE
OVERRIDE
Am
Setup
I2:00
SetupMo
Tip: To change hours quickly,
press and hold the OVERRIDE
button and press the UP or
DOWN buttons.
During Setup & Programming:
Pressing the UP or DOWN
buttons will modify the
flashing selection.
buttons.
To adjust the
Clock or Day use
Selecting the Heat or Cool Mode
70 68
Pm
HEAT
Mo
I2:00
70
76
Pm
COOL
Mo
I2:00
70
76
68
Pm
COOL
HEAT
AUTO
Mo
I2:00
70
76
68
occupied
ProgramOn
Pm
COOL
HEAT
Mo
1
I2:00
70
Pm
OFF
Mo
I2:00
Press
MODE
Press
Press
Press
MODE
MODE
MODE
Page 7
The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
Heating Only
The COOL setting indicates the
temperature the room has to
reach before the air conditioner
will turn on to cool the room.
Cooling Only
OFF indicates both heating
and air conditioning
systems are turned off.
Off
AUTO will automatically select
heat or cool based on room
temperature demand.
Heating or Cooling
Time Schedule for
Heating or Cooling
Program On will activate the
stored timer operation for the
heating and cooling
setpoints (occupied or
unoccupied periods).
Select Mode by Pressing the MODE Button
Selecting Your Desired Temperature
(adjusting the setpoints)
Basic Operation
70
76
68
Pm
COOL
HEAT
AUTO
Mo
I2:00
Page 8
AUTO OR PROGRAM MODE
Pressing the UP or DOWN buttons in Auto or Program mode
will adjust both the heat and cool set temperatures
simultaneously.
buttons.
Adjust the desired
set temperature with the
70
76
Pm
COOL
Mo
I2:00
HEAT OR COOL MODE
Pressing the UP or DOWN buttons in Heat or Cool mode will
adjust only the heat or cool set temperature.
buttons.
Adjust the desired
set temperature with the

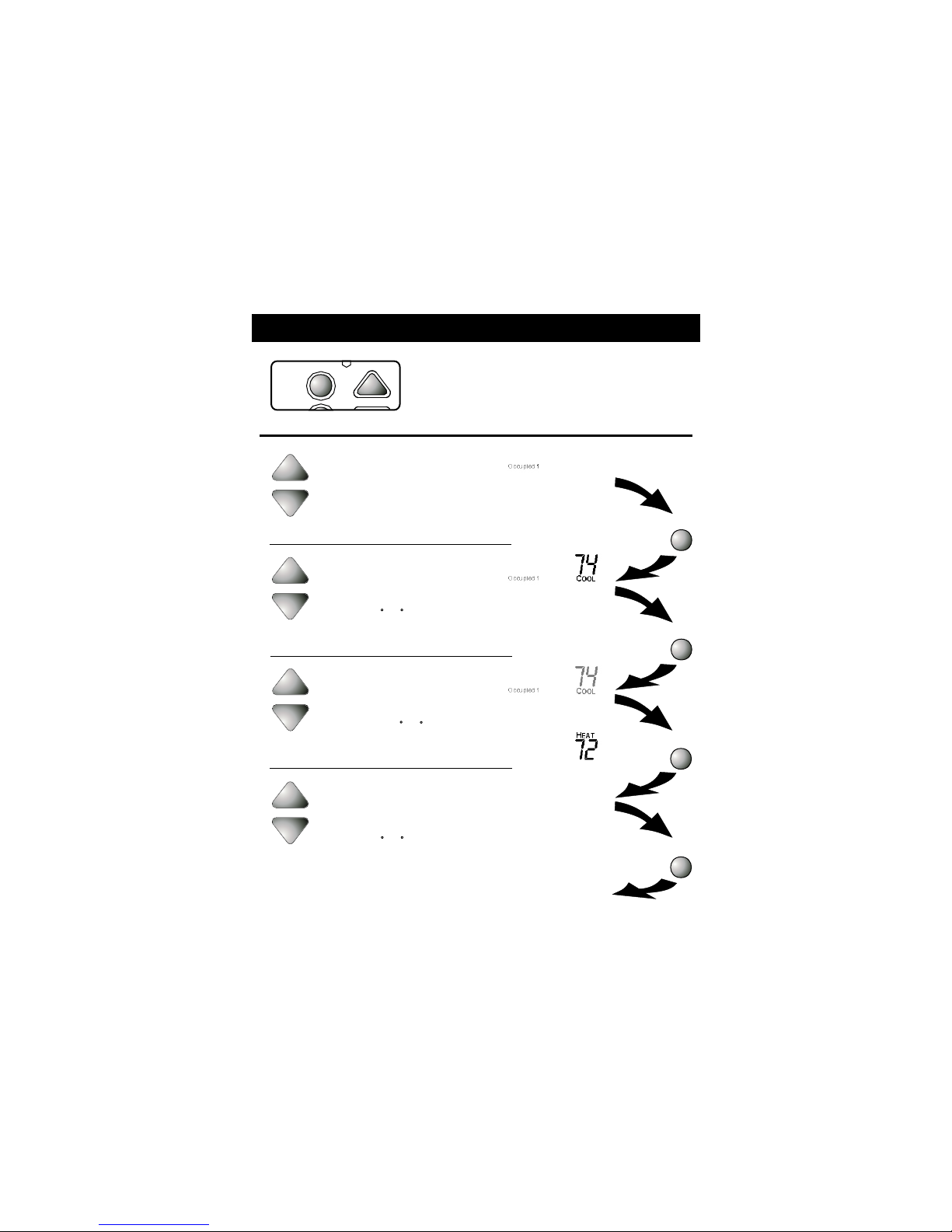

Programming Occupied & Unoccupied Periods
Press
Press
Press
Press
Continued
MODE
MODE
MODE
MODE
Occupied 1
74
Occupied COOL
1
74
72
Occupied COOL
HEAT
1
85
unoccupied COOL
Page 9
Press the MODE button. While holding MODE,
press the UP button for two seconds to enter
time period programming.
MODE
Select the maximum # of
occupied periods to be
used on any one day.
Typically, most installations
use only Occupied 1.
(1,2 or 3)
Adjust the cooling
setpoint for Occupied 1.
(35 - 99, OF )
Adjust the heating
setpoint for Occupied 1.
(OF, 35 - 99 )
Adjust the cooling
setpoint for unoccupied
periods.
(35 - 99, OF )
Use the Programming Worksheet on the back cover
to help with this section.
