Totally Wicked Pipe X Manuale utente

ELECTRONIC PIPE

USER MANUAL

TOTALLY WICKED PIPE X

ELECTRONIC CIGARETTE

CONGRATULATIONS ON PURCHASING YOUR THE TOTALLY WICKED PIPE X

Tank

Atomizer head

Battery cap

Battery

Pipe X body

Tank base

Mouthpiece

• Prime the atomizer head.

• Fill the tank.

• Insert the battery (NEGATIVE SIDE DOWN AND TOUCHING

THE SPRING)

• Inhale

• Charge the battery (possibly not shipped with a full charge).

Detailed descriptions of these steps and more

are given in the following pages of this manual.

If you are familiar with

using e-cigarettes,

follow the quick start

guide to be vaping in

minutes.

4 5

PRIMING AND FILLING

MAX FILL

6 7

PRIMING AND FILLING

It is important to “prime” a new atomizer

head before ﬁrst use. Failure to do so

can cause the atomizer coil to overheat,

resulting in a burnt taste and sometimes

irreversible damage to the atomizer head

requiring early replacement.

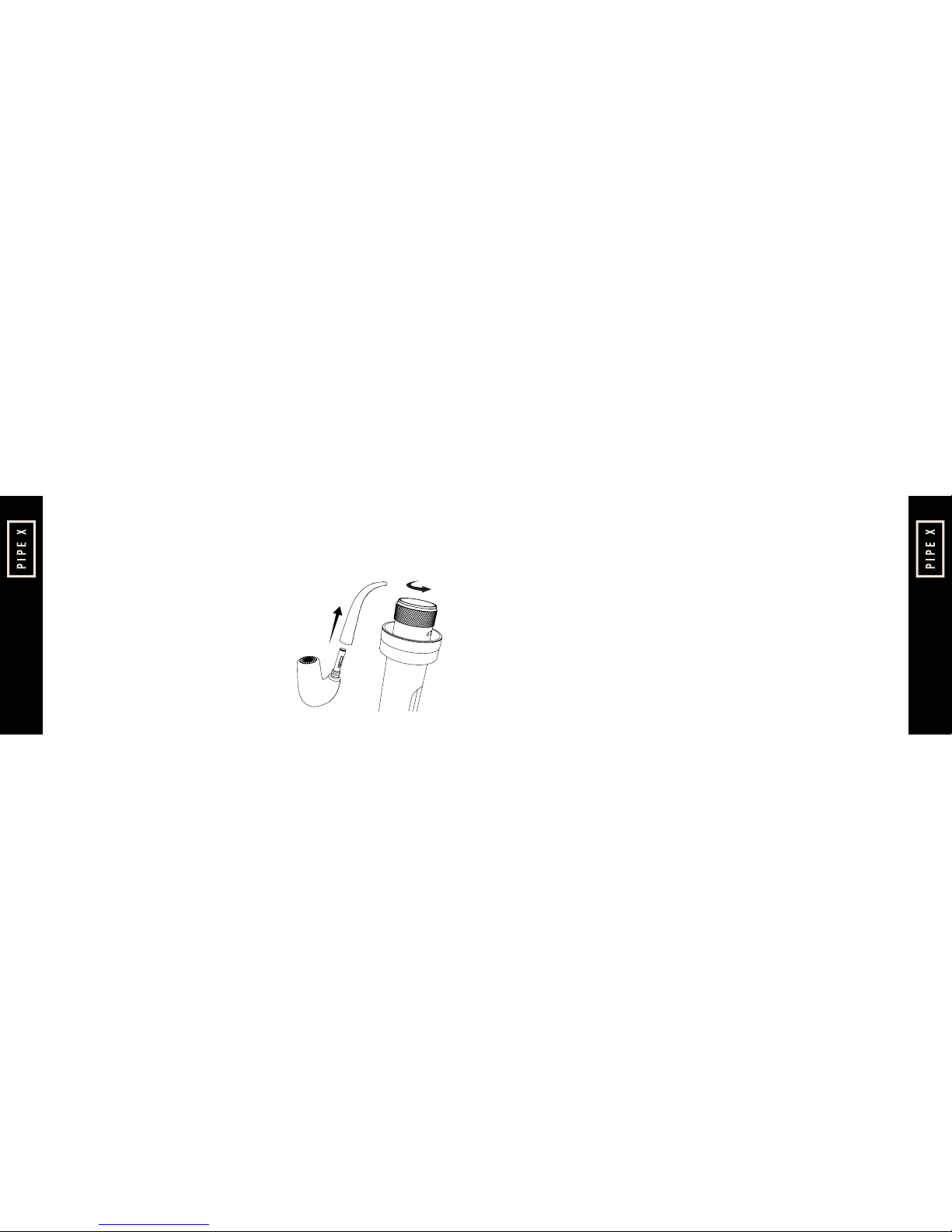

Remove the mouthpiece by pulling straight

off, and unscrew and remove the tank

assembly from the pipe body. Unscrew

the tank base to reveal the atomizer head.

Prime the atomizer head by dripping a

few drops of e-liquid on the side e-liquid

inlets of the atomizer head. Fill the tank to

just below the height of the central air tube

as shown in the diagram. Avoid allowing

liquid into the central air hole. Screw the

tank base back into the tank, then screw

the tank back on to the pipe body. Reﬁt

the mouthpiece by pushing ﬁrmly over

the tank, being careful to ensure correct

orientation of the alignment tab.

Note: After priming a new atomizer head

and ﬁlling the tank with e-liquid, it is

recommended to wait 5 minutes to ensure

the atomizer head is fully saturated with

e-liquid.

FITTING THE BATTERY

To ﬁt the battery, invert the

Pipe X and turn the battery

cap anti-clockwise until it

falls free. Insert the battery

into its housing negative

side ﬁrst, push the top cap

down so that its tabs align

with the cut outs in the Pipe

X body, and holding down,

rotate through one quarter

turn clockwise. The LEDs

will ﬂash 3 times to indicate

successful insertion.

8 9

USING YOUR TOTALLY WICKED PIPE X

Vaping

Draw gently but ﬁrmly on the Pipe X mouthpiece so

that the LED lights up.

Adjusting Airﬂow

If you ﬁnd the air ﬂow too airy or too tight while

vaping, remove the mouthpiece from the Pipe X and

unscrew the tank assembly. Located at the bottom of

the base is an adjustable airﬂow ring. Rotate the air

ﬂow control ring clockwise to open, and anticlockwise

to close, until you ﬁnd your preferred setting. Airﬂow

adjustment can be checked by drawing on the tank

assembly while it is removed from the Pipe X.

USING YOUR TOTALLY WICKED PIPE X

E-liquid Level

To prevent the atomizer head from

becoming dry and burning prematurely,

ensure the amount of E-liquid inside the

Pipe X does not drop below the ﬂuid feed

holes located on the sides of the atomizer

head. The mouthpiece must be removed

to make the ﬂuid level visible through the

glass windows of the tank.

Low Battery

When the Pipe X reaches a voltage of 3.4V,

the LED will ﬂash 10 times. This indicates

the Pipe X has insufﬁcient battery voltage to

deliver power. Charge the battery using the

steps outlined in “Charging the Battery” to

allow normal operation to resume.

Charging The Battery

The Totally Wicked Pipe X is charged

using an appropriate 18650 Li Ion battery

charger. Follow the instructions included

with the charger.

10 11

USING YOUR TOTALLY WICKED PIPE X

Changing The Atomizer Head

To install a new atomizer head follow the

process shown in “Priming and Filling”, and

unscrew the atomizer from the tank base.

Replace only with the appropriate Totally

Wicked PX atomizer head.

Reminder: After priming a new atomizer

head and ﬁlling the tank with e-liquid,

it is recommended to wait 5 minutes

to ensure the atomizer head is fully

saturated with e-liquid.

Atomizer Head Lifespan

Atomizer heads do not last forever and

need to be periodically replaced. The

lifespan of an atomizer head can vary

from several days up to several weeks.

Factors affecting lifespan include wattage,

vaping style, ﬂavour and type of E-liquid.

Indicators that the atomizer head may

require replacement include a slight burnt

taste, general loss of vapour production or

a reduction in ﬂavour intensity.

PROTECTIONS

Short Circuit Protection

If an atomizer short circuit occurs, the

LED will ﬂash 4 times, the Pipe X will not

provide power to the atomizer or produce

any vapour. Replacing the atomizer head

should allow normal operation to resume.

To replace the atomizer head follow the

steps outlined in Changing The Atomizer

Head.

No Atomizer Detected Protection

If no atomizer is detected, the LED will ﬂash

5 times and the Pipe X will not provide

power to the atomizer or produce any

vapour Ensure the atomizer head is fully

screwed into the base of the tank, then ﬁt

the tank back onto the battery. If the “No

Atomizer” sequence continues, replacing

the atomizer head should allow normal

operation to resume. Follow the steps

outlined in Changing The Atomizer Head.

12 13

PROTECTIONS

Atomizer Head Protection

After 10 seconds of continuous operation,

power to the atomizer will be cut off and

the LED will ﬂash 10 times. The device will

resume normal operation on the next use.

Cleaning And Maintenance

The Totally Wicked Pipe X body,

mouthpiece and tank connection threads

can be cleaned by wiping down with tissue

or a dry cloth. The Pipe X mouthpiece,

tank and base can be cleaned under warm

running water when disassembled. Allow

the tank to fully dry before reﬁtting the

atomizer head.

Note: Do not attempt to clean the atomizer

head with water. Do not submerge the Pipe

X body in water or allow it to get wet.

1 x Pipe X

1 x PX 0.7ohm atomizer head (ﬁtted)

1 x PX 0.7ohm atomizer head (spare)

1 x Leather Pipe X stand

1 x User manual

Spare parts

Dimensions: 158mm (height) x 45mm

(width) x 120mm (depth)

Weight: 223g with battery ﬁtted

Battery Capacity: Single 18650

Thread Type: Proprietary connection

Atomizer activation: Automatic

KIT CONTENTS SPECIFICATIONS

14 15

• Store the Pipe X e-cigarette and its accessories away from children whilst not in use.

• Please dispose of dead batteries in accordance with your country’s appropriate legislation.

• Do not charge the battery in a damp environment, or in temperatures under 0°C or above

45°C.

• Do not use the device in temperatures under -10°C or above 60°C.

• Do not carry batteries in a pocket or bag with other metallic objects.

• Do not attempt to repair a faulty Pipe X body or its battery, as these are sealed units with

no serviceable parts. Attempted repairs will void the warranty.

Totally Wicked Pipe X components have a

28-day parts warranty with the exception

of atomizer heads which are consumable

items and are covered by our ‘Dead on

Arrival’ warranty only. If any parts are found

to be faulty within this time please contact

our customer service team, whose details

are on the back page of this booklet and

we will arrange for a replacement. We may

require the goods to be returned for further

investigation.

Additional product information

There are no reported medical side effects

with this product. If you believe you

experience a side effect, please contact the

manufacturer.

PRODUCT STORAGE AND BATTERY PRECAUTIONS WARRANTY

ELECTRONIC PIPE

Manufactured in China

under the authority

of Pillbox38 UK Ltd,

Stancliffe Street,

Blackburn, Lancashire,

BB2 2QR.

Tel 01254 692244

www.totallywicked.co.uk

Tel 1(888) 761-9425

www.totallywicked.com

Tel 0941-78447082

www.totallywicked.de
