Totevision LCD-640 Manuale utente

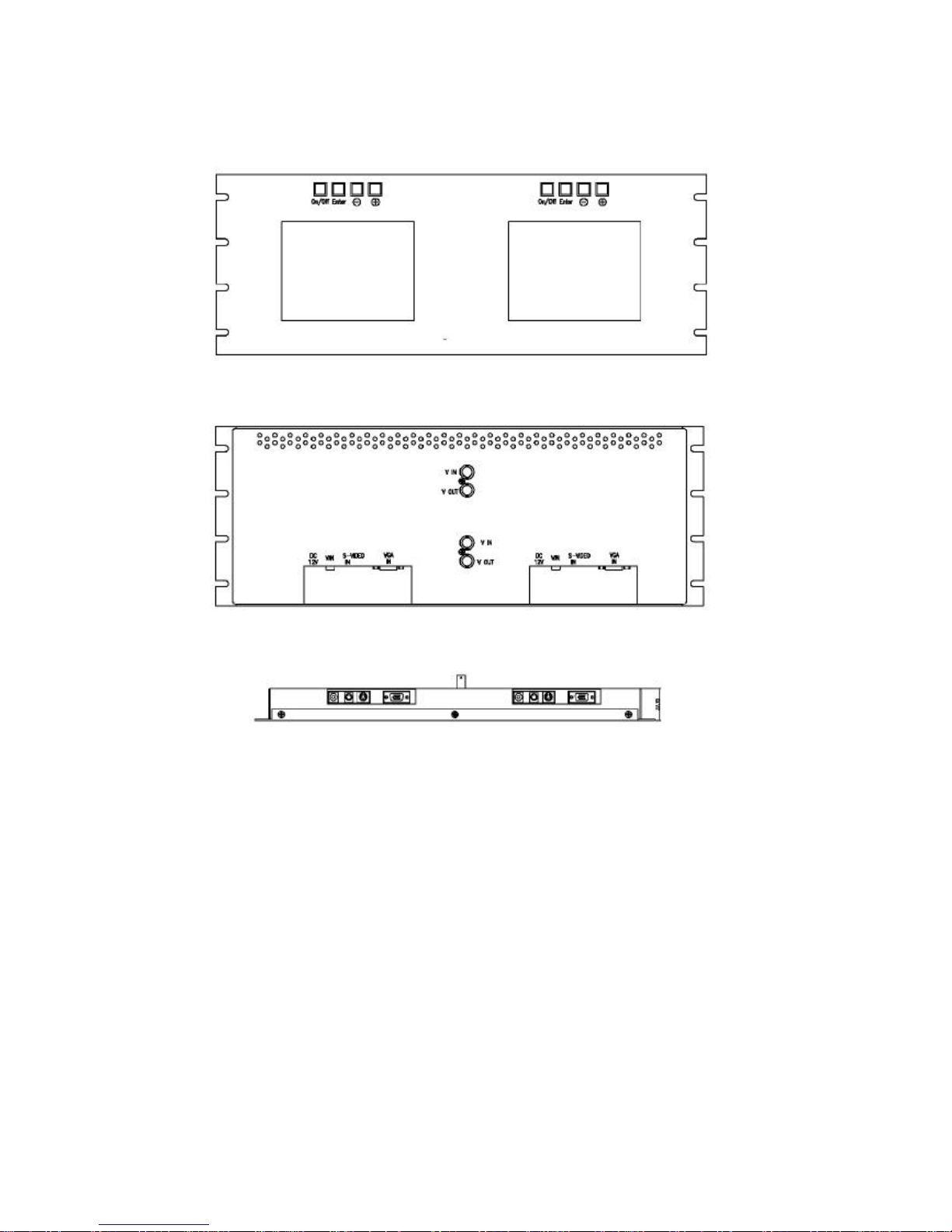

FRONT VIEW

BACK VIEW

BOTTOM VIEW

UP: Press this button to increase or decrease the value of the adjustment

functions.

DOWN: Press this button to increase or decrease the value of the adjustment

functions.

ENTER: Press this button for menu adjusting, selecting the menu you want with

“UP”or “DOWN”, then press this button again to enter the selected menu.

ON/OFF:Press this button to turn on the power.

Press and hold for more than 2 seconds to turn the power off.

Under power on condition, this button acts as input mode selector switch.

(VGA/ S-Video/Video).

VGA IN

S-VIDEO IN

VIDEO IN

DC 12V

OnScreen Display for Video Input

Video Main OSD Menu Figure

--- Press “ENTER” button to activate theOSD main as

shown on screen.

--- Press “UP” or“DOWN” button again to select theOSD

menu menu.

1. Brightness

---Press “ENTER” button to enter this mode.

---Press “UP” or“DOWN” button to select the desired

adjustment item.

*Brightness:Adjust the brightness of the panel.

*Contrast :Adjust the white color level of the image.

*Back Light :Adjust the back level of the panel.

*Recall:When you run the function, the monitor will be

setting to last status of the saving value.

*Exit:Return to last menu.

2. Video Quality

---Press“ENTER” button to enter this mode.

---Press“UP” or“DOWN” buttonto select the desired

adjustment item

* Brightness:Adjust the brightness of the panel

*Contrast:Adjust the white color level of the image.

*Gain: Adjust image to be the best.

*Saturation: Adjust the color saturation of the image.

*Hue:Adjust the color hue of the image.

*Sharpness:Adjust the image from weak to sharp.

*Recall: When you run the function, the will be setting to

last.

*Exit: Return to last menu.

Brightness

Contrast

Back Light

Recall

Exit

Video Quality

Brightness

Contrast

Gain

Saturation

Hue

Sharpness

Recall

Exit

3. OSD Function

---Press “ENTER”button to enter this mode.

---Press “UP”or “DOWN”button to select the desired

adjustment item.

*H Position:Adjust the horizontal position of theOSD

menu.

*V Position: Adjust the vertical position of the OSD menu.

*Language: N/A

*Display Func.: The method of OSD display.

*Recall:When you run thefunction, the monitor will be

setting to last.

*Exit:Return to last menu.

4. Image

---Press“ENTER” button to enter this mode.

---Press“UP” or“DOWN” button to select the desired

adjustment item.

*Video System:NTSC /PAL /SECAM /NTSC 4.43 /Auto

*Dithering:N/A

*Select Input:Press to select inputs VGA/S-Video/Video

*UP/DOWN: Normal /Reverse

*Right /Left: Normal /Reverse

*Exit : Return to last menu

5. Recall

---Press“ENTER” button to enter this mode.

---Press“UP” or“DOWN” button to select the desired

adjustment item.

*RecallAll:When you run the function, the monitor will be

setting to last.

*Exit:Return to last menu.

6. Exit Menu

OSD Function

H Position

V Position

Language

Display Func

Recall

Exit


Video System

Dithering

Select Input

Up/Down

Right/Left

Exit

Recall

Recall All

Exit

Exit Menu

OnScreen Display for VGAInput

VGA Main OSD Menu Figure

---Press “ENTER” buttonto activate theOSD mainmenu as

shown on the screen.

---Press“UP” or“DOWN” button again to select the OSD

menu.

1.Auto Config

---Press“ENTER” button to enter this mode.

---Press“UP” or“DOWN” button to select the desiredad

adjustment item.

*Auto Config:Select “YES” to make the monitor have the

best efficiency.

*Exit:Return to last menu.

2. Position

---Press“ENTER” button to enter this mode

---Press“UP” or“DOWN” button to select the desired

adjustment item.

*H Position:Adjust the horizontal position of the image.

*V Position:Adjust the vertical position of the image.

*Auto Position:Select “YES” to auto adjust the vertical

and horizontal position.

* Exit:Return to last menu.

3. Brightness

---Press“ENTER” button to enter this mode.

---Press “UP” or“DOWN” button to select the desired

Adjustment item.

*Brightness:Adjust the brightness of the panel.

*Contrast:Adjust the white color level of the image.

*Back Light: Adjust the back light bule intensity.

*Recall:When you run the function, the monitor will be

setting to last status of the saving value.

*Exit: Returnto last menu.

Auto Config

Exit

Position

H Position

V Position

Auto Position

Exit

Brightness

Contrast

Back Light

Recall

Exit

4. Clock

---Press“ENTER” button to enter this mode

---Press “UP” or“DOWN” button to select the desired

adjustment item.

*Clock:Adjust video sampling clock.

*Phase:Adjust the noise of the image.

*Recall:When you run the function, the monitor will be

setting to last status of the saving value.

*Exit:Return to last meun.

5. Color

---Press“ENTER” button to enter this mode

---Press“UP” or“DOWN” button to select the desired

adjustment item.

*Color 9300 °K:Setcolor temperature of the image to

9300 °K

*Color 5500 °K:Setcolor temperature of the image to

5500 °K

*Balance Color:Adjust the color balance.

*User Color:Setthe RGB color of the image by oneself

define.

*Auto Balance: Automatic adjustment of thebalance.

*Adjust Color:Press “ENTER” button to enter color

adjustment. Press “UP” or“DOWN” button to adjust

R/G/B Color level and off set.

6. OSD Function

---Press“ENTER” button to enter this mode.

---Press “UP” or“DOWN” button to select the desired

adjustment item.

*H Position:Adjust the horizontal position of theOSD menu.

*V Position:Adjust the vertical position of OSD menu.

*Language:N/A

*Display Func.: The method of OSD display.

*Recall:When you run thefunction, the monitor will be

setting to last.

*Exit:Return to last menu.

Clock

Phase

Recall

Exit

Color

Color 9300°K

Color 5500°K

Balance Color

User Color

Auto Balance

Adjust Color

OSD Function

H Position

V Position

Language

Display Func

Recall

Exit

Clock

Phase

Recall

Exit

7. Image

---Press“ENTER” button to enter this mode.

---Press“UP” or“DOWN” button to select the desired

adjustment item.

*Mode Select:Change DOS mode resolution

640 x 400or 720 x 350 or 720 x 400

*Dithering:N/A

*Select Input:Press to select inputs VGA / S-video /Video

*UP /DOWN: Normal /Reverse

* Right /Left:Normal /Reverse

*Exit: Return to last menu.

8.Information

VGA Condition

Resolution and Frequency

9. Recall

---Press“ENTER” buttonto enter this mode

---Press“UP” or“DOWN” to select the desired

adjustment item

*RecallAll:Set default value to original setting

*Exit:Return to last menu

10. Exit Menu

Exit Menu

Information

Recall

Recall All

Exit


Mode Select

Dithering

Select Input

Up/Down

Right/Left

Exit

Specifications

ModelNo.: LCD-640D

Screen Size:6.4”(Diagonal)x 2

Display Resolution:640 (H) x 480 (V)

PixelPitch (mm): 0.203 (H) x 0.203 (V)

ActiveArea (mm):129.6 (H) x 97.44 (V)

LCD Profile Ratio:4:3

Color Configuration:R.G. B.Vertical Stripe

Brightness Rating:300 Nittyp

InputSignal:NTSC / PAL (DUAL.CAPABLITY) / SECAM /

NTSC4.43

Number ofPixels: 262,144 Dots

ViewingAngle: Left & Right 55 Degree

Down 30 Degree

Top 10 Degree

PixelConfiguration:Stripe

Video Input Signal Level:1V p-p (Positive)/ 75 ohm

Operating Temperature:0℃~+60℃

Storage Temperature:-20℃~+70℃

DC Power Supply:DC 12V In(From Power Supply)

Power Consumption:<9 W

Connectors: DC-In, RCA Video, S-Video, D-SUB

Response:30ms/Rising Time, 50ms/Falling Time

Dimensions: 291.0 (H) X 214.0 (W) x 37.9 (D) mm

Package Contents

A. Dual 6.4”TFT LCD Module with Rack

B. AC Adapter x 2

C. RCA Cable x 2

D. S-Video Cable x 2

E. D-SUB Cable x 2
