Totevision LCD-410 Manuale utente

hank you for purchasing ToteVision products. Please carefully read this manual before

attempting to operate your LCD-410 or LCD-411 monitor.

1. PRECAUTIONS

- This unit has been designed to assure your personal safety; however,

improper use may cause electrical shock and fire hazard.

- For safety do not watch or operate the monitor while driving.

- Do not use this monitor near water such as a bathtub, kitchen sink,

in a wet basement, or a swimming pool.

- If liquid has been spilled into the monitor, unplug the monitor from the DC jack

or battery case and refer to qualified service personnel for repair.

- Do not open the monitor. There are no user serviceable components inside.

- Do not not expose to extreme hot or cold temperatures (in a closed car, beside

stove, etc.)

(Storage temp. range (-30℃∼80℃) (-22℃∼176°F)

(Operating temp. range : (-25℃∼60℃) (-13℃∼108°F)

- When using a DC car cord, always turn the power switch off before starting or

stopping the vehicle.

2. PACKAGE CONTENTS

a. 4" TFT LCD COLOR MONITOR

b. AUDIO-VIDEO INPUT CABLE (LCD-410 only)

C. AUDIO-VIDEO OUTPUT CABLE (LCD-410 only)

d. BATTERY CASE

3. POWER OPTIONS

For use in a car, make sure to use center positive (+) (negative ground)

DC 12V Cigarette Jack. For use in a house, make sure to use an approved

AC adaptor (12 VDC, 380mA) (ToteVision part # AC-1000).

For use with the battery case, please select switch inside battery case

for type of battery to be used.

- DRY Cells (8 AA cells)

- Ni-mH BATTERY (9 AA cells)

4. MONITOR USE

a. Make sure your video source such as CCD CAMERA,VTR, etc. power is ON.

b. Connect your video source to Video IN jack.

c. Turn the power switch ON.

d. Set the VOLUME Control level (for model LCD-410 only).

e. Adjust screen controls-BRIGHTNESS, SHARPNESS, COLOR.

5. CLEANING INSTRUCTIONS

Turn off the monitor before cleaning the LCD screen.

Use a slightly damp (not wet) cloth.

Do not use an aerosol spray directly on the LCD

screen because over-spray may cause electrical shock.

6. TROUBLE SHOOTING

Be sure that all cords are properly connected.

7. SPECIFICATIONS

Model Name : 4”TFT LCD COLOR MONITOR

Screen Size : 4 inch

Display Resolution [Dots] : 480 [W] x 234 [H]

Display : TFT Active Matrix Back Light : LED

Brightness : 250 Cd/m2

Input Signal : NTSC/PAL Auto Recognition

External Power : DC 12V(Center Positive, Negative Ground)

Internal Power : Alkaline or Rechargeable Selectable

A/V INPUT : 3.5mm STEREO (LCD-410), Video INPUT : BNC (LCD-411)

Audio OUTPUT : 3.5mm MONO (LCD-410), Speaker : 28 PHI

VIDEO OUTPUT : 3.5mm MONO (LCD-410), BNC (LCD-411)

Power Consumption : 3.5W/ 290mA, 12V

Power DC 12V (Center Positive), Battery

Dimensions : 146 x 42 x 107mm (Without Battery Case)

Weight : 300g

Design and specifications may be changed without notice.

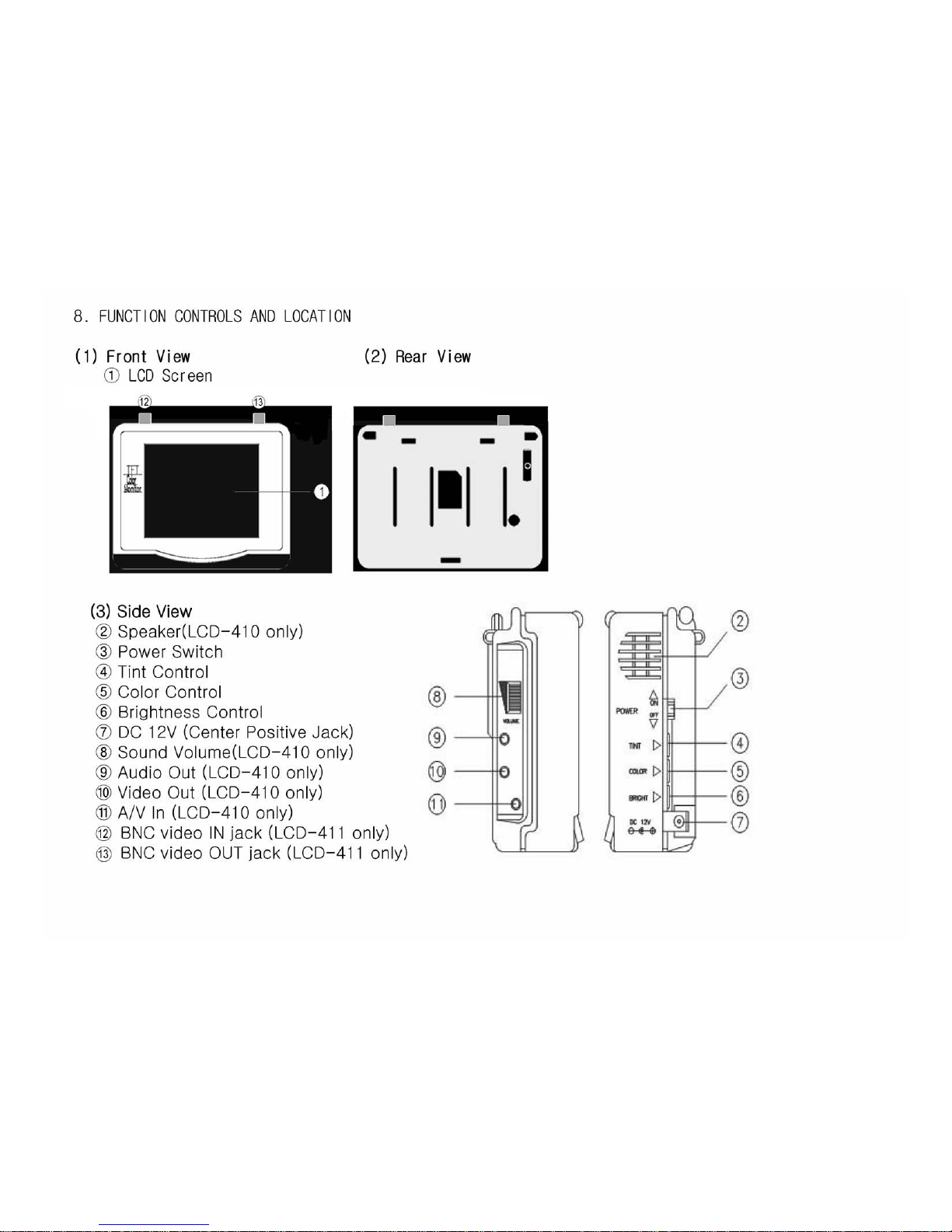

No power connection

Check audio source

Check volume control

No Audio

(for LCD-410 only)

Inadequate or weak power supply

Brightness control setting needs adjustment

Color control needs adjustment

Dim Video

No power connection

No connection from video source to A/V or BNC jack

No Video

Possible cause

Condition

Questo manuale è adatto per i seguenti modelli

1

Indice

Altri manuali Totevision Monitor

Totevision

Totevision LCD-640 Manuale utente

Totevision

Totevision LCD-1047VR/TL Manuale utente

Totevision

Totevision LCD-2300HD Manuale utente

Totevision

Totevision LCD-800 Manuale utente

Totevision

Totevision LCD-1700V Manuale utente

Totevision

Totevision LCD-1510V Manuale utente

Totevision

Totevision LCD-400X4 Manuale utente

Totevision

Totevision LCD-1540HDL Manuale utente

Totevision

Totevision LCD-1900VR Manuale utente

Totevision

Totevision LCD-5200HD Manuale utente

Totevision

Totevision LCD-1044TC Manuale utente

Totevision

Totevision LCD-2002V Manuale utente
