Totevision LCD-566T Manuale utente

The Remote control

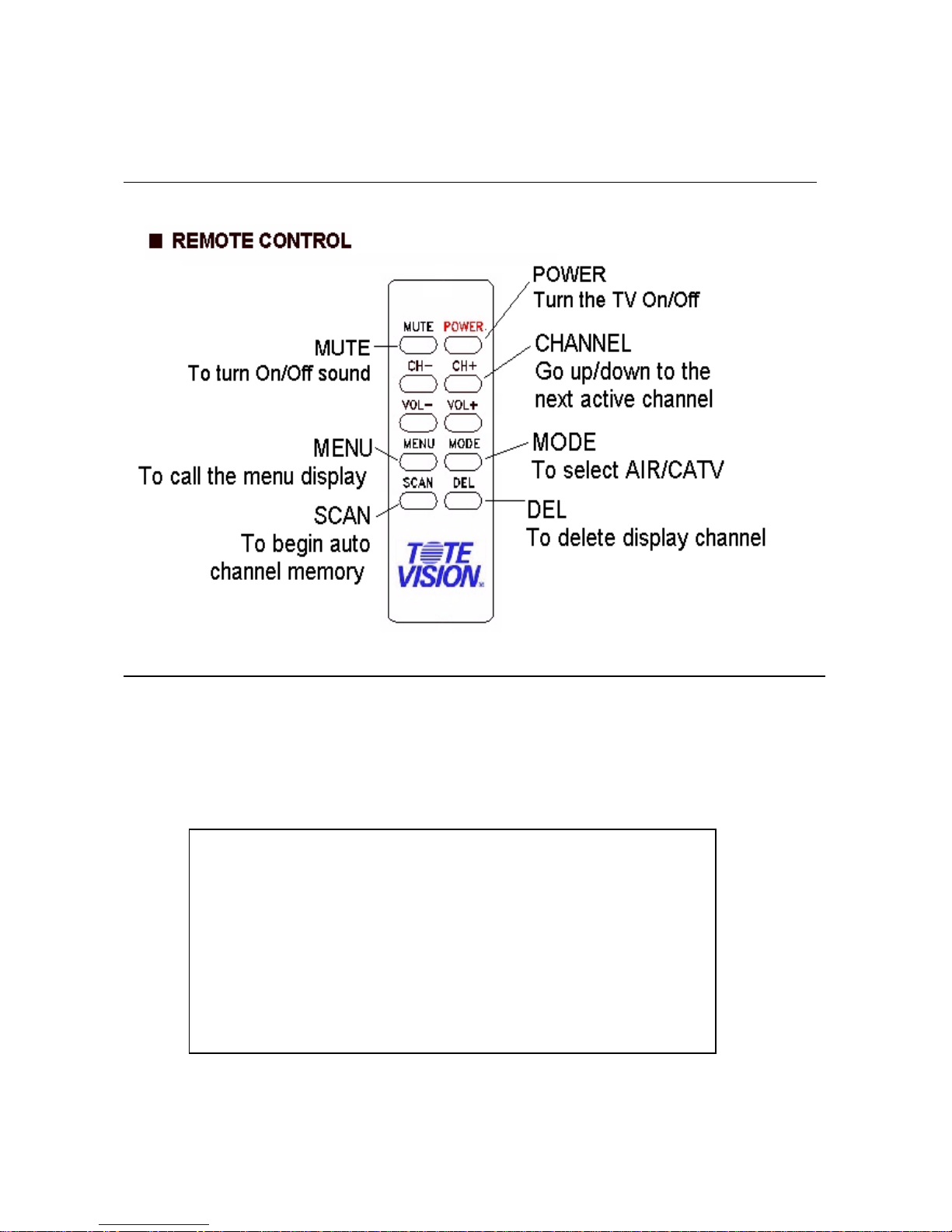

The following figure shows a clear layout of the remote control.

Calling up a Menu display

Press the MENU button on the remote control to call up the various menu displays.

Then, use the Channel Up/Down buttons to select which item you want to access or adjust.

Display color will be changed for the selected item.

Press Volume -/+ to adjust values or activate command.

The Menu is in three pages as below. Access next page by pressing MENU button a second time.

.

MENUpage#1

CONTRAST

BRIGHTNESS

COLOR

TINT

Auto color

Select CH-/CH+ Adjust VOL-/VOL+

MENUpage#2

MENUpage#3

Adding and Skipping unwanted TV Channel

If you want to exclude any channel from the memory, press “DEL” button on the remote

control. Screen will ask you if you want to erase from memory. Or

Select unwanted channel and press menu button on the remote control two(2) times to access menu

page #2 and then select CH DELETE with CH- button and press VOL+ button.

If you want to add specific channel to the memory, select CH manual select from the

menu page #2. Then you can see all active channels

Select wanted channel with CH-/+ buttons and press VOL+ button for memory.

Menu display will disappear automatically after 15sec.However you may press MENU button for

exit.

CH AUTO SCAN

CH DELETE

CH MANUAL SELECT

TV MODE STD/HRC/IRC

Select CH-/CH+ Adjust VOL-/VOL+

INPUT select TV/AV

Mirror Left/Right

Display Up/Down

Select CH-/CH+ Adjust VOL-/VOL+

Channel Auto Scanning

Press the SCAN button on the remote control. or

Access menu page #2 and select CH Auto Scan, then, press VOL+ button.

TV Mode Selecting

Press the MODE button on the remote control to select one of AIR/STD/HRC/IRC. or

Access menu page #2 and select TV MODE and press VOL+ button to select appropriate TV mode.

AV Mode Selecting

Press the TV/AV button on the remote control to select AV input. or

Access menu page #3 and select AV mode.

Automatic Power Off

The TV will be turned off automatically if TV signal is not detected for 10 minutes.

Specification

Display: 5.6" TFT LCD active matrix Back Light: Built-in (CCFT)

Input Signal: NTSC – AIR(ch2~ch69) 125ch CATV(STD/HRC/IRC)

Dot Format: 960(H) x 234(V) dots Dot Pitch: 0.120mm(H) x 0.360mm(V)

Brightness rating: 200 cd/m2 Number of Pixels: 224,640 Dots

Pixel Configuration: Stripe Audiooutput:2W(RMS)

Power requirements : 11VDC- 27VDC Power consumption : 10 Watts

1319 Dexter Ave. N. Suite 020

Seattle, WA. 98109

Tel : (206)623-6000

www.totevision.com
