Totevision LCD-840VL Manuale utente

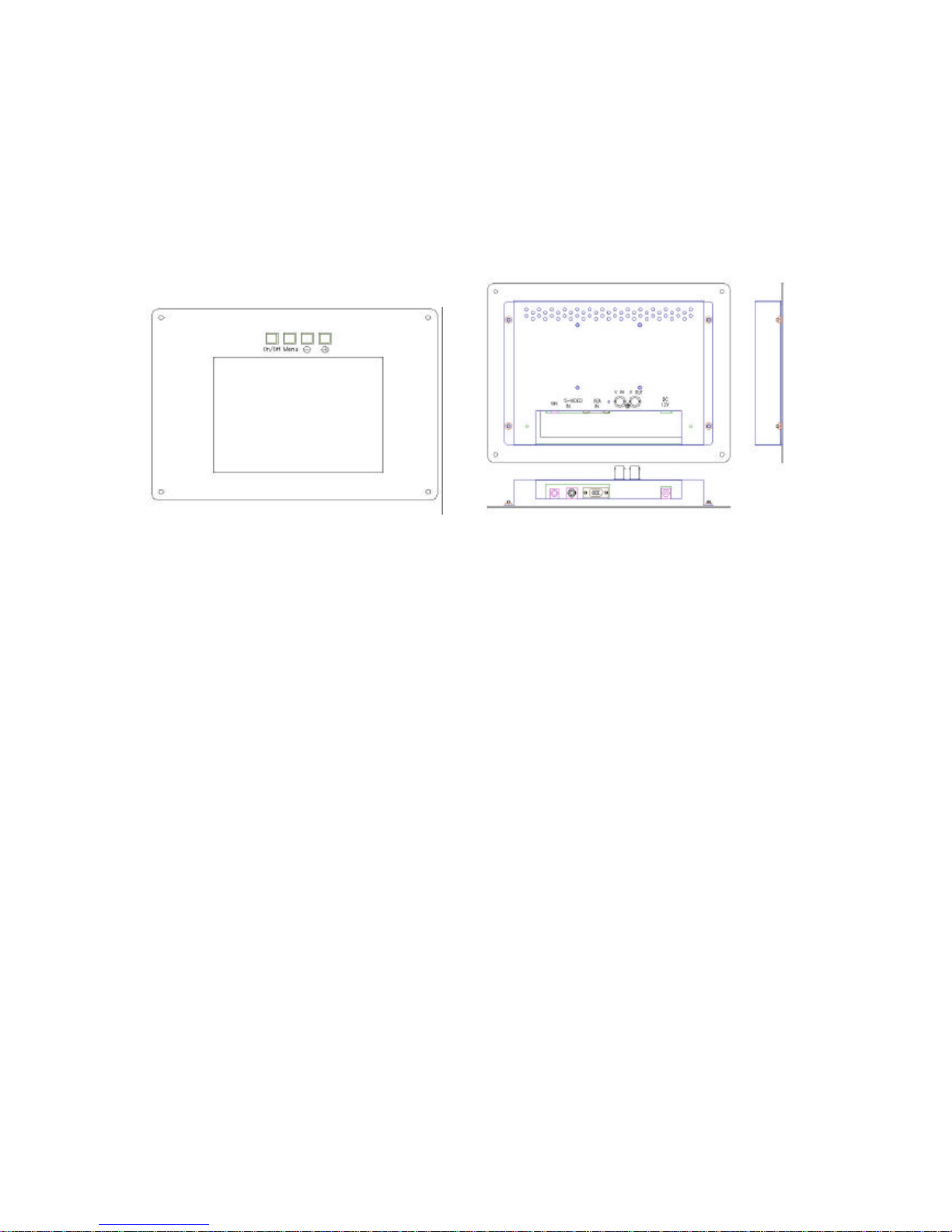

Key Define:

ŒUP: Press this buttonto increase or decrease the value of the adjustment

functions.

•DOWN: Press this buttonto increase or decrease the value of the adjustment

functions.

ŽENTER: Press this button for menu adjusting, selecting the menu you want

with “UP”or “DOWN”, then press this button again to enter the selected

menu.

•POWER: Press this button to turn on the power.

Press and hold for more than 2 seconds to turn the power off.

Under power on condition, this button acts as input mode selector

(VGA/ S-VIDEO/ VIDEO).

•VGA IN

‘S-VIDEO IN

’VIDEO IN

“DC 12V

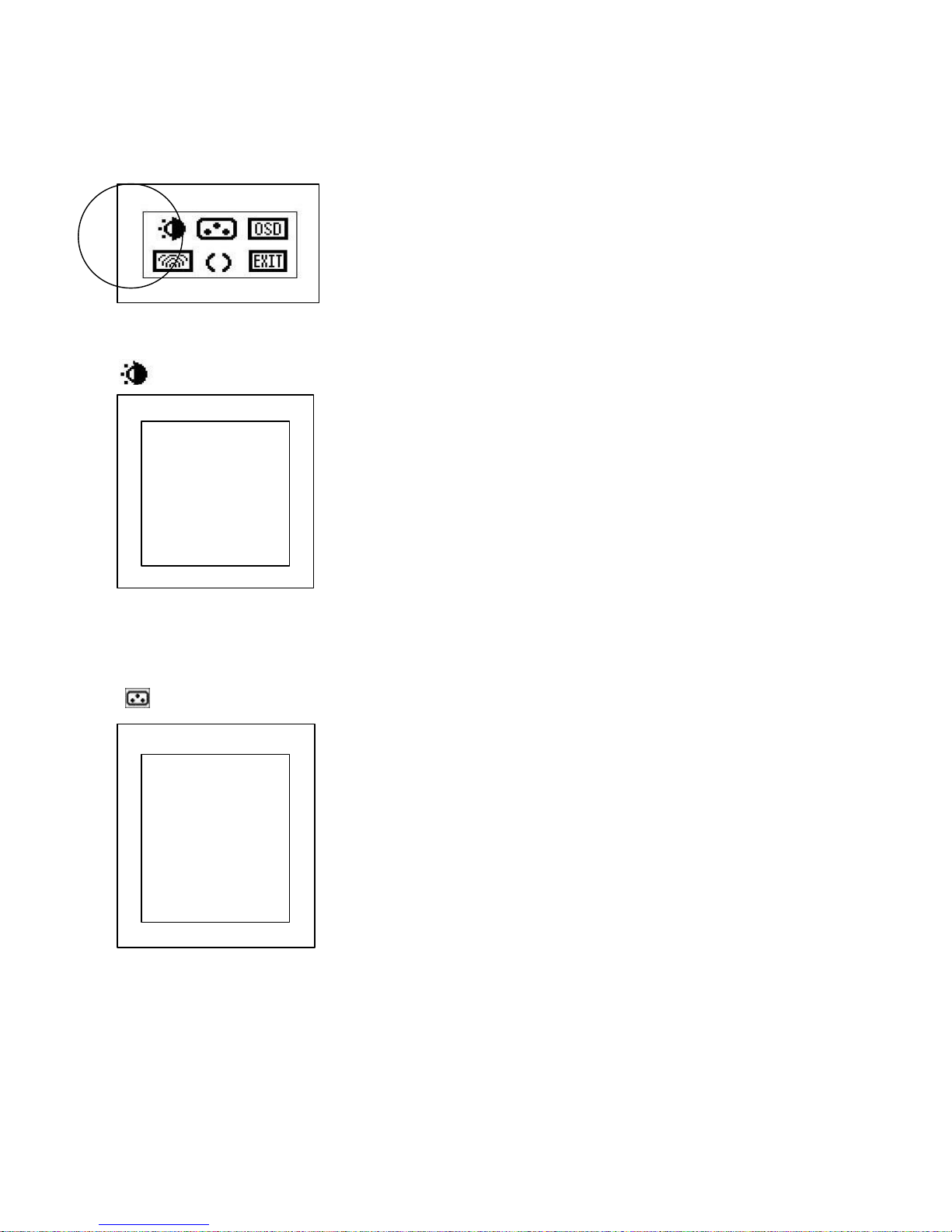

OnScreen Display for Video Input

Video Main OSD Menu Figure

---Press “ENTER” button to activate theOSD main as

shown on screen

---Press“UP” or“DOWN” button again to select the OSD

1. Brightness

---Press“ENTER” button to enter this mode

---Press“UP” or“DOWN” button to select the desired

adjustment item

*Brightness:Adjust the brightness of the panel

*Contrast:Adjust the white color level of the image

* Back Light:Adjust the back level of the panel

*Recall:Whenyou run the function, the monitor will be

setting to last status of the saving value

*Exit:Return to last menu

2. Video Quality

---Press“ENTER” button to enter this mode

---Press “UP” or“DOWN” button to select the desired

adjustment item

* Brightness:Adjust the brightness of the panel

*Contrast:Adjust the white color level of the image

*Saturation:Adjust the color saturation of the image

* Hue:Adjust the color hue of the image

* Sharpness:Adjust the image from weak to sharp

*Recall: When you run the function, the monitor will be

setting to last

* Exit:Return to last menu

Brightness

Contrast

Back Light

Recall

Exit

Video Quality

Brightness

Contrast

Saturat

Hue

Sharpness

Recall

Exit

3. OSD Function

---Press “ENTER”button to enter this mode

---Press “UP”or “DOWN”button to select the desired

adjustment item

* H Position:Adjust the horizontalposition of the OSD

*V Position: Adjust the vertical position of the OSD menu

*Language: N/A

*Off Timer:The method of OSD display

*Recall:When you run the function, the monitor will be

setting to last

*Exit:Return to last menu

4. IMAGE

---PRESS “ENTER” BUTTON TO ENTER THIS MODE

---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED

ADJUSTMENT ITEM

*VIDEO SYSTEM: NTSC /PAL /SECAM /NTSC 4.43 /AUTO

*DITHERING: N/A

*SELECT INPUT: PRESS TO SELECT INPUTS VGA/S-VIDEO/

VIDEO

*EXIT: RETURN TO LAST MENU

5. Recall

---Press“ENTER” button to enter this mode

---Press“UP” or“DOWN” button to select the desired

adjustment item

*RecallAll:Whenyou run the function, the monitor will be

setting to last

*Exit:Return to last menu

6. Exit Menu

OSD Function

H Position

V Position

Language

Off Timer

Recall

Exit


Video System

Dithering

Select Input

Exit

Recall

Recall All

Exit

Exit Menu

OnScreen Display for VGA Input

VGA Main OSD Menu Figure

---Press “ENTER” button to activate the OSD main menu

as shown on screen

---Press“UP” or“DOWN” button again to select the OSD

1.Auto Config

---Press“ENTER” buttonto enter this mode

---Press“UP” or“DOWN” button to select the desired

adjustment item

*Auto Config:Select “YES” to make the monitor have

the best efficiency

*Exit:Return to last menu

2. Position

---Press“ENTER” button to enter this mode

---Press “UP” or“DOWN” button to select the desired

adjustment item

*H Position:Adjust the horizontal position of the image


*V Position:Adjust the vertical position of the image

*Auto Position:Select “YES” to auto adjust the vertical and

Horizontal position

* Exit:Return to last menu

3. Brightness

---Press“ENTER” buttonto enter this mode

---Press“UP” or“DOWN” button to select the desired

adjustment item

*Brightness:Adjust the brightness of the panel

*Contrast:Adjust the white color level of the image

*Back Light: Adjust the back light bule intensity

*Recall:When you run the function, the monitor

will be setting to last status of the saving value

*Exit:Return to last menu

Auto Config

Exit

Position

H Position

V Position

Auto Position

Exit

Brightness

Contrast

Back Light

Recall

Exit

4. Clock

---Press“ENTER” button to enter this mode

---Press “UP” or“DOWN” button to select the desired

adjustment item

*Clock:Adjust Video Sampling clock

*Phase:Adjust the noise of the image

*Recall When you run the function, the monitor will be

setting to last status of the saving value

*Exit:Return to last menu

5. Color

---Press“ENTER” button to enter this mode

---Press“UP” or“DOWN” button to select the desired

adjustment item

*Color 9300°K:Set the color temperature of the image to

9300 °K

*Color 5500°K:Set the color temperature of the image to

5500 °K

*Balance Color:Adjust the color balance

*User Color:Setthe RGB color of the image by oneself

define

*AUTO BALANCE: AUTOMATIC ADJUSTMENT OF THE BALANCE

*AUJUST COLOR: PRESS “ENTER” BUTTON TO ENTER COLOR

ADJUSTMENT. PRESS “UP” OR “DOWN” BUTTON TO ADJUST

R/G/B COLOR LEVEL AND OFF SET

6. OSD FUNCTION

---PRESS “ENTER” BUTTON TO ENTER THIS MODE

---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED

ADJUSTMENT ITEM

*H POSITION: TO ADJUST THE HORIZONTAL POSITION OF THE

OSD MENU

*V POSITION: TO ADJUST THE VERTICAL POSITION OF THE

OSD MENU

*LANGUAGE: N/A

*OFF TIMER:THE METHOD OF OSD DISPLAY

*RECALL: WHEN YOU RUN THE FUNCTION, THE MONITOR

WILL BE SETTTING TO LAST

*EXIT: RETURN TO LAST MENU

Clock

Phase

Recall

Exit

Color

Color 9300°K

Color 5500°K

Balance Color

User Color

Auto Balance

Adjust Color

OSD Function

H Position

V Position

Language

Off Timer

Recall

Exit

7. IMAGE

---PRESS “ENTER” BUTTON TO ENTER THIS MODE

---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED

ADJUSTMENT ITEM

*MODE SELECT: CHANGE DOS MODE RESOLUTION

640 x 400 OR 720 x 350 OR 720 x 400

*DITHERING: N/A

*SELECT INPUT: PRESS TO SELECT INPUTS VGA / S-VIDEO /

VIDEO

*EXIT: RETURN TO LAST MENU

8.INFORMATION

VGA CONDITION

RESOLUTION AND FREQUENCY

9. RECALL

---PRESS “ENTER” BUTTON TO ENTER THIS MODE

---PRESS “UP” OR “DOWN” TO SELECT THE DESIRED

ADJUSTMENT ITEM

*RECALL ALL: TO SET DEFAULT VALUE TO THE ORIGINAL

SETTING

*EXIT: RETURN TO LAST MENU

10. EXIT MENU

Exit Menu

Information

Recall

Recall All

Exit


Mode Select

Dithering

Select Input

Exit

SPECIFICATIONS

MODEL NO.: LCD-840VL

SCREEN SIZE:8.4”(DIAGONAL)

DISPLAY RESOLUTION: 800 (H) x 600 (V)

PIXEL PITCH (mm): 0.213 (H) x 0.213 (V)

ACTIVE AREA (mm):170.4 (H) x 127.8 (V)

LCD PROFILE RATIO: 4:3

COLOR CONFIGURATION: R.G. B.VERTICAL STRIPE

BRIGHTNESS RATING: 250 NIT TYP

INPUT SIGNAL: NTSC / PAL (DUAL.CAPABLITY) / SECAM /

NTSC4.43

NUMBER OF PIXELS: 262,144 DOTS

VIEWING ANGLE: LEFT & RIGHT 40 DEGREE

DOWN 10 DEGREE

TOP 30 DEGREE

PIXEL CONFIGURATION: STRIPE

VIDEO INPUT SIGNAL LEVEL: 1V P-P(POSITIVE) / 75 ohm

OPERATING TEMPERATURE: 0℃~+60℃

STORAGE TEMPEATURE: -20℃~+70℃

DC POWER SUPPLY: DC 12V IN (FROM POWER SUPPLY)

POWER CONSUMPTION: <10 W

CONNECTORS: DC-IN, RCA VIDEO, S-VIDEO, D-SUB

RESPONSE: 20ms/RISING TIME, 30ms/FALLING TIME

DIMENTIONS: 291.0 (H) X 214.0 (W) x 37.9(D)
