Totevision LCD-702 Manuale utente
7.0" 16:9 Wide Screen
Universal Headrest Monitor
FLUSH MOUNTING / PHYSICAL MOUNTING SELECTABLE
OPERATING
INSTRUCTIONS
Before operating the unit, please read these instructions carefully. 05' 12OT01004639
Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle which is
equipped with a television or screen that is located in the motor vehicle at
any point forward of the back of the driver's seat, or that is visible directly
or indirectly to the driver while operating the vehicle.
CAUTION
1.
Do not operate the monitor at temperatures below 32°F (0°C) or above 140°F (60°C).
2.
Keep the monitor clean and dry.3.
4.
Do not drop the monitor or expose to strong impacts.
Do not expose to direct sunlight for extended periods of time.
e11 022771

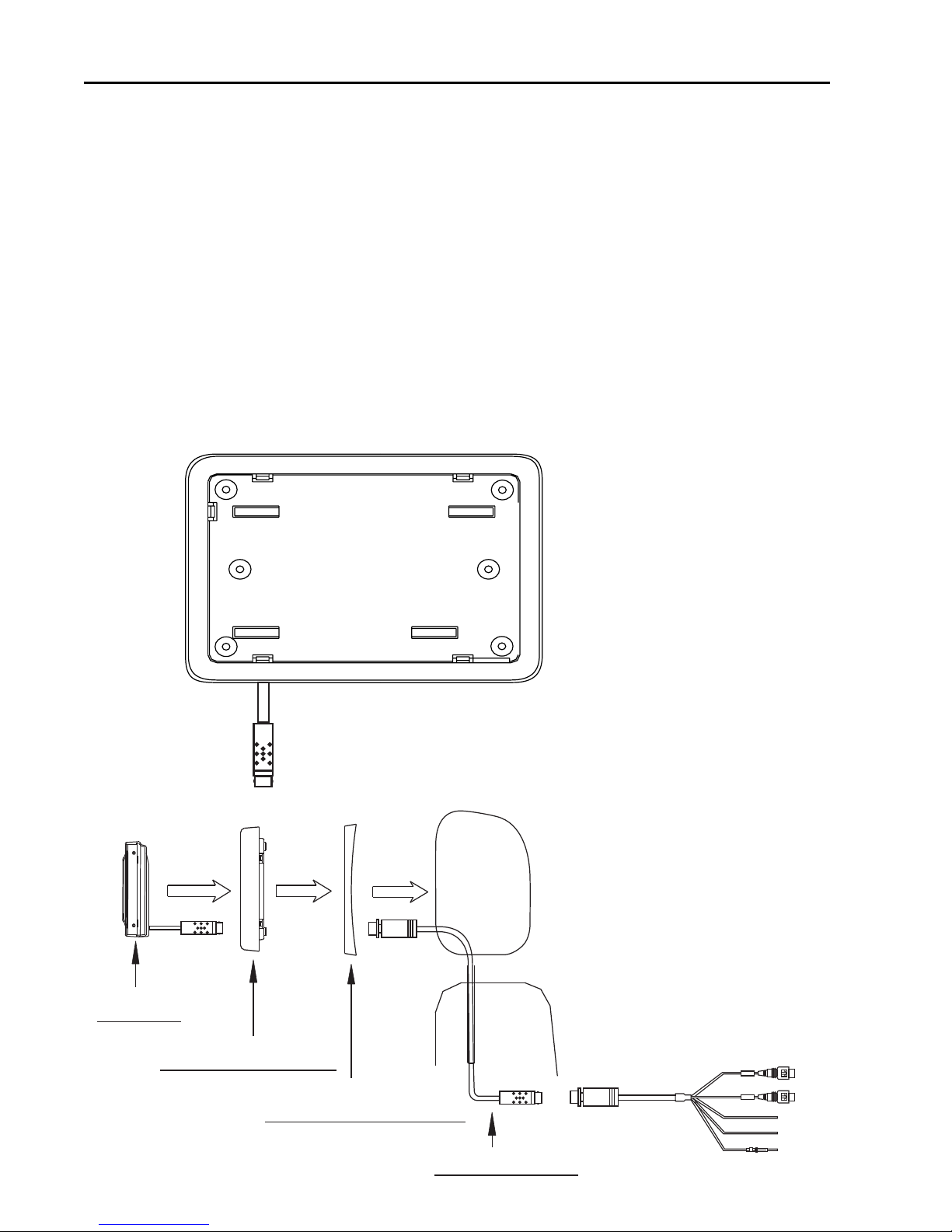

Installation Guide:
The kit includes a protective trim ring and an optional spacer ring for use when the mounting
surface is uneven.
1. Select appropriate locations in your vehicle for the monitor and for the power supply module.
2. Be sure there is sufficient depth for the trim ring. Add the spacer ring for shallow locations
with uneven curved surfaces such as upholstery. Be sure there is enough space for both
the trim ring and for any excess interconnect cable.
3. Ensure that the interconnect cable will reach from the monitor location to the power supply
module.
4. Create the required opening for the monitor and trim ring. Be sure it is not too large, and
that there is enough space behind the trim ring to store any excess interconnect cable.
Excess cable does not fit within the trim ring.
5. Route the cable through the opening in the trim ring
6. Mount the trim ring with the screws provided.
7. Connect the cable to the monitor.
8. Securely snap the monitor into place.
Cable
01
If you need to remove the monitor
from the trim ring, insert a credit
card between the monitor and the
trim ring to release the monitor
from the flexible locking retainer
tabs. Gently pull the monitor from
the trim ring. Very gentle pressure
can be applied using the credit card.
HEADREST SHROUD
MONITOR
TRIM RING(OPTIONAL)
WIRE IN TUBE
02

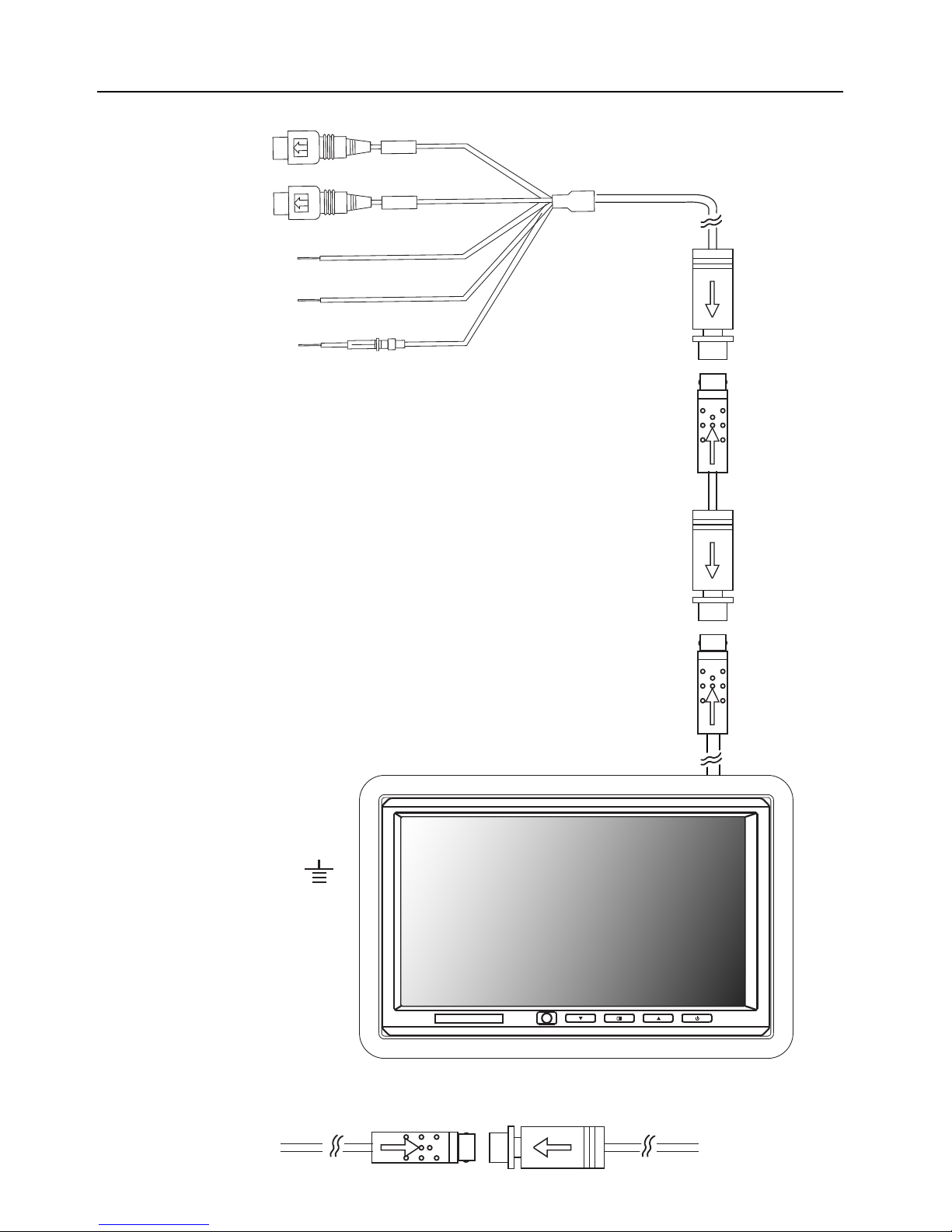

Electrical Connections:
Wiring System:
Red Wire : ACC
Black Wire : Ground
Yellow Wire : Battery (+)
Note: Please make sure all cables are connected correctly, wrong connections
will damage the monitor.
Red
Video-1 Input
Video-2 Input
Fuse Yellow
Black
03

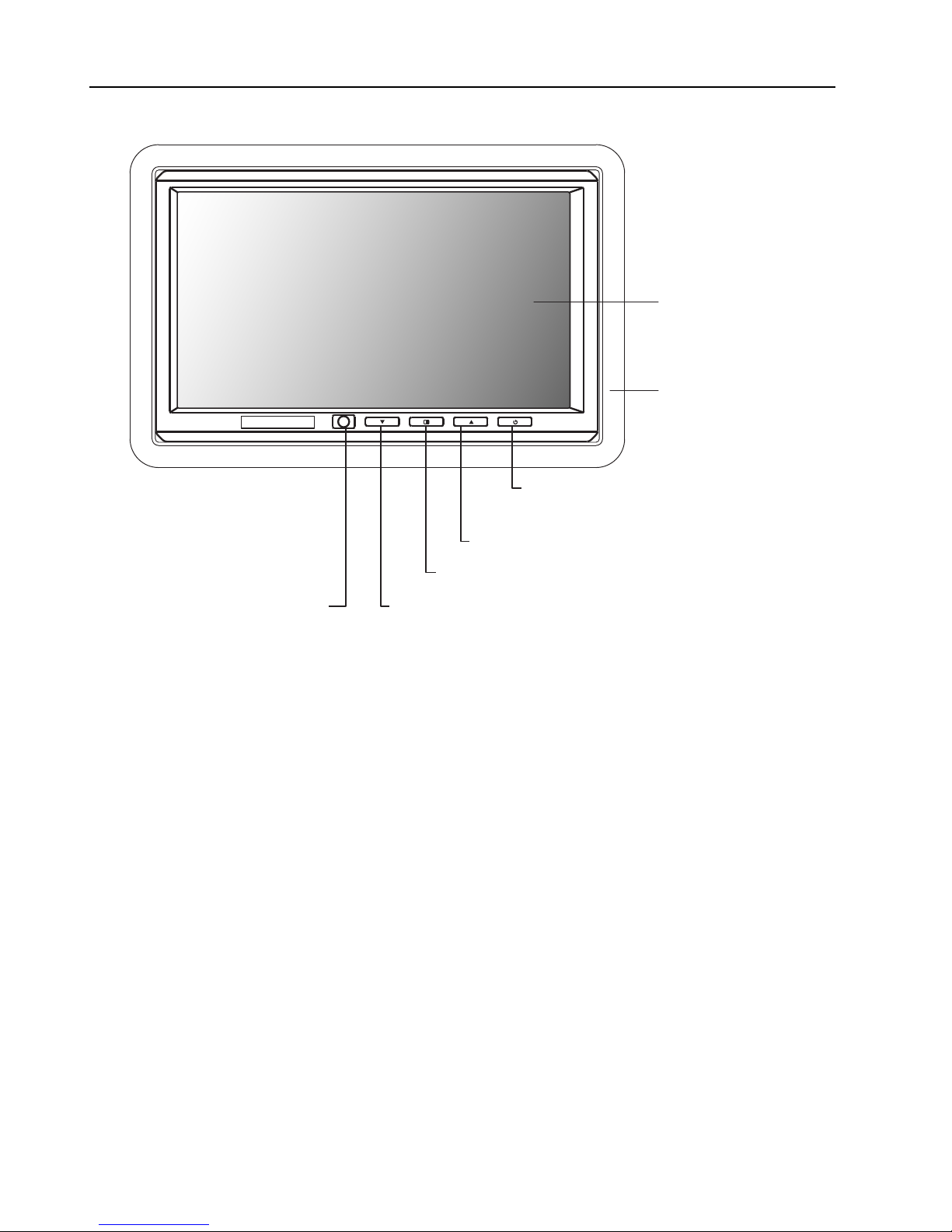

Basic Operation:
Front Control Panel:
3.
POWER : ON / OFF / Mode Selection and
Enter button (press and hold the button will power off)
1. LCD Panel
7. Infrared Remote
Controller Receiver
6
.
DOWN : Positive and Negative Adjustment
5
.
MENU : Activation of Menu Indicator
4
. UP : Positive and Negative Adjustment
2. Headrest Shroud
04
Basic Operation(Optional):
Remote Control:
The remote control includes the following buttons for use with this monitor:
Monitor Menu, Mode, Up, Down,Left, Right and Power.
1. Use a small coin to play open battery
holder from compartment.
2. Remove old battery and put in a
new one with positive sign " + "
facing upward.
3. Push compartment into position.
Precaution :
1. Dispose off used battery properly.
2. Do not misuse battery by short - circuiting the " + " and " - " terminal or put
it into fire.
3. Remove used battery from compartment to prevent leakage from damaged
battery.
4. To avoid accident , prevent children from playing with the battery.
Replacement of Battery:
remote controller
battery holder
battery
RC-1029A
MOBILE AV REMOTE CONTROL
0
REP
SCAN SAVE
7
4
8
5
MUTE
DISP
BAND
VOL
9
6
MEMORY
CH/DISC/SET
POWER
1 2 3
MENU
MODE
SYSTEM SELECTION
CHANNEL SELECTION
POWER ON/OFF
FUNCTION SETTING
ONLY WORK ON IN-DASH WIDE SCREEN COLOR MONITOR
*
05

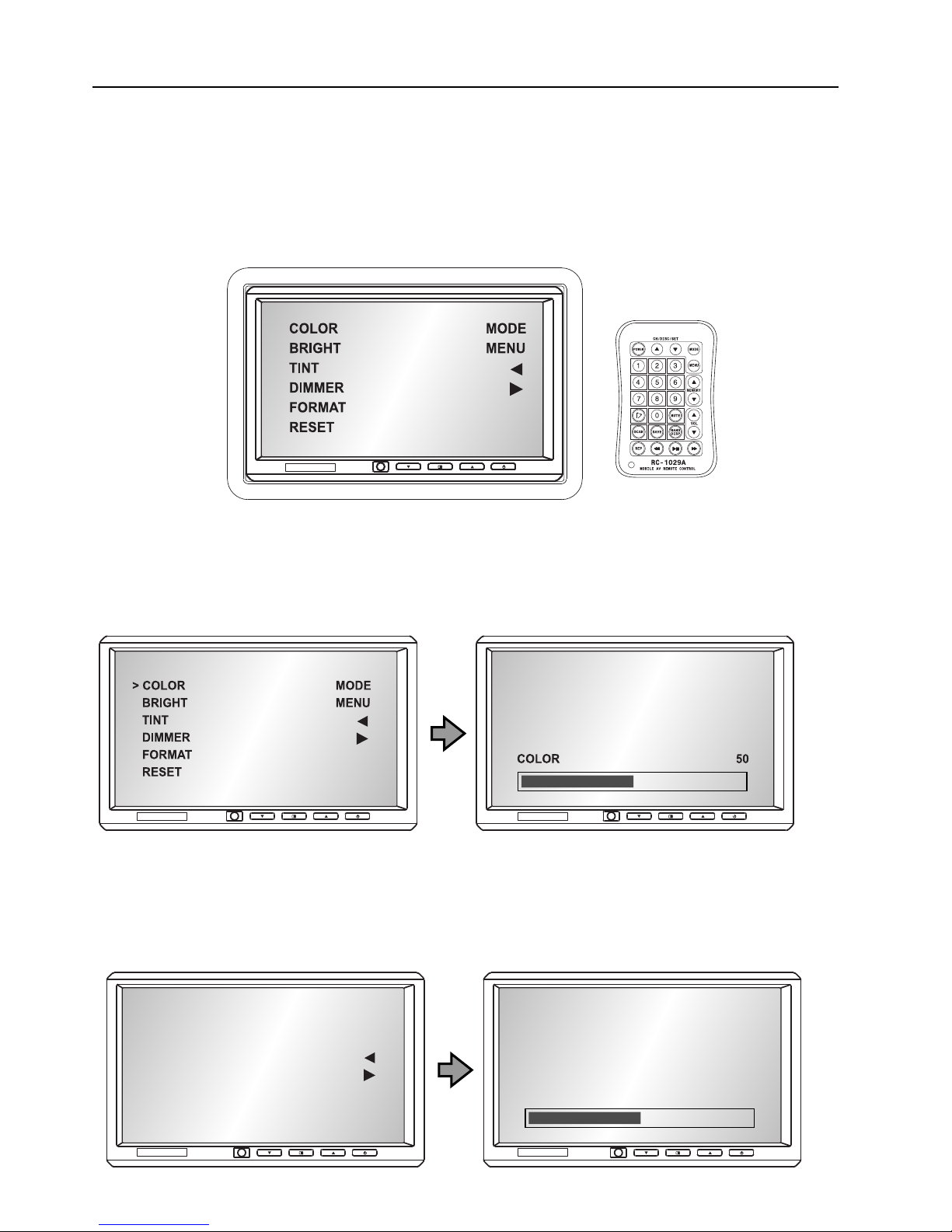

On-Screen-Display Settings:
When monitor is power on, press mode button on remote or power button control panel to select
video inputs AV1/AV2 NTSC PAL. (Press and hold power button on control panel will power off
the monitor.)
Press the Menu button on the remote or front control panel, the OSD menu will show the LCD
screen as below, use the up/down buttons on remote or up/down buttons on front control panel to
select setting .
MODE:
MONITOR SETTINGS:
COLOR:
Press Menu button on remote or on control panel, OSD menu will show on LCD screen as below
(left chart), press up/down button on remote or press and hold up/down button on control panel to
select "COLOR" setting, "COLOR" setting will show as below (right chart).
BRIGHT:
Press Menu button on remote or on control panel, OSD menu will show on LCD screen as below
(left chart) , press enter button on remote or power button on control panel to select "BRIGHT"
setting, "BRIGHT" setting will show as below (right chart).
COLOR
> BRIGHT
TINT
DIMMER
FORMAT
RESET
MODE
MENU
BRIGHT 50
(Remote Control
optional)
06

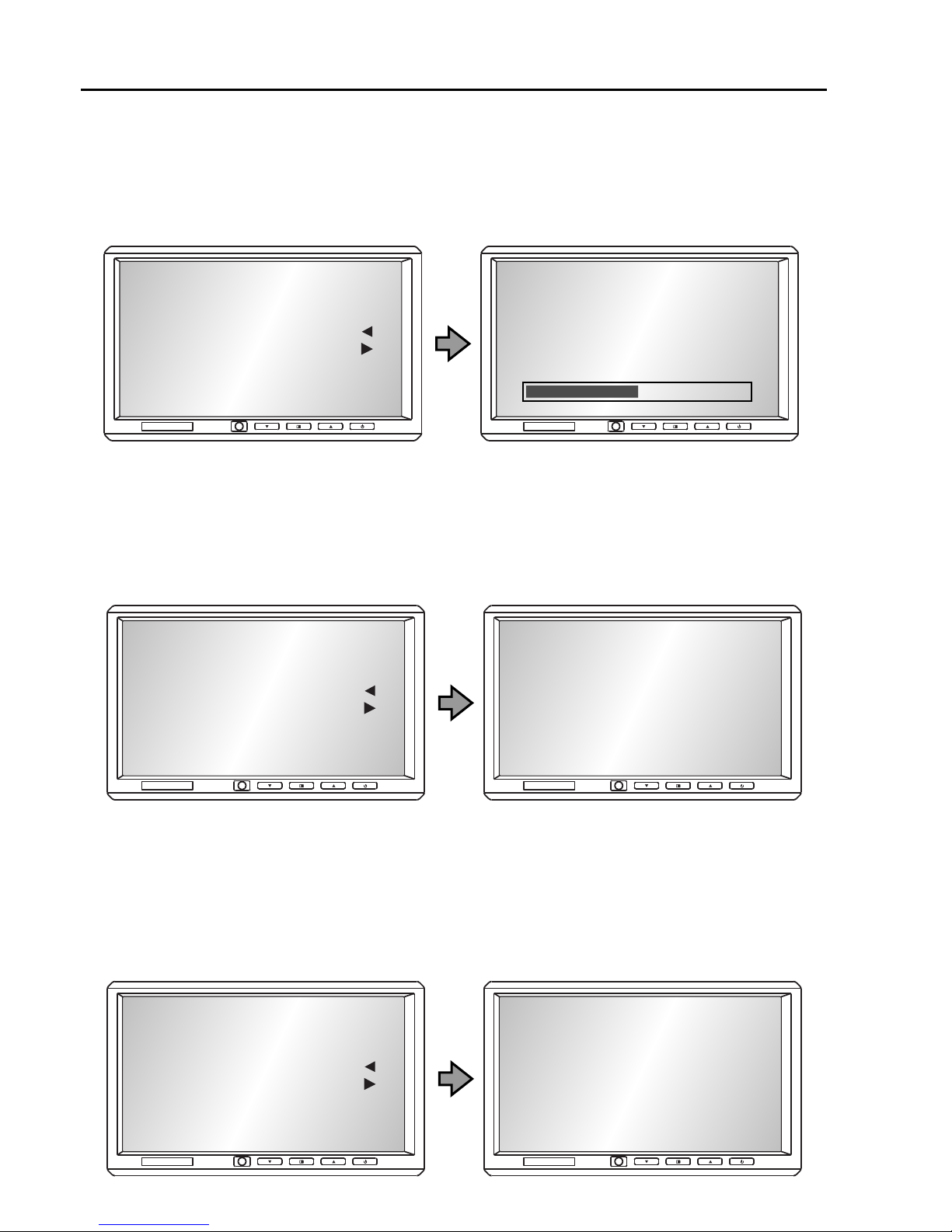

TINT:
Press Menu button on remote or on control panel, OSD menu will show on LCD
screen as below (left chart), press up/down button on remote or press
and hold up/down button on control panel to select "TINT" setting. "TINT" setting
will show as below (right chart).
DIMMER:
Press Menu button on remote or on control panel, OSD menu will show on LCD
screen as below (left chart), press up/down button on remote or press
and hold up/down button on control panel to select "DIMMER" setting. "DIMMER"
setting will show as below (right chart).
DISPLAY MODE: (FORMAT)
Press Menu button on remote or on control panel, OSD menu will show on LCD
screen as below (left chart), press up/down button on remote or up/down button
on control panel to select "FORMAT" setting. Press enter button on or power
button on control panel to select "FORMAT" setting, NORMAL/ PANORAMA/
ZOOM/ FULL display mode ."FORMAT" setting will show as below (right chart).
COLOR
BRIGHT
> TINT
DIMMER
FORMAT
RESET
MODE
MENU
TINT 50
COLOR
BRIGHT
TINT
> DIMMER
FORMAT
RESET
MODE
MENU
DIMMER
OFFON
COLOR
BRIGHT
TINT
DIMMER
> FORMAT
RESET
MODE
MENU
FORMAT
NORMAL
On-Screen-Display Settings:
07
On-Screen-Display Settings:
The Wide Screen Universal Monitor includes mounting options described in the
following sections. Before you install the monitor, consider the following
important notices:
NEVER install this monitor where it can be viewed from the driving position;1.
2.
3.
this is a violation of many state and local vehicle codes.
Avoid mounting locations where there is a risk of impact with a passenger in
the event of an accident.
Always mount the monitor securely using the mounting hardware that is
provided. Do not use the monitor unless it is properly secured to the vehicle.
Box Contents:
The Widescreen Universal Monitor includes the following parts and equipment:
1. Monitor
2. Remote control (optional)
3. Mounting pedestal
4. Flush mounting trim ring (optional)
5. 2 Video Inputs Harness
Installation Notes:

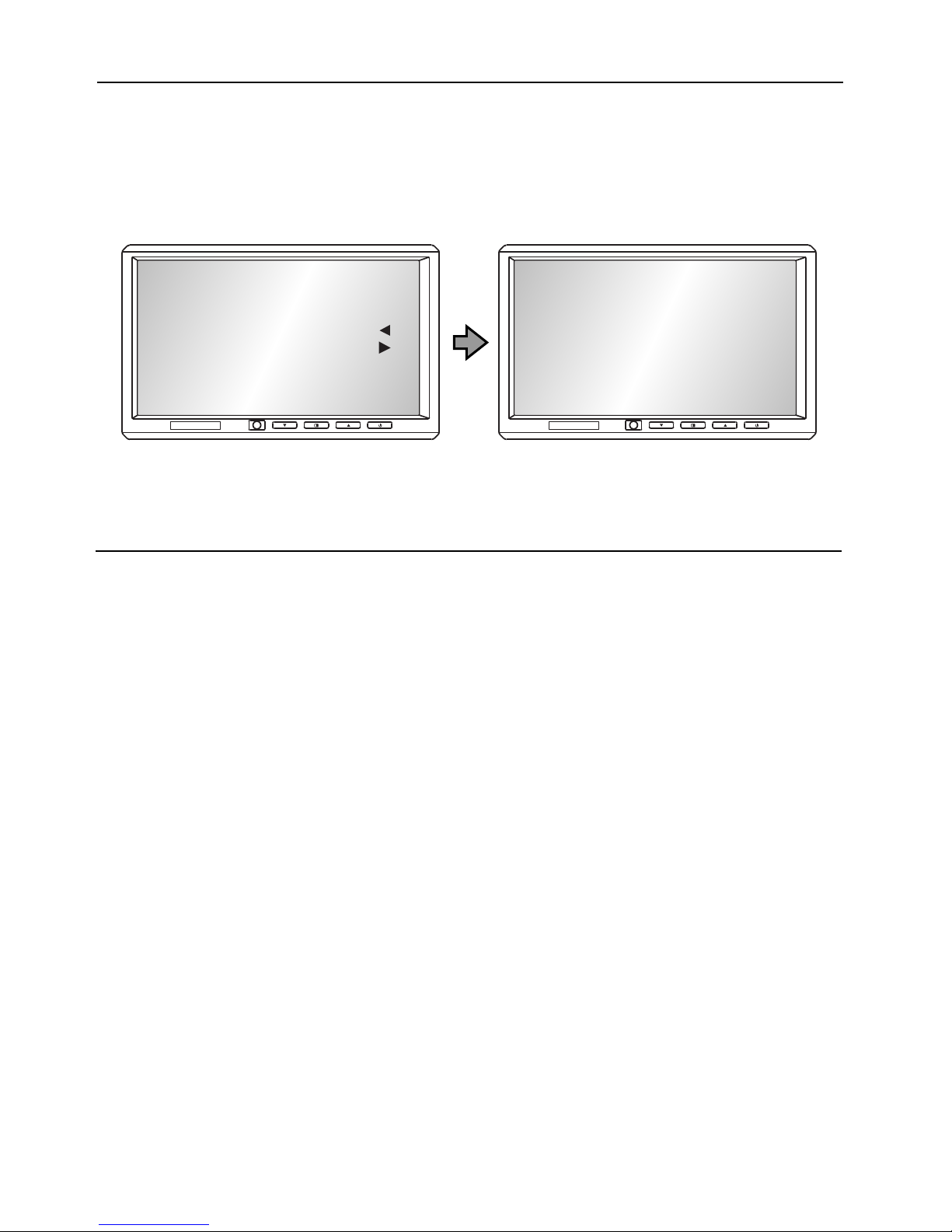

RESET IMAGE:
Press Menu button on remote or on control panel, OSD menu will show on LCD screen as below
(left chart), press up/down button on remote or up/down button on control panel to select
"RESET" setting. Press enter button on power button on control panel to select "RESET" setting,
"RESET" setting will show as below (right chart).
COLOR
BRIGHT
TINT
DIMMER
FORMAT
> RESET
MODE
MENU
RESET
