OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 11. . . . . . . . . . . . . . . . . . . . . .

SECTION

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

1. Side defroster outlets

2. Instrument cluster

3. Center vents

4. Electric moon roof switch and personal

lights

5. Garage door opener

6. Auxiliary boxes

7. Side vents

8. Power door lock switches

9. Power window switches

10. Glove box

11. Automatic transmission selector lever

12. Rear ashtray

13. Input terminal adapter

14. Power outlets

15. Cup holder

16. Container

17. Front ashtray

18. Audio remote control switches

19. Hood lock release lever

20. Parking brake pedal

21. Window lock switch

Instrument panel overview

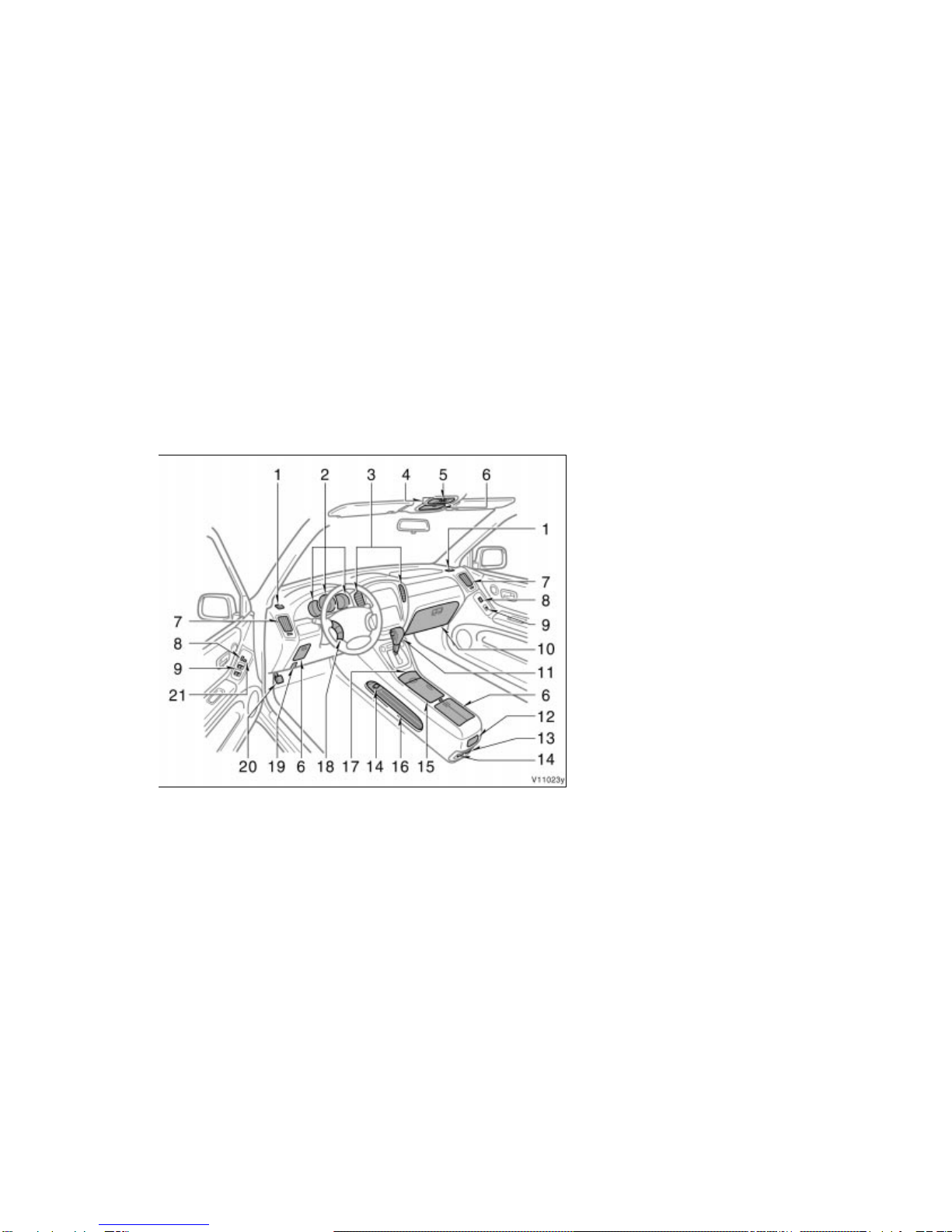

Vehicles with rear seat entertainment system (view A)

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

1. Side defroster outlets

2. Instrument cluster

3. Center vents

4. Electric moon roof switch and personal

lights

5. Garage door opener

6. Auxiliary boxes

7. Side vents

8. Power door lock switches

9. Power window switches

10. Glove box

11. Automatic transmission selector lever

12. Rear ashtray

13. Cup holder

14. Container

15. Power outlet

16. Front ashtray

17. Audio remote control switches

18. Hood lock release lever

19. Parking brake pedal

20. Window lock switch

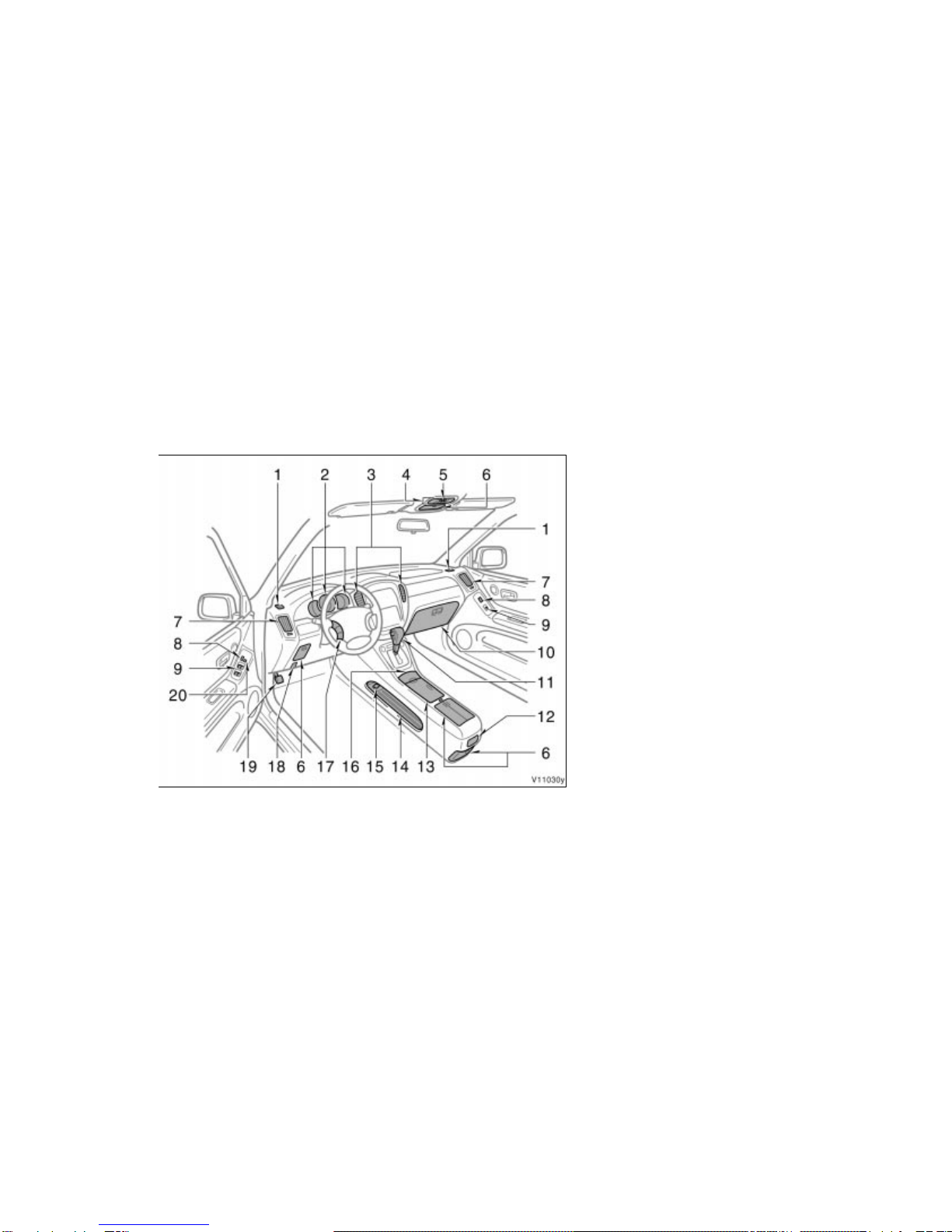

Vehicles without rear seat entertainment system (view A)

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches

3. Emergency flasher switch

4. Clock

5. Front passenger’s seat belt reminder

light

6. Rear window and outside rear view

mirror defogger and windshield wiper

de- icer switch

7. Air conditioning controls

8. Audio system

9. “AIRBAG ON” and “AIRBAG OFF”

indicator lights

10. Snow mode button

11. Seat heater switches

12. Cigarette lighter

13. “TRAC OFF” switch

(two- wheel drive models)

14. Cruise control switch

15. Ignition switch

16. Tilt steering lock release lever

17. Tire pressure warning system reset

switch

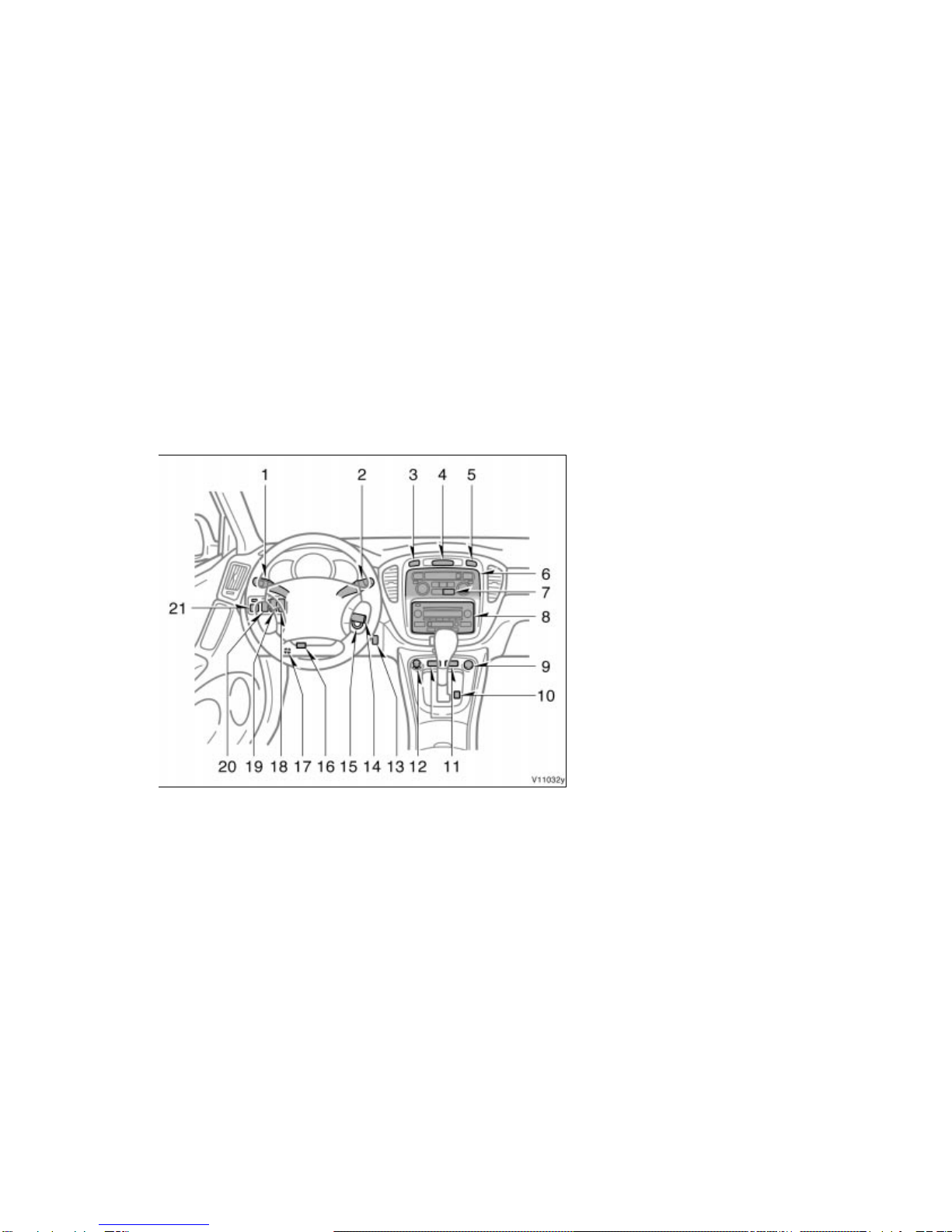

Vehicles with manual air conditioning controls (view B)

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

18. Power outlet (115 VAC) main switch

19. Rear heater main switch

20. Theft deterrent system/engine

immobilizer system indicator light

21. Power rear view mirror control switches

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches

3. Emergency flasher switch

4. Clock

5. Front passenger’s seat belt reminder

light

6. Air conditioning controls and

multi-information display

7. Rear window and outside rear view

mirror defogger and windshield wiper

de- icer switch

8. Audio system

9. “AIRBAG ON” and “AIRBAG OFF”

indicator lights

10. Snow mode button

11. Seat heater switches

12. Cigarette lighter

13. “TRAC OFF” switch

(two- wheel drive models)

14. Cruise control switch

15. Ignition switch

16. Tilt steering lock release lever

17. Tire pressure warning system reset

switch

Vehicles with automatic air conditioning controls (view B without navigation system)

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

18. Power outlet (115 VAC) main switch

19. Rear heater main switch

20. Theft deterrent system/engine

immobilizer system indicator light

21. Power rear view mirror control switches

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches

3. Emergency flasher switch

4. Clock (See the separate “Navigation

System Owner’s Manual”.)

5. Front passenger’s seat belt reminder

light

6. Navigation system including air

conditioning controls (See the separate

“Navigation System Owner’s Manual”.)

7. Rear window and outside rear view

mirror defogger switch

8. Audio system (See the separate

“Navigation System Owner’s Manual”.)

9. “AIRBAG ON” and “AIRBAG OFF”

indicator lights

10. Snow mode button

11. Seat heater switches

12. Cigarette lighter

13. “TRAC OFF” switch

(two- wheel drive models)

14. Cruise control switch

15. Ignition switch

16. Tilt steering lock release lever

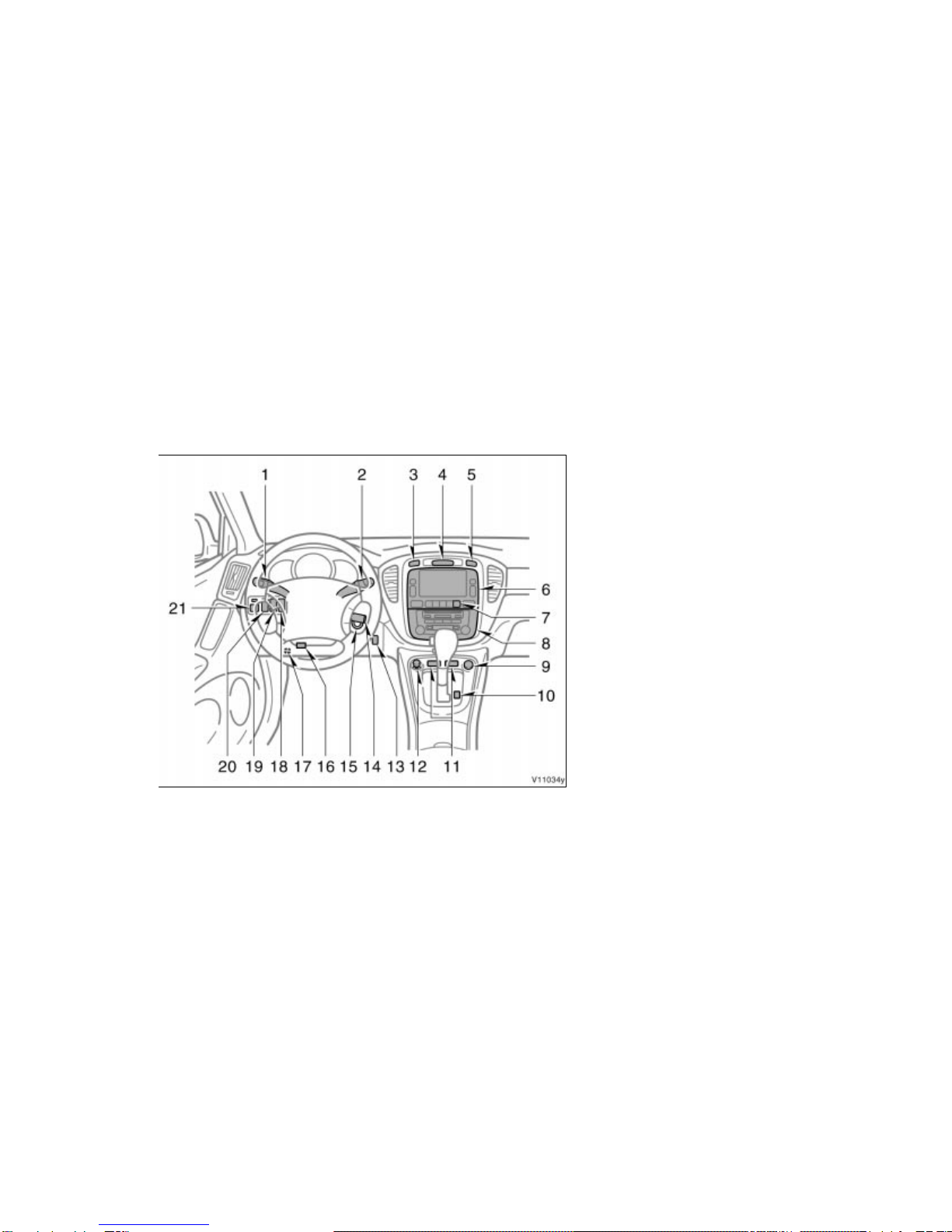

Vehicles with automatic air conditioning controls (view B with navigation system)

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

17. Tire pressure warning system reset

switch

18. Power outlet (115 VAC) main switch

19. Rear heater main switch

20. Theft deterrent system/engine

immobilizer system indicator light

21. Power rear view mirror control switches

’05 HIGHLANDER_U (L/O 0409)

2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

1. Tachometer

2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge

5. Low fuel level warning light

6. Engine coolant temperature gauge

7. Trip meter reset knob

8. Odometer and two trip meters

9. Instrument panel light control knob

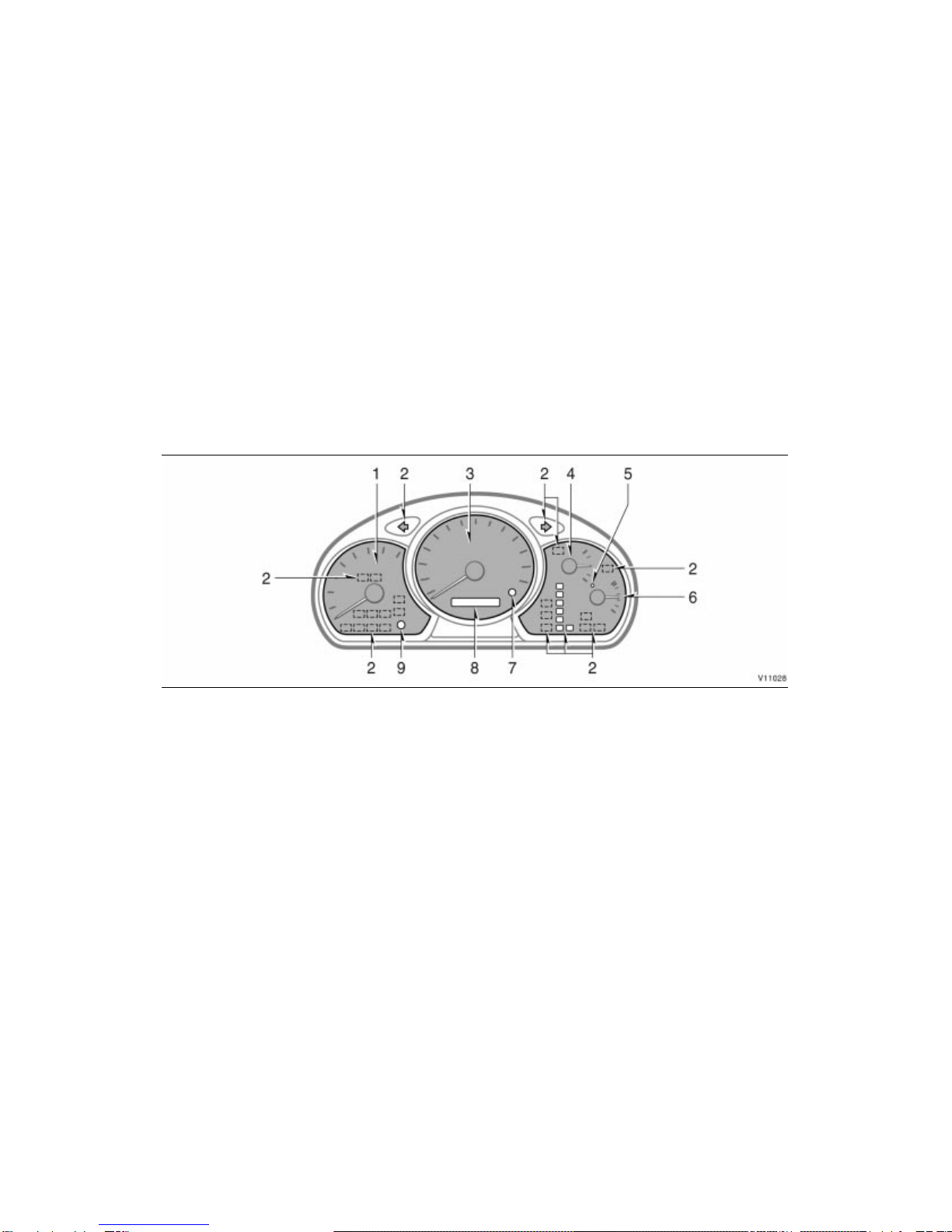

Instrument cluster overview
