OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Center cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 9. . . . . . . . . . . . . . . . . . . . . . .

SECTION

’06 AVALON_U (L/O 0508)

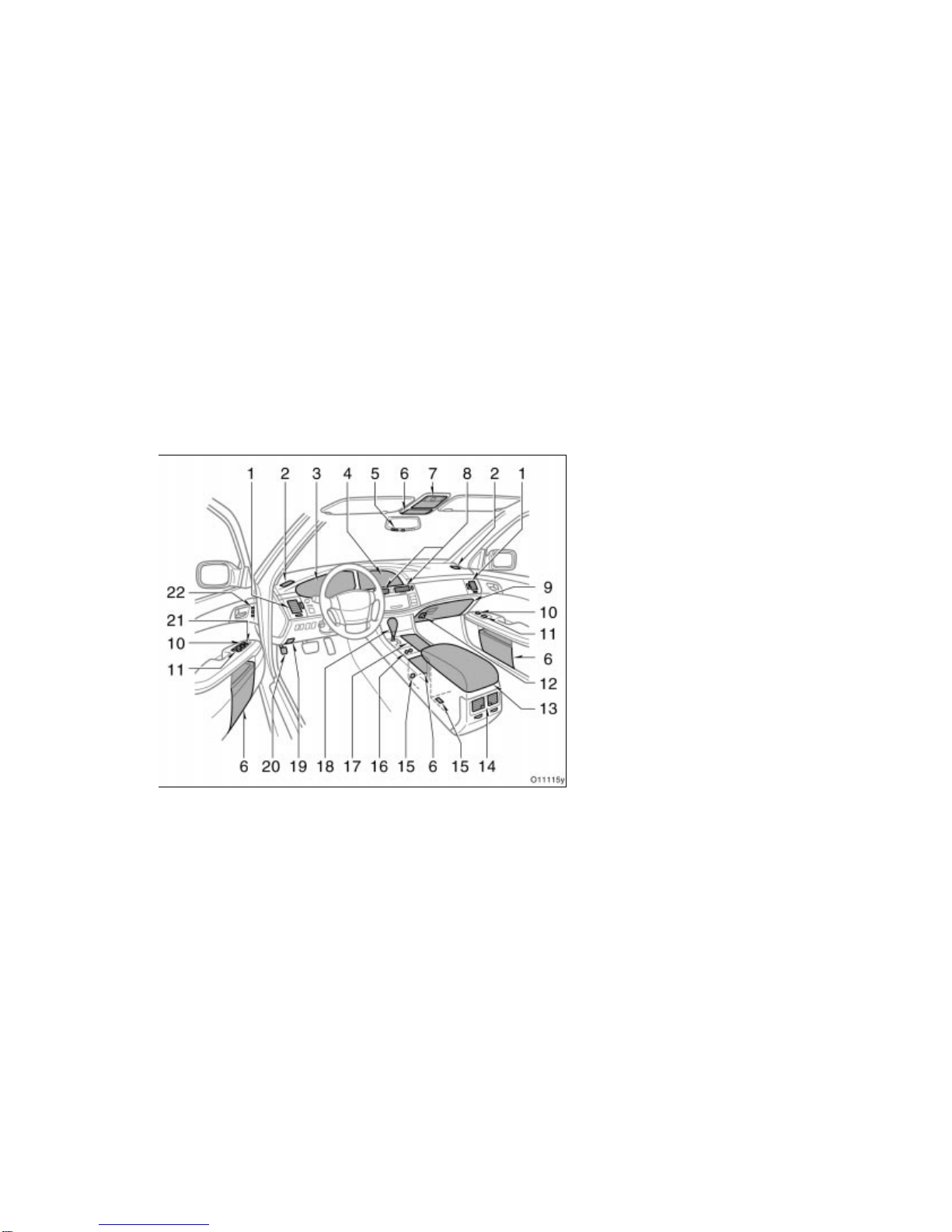

1. Side vents

2. Side defroster outlets

3. Instrument cluster

4. Center cluster

5. Garage door opener switches

6. Auxiliary boxes

7. Front personal lights, interior light

and/or electric moon roof switches

8. Center vents

9. Glove box

10. Power door lock switches

11. Power window switches

12. Trunk opener main switch

13. Rear console box

14. Rear vents

15. Power outlets

16. Seat ventilator/heater switches

17. Cup holder

18. Automatic transmission selector lever

19. Hood lock release lever

20. Parking brake pedal

21. Window lock switch

22. Driving position memory switches

Instrument panel overview

View A

’06 AVALON_U (L/O 0508)

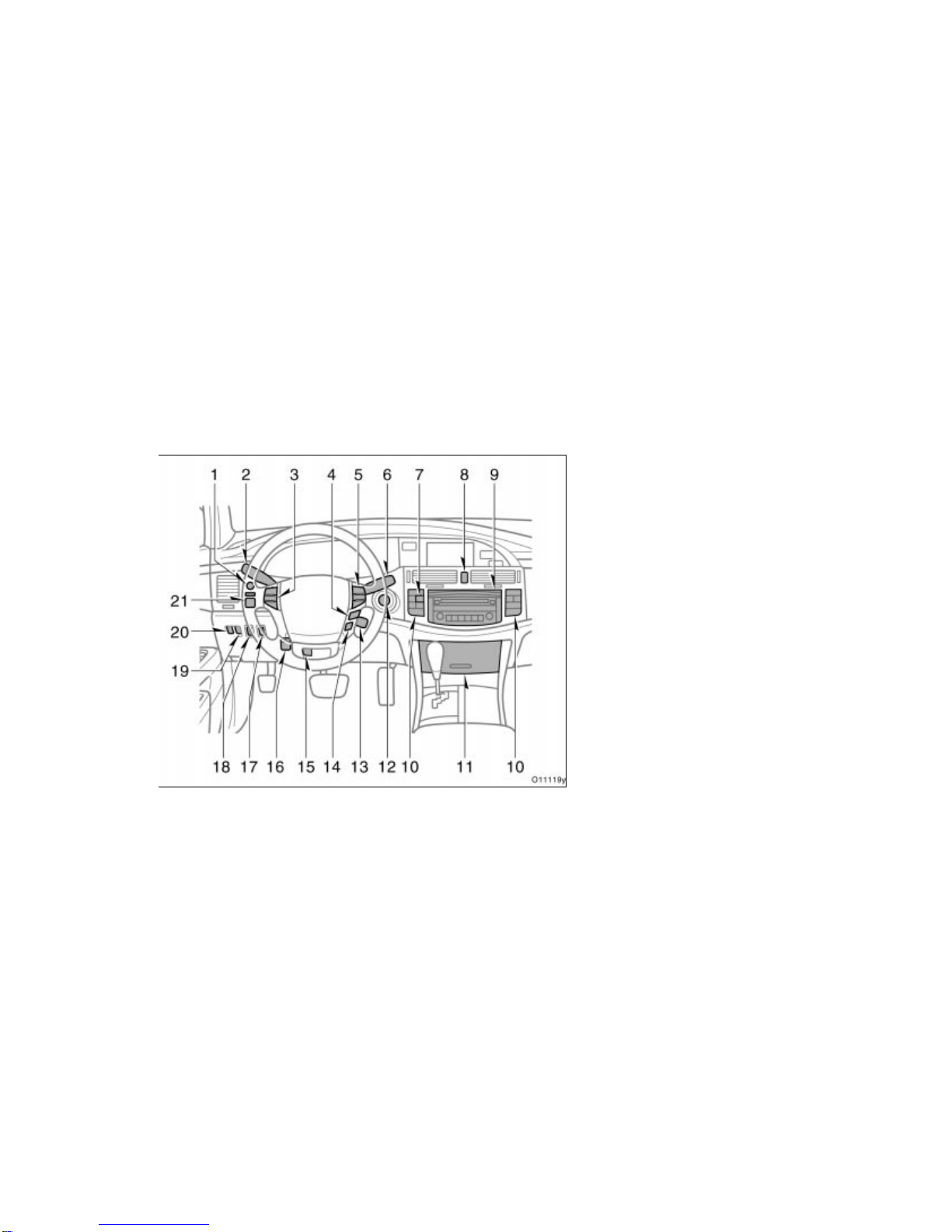

1. Instrument panel light control knob

2. Headlight, turn signal and front fog

light switches

3. Audio remote control switches

4. Speech command switch (See the

separate “Navigation System Owner’s

Manual.”)

5. Climate remote control switches

6. Wiper and washer switches

7. Rear window and outside rear view

mirror defogger switch

8. Emergency flasher switch

9. Audio system

10. Air conditioning controls

11. Cigarette lighter and ashtray, auxiliary

box, cassette player or navigation

system controller (For the navigation

system, see the separate “Navigation

System Owner’s Manual.”)

12. Ignition switch

13. Cruise control switch

14. Tilt steering lock release lever

15. Telescopic steering lock release lever

View B (with key cylinder- type ignition switch)

’06 AVALON_U (L/O 0508)

16. Glass breakage sensor

17. Trunk opener switch

18. Fuel filler door opener switch

19. Power rear view mirror control switches

’06 AVALON_U (L/O 0508)

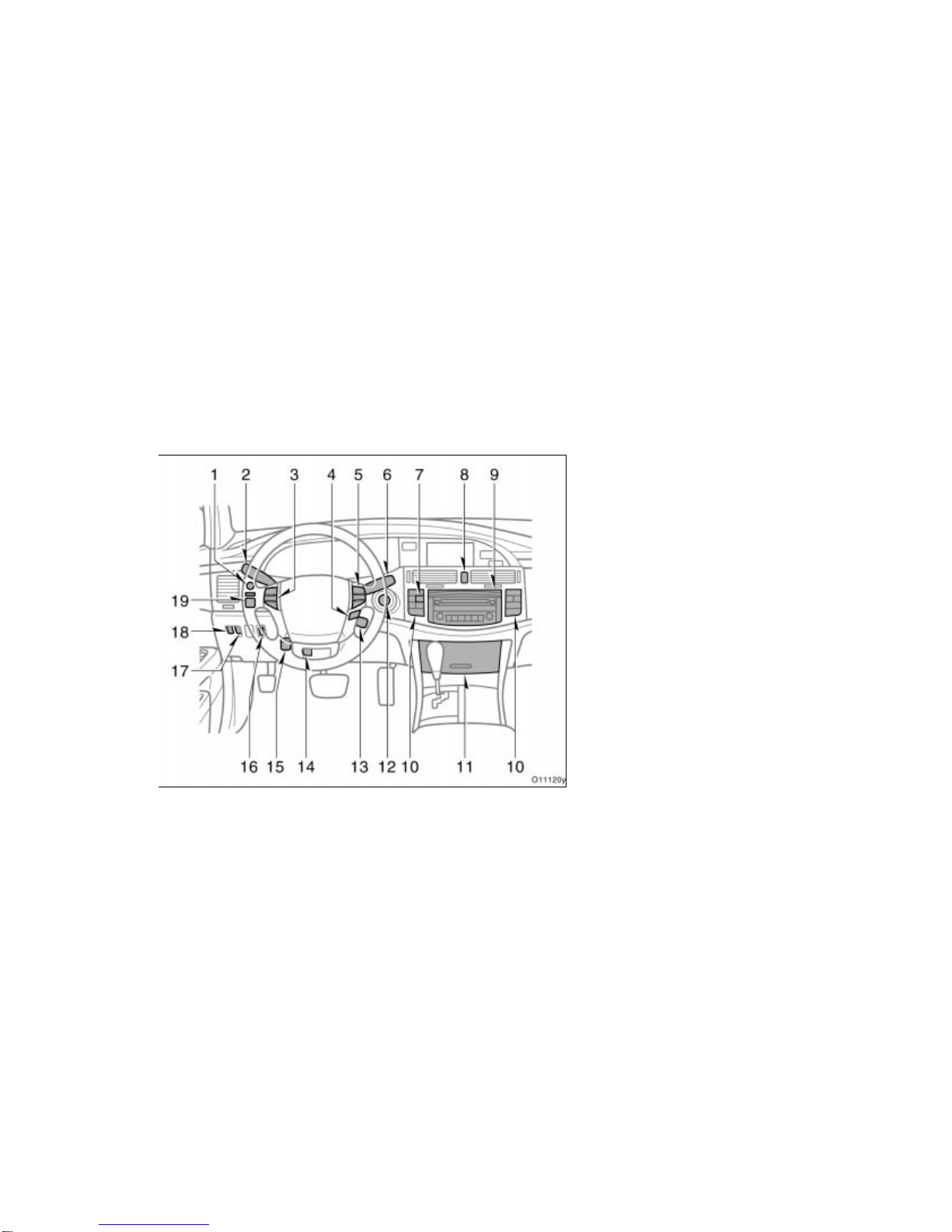

1. Instrument panel light control knob

2. Headlight, turn signal and front fog

light switches

3. Audio remote control switches

4. Speech command switch (See the

separate “Navigation System Owner’s

Manual.”)

5. Climate remote control switches

6. Wiper and washer switches

7. Rear window and outside rear view

mirror defogger switch

8. Emergency flasher switch

9. Audio system

10. Air conditioning controls

11. Cigarette lighter and ashtray, auxiliary

box, cassette player or navigation

system controller (For the navigation

system, see the separate “Navigation

System Owner’s Manual.”)

12. Ignition switch (engine switch)

13. Cruise control switch

14. Distance switch

15. Tilt steering lock release lever

View B (with smart key system)

’06 AVALON_U (L/O 0508)

16. Telescopic steering lock release lever

17. Glass breakage sensor

18. Rear electric sunshade switch

19. Trunk opener switch

20. Fuel filler door opener switch

21. Power rear view mirror control switches

’06 AVALON_U (L/O 0508)

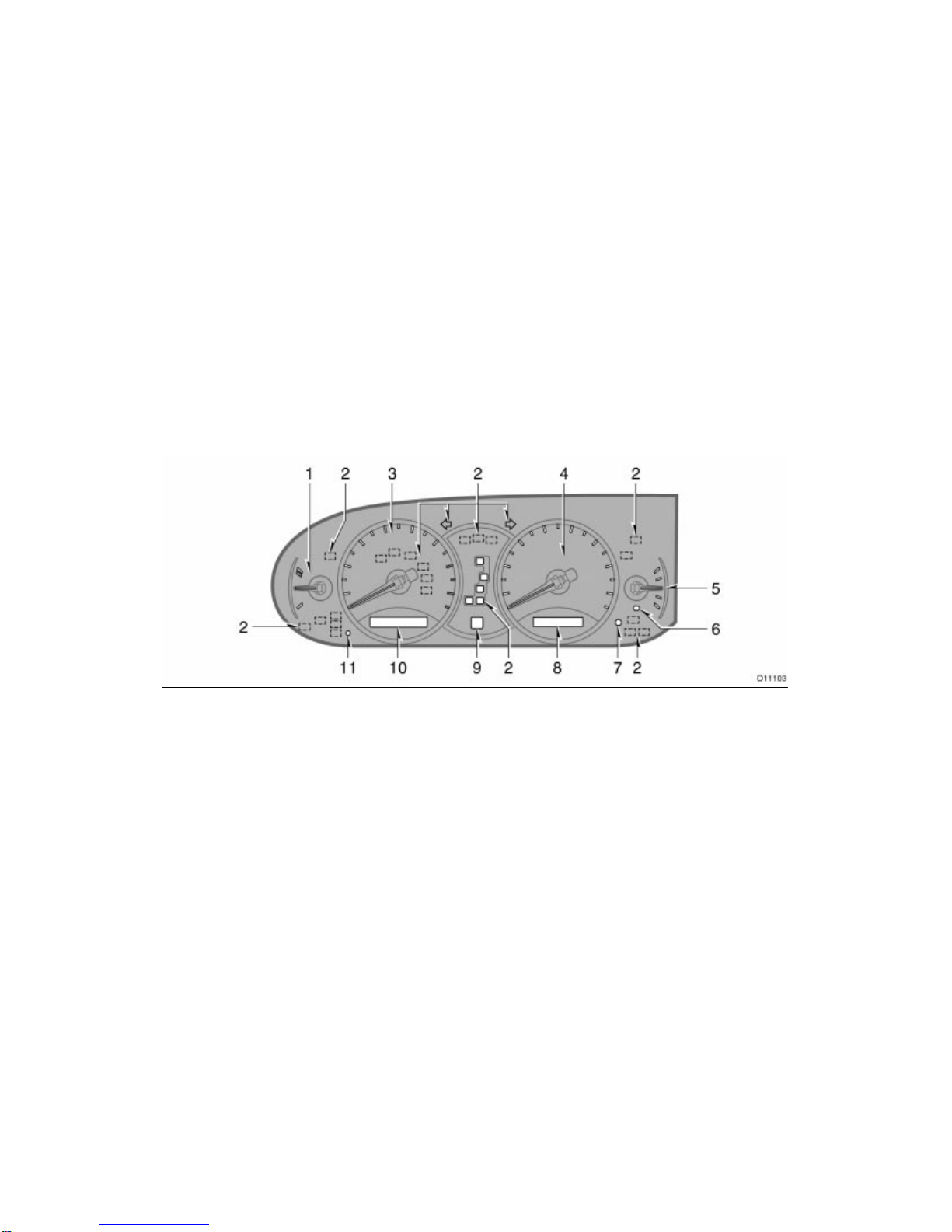

1. Engine coolant temperature gauge

2. Service reminder indicators and

indicator lights

3. Tachometer

4. Speedometer

5. Fuel gauge

6. Low fuel level warning light

7. Trip meter reset knob

8. Odometer and two trip meters

9. Automatic transmission shift range

position display

10. Dynamic laser cruise control display

11. Dynamic laser cruise control master

warning light

Instrument cluster overview

’06 AVALON_U (L/O 0508)

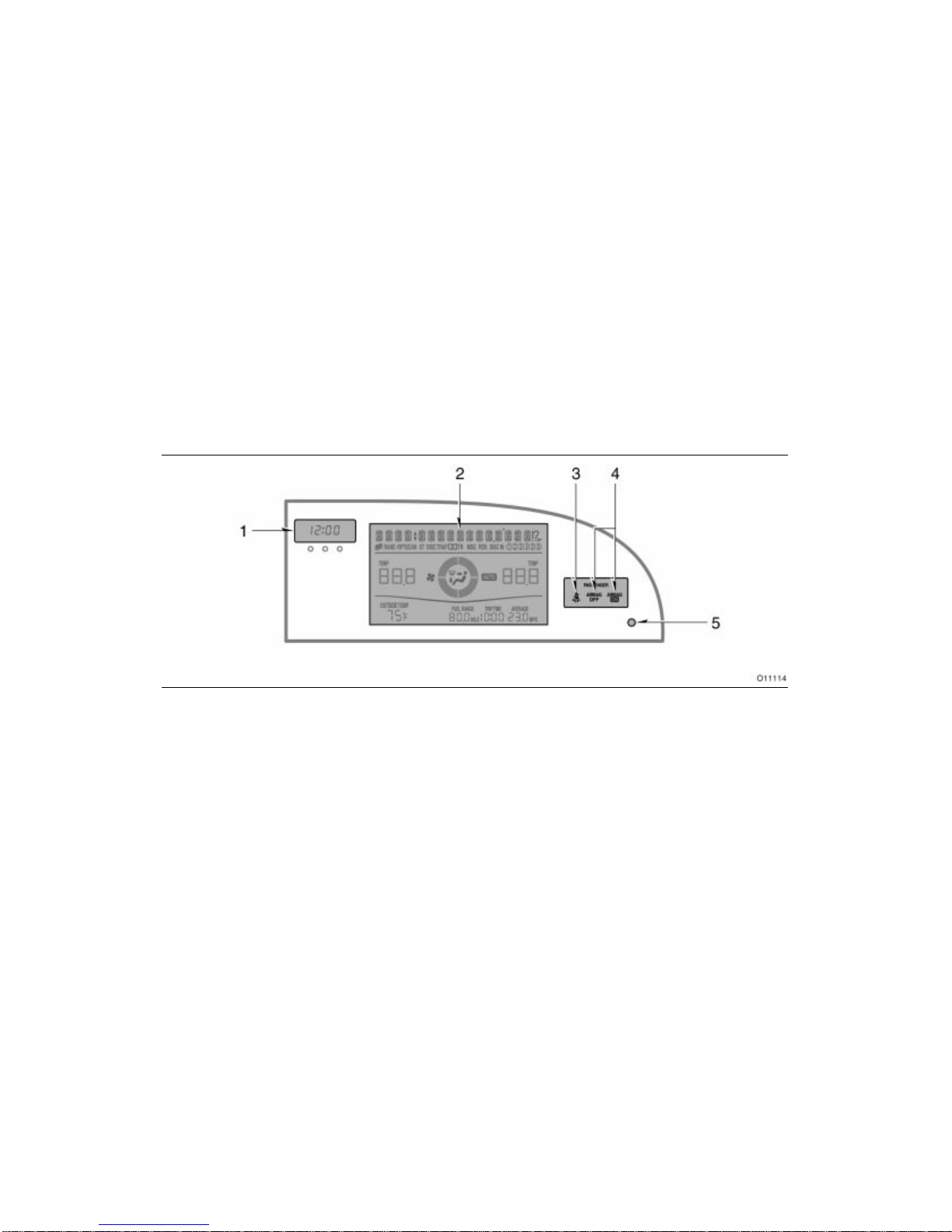

1. Clock

2. Center display∗1

3. Front passenger’s seat belt reminder

light∗2

4. “AIRBAG ON” and “AIRBAG OFF”

indicator lights

5. Pattern selector knob (for center

display)

∗1: If your vehicle has equipped navigation system, see the separate “Navigation System Owner’s Manual”.

∗2: For details, see “Service reminder indicators and warning buzzers” on page 145 in Section 1-6.

Center cluster overview

’06 AVALON_U (L/O 0508)

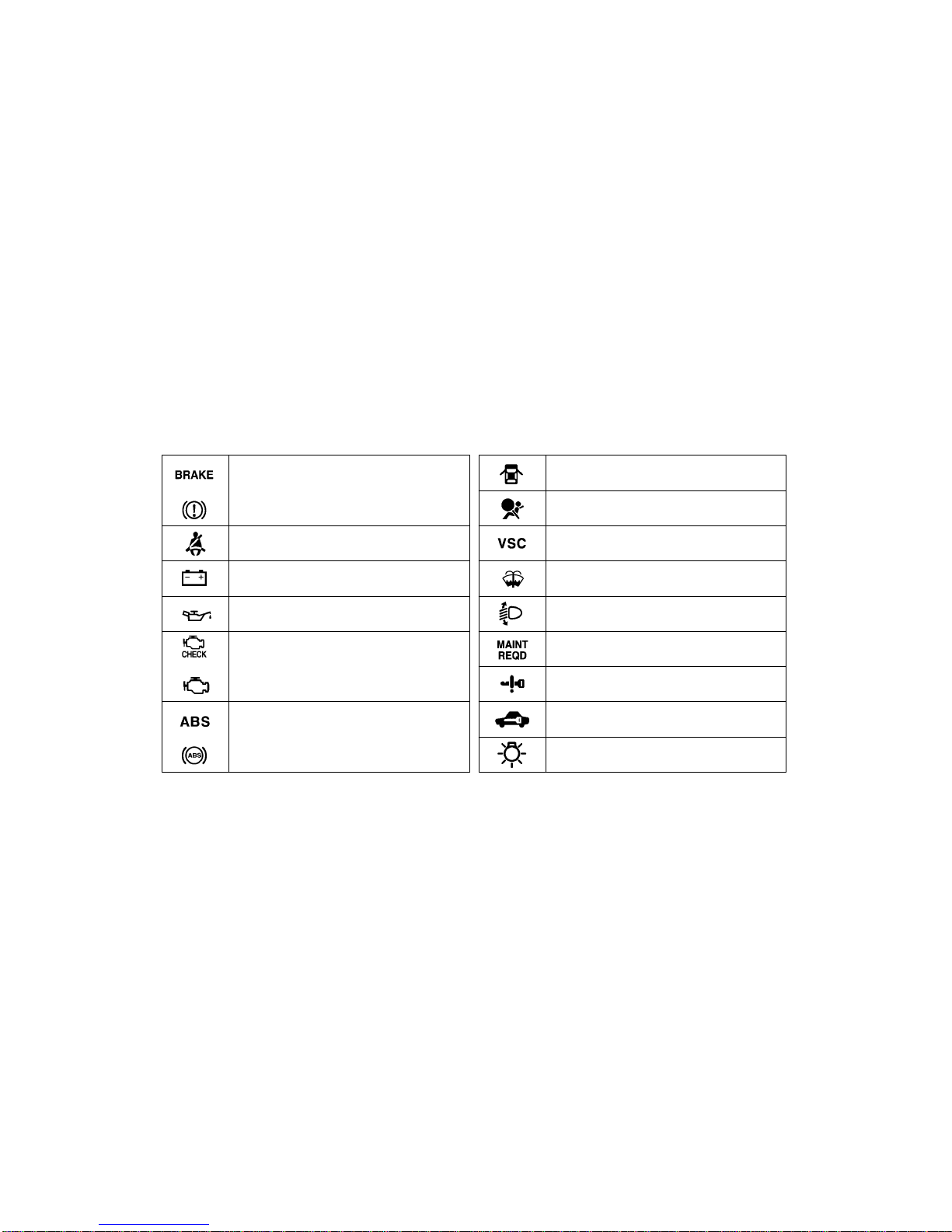

Brake system warning light∗1

Driver’s seat belt reminder light∗1

Charging system warning light∗1

Malfunction indicator lamp∗1

Low engine oil pressure warning light∗1

Anti- lock brake system warning light∗1

Open door warning light∗1

SRS warning light∗1

Low windshield washer fluid level warning

light∗1

Vehicle stability control system and traction

control system warning light∗1

Automatic headlight leveling system warning

light∗1

Engine oil replacement reminder light∗1

Engine immobilizer/theft deterrent system

indicator light

Smart key system warning light∗1

Headlight low beam indicator light

Indicator symbols on the instrument panel

’06 AVALON_U (L/O 0508)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 145 in Section 1- 6.

∗2: If this light flashes, see “Cruise control” on page 169 in

Section 1- 7.

∗3: If this light flashes, see “Dynamic laser cruise control” on

page 172 in Section 1- 7.

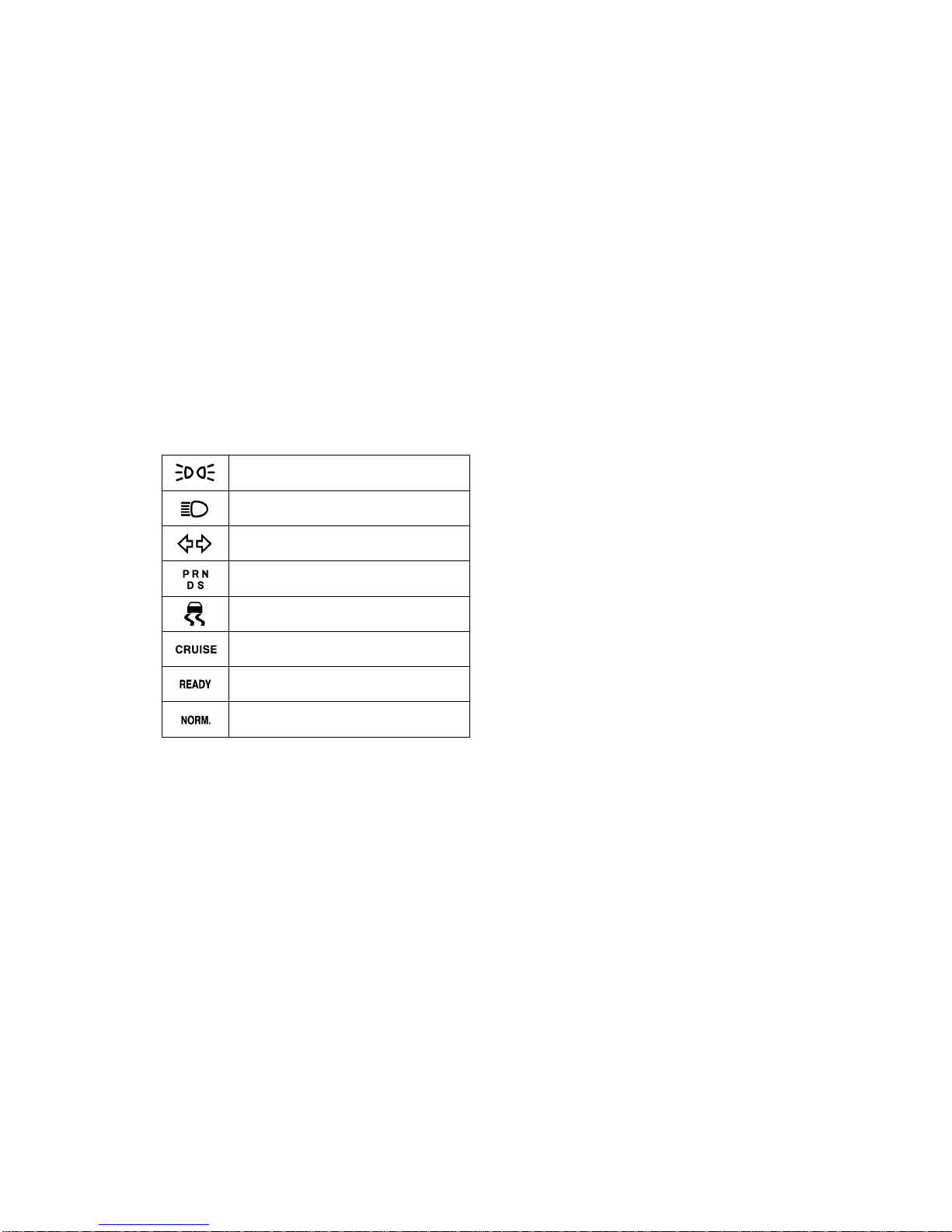

Turn signal indicator lights

Slip indicator/traction control system off light

Cruise control indicator light∗2or dynamic laser

cruise control indicator light∗3

Automatic transmission indicator lights

Headlight high beam indicator light

Tail light indicator light

Dynamic laser cruise control ready mode

indicator light

Conventional cruise control mode indicator light
