2007

Sienna

!Aword about safe vehicle operations

This Pocket Reference Guide is a summary of

basic vehicle operations. It contains brief

descriptions of fundamental operations so you

can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’sglove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’scapabilities and limitations.

Your dealership and the entire staff of Toyota

Motor Sales, U.S.A., Inc. wish you many years

of satisfied driving in your new Sienna.

This Pocket Reference Guide is not a full

description of Sienna operations. Every

Sienna owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed

“ ” information highlighted

throughout this reference guide and

throughout the Owner’s Manual.Each box

contains safe operating instructions to

help you avoid injury or equipment

malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

Spare tire & tools

Tool and spare tire location

Removing the spare tire

Wheel nut wrench

Jack handle

Jack

Spare tire

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Refer to the Owner’s Manual for jack positioning and

tire changing procedures.

Two-wheel drive models

Spare tire clamp bolt

Turn

All-wheel drive models are equipped with run-flat

tires. Refer to the Owner’s Manual for more detail.

Two-wheel drive models

07 Sienna PRG Cover 11/30/06 10:59 AM Page 2

1Programmable by customer. Refer to the Owner’s Manual

for instructions and more information.

2Visit your Toyota dealer for information on customizing

this feature.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

INDEX

Item Page no.

OVERVIEW

Engine maintenance 7

Fuel tank door release and cap 7

Hood release 6

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry

FEATURES/OPERATIONS

Air Conditioning/Heating 22-23

Audio 20-21

Auto lock functions

Automatic Transmission 8

Bottle holders 25

Clock 13

Console box 13

Cruise control 18

Cup holders 26

Door-Power back 12

Doors-Power sliding 12

Dynamic Laser Cruise Control 18-19

Front seat console table 13

Light control-Instrument panel 19

Lights

&turn signals 9

Moonroof 11

Multi-information display

(HomeLink

)

Parking brake 10

Power outlets 25

Rear seat entertainment system 24

Seat adjustments-Front 14

Seat adjustments-Rear 14

Seat arrangements 15

Seat heaters 11

Seats-Head restraints 15

Seats-Stowing third row seats 16-17

Seats-Tumble/Remove second row seats 16

Sunshade-Side 17

Tilt and telescopic steering wheel 8

Windows 11

Window-Power quarter 10

Window wiper & washer 10

SAFETY AND EMERGENCY FEATURES

Door locks 27

Doors-Child safety locks 27

Seat belt comfort guide 27

Seat belts 28

Seat belts-Shoulder belt anchor 27

Spare tire & tools 29

Tire Pressure Warning System reset 28

3HomeLink®is a registered trademark of Johnson Controls, Inc.

07 Sienna PRG Inside 11/30/06 11:01 AM Page 1

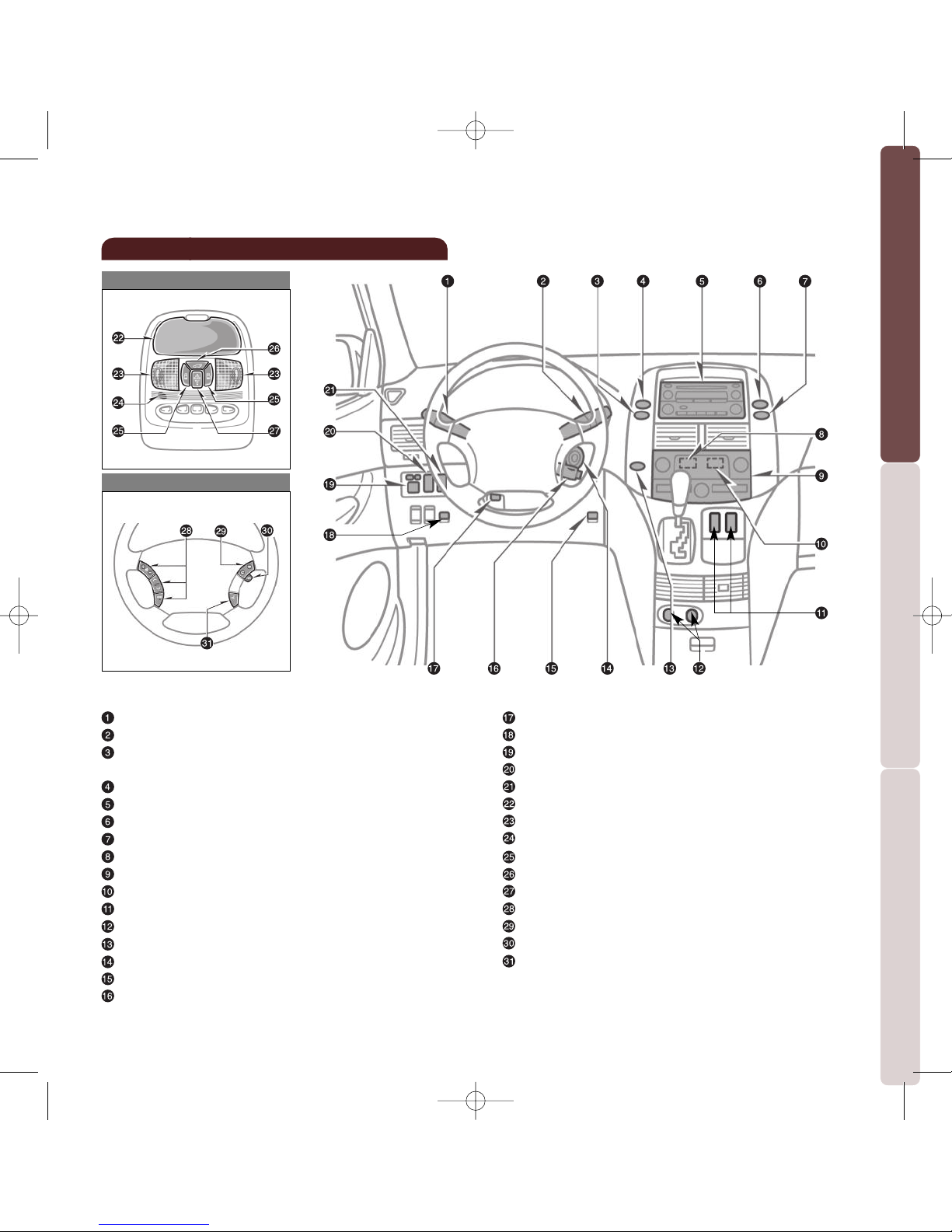

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Headlight, turn signal and front fog light1controls

Wiper and washer controls

Rear window and outside rearview mirror defogger1

and windshield wiper de-icer1switch

Emergency flasher button

Audio system or navigation system1,2

115V AC Power outlet ON/OFF button1

AUX adapter

Toyota park assist system and indicator1

Front Air Conditioning controls

Front passenger occupant classification indicator

Seat heater switch1

12V DC Power outlets

Personal light main switch1

Ignition switch

“TRAC OFF” (Traction Control “OFF”)1

Cruise control or dynamic laser cruise control1

Tilt and telescopic steering lock release

Tire Pressure Warning System reset

Power rearview mirror controls

Power quarter window switch1

Headlight beam level control dial1

Conversation mirror

Front personal lights

Microphone1,2

Power sliding door button1

Power back door button1

Electric moonroof switch1

Steering wheel audio controls1,2

Telephone controls1,2

Dynamic Laser Cruise Control distance switch1

Speech command button1,2

1If equipped

2For details, refer to the “Navigation System

Owner’s Manual.”

Instrument panel

Overhead console

Steering wheel switches

07 Sienna PRG Inside 11/30/06 11:01 AM Page 2

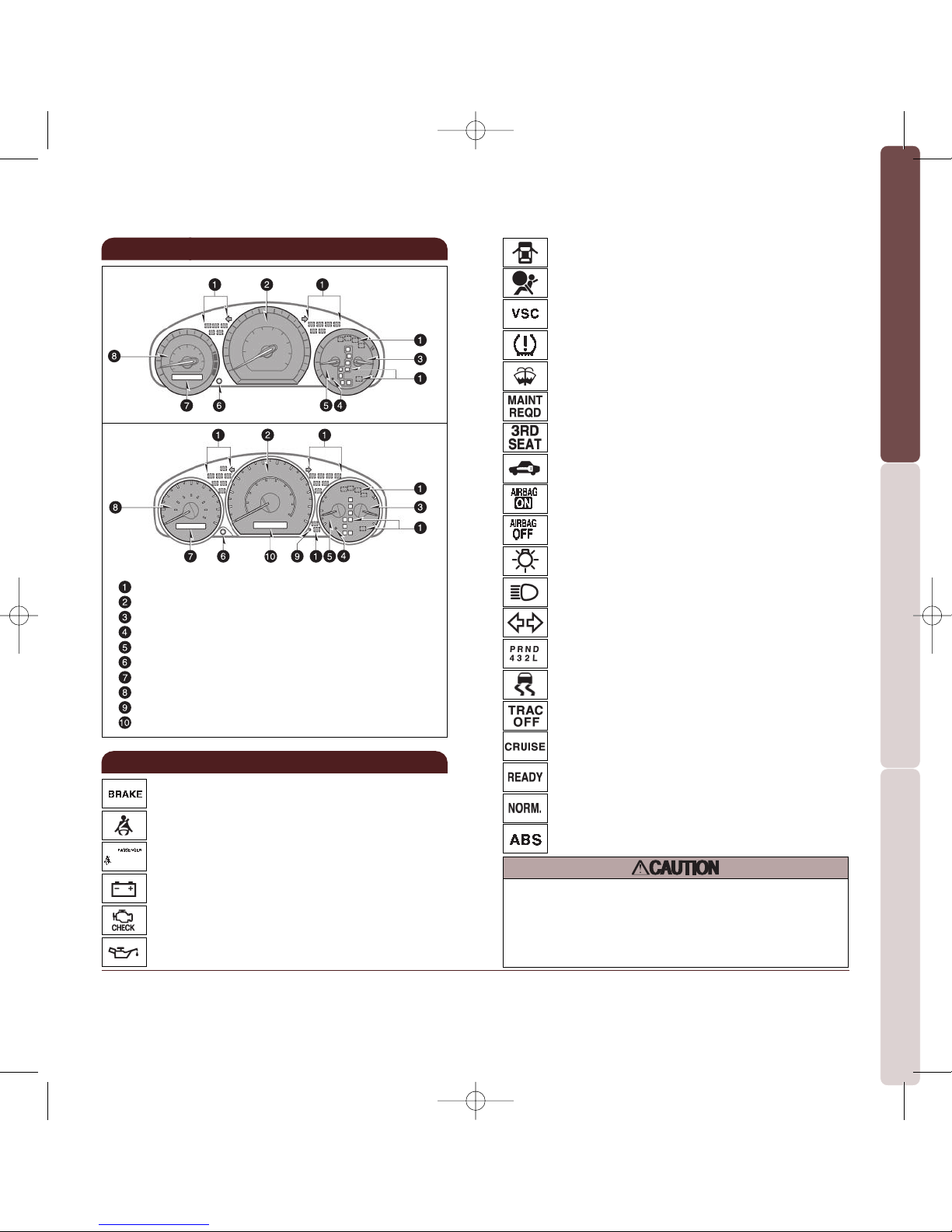

Low engine oil pressure warning1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Driver seat belt reminder1

(alarm will sound if speed is over 12 mph)

Front passenger seat belt reminder1

(alarm will sound if speed is over 12 mph)

Brake system warning1

Charging system warning1

Anti-lock Brake System warning1

Malfunction/Check Engine indicator1

1For details, refer to “Service reminder indicators and warning

buzzers,” Section 1-6, 2007 Owner’s Manual.

2If this light flashes, refer to “Cruise control,” Section 1-7, 2007

Owner’sManual.

3If this light flashes, refer to “Dynamic Laser Cruise Control,”

Section 1-7, 2007 Owner’sManual.

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

Indicator symbols

Open door warning1

Low Tire Pressure Warning1

Engine oil replacement reminder1

Third seat fold incomplete warning1

Theft deterrent/Engine immobilizer system

indicator

“AIRBAG ON” indicator

“AIRBAG OFF” indicator

Headlight low beam indicator

Turn signal indicator

Headlight high beam indicator

Cruise control indicator2or Dynamic Laser

Cruise Control indicator3

Dynamic Laser Cruise Control ready mode

indicator

Conventional cruise control mode indicator

Automatic Transmission indicator

Slip indicator

Traction Control “OFF” indicator

Airbag SRS warning1

Vehicle Stability Control/Traction Control

warning1

Low windshield washer fluid level warning1

Instrument cluster

Service indicator and reminder

Speedometer

Engine coolant temperature

Low fuel level warning

Fuel gauge

Trip meter reset knob

Odometer and two trip meters

Tachometer

Dynamic Laser Cruise Control master warning

Dynamic Laser Cruise Control display

If equipped

07 Sienna PRG Inside 11/30/06 11:01 AM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

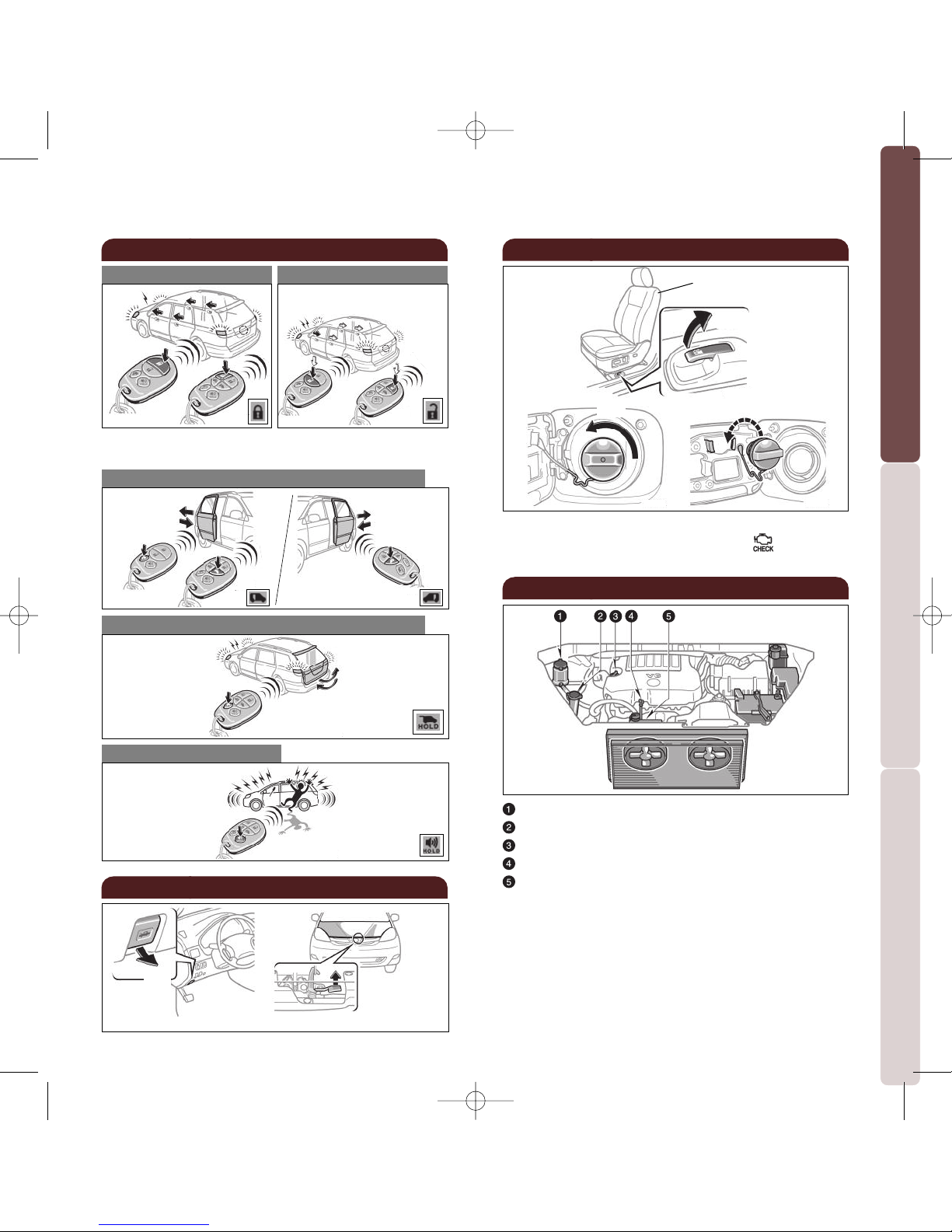

Fuel tank door release and cap

Pull up

Store

Turn

Keyless entry

Locking operation Unlocking operation

NOTE: After unlocking, if a door is not opened

within 60 seconds, all doors will relock for safety.

Push Push ONCE: Driver door

TWICE: ALL doors

Power back door operation (if equipped)

Power sliding door operation (if equipped)

Right side power

sliding door

Push and

hold

Left side

power

sliding

door

Alarm operation

Push

and hold

Push and hold

Hood release

Pull Pull up latch

and raise hood

Power steering fluid reservoir

Windshield and rear window washer fluid tank

Engine oil filler cap

Engine oil level dipstick

Engine coolant reservoir

Note: Regularly scheduled maintenance, including

oil changes, will help extend the life of

your vehicle and maintain performance.

Please refer to the “Owner’s Warranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’s Manual

Supplement.”

Engine maintenance

Driver seat

NOTE: Tighten until one click is heard. If the cap is

not tightened enough, Check Engine “ ” indicator

may illuminate.

07 Sienna PRG Inside 11/30/06 11:01 AM Page 6

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

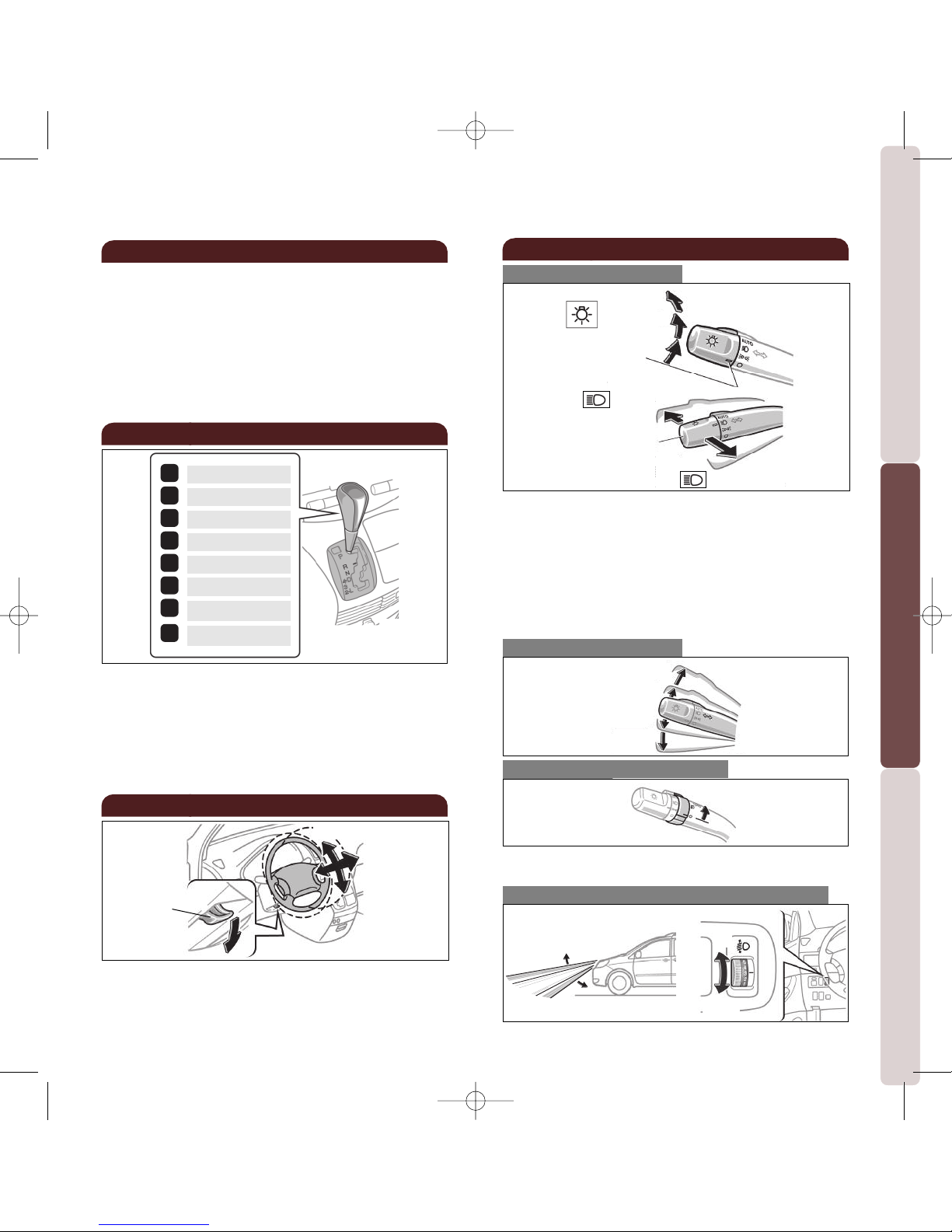

Lights & turn signals

Turn signals

Headlights

AUTO*

*If equipped

Front fog lights (if equipped)

Headlights

-Daytime Running Light system (if equipped)

Automatically turns on the headlights at a reduced

intensity.

-Automatic light cutoff system Automatically turns

lights off after 30 seconds when any of the doors

are opened and closed with the engine off. Lights

may also be turned off by pushing lock button on

remote.

Front fog lights come on only when the headlights

are on low beam.

Parking lights

Right turn

Turn

Lane change

Left turn

Low beam

Hold wheel, push lever down, set angle and length,

then return lever.

Note: Do not attempt to adjust while the vehicle

is in motion.

FEATURES/OPERATIONS

Auto lock functions

Automatic door locks can be programmed to operate

in 4 different modes, or turned OFF.

-Doors lock when shifting from “Park.”

-Doors lock when the vehicle speed goes above

about 12 mph.

-Doors unlock when the ignition key is turned to the

“ACC” or “LOCK” position and driver’s door is

opened.

-Doors unlock when shifting into “Park.”

Tilt and telescopic steering wheel

Length

Lock

release

lever

Angle

Automatic Transmission

Park1

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Fourth gear

1The ignition switch must be ON, and the brake

pedal depressed to shift from “Park.”

Downshifting increases power going uphill, or

provides engine braking downhill. For best fuel

economy during normal driving conditions, always

drive with the shift lever in the “D” position.

Headlight beam level control (if equipped)

Higher number will lower the beam.

Down Down

High beam flasher

High beam

07 Sienna PRG Inside 11/30/06 11:01 AM Page 8

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

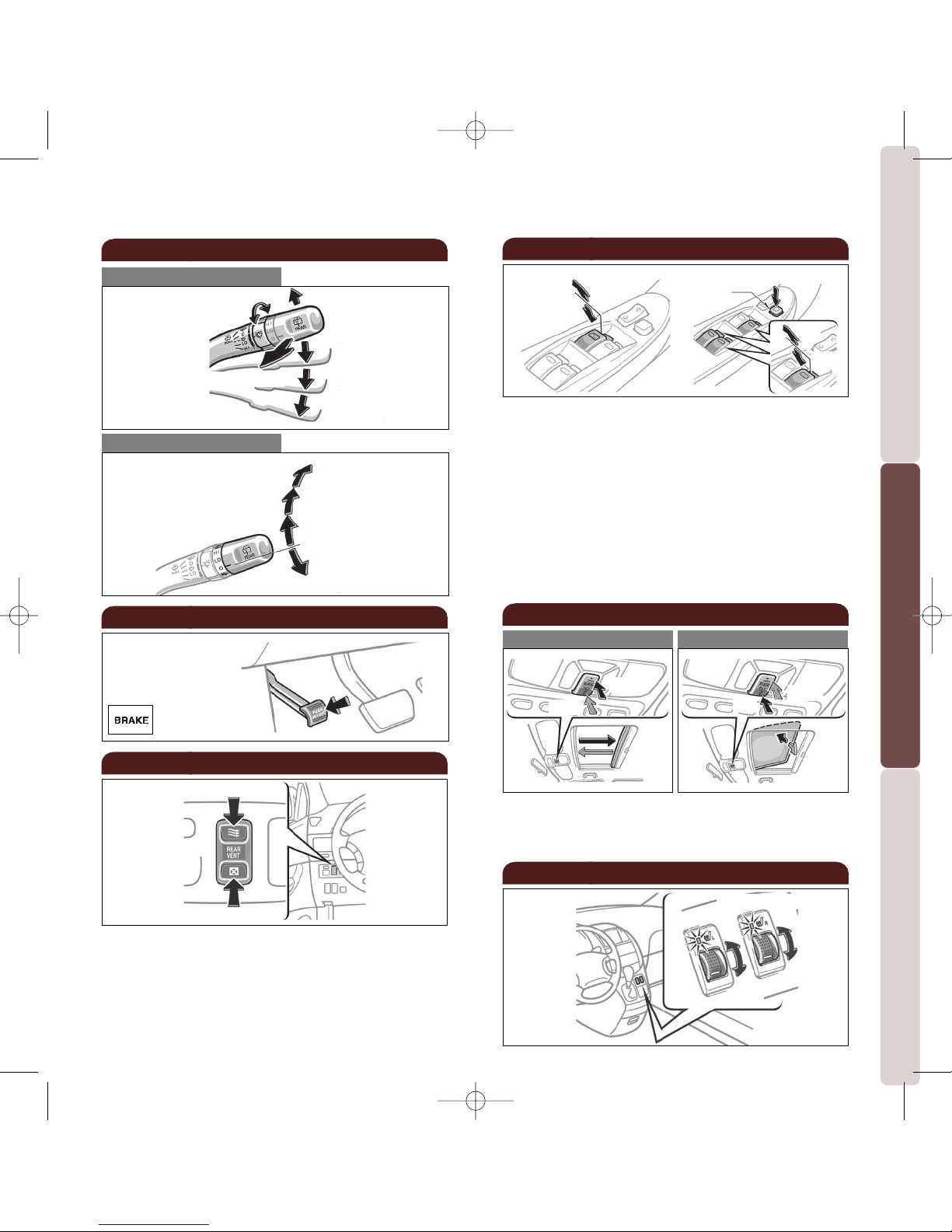

Windows

Automatic operation* (Driver side only) Push the

switch completely down or pull it completely up and

release to fully open or close. To stop window mid-

way, lightly push the switch in the opposite direction.

* If equipped

Window lock switch Deactivates all passenger

windows. Driver’s window remains operable.

NOTE: If battery is disconnected, the windows need

to be reinitialized. Refer to the Owner’s Manual for

more details.

Window lock

switch

Down

Driver side

Moonroof (if equipped)

Tilting operationSliding operation

Open

Close Close

Tilt

Seat heaters (if equipped)

Right front seat

Left front seat

NOTE: If battery is disconnected, the moonroof

needs to be reinitialized. Refer to the Owner’s

Manual for more details.

Window wiper & washer

Interval wipe

Slow

Fast

Pull to wash and wipe

Single wipe

Adjust interval

Front

Rear

Wash and wipe

Wipe

Interval wipe

Wash and wipe

Windows-Power quarter (if equipped)

Open

Push and hold

Parking brake

Set: Depress

Release: Depress again

07 Sienna PRG Inside 11/30/06 11:01 AM Page 10

Door-Power back (if equipped)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

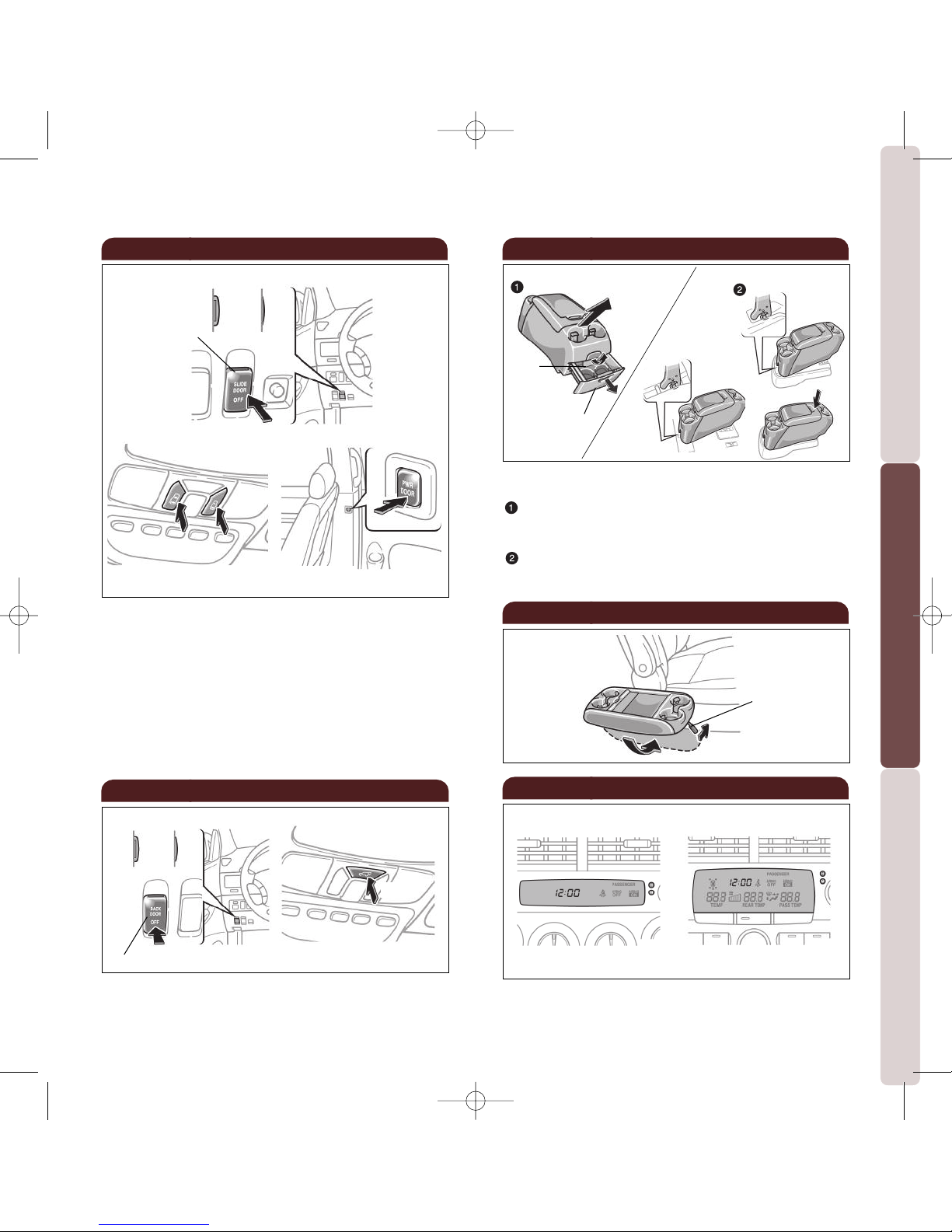

Clock

With manual

Air Conditioning system With automatic

Air Conditioning system

H- Hour set

M- Minute set

The console box can be removed and installed

between the front or second row seats.

To remove Open the auxiliary box on the rear

side, and pull the lock release lever. Lift the box

from the rear to release it from the hook.

To install Place the hook into the striker. Lower

box and push down to engage the rear lock.

FEATURES/OPERATIONS

Console box (if equipped)

Front seat

Second row seat

Lock

release

lever

Lock

release

lever

Front seat console table (if equipped)

NOTE:

•When the key is in the “ON” position, power

sliding doors will open only when gear selector is

in the “P” Park position, and doors are unlocked.

Refer to the Owner’s Manual for more details.

• An alarm will sound if a sliding door is open and

the vehicle is shifted out of “Park.”

•If battery is disconnected, the power sliding doors

need to be reinitialized. Refer to the Owner’s

Manual for more details.

Doors-Power sliding (if equipped)

Front overhead console

Instrument panel

ON/OFF switch

Push

Center pillar

On Off

Open: Push

Close: Push again

On Off

Push

ON/OFF switch

Instrument panel Front overhead console

Open: Push

Close: Push again

NOTE: If battery is disconnected, the power back

door needs to be reinitialized. Refer to the Owner’s

Manual for more details.

Remove Install

Auxiliary box

07 Sienna PRG Inside 11/30/06 11:01 AM Page 12

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Seat arrangements (examples)

7-passenger models The right seat can be placed in

the inside or outboard position.

8-passenger models The center seat can be placed in

the forward position or even with the other seats.

7-passenger models 8-passenger models

These are some possible seat arrangements. Please

read the following section and refer to the Owner’s

Manual for more information about seat positions.

Seats-Head restraints

Lock release button Lock release button

Front Rear

FEATURES/OPERATIONS

Seat adjustments-Rear

Second row seat

Third row seat

Position

Seatback release (from second row seat)

Seatback release (from third row seat)

Seatback angle

Refer to the Owner’s Manual for more details.

Outer

Manual

Center

Power

Seat adjustments-Front

Manual seat Power seat

Position

Height crank (driver side only)

Seatback angle

Lumbar support (driver side only*)

Position, cushion angle and height

Seatback angle

* If equipped

07 Sienna PRG Inside 11/30/06 11:01 AM Page 14

Altri manuali per SIENNA U

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Toyota Automobile

Toyota

Toyota Prius Prime 2021 Manuale utente

Toyota

Toyota 2014 Camry Manuale utente

Toyota

Toyota Prius 2009 Manuale utente

Toyota

Toyota Celica 2005 Manuale utente

Toyota

Toyota SIENNA HYBRID 2022 Manuale utente

Toyota

Toyota AVALON Manuale utente

Toyota

Toyota 2011 Automobile Guida alla configurazione

Toyota

Toyota 1998 Celica Manuale utente

Toyota

Toyota 2002 Echo Manuale utente

Toyota

Toyota 2015 camry hybrid Manuale utente

Toyota

Toyota Prius HSD 2004 Manuale utente

Toyota

Toyota 2009 Camry Manuale utente

Toyota

Toyota Corolla MN 00505-QRG09-COR Manuale utente

Toyota

Toyota 1994 CAMRY Istruzioni operative

Toyota

Toyota 4Runner 2004 Manuale utente

Toyota

Toyota Camry Hybrid Manuale utente

Toyota

Toyota 2014 Camry Manuale utente

Toyota

Toyota AVALON 2008 Manuale utente

Toyota

Toyota FJ CRUISER - DATASHEET 2011 Manuale utente

Toyota

Toyota 2012 RAV4 EV infotainment system Manuale

Toyota

Toyota 2005 Yaris Guida utente

Toyota

Toyota LANDCRUISER 2019 Manuale utente

Toyota

Toyota C-HR2018 Manuale utente

Toyota

Toyota Prius HSD 2004 Manuale utente

Manuali Automobile popolari di altre marche

CITROËN

CITROËN DS4 DSign Manuale utente

Lexus

Lexus 2015 CT 200h Manuale utente

Cadillac

Cadillac CTS 2008 Manuale utente

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuale utente

Porsche

Porsche Boxster S Manuale utente

GMC

GMC 2010 Savana 1500 Cargo Manuale utente

KIAM

KIAM SPORTAGE 2014 Manuale elenco delle parti

GMC

GMC 2013 Terrain Istruzioni per il montaggio

GMC

GMC T-Series 1999 Manuale utente

Mercury

Mercury 1998 Mystique Manuale utente

Mercury

Mercury 2007 Mariner Manuale utente

Mazda

Mazda 2007 Mazdaspeed 3 Guida

Mazda

Mazda 2014 CX-5 Manuale utente

GMC

GMC Chevrolet Express 2022 Manuale utente

GMC

GMC 1997 Jimmy Manuale utente

Chevrolet

Chevrolet 2012 Malibu Manuale utente

Cadillac

Cadillac 2010 Escalade Manuale utente

Skoda

Skoda FABIA RS - ANNEXE 118 Manuale utente
