RAV4 – OUTLINE OF NEW FEATURES
RAV4
1
OUTLINE OF NEW FEATURES
The following changes are made for the 2009 model year.
1. Model Line-up
DThe following models with the 2AZ-FE engine have been discontinued:
Model Code Engine Transaxle Drive Type Grade
ACA33L-ANPXKA
2AZ-FE
U140F 4-speed Automatic 4WD
— (Standard)
ACA33L-ANPGKA Limited
ACA33L-ANPSKA Sport
ACA38L-ANPXKA
U241E 4-speed Automatic 2WD
— (Standard)
ACA38L-ANPGKA Limited
ACA38L-ANPSKA Sport
ACA33L-ANPXKK
U140F 4-speed Automatic 4WD
— (Standard)
ACA33L-ANPGKK Limited
ACA33L-ANPSKK Sport
DThe following models with the 2AR-FE engine have been introduced:
Model Code Engine Transaxle Drive Type Grade
ASA33L-A(C)NPXKA
2AR-FE
U140F 4-speed Automatic 4WD
— (Standard)
ASA33L-A(C)NPGKA Limited
ASA33L-A(C)NPSKA Sport
ASA38L-A(C)NPXKA
U241E 4-speed Automatic 2WD
— (Standard)
ASA38L-A(C)NPGKA Limited
ASA38L-A(C)NPSKA Sport
ASA33L-A(C)NPXKK
U140F 4-speed Automatic 4WD
— (Standard)
ASA33L-A(C)NPGKK Limited
ASA33L-A(C)NPSKK Sport
2. Exterior
DThe design of the headlights, radiator grille, and front bumper has been changed. For details, see page 9.
DThe design of the rear combination lights and rear bumper has been changed. For details, see page 11.
DModels with run-flat tires, on which the back door has no spare tire, are optional on the Sport grade of the
4WD models with the 2GR-FE engine. For details, see page 11.
DA large rear spoiler is provided on the Sport grade. For details, see page 12.
DThe antenna has been relocated from the front fender to the rear area of the roof. For details, see page 12.
DOutside rear view mirrors with attached side turn signal lights are provided. For details, see page 12.
DThe design of the 17-inch aluminum disc wheel has been changed. For details, see page 13.
DThe offset of the 18-inch aluminum disc wheel has been changed. For details, see page 13.
RAV4 – OUTLINE OF NEW FEATURES
10SMO18Y
Side Register Fin
’09 RAV4 ’08 RAV4
Escutcheon
Side Register
Console Garnish
Console Pocket
2
DThe following exterior colors are available, including 4 new colors:
Color No. Color Name Note
040 Super White II Carryover
070 White Pearl Crystal Shine Carryover
1F7 Silver Metallic Carryover
1G3 Gray Metallic New
202 Black Carryover
3R3 Red Mica Metallic Carryover
4T3 Bronze Mica Metallic New
4T8 Beige Metallic New
6T3 Dark Green Mica Carryover
8R3 Grayish Blue Metallic Carryover
9AF Dark Violet Mica Metallic New
3. Interior
DThe fawn interior color has been changed to sand beige.
DThe ornament color of the door trim has been changed to gray metallic paint color.
DPlated knobs are provided on the models with run-flat tires to give a luxurious impression.
DThe number of fins in the side register has been changed from 2 to 3.
DThe side registers, escutcheons, and console garnish have been changed from a light gray metallic color
to a dark gray metallic color.
DThe capacity of the console pocket has been increased in order to provide a space for storing a music player
or similar.
DThe ornament of the leather type shift knob has been changed to gray metallic paint and hairline grain.
RAV4 – OUTLINE OF NEW FEATURES 3
4. 2AR-FE Engine
A newly developed 2AR-FE engine has been added instead of the 2AZ-FE engine. For details, see page 14.
5. 2GR-FE Engine
A permanent DTC is used for the DTCs associated with the illumination of the MIL. The permanent DTCs
can not be cleared by using the Techstream, disconnecting the battery terminal, or removing the EFI fuse.
For details of the method to clear the DTCs, refer to the 2009 RAV4 Repair Manual (Pub No. RM10S0U).
6. U140F and U241E Automatic Transaxles
DU140F and U241E automatic transaxles are used on models with the 2AR-FE engine.
DA compact and lightweight ATF warmer is used.
DA permanent DTC is used for the DTCs associated with the illumination of the MIL. The permanent DTCs
can not be cleared by using the Techstream, disconnecting the battery terminal, or removing the EFI fuse.
For details of the method to clear the DTCs, refer to the 2009 RAV4 Repair Manual (Pub No. RM10S0U).
7. U151E and U151F Automatic Transaxles
A permanent DTC is used for the DTCs associated with the illumination of the MIL. The permanent DTCs
can not be cleared by using the Techstream, disconnecting the battery terminal, or removing the EFI fuse.
For details of the method to clear the DTCs, refer to the 2009 RAV4 Repair Manual (Pub No. RM10SU).
8. Suspension and Axle
A separate input construction type upper support is used in the front suspension of all models. For details of
the separate input construction type upper support, refer to the 2006 RAV4 New Car Features (NM01M0U).
9. Brake Control System
DA compact and lightweight brake actuator is used.
DA VSC OFF switch is used.
For details, see page 103.
10. EPS (Electric Power Steering)
Battery voltage drop suppression control is used in the EPS (Electric Power Steering) system. For details,
see page 106.
RAV4 – OUTLINE OF NEW FEATURES
10SBO001Y

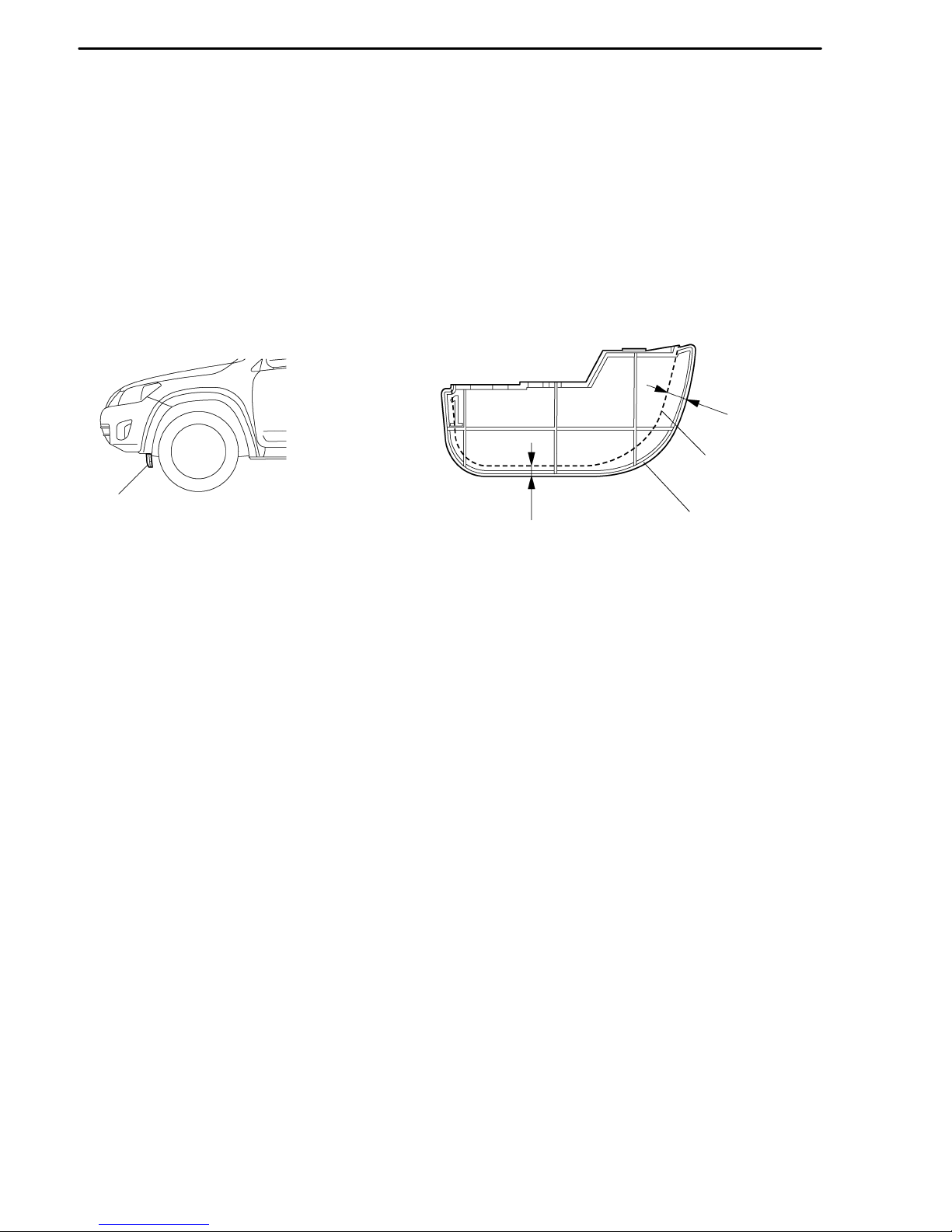

Front Spat Approx. 10 mm
(0.4 in.)
Approx. 20 mm
(0.8 in.)
Previous Spat
New Spat
4
11. Body Structure
DA sound absorption structure is used for the dash inner insulator. Thus, it achieves a high level of sound
insulation and damping performance in terms of engine noise, combustion sound, gear noise, and road
noise.
DIn the dash inner insulator, the diameter of the passage hole for the heater pipe has been decreased to reduce
the noise entering from the engine compartment.
DThe steering column hole cover has been pressed against the dash panel. This improves sealing
performance and sound insulation.
DThe size of the front spat has been increased to attain favorable aerodynamic performance and fuel
economy.
DAn active headrest mechanism is used. For details, see page 107.
12. Lighting
An automatic light control system is provided as standard equipment for the Limited grade, and is available
as optional equipment for the Sport grade. For details, see page 108.
13. Meter
The following changes have been made to the ’09 RAV4.
DThe design of the combination meter has been changed.
DInstant fuel consumption and average fuel consumption are now shown on the multi-information display.
DThe indication size of the shift position indicator has been increased.
DA parking brake unreleased warning function has been added.
DThe design of the indicator lights has been partially changed.
For details, see page 110.
14. Air Conditioning
DA TSE17 type A/C compressor is used for models with 2AR-FE engine.
DThe design of the switches on the automatic control type heater control panel has been changed.
For details, see page 113.
15. Navigation System with AV System
A navigation system with AV system is available as optional equipment for the Limited and Sport grades.
For details, see page 114.
RAV4 – OUTLINE OF NEW FEATURES
10SBE38Y

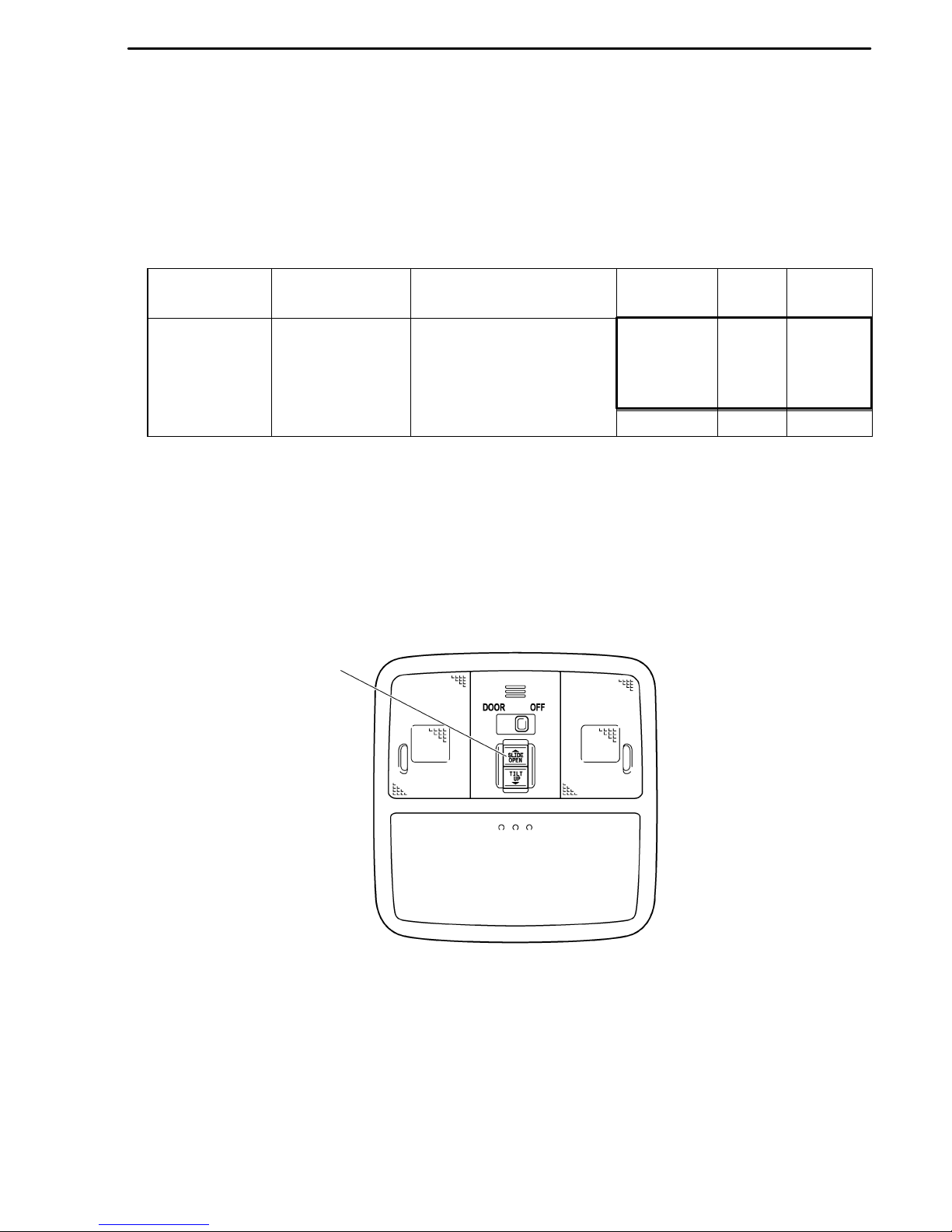

Sliding Roof Switch
5
16. Rear View Monitor System
A rear view monitor system is available as optional equipment for the Limited and Sport grades. For details,
see page 120.
17. Wireless Door Lock Control System
In the customized body electronics system, the setting of the automatic lock time function has been changed
as follows:
System Techstream
Display Content Content Model Default
Setting
Available
Setting
Wireless Door
Lock Control
System
Auto Lock Time
Function to change the time
until relocking after
unlocking with the wireless
door lock.
’09 RAV4 60
30,
60,
120
or OFF
’08 RAV4 30 30 or 60
For details, refer to the 2009 RAV4 Repair Manual (Pub. No. RM10S0U).
18. Smart Key System
A smart key system is used for the Limited grade. For details, see page 123.
19. Sliding Roof System
The shape of the sliding roof switch on the overhead console has been changed.
20. Audio System
DNew audio head units are used.
DAn SDARS (Satellite Digital Audio Radio Service) antenna is used for all models.
DThe AUX adapter has been relocated.
DA DISP switch has been added for the steering pad switch. The DISP switch is provided as standard
equipment for all models.
For details, see page 159.
RAV4 – OUTLINE OF NEW FEATURES
10SBE37Y

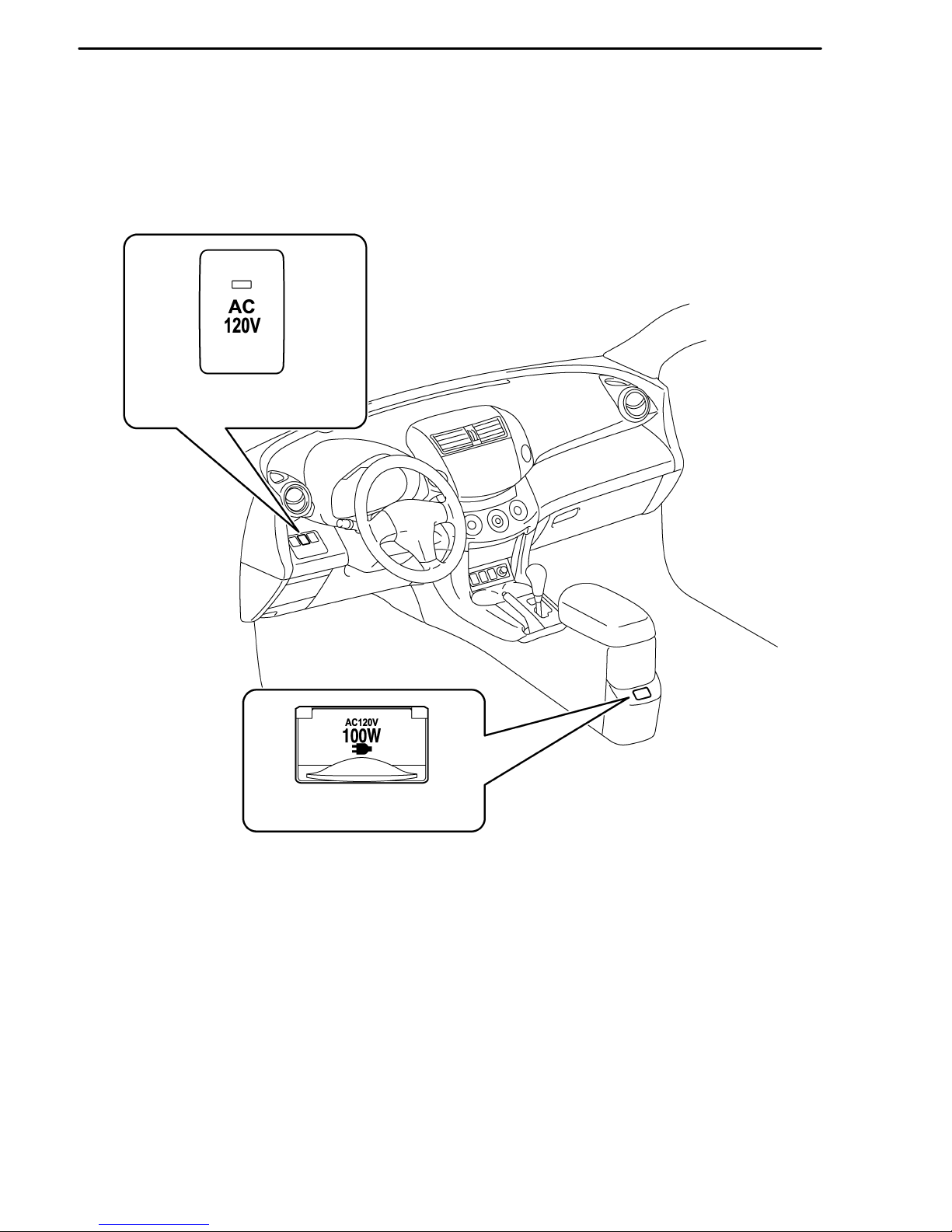

Power Outlet Main Switch
Power Outlet Socket
(For AC Power Supply)
6
21. Power Outlet
DThe design of the power outlet main switch and power outlet socket (for AC power supply) has been
changed.
DThe power outlet socket (for AC power supply) is available as optional equipment for the Limited grade.
RAV4 – MODEL CODE
ASA33 L – A N P X K A
12345678
1
BASIC MODEL CODE
CODE
2STEERING WHEEL POSITION
L: Left-hand Drive
4BODY TYPE
N: 5-door Wagon
5
GEAR SHIFT TYPE
P: 4-speed Automatic, Floor
A: 5-speed Automatic, Floor
6
GRADE
X: — (Standard)
G: Limited
S: Sport
8
DESTINATION
A: U.S.A.
K: Canada
3
MODEL NAME
A: RAV4 (Produced by TMC*1)
C: RAV4 (Produced by TMMC*2)
7ENGINE SPECIFICATION
K: DOHC and SFI
ASA33
ASA38
GSA33
GSA38
ENGINE
2AR-FE
2GR-FE
DRIVE TYPE
4WD
2WD
4WD
2WD
7
MODEL CODE
*1: TMC: Toyota Motor Corporation
*2: TMMC: Toyota Motor Manufacturing Canada, Inc.
RAV4 – MODEL LINE-UP
8
MODEL LINE-UP
: New
DESTI-
NATION ENGINE BODY
TYPE GRADE
TRANSAXLE
4-speed Automatic 5-speed Automatic
2WD 4WD 2WD 4WD
U241E U140F U151E U151F
U.S.A.
2AR-FE
5-door
Wagon
—ASA38L-
A(C)NPXKA
ASA33L-
A(C)NPXKA — —
Limited ASA38L-
A(C)NPGKA
ASA33L-
A(C)NPGKA — —
Sport ASA38L-
A(C)NPSKA
ASA33L-
A(C)NPSKA — —
2GR-FE
— — — GSA38L-
A(C)NAXKA
GSA33L-
A(C)NAXKA
Limited — — GSA38L-
A(C)NAGKA
GSA33L-
A(C)NAGKA
Sport — — GSA38L-
A(C)NASKA
GSA33L-
A(C)NASKA
Canada
2AR-FE
— — ASA33L-
A(C)NPXKK — —
Limited — ASA33L-
A(C)NPGKK — —
Sport — ASA33L-
A(C)NPSKK — —
2GR-FE
— — — — GSA33L-
A(C)NAXKK
Limited — — — GSA33L-
A(C)NAGKK
Sport — — — GSA33L-
A(C)NASKK
RAV4 – NEW FEATURES
10SMO04Y10SMO02Y
10SMO03Y

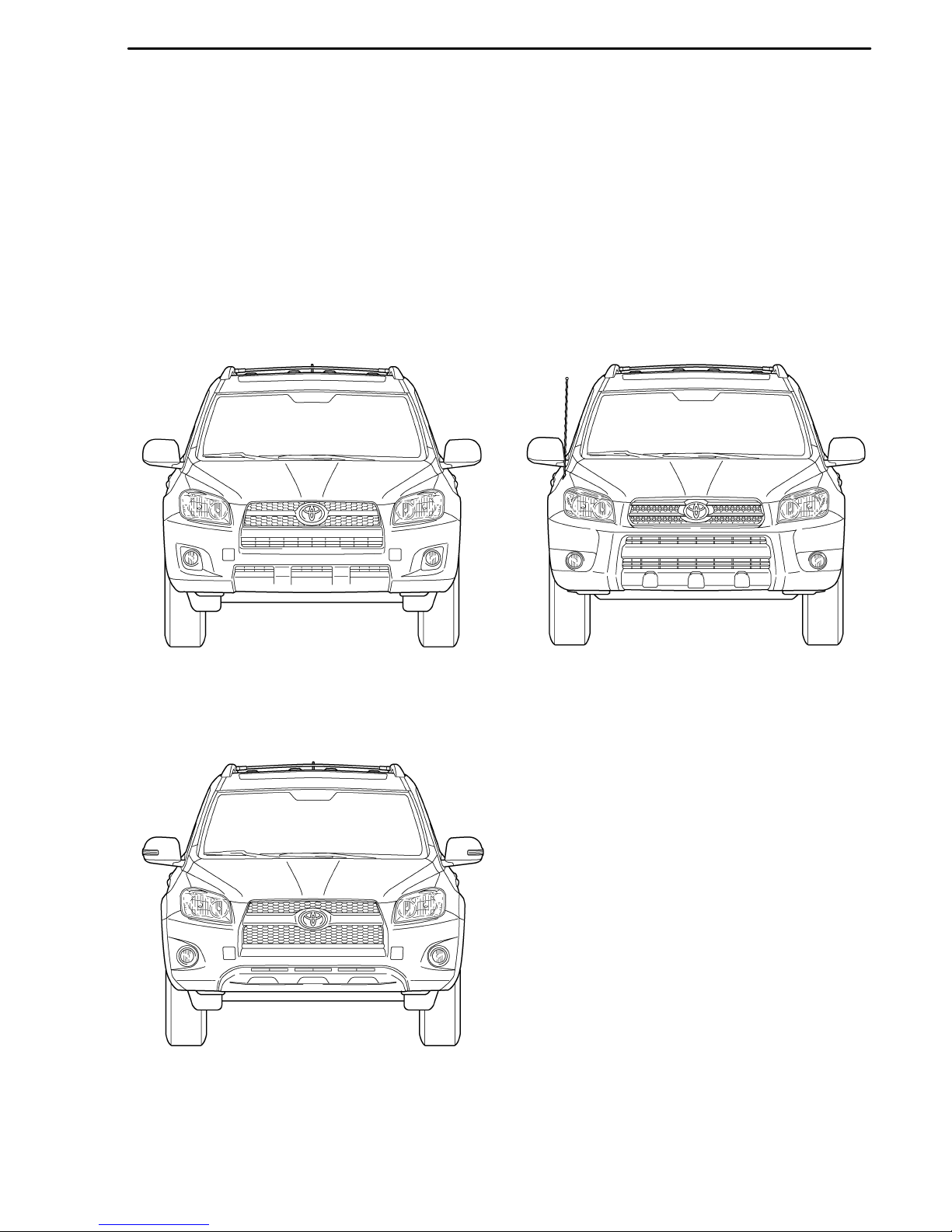

’09 RAV4
Standard and Sport Grades
’08 RAV4
’09 RAV4 Limited Grade
9
NEW FEATURES
JEXTERIOR
1. Front Design
D2 types of design are provided for the front bumper and radiator grille. The front design of the Limited
grade consists of a large-size radiator grille and an underguard in order to differentiate it from the standard
and Sport grades.
DA newly designed headlight incorporating a front side turn signal light and a side marker within the same
lens is used.
DThe models with fog lights use plated rings for a luxurious look.
RAV4 – NEW FEATURES
10SMO06Y
10SMO05Y
Headlight (High Beam)
Turn Signal Light and
Side Marker
Headlight (Low Beam)
’09 RAV4
Headlight (High Beam)
Side Marker
Headlight (Low Beam) Turn Signal Light
’08 RAV4
10SMO09Y
10SMO07Y
10SMO08Y
’09 RAV4
Standard and Sport Grades
Plated Ring
’08 RAV4
Underguard
Plated Ring
’09 RAV4 Limited Grade
10
"Headlight A
"Radiator Grille and Front Bumper A
