TP-Link Archer TX20E Manuale utente

REV1.0.0 1910013263

User Guide

AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Archer TX20E

Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01

Chapter 1. Get to Know About Your Adapter . . . . . . . . . . . . . . . . . . . 02

Chapter 2. Connect to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04

Chapter 3. Use Your Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07

3. 1. Install Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .08

3. 2. Join a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .09

3. 3. Pair with Bluetooth Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .09

3. 4. Uninstall Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .09

Appendix: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

About This Guide

This guide is a complement to Quick Installation Guide. The Quick Installation

Guide instructs you on quick installation, and this guide provides the product

overview and more detailed instructions for each steps.

When using this guide, please notice that features available of the adapter may

vary by model and software version. It may also vary by region or ISP. All images,

steps, and descriptions in this guide are only examples and may not reflect your

actual experience.

Conventions

In this guide, the following conventions are used:

Convention Description

Underlined Underlined words or phrases are hyperlinks. You can click to redirect to a

website or a specific section.

Teal Contents to be emphasized and texts on the web page are in teal, including

the menus, items, buttons, etc.

Note: Ignoring this type of note might result in a malfunction or damage to the

device.

Tips: Indicates important information that helps you make better use of your

device.

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications.

Actual wireless data throughput and wireless coverage, and number of connected devices are not

guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors,

including building materials, obstacles, volume and density of traffic, and AP location.

Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM require APs to also

support the corresponding features.

HT160 requires AP device that supports 160 MHz bandwidth on Wi-Fi.

Use of WPA3TM requires APs to also support the corresponding feature.

More Info

• The latest driver can be found at Download Center at

https://www.tp-link.com/support.

• Specifications can be found on the product page at https://www.tp-link.com.

• A TP-Link Community is provided for you to discuss our products at

https://community.tp-link.com.

Chapter 1

Get to Know About Your

Adapter

This chapter introduces the detail of the adapter.

Chapter 1 Get to Know about Your Adapter

Archer TX20E equips your PC with more advanced Bluetooth 5.2 technology

that runs faster connection speeds and farther range compared with older

versions, ensuring a strong and stable wireless connection between your PC

and Bluetooth devices.

• Supports IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz

• Supports Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0

• Supports infrastructure mode

• Maximum speed of up to 2402 Mbps on 5 GHz network and 574 Mbps on

2.4 GHz network

• Supports 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

• Windows 10 (64-bit) only

• Environment:

Operating Temperature: 0℃~40℃(32℉~104℉)

Storage Temperature: -40℃~70℃(-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Chapter 2

Connect to a Computer

This chapter introduces how to connect the adapter to your computer.

Please note that images are for demonstration only.

Chapter 2 Connect to a Computer

Follow the steps below to insert the adapter into your computer:

1. Turn off your computer, unplug the power cable then remove the case panel.

2. Connect the provided Bluetooth USB cable to the adapter.

Bluetooth USB cable

Adapter

3. Locate an available PCIE X1 slot t ( X1, X4 or X16) and carefully insert the adapter.

Tip:

If the bracket is not suitable for your computer, detach it from the adapter’s board and replace it with the

low-profile bracket.

Chapter 2 Connect to a Computer

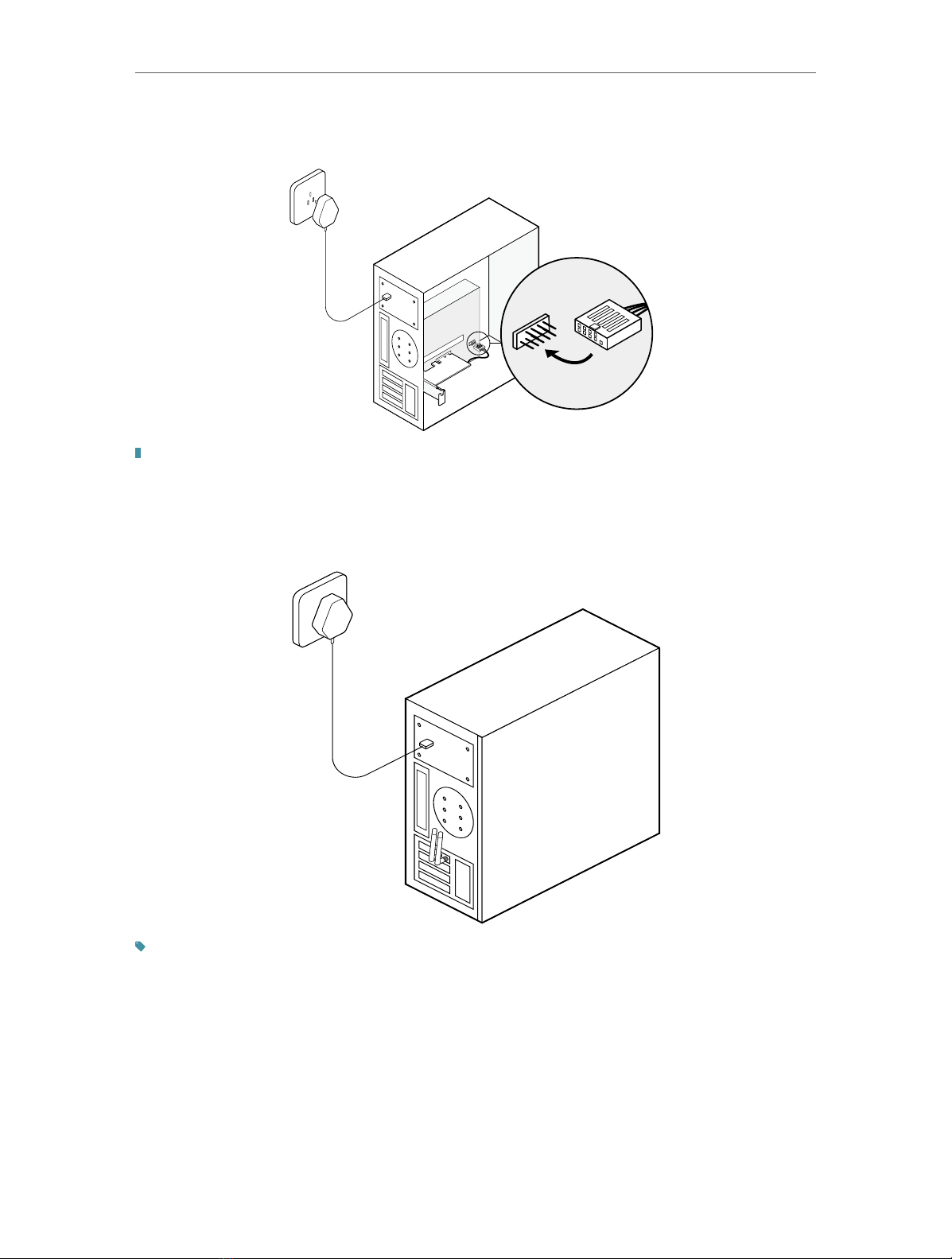

4. Locate an available F_USB connector and carefully plug the Bluetooth USB

cable into it.

USB

Note:

If the Bluetooth USB cable is not correctly connected to the motherboard, Bluetooth function won’t work

even after driver installation.

5. Connect the antenna(s) to the adapter.

Tip:

To maximize performance, make sure the path between the antenna(s) and your router is clear.

6. Replace the case panel, plug in the power cable and turn on your computer.

After connecting your adapter to the computer, follow the instructions in the

next chapter to install Wi-Fi and Bluetooth drivers.

Chapter 3

Use Your Adapter

This chapter introduces how to install or uninstall your adapter’s Wi-Fi and

Bluetooth drivers, connect to a wireless network, and pair with a Bluetooth

device on a Windows system.

This chapter includes the following sections:

• Install Drivers

• Join a Wireless Network

• Pair with Bluetooth Devices

• Uninstall Drivers

Chapter 3 Use Your Adapter

3. 1. Install Drivers

1. Insert the CD and run the Autorun.exe.

Note: You can also check the new release and download the driver at

https://www.tp-link.com/support/download/

2. Install the Wi-Fi and Bluetooth drivers.

Note:

· DO NOT install the Bluetooth and Wi-Fi drivers simultaneously. If one driver is being installed, please wait

until it is finished, then install the other driver.

· If an unknown publisher message pops up, select Ye s to continue.

· If Windows User Account Control requires admin credentials, type user name and password of your

Windows administrator account.

• Wi-Fi: Click and follow the on-screen instructions to complete the Wi-Fi

installation.

• Bluetooth: Click and follow the on-screen instructions to complete the

Bluetooth installation.

Note: To check if the drivers are installed successfully or not , refer to How to check if I have installed

the drivers successfully or not?

3. 2. Join a Wireless Network

1. Click the icon ( Wireless Network ) on the taskbar.

2. Select your Wi-Fi network, click Connect, and enter the password when

prompted.
