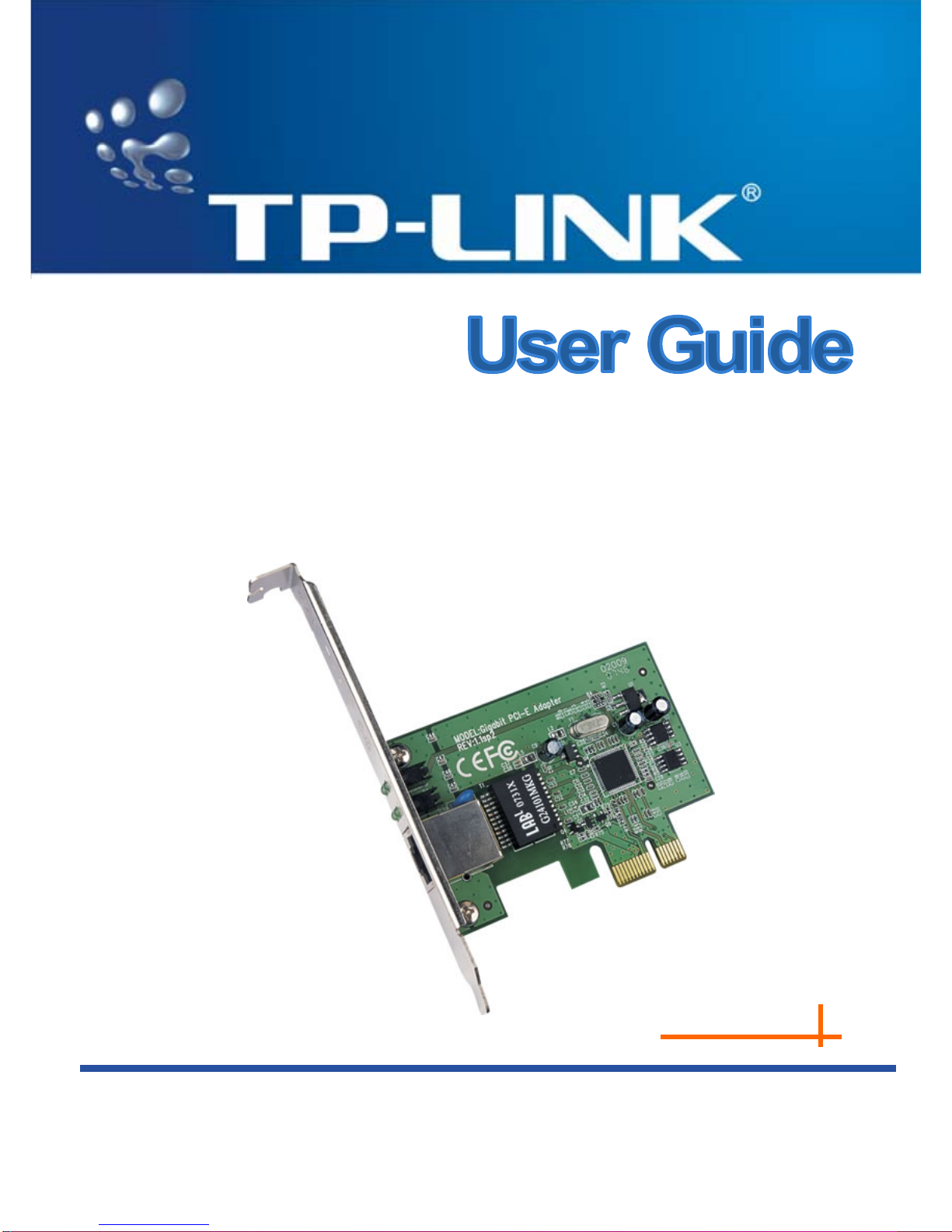

TP-Link TG-3468 Manuale utente

TG-3468

10/100/1000Mbps

PCI-E Gigabit Network Adapter

REV: 1.0.0

1910010023

Specifications are subject to change without notice.

is a registered trademark of TP-LINK TECHNOLO-

GIES CO., LTD. Other brands and product names are trademarks or

registered trademarks of their respective holders. Specifications are

subject to change without notice.

No part of the specifications may be reproduced in any form or by any

means or used to make any derivative such as translation, transforma-

tion, or adaptation without permission from TP-LINK TECHNOLOGIES

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to pro-vide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not in-stalled and

used in accordance with the instructions, may cause harmful interfer-

ence to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

•Consult the dealer or an experienced radio/ TV technician for

help.

This device complies with part 15 of the FCC Rules. Operation is sub-

ject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including

interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to

take adequate measures.

Package Contents

The following items should be found in your package:

¾One TG-3468 10/100/1000Mbps PCI-E Gigabit Network Adapter

¾One Resource CD for TG-3468，including:

•Drivers

•User Guide

•Other Helpful Information

¾This User Guide

)Note:

Make sure that the package contains the above items. If any of the

listed items are damaged or missing, please contact with your distribu-

tor.

CONTENTS

Chapter 1 Introduction....................................................................... 1

1.1 Overview of the Product................................................... 1

1.2 Features........................................................................... 1

1.3 LED Status ....................................................................... 2

Chapter 2 Installation Guide.............................................................. 3

2.1 Hardware Installation........................................................ 3

2.2 Adapter Driver Installation................................................ 3

Chapter 3 Connection to the Network............................................... 4

3.1 Transmission Distance..................................................... 4

3.2 Cable Category and Line Sequence ................................ 4

Appendix A: Specifications.................................................................. 5

Appendix B: Troubleshooting.............................................................. 6

Chapter 1 Introduction

1.1 Overview of the Product

The TG-3468 10/100/1000Mbps PCI-E Gigabit Network Adapter is

a highly integrated and cost-effective Gigabit Ethernet Adapter

which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE

802.3ab specifications.

TG-3468 keeps low cost and eliminates usage barriers. It is the

easiest way to upgrade a network from 10/100Mbps to 1000 Mbps.

It supports 10/100Mbps network speed automatically both in

Half-Duplex and Full-Duplex transfer modes, and 1000Mbps in

Full-Duplex transfer mode，using Auto-Negotiation technology to

detect the network speed. It can be widely used in most modern

Operating Systems and includes a boot ROM for Diskless Work-

stations,

1.2 Features

¾Integrated 10/100/1000Mbps transceiver

¾Support PCI Express 1.0a

¾Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab

¾Auto-Negotiation with Next Page capability

¾Support pair swap/polarity/skew correction

¾Crossover Detection & Auto-Correction

¾Wake-on-LAN and remote wake-up support

¾Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and

Largesend Offload support

¾Support Full Duplex flow control (IEEE802.3X)

¾Support IEEE 802.1p Layer 2 Priority Encoding and

IEEE802.1Q VLAN tagging

¾Support power down/link down power saving

1.3 LED Status

There are four LEDs, including a 10Mbps Link/Act LED, a

100Mbps Link/Act LED, a 1000Mbps Link/Act LED and a Full

Duplex Mode LED.

¾The Link/Act LEDs of TG-3468 PCI-E 10/100/1000M LAN

Card indicates Link/Act status. They will light when

connection has been built, and glitter when the adapter

transmits or receives data.

¾The Full Duplex LED will light when the adapter works in full

duplex.

Chapter 2 Installation Guide

2.1 Hardware Installation

To install the adapter, follow these steps listed below:

Step 1: Turn off your computer and remove your computer’s

case cover.

Step 2: Remove the screw that secures the backplate (the small

piece of metal that covers the opening for PCI-E card on

the back panel of your computer), and then remove the

backplate.

Step 3: Carefully insert the adapter into the PCI-E slot. Do not

touch the metal connector on the adapter.

Step 4: Secure the adapter to the case using the screw you

removed from the backplate.

Step 5: Reinstall your computer’s case cover.

Plug in the power cord and other cables, and then turn on your

computer.

2.2 Adapter Driver Installation

For Windows Operating System, please insert the TG-3468 CD

into your CD or DVD driver. Then complete the driver installation

according to the cue on the screen.

For other Operating Systems, please install the driver according

to the Operation System Guider.

Chapter 3 Connection to the Network

3.1 Transmission Distance

When this device was connected with the other devices which are

also compatible with IEEE802.3, the connection distance is up to

100 meters.

3.2 Cable Category and Line Sequence

The transmission speed of this device can reach to 10Mbps with

Category 3/4/5 cable. If the network is in the speed of

100/1000Mbps, you need a twisted-pair Category 5 cable or

above .The long usage of Category 3/4 may lead the data miss-

ing.

Every port of this device has the line auto-crossing function, so it

can be connected with the other network devices in any line

sequence (straight-through or cross-over line).

Appendix A: Specifications

General

Interface Support PCI Express 1.0a

Buffer Size Transmit/Receive On Chip Buffer(48K)support

Standards IEEE802.3ab

1000Base-T,IEEE802.3x,IEEE802.3q,IEEE802.3p

Transmission

Rate 10/100Mbps(Half-Duplex)

20/200/2000Mbps( Full-Duplex)

Connector one 10/100/1000M Auto-Negotiation RJ45 port

Driver

Support Windows 98se/Me/2000/XP/XP64,

Linux,Vista32/64

LEDs a 10M Link/Act LED, a 100M Link/Act LED, a

1000M Link/Act LED and a Full Duplex Mode LED

Safety &

Emission FCC,CE

Environmental and Physical

Operating : 0℃~40℃

Temperature Stockage : -20℃~70℃

Operating : 10% - 90%,

Humidity Stockage : 5% - 90%
