TP-Link TL-POE200 Manuale utente

User Guide

TL-POE200

Power over Ethernet Adapter Kit

Rev:1.0.0

7106500904

Specifications are subject to change without notice.

is a registered trademark of TP-LINK

TECHNOLOGIES CO., LTD. Other brands and product names

are trademarks or registered trademarks of their respective

holders.

No part of the specifications may be reproduced in any form or

by any means or used to make any derivative such as

translation, transformation, or adaptation without permission

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

¾Reorient or relocate the receiving antenna.

¾Increase the separation between the equipment and

receiver.

¾Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

¾Consult the dealer or an experienced radio/ TV technician

for help.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received,

including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority

to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

SAFETY NOTICES

¾Do not use this product near water, for example, in a wet

basement or near a swimming pool.

¾Avoid using this product during an electrical storm. There

may be a remote risk of electric shock from lightning.

CONTENTS

Package Contents..........................................................................1

Chapter 1 Introduction .................................................................1

1.1 Overview of the Production...............................................1

1.2 Features............................................................................2

Chapter 2 Identifying External Components..............................2

2.1 PoE Injector ......................................................................2

2.2 PoE Splitter.......................................................................3

Chapter 3 Connecting the Power over Ethernet Adapter Kit....4

Appendix: Specifications ..............................................................7

Package Contents

The following items should be found in your package.

¾TL-POE200 Power over Ethernet Adapter Kit

¾Ethernet (CAT5 UTP) Cable

¾Female-to-Female Power Connector

¾48V DC Power Adapter

¾This User Guide

)Note:

Make sure that the package contains the above items. If any of

the listed items are damaged or missing, please contact your

distributor.

Chapter 1 Introduction

1.1 Overview of the Production

Thank you for choosing the TL-POE200 Power over Ethernet

Adapter Kit comprised of the Injector and Splitter. The Injector

sends power and data over the Ethernet cable to the Splitter.

Then the Splitter separates the data and power back into two

cables and delivers them to the remotely located access point or

other network device that requires a 5/9/12-volt power input.

PoE (Power over Ethernet) technology allows the existing

Ethernet infrastructure to transmit electrical power, along with

data, to remote IP endpoints over the Ethernet cables, which

can greatly save the cost of the external power cables. Your

network can benefit from PoE technology for it will ensure the

normal working status of your network while keeping the existing

Ethernet infrastructure secure.

1.2 Features

¾Complies with IEEE 802.3, IEEE 802.3u standards

¾Transmits electrical power along with data in one single

cable

¾Supports optional 5V DC , 9V DC or 12V DC power supply

¾Supports Plug-and-Play for the devices without any

configuration

¾Elegant appearance with space-saving miniature size

Chapter 2 Identifying External Components

2.1 PoE Injector

POWER+DATA OUT: Connect to the PD or PoE Receiver

Adapter with a CAT5 UTP cable.

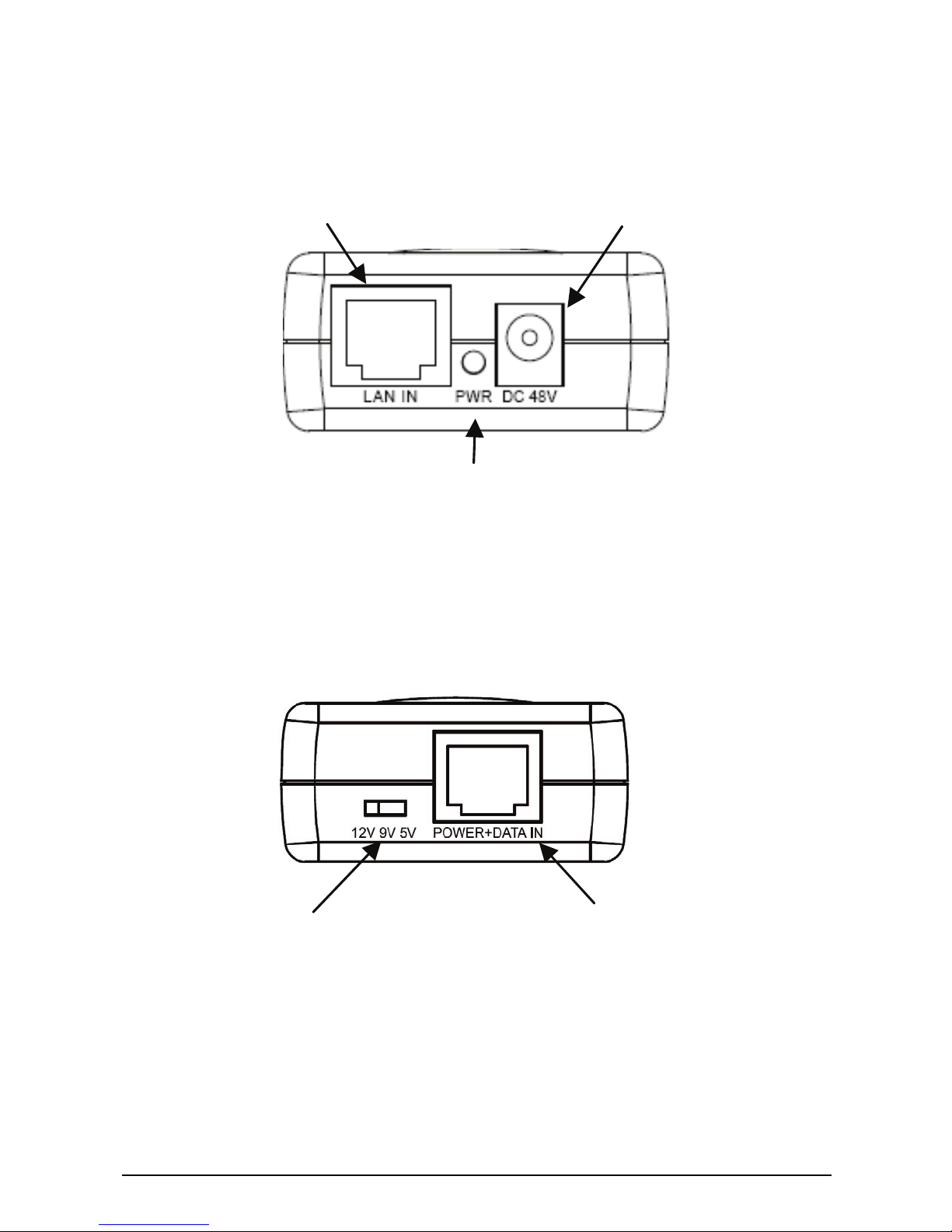

2.2 PoE Splitter

LAN IN: Connect to a

network device (such as

a Switch or Router) with

CAT5 UTP cable.

DC 48V: Connect to the

provided power adapter

which can supply steady

power of 48V DC.

PWR: Power LED, a steady green

light indicates that the power

adapter is working properly.

Power-mode switch:

You can choose the DC

output of 12V, 9V or 5V

by turning the switch to

the left or right.

POWER+DATA IN:

Connect to the PSE

or PoE Injector with

a CAT5 UTP cable.

)Note:

TL-POE200 Power over Ethernet Kit is not compliant with IEEE

802.3af standard. The TL-POE200A (PoE Injector) and

TL-POE200B (PoE Splitter) can only be operated together.

Pairing the devices with any other PoE adapter is dangerous.

Chapter 3 Connecting the Power over Ethernet

Adapter Kit

This chapter gives instructions on how to connect the Power

over Ethernet Adapter Kit. Once connected, the Kit will

transmit data and power over the Ethernet network cable to your

remotely located network device.

To connect the Power over Ethernet Adapter Kit, please take the

following steps.

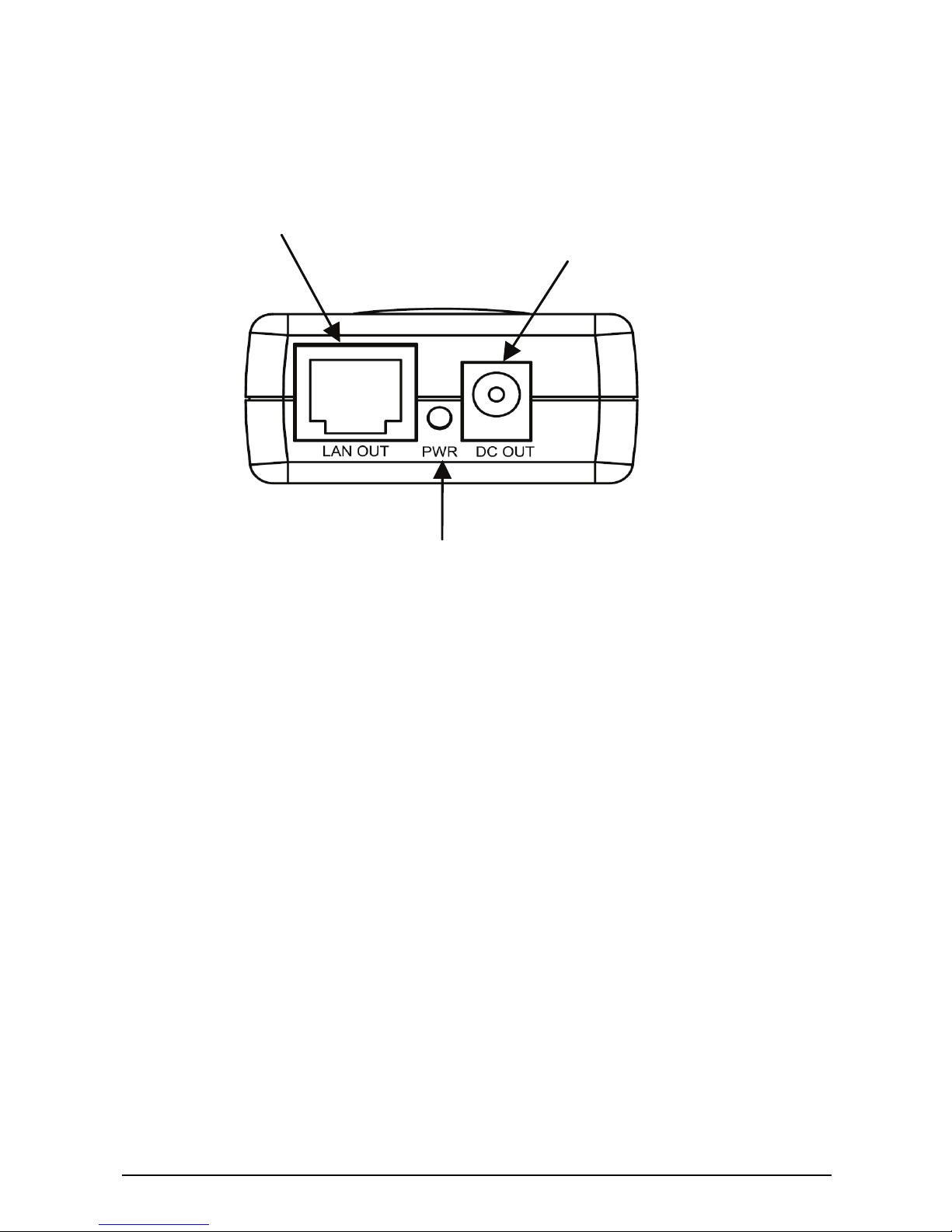

LAN OUT: Connect to

the Ethernet device

with CAT5 UTP cable

to transmit data.

DC OUT: Connect to the

power port of the Ethernet

device with the provided

power cable to supply the

power of 5V, 9V or 12V DC.

PWR: Power LED, a steady green light indicates

that the PoE Injector can supply power.

Step 1: Insert one end of a Cat 5 Ethernet RJ45 Cable into the

LAN IN port of the PoE Injector, and connect the other

end of the cable to you network Switch or PC.

)Note:

Do not mistake the LAN IN port with the POWER+DATA OUT

port. Plugging the Ethernet cable into the wrong Ethernet port

may cause serious damage to your network devices.

Step 2: Plug one end of the Power Adapter into the DC 48V

port of the PoE Injector and the other end into your

electrical outlet. The green PWR LED on the PoE

Injector should light up.

Step 3: Connect another Cat 5 Ethernet RJ45 Cable from the

PoE Injector’s POWER+DATA OUT port to the

POWER+DATA IN port of the Splitter.

Step 4: Insert one end of the DC Power Cable that is provided

into the DC OUT port of the Splitter, and the other end

into the corresponding DC port of the Network Device.

The PWR LED on the Splitter should light up.

Step 5: Connect the provided Cat 5 Ethernet RJ45 Cable from

the LAN OUT port of the Splitter to the RJ45 LAN port

of the Network Device.

)Note:

Please make sure that the output is correct, as a different

voltage may destroy the device.

At this point, your Network Device should have power and data,

and function normally as shown in the figure below.
