Installation Guide

Gigabit Smart Switch

TL-SG2216/TL-SG2424Enterprise Networking Solution

Specifications are subject to change without notice. is a registered trademark

of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their

respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make

any derivative such as translation, transformation, or adaptation without permission from TP-LINK

http://www.tp-link.com

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause2)

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

This is a Class A product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.

The User Guide and CLI Reference Guide of the product are provided on the

resource CD. To obtain the latest product information, please visit the official

website: http://www.tp-link.com

This Installation Guide describes the hardware characteristics, installation methods

and the points that should be attended to during installation. This Installation

Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the external components of

the Switch.

Chapter 2 Installation. This chapter illustrates how to install the Switch.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent

lightning damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connec-

tion of the Switch.

Chapter 5 Configuration. This chapter instructs you to configure the Switch via

Web Interface and CLI commands.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.

This Installation Guide is for:

Network Engineer Network Administrator

Due to the similarity in structure of the Gigabit Smart Switch series, in this

Installation Guide we take TL-SG2216 as an example to illustrate Chapter 2

Installation, Chapter 3 Lightning Protection and Chapter 4 Connection and Chapter

5 Configuration.

This Guide uses the specific formats to highlight special messages. The following

table lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device

damage.

Remind to take notice. The note contains the helpful information for a better

use of the product.

Related Document

III Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview...................................................................01

1.2 Appearance...............................................................................01

Chapter 2 Installation ———————————— 04

2.1 Package Contents ...................................................................04

2.2 Safety Precautions ..................................................................04

2.3 Installation Tools......................................................................06

2.4 Product Installation................................................................07

Chapter 3 Lightning Protection ———————— 09

3.1 Cabling Reasonably................................................................09

3.2 Connect to Ground.................................................................11

3.3 Equipotential Bonding..........................................................12

3.4 Use Lightning Arrester..........................................................13

Chapter 4 Connection ——————————— 15

4.1 Ethernet Port ............................................................................15

4.2 SFP Port ......................................................................................15

4.3 Verify Installation ....................................................................16

4.4 Power On....................................................................................16

4.5 Initialization ..............................................................................16

Chapter 5 Conguration

——————————— 17

5.1 Congure the Switch via GUI..............................................17

5.2 Congure the Switch Using CLI .........................................18

Appendix A Troubleshooting ————————— 20

Appendix B Hardware Specications —————— 21

Appendix C Technical Support ————————— 22

Gigabit Smart Switch

Introduction

TP-LINK Gigabit Smart Switch, designed for workgroups and departments, provides

wire-speed performance and abundant layer 2 management features. It provides a

variety of service features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible

solutions for a variable scale of networks. QoS and IGMP snooping/filtering optimize

voice and video application. Link aggregation(LACP) increase aggregated bandwidth,

optimizing the transport of business critical data. SNMP, RMON, WEB/CLI/Telnet Log-

in bring abundant management policies. TP-LINK Gigabit Smart Switch integrates

multiple functions with excellent performance, and is friendly to manage, which can

fully meet the need of the users demanding higher networking performance.

Front Panel



The front panel of TL-SG2216 is shown as the following figure.

Front Panel of TL-SG2216Figure 1-1

The front panel of TL-SG2424 is shown as the following figure.

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

Reset

Front Panel of TL-SG2424Figure 1-2

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

Reset

Gigabit Smart Switch

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

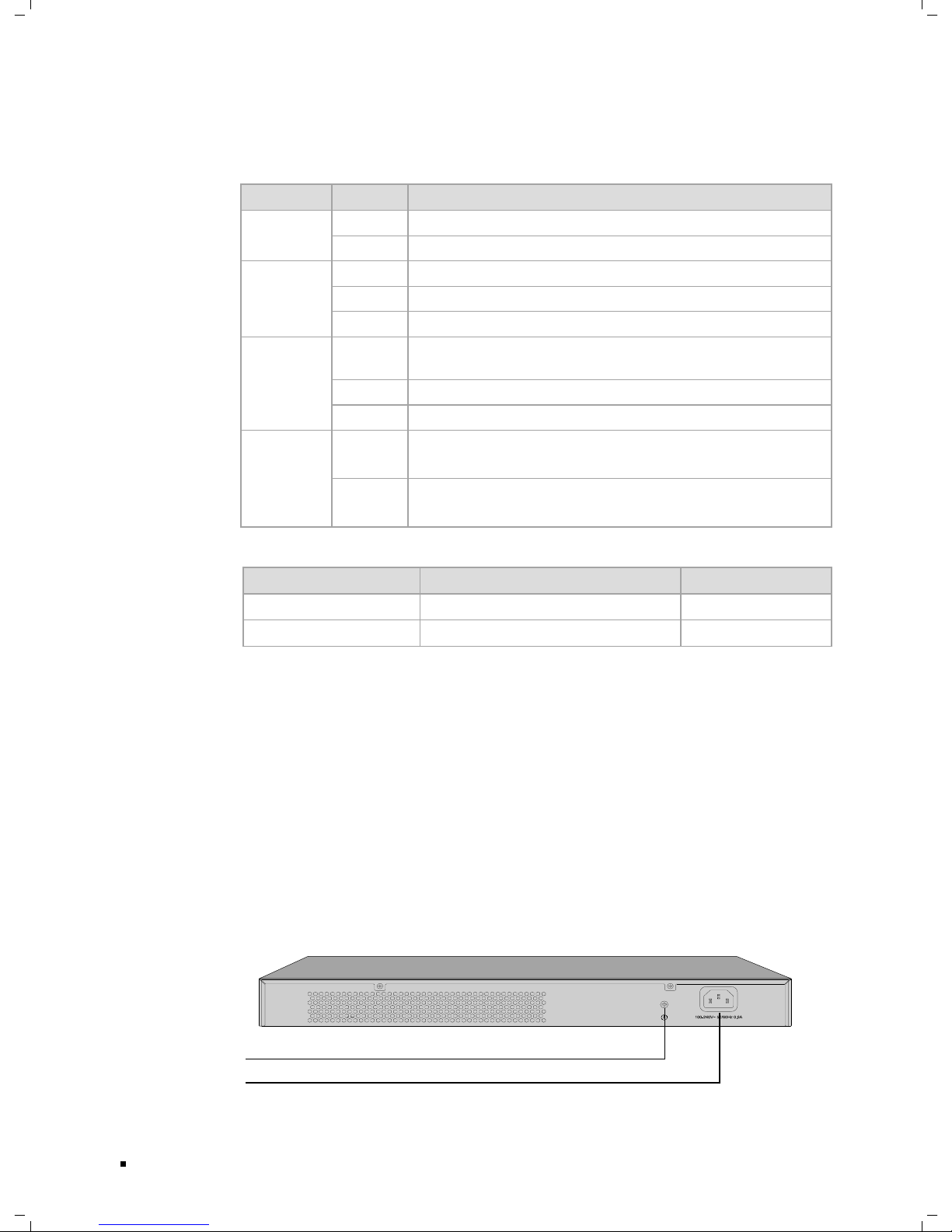

LEDs

LED Status Indication

Power On The Switch is powered on

Off The Switch is powered off or power supply is abnormal

System

On The Switch is working abnormally

Flashing The Switch is working normally

Off The Switch is working abnormally

Link/Act

On There is a device linked to the corresponding port but no

activity

Flashing The corresponding port is transmitting or receiving data

Off There is no device linked to the corresponding port

1000Mbps

On A 1000Mbps device is connected to the corresponding

port

Off A 10/100Mbps device or no device is connected to the

corresponding port

Port Feature

Model 10/100/1000Mbps RJ45 Port SFP Port

TL-SG2216 16 2

TL-SG2424 24 4

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.

SFP Port

Designed to install the SFP module. TL-SG2216/TL-SG2424 Switch features 2/4 SFP

transceiver slots that are shared with the associated RJ45 ports. The associated

two ports are referred as a “Combo”ports, which means they cannot be used

simultaneously, otherwise only SFP port works.

Rear Panel

The rear panel of TL-SG2216 is shown as the following figure.

Rear PanelFigure 1-3 of TL-S G2216

Introduction

Grounding Terminal

Power Socket

Gigabit Smart Switch

Introduction

The rear panel of TL-SG2424 is shown as the following figure.

Rear PanelFigure 1-4 of TL-SG2424

Grounding Terminal

The Switch already comes with lightning protection mechanism. You can also ground

the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC (Alternating Current) power outlet. Please make sure the voltage of the

power supply meets the requirement of the input voltage.

Caution: Please use the provided power cord.

Grounding Terminal

Power Socket

Gigabit Smart Switch

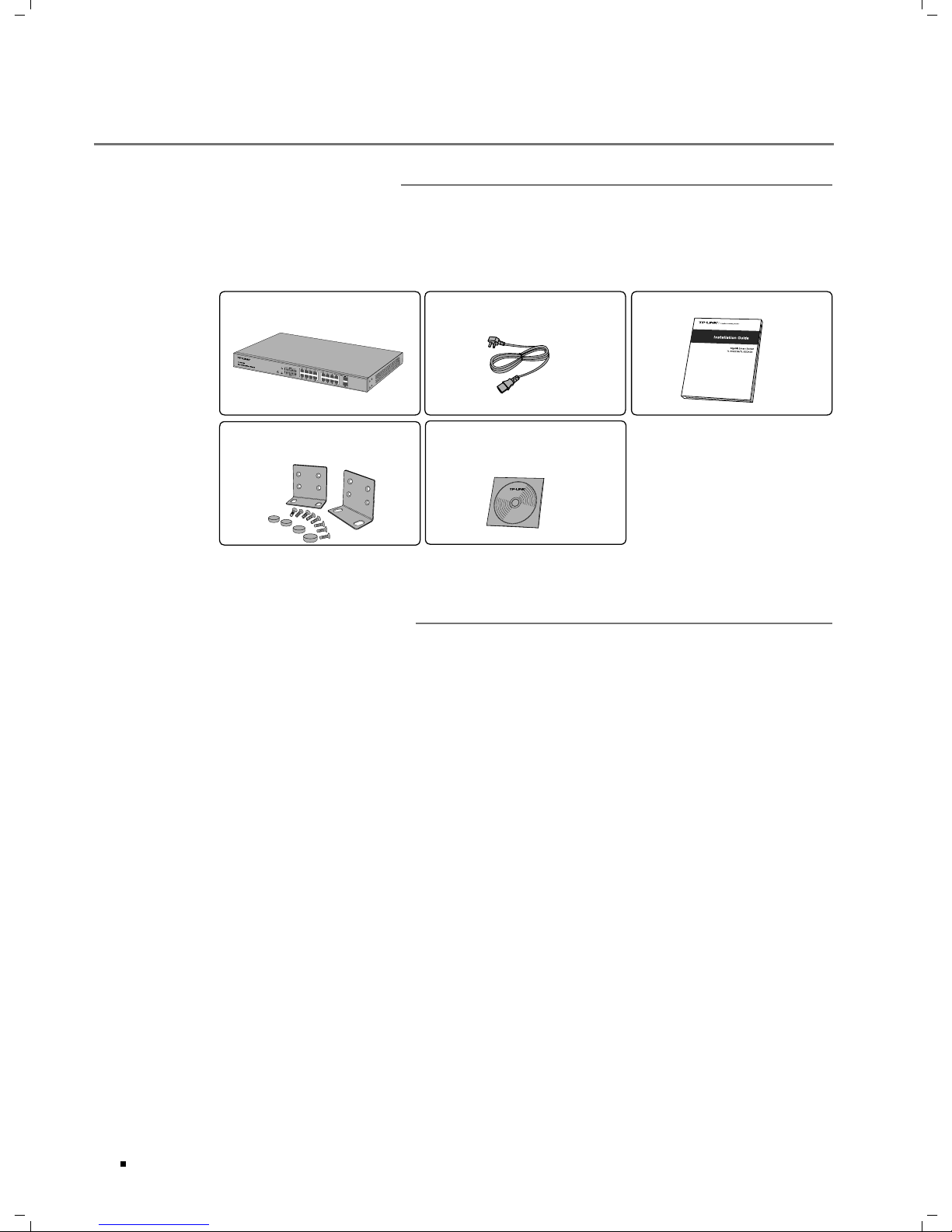

Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Switch One Power Cord This Installation Guide

Two mounting brackets and the



To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions



Keep the power off during the installation.



Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good



skin contact and is well grounded.

Use only the power cord provided with the Switch.



Make sure that the supply voltage matches the specifications indicated on the rear



panel of the Switch.

Ensure the vent hole is well ventilated and unblocked.



Do not open or remove the cover of the Switch.



Before cleaning the device, cut off the power supply. Do not clean it by the waterish



cloth, and never use any other liquid cleaning method.

Installation

One Resource CD

Gigabit Smart Switch

Site Requirements



Temperature/Humidity

ȭȭ

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0~ 4010% ~ 90%RH Non-condensing

Storage -40~ 705% ~ 90%RH Non-condensing

Clearness

The dust accumulated on the Switch can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the Switch, please attach much importance to the

following items:

Dust the device regularly, and keep the indoor air clean.



Keep the device well grounded and ensure static electricity has been transferred.



Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from the power grid.



Keep the device far from high-frequency, strong-current devices, such as radio



transmitting station.

Use electromagnetic shielding when necessary.



Installation

Altri manuali per TL-SG2216

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TP-Link Interruttore

TP-Link

TP-Link TL-SG108PE Manuale utente

TP-Link

TP-Link Tapo H100 Manuale utente

TP-Link

TP-Link TL-SF1008P Manuale utente

TP-Link

TP-Link JetStream T2600G-28TS Manuale utente

TP-Link

TP-Link LS105LP Manuale utente

TP-Link

TP-Link HS200 Manuale utente

TP-Link

TP-Link TL-SG105-M2 V2 Manuale utente

TP-Link

TP-Link JetStream TL-SG5412F Manuale utente

TP-Link

TP-Link JetStream TL-SG2210P Manuale utente

TP-Link

TP-Link TL-SG1005P Manuale utente

TP-Link

TP-Link JetStream TL-SL3452 Manuale utente

TP-Link

TP-Link TL-SG105E Manuale utente

TP-Link

TP-Link TL-SF1016D Manuale di istruzioni per l'installazione

TP-Link

TP-Link JetStream TL-SG3424 Manuale utente

TP-Link

TP-Link Omada SG2218P Manuale utente

TP-Link

TP-Link TL-SF1008D Manuale utente

TP-Link

TP-Link TL-SG105E Manuale utente

TP-Link

TP-Link TL-POE150S Manuale utente

TP-Link

TP-Link TL-SF1008D - 10/100M FAST ETHERNET SWITCH Manuale utente

TP-Link

TP-Link tapo S505D Manuale utente

TP-Link

TP-Link JetStream TL-SL3452 Manuale utente

TP-Link

TP-Link TL-SF1005LP Manuale utente

TP-Link

TP-Link JetStream T2700G-28TQ Manuale utente

TP-Link

TP-Link TL-SG1008 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
