TP-Link TL-WA901ND Manuale utente

CONTENTS

English ··············································································1

Azərbaycan dili ······························································13

հայերեն··········································································25

Қазақша ··········································································37

Русский язык·····································································49

Українська мова ·······························································61

ქართული···········································································73

English

Note 1. The product model shown in this QIG for Wireless Access Point is

"TL-WA901ND", as an example.

2. Information for technical support can be found in the last page.

Installation

English

Connect to the Access Point with the Ethernet cable or via wireless. The

default wireless network name (SSID) of the Access Point is

TP-LINK_AP_XXXXXX. Please check the label at the bottom of the unit for

more details.

Plug the provided power adapter into the power jack on the back of the

Access Point, and the other end to a standard electrical wall socket. Then

press the ON/OFF button to power on the device.

Connecting the Device for Configuration

Note If the distance between the outlet and the Access Point is too long to supply

the power, you can refer to the Power over Ethernet (PoE) solution in

Appendix 1: With PoE Setup.

English

LED Status Indication

Off Power off.

On Power on.

OffThe device has a system error.

On The device is initialising.

Flashing The device is working properly.

OffThere is no device linked to the corresponding port.

On There is a device linked to the corresponding port but no

activity.

Flashing There is an active device linked to the corresponding port.

Off The Wireless function is disabled.

Flashing The Wireless function is enabled.

Slow

Flash

A wireless device is connecting to the network by WPS

function. This process will last in the first 2 minutes.

On A wireless device has been successfully added to the

network by WPS function.

Quick

Flash

A wireless device failed to be added to the network by WPS

function.



LED explanation:

Note If the LEDs display abnormally, please check to see if all the cable

connectors (power adapter and Ethernet cable) are well connected to you

device.

Note Please make sure that your wired device’s IP address is set as Obtain an IP

address automatically before configuring the device.

Open your web browser, type in http://tplinkap.net in the address bar and

press Enter.

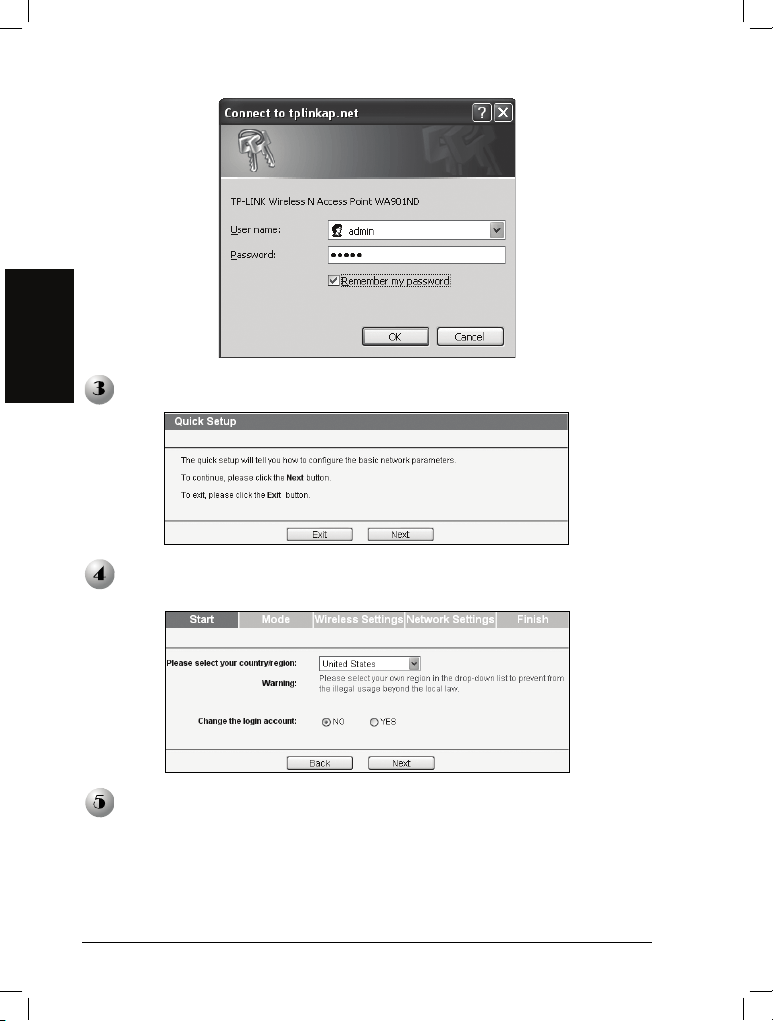

A dialog box will prompt you for the User name and Password. Enter the

default values (both are admin) and click OK.

Configuring the Device

English

After successfully logging in, the Quick Setup page will display. Click Next.

Then you will see the Start page shown as below. Select your region and click

Next to continue.

The Operation Mode page will appear then. The TL-WA901ND supports up to

five operation modes. Please select the proper operation mode according to

your needs and click Next.

English

a) Access Point Mode

Introduction

In this mode, the product will act as a wireless central hub for your wireless LAN

clients, giving a wireless extension for your current wired network.

Settings

1. Create an easy-to-remember name for your wireless network.

2. Select WPA-PSK/WPA2-PSK (Recommended) mode and enter a wireless

password below to prevent unauthorized access to your AP.

3. Click Next.

English

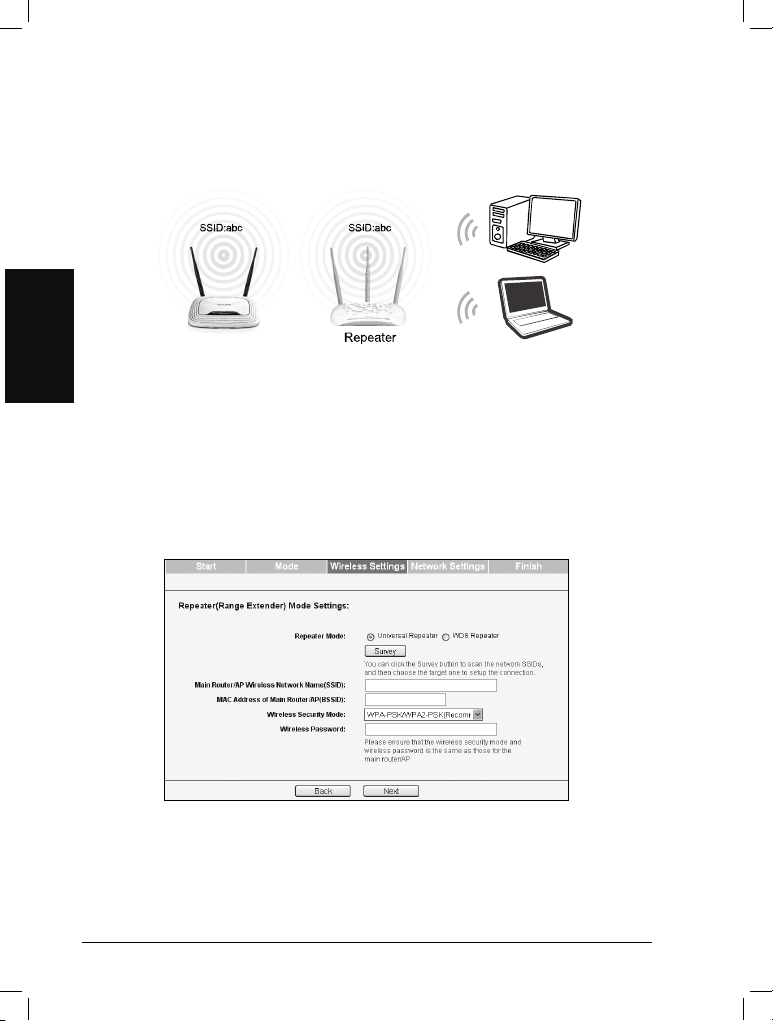

b) Repeater (Range Extender) Mode

Introduction

In this mode, the product can extend the coverage of another wireless Access Point

or Router.

Settings

1. Select the repeater mode, Universal Repeater is recommended as for better

compatibility. Click Survey.

2. The window displaying a list of available SSIDs will appear.

3. Find the SSID of the main Router/AP that you want to repeat, and then click

Connect in the corresponding row.

4. You will then return to the previous page.

5. The security mode will be selected automatically, please confirm it and enter the

password of your main Router/AP. Click Next.

English

c) Bridge with AP mode

Introduction

In this mode, the product can wirelessly connect two or more remote LANs together.

Settings

1. Click Survey.

2. Find the SSID of the main Router/AP that you want to bridge, and then click

Connect in the corresponding row. You will then return to the previous page.

3. The security mode will be selected automatically, please confirm it and enter the

password that is the same as on the remote AP.

4. Create a name for the Local Wireless Network.

5. Click Next.

English

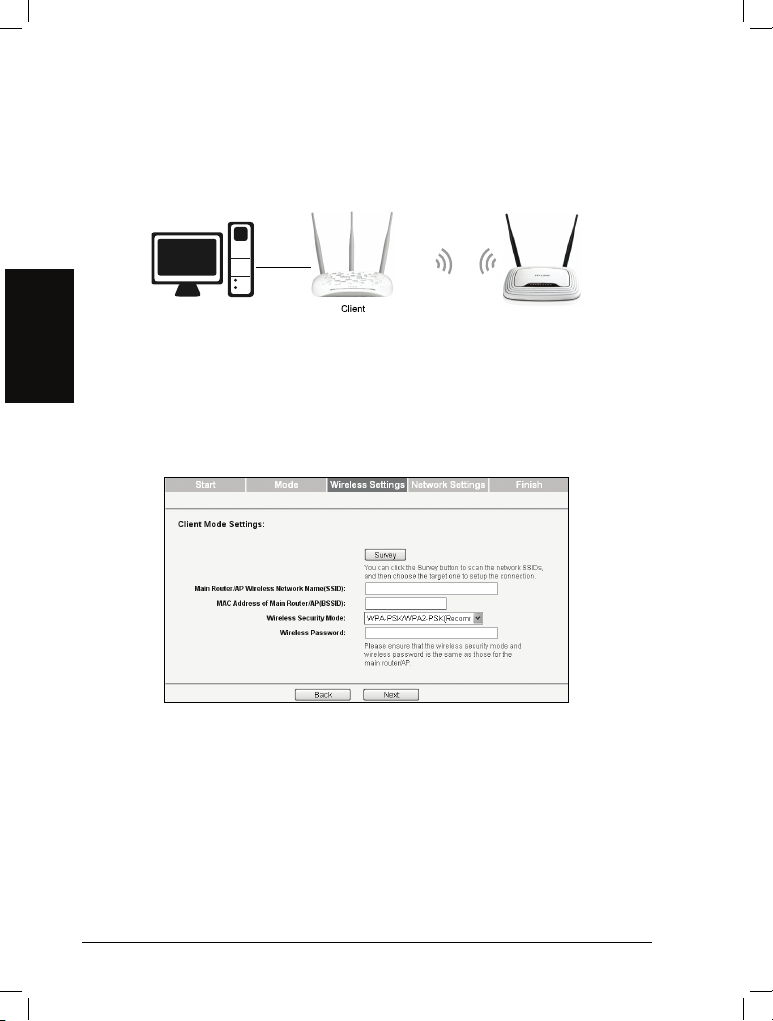

d) Client Mode

Introduction

In this mode, the product will act as a wireless adapter to connect your wired devices

(e.g. IPTV Set-top-box, Smart TVs, Game Consoles, DVD and Blu-ray Players, etc.)

to a wireless network.

Settings

1. Click Survey.

2. Find the SSID of the Access Point/Router or WISP, and click Connect in the

corresponding row. You will then return to the previous page.

3. The security mode will be selected automatically, please confirm it and enter the

password that is the same as on the main Router/AP.

4. Click Next.

e) Multi-SSID Mode

Introduction

In this mode, the product can be assigned up to four SSIDs to work with your VLAN.

English

Settings

1. Select ON to enable VLAN function for this access point.

2. Configure the SSID and its corresponding VLAN ID. You can create up to 4 SSIDs

and rename them.

3. Configure the wireless security for each SSID.

4. Click Next.

Note For the configuration of VLAN, please refer to the User Guide on the

Resource CD.

The Network Setting page will appear then. It is recommended that you keep

the default settings on this page. Click Next.
