Trane CNT09289 Istruzioni per il montaggio

TAMX Replacement Air Handler Control

Board Conguration

This control board needs congured for use and will not operate

until correctly congured.

INSTALLER'S

GUIDE

IMPORTANT—This Document is customer property and is to remain with this unit. Please return to service information

pack upon completion of work.

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES

18-GJ92D1-1A-EN

Model:

CNT09289 or

superseded

3. General Information

This replacement control board is used on TAMX air

handlers.

NOTE: This instruction will explain how to configure this

control board to operate.

1. Unpack all components of the kit.

2. Check carefully for any shipping damage. If any

damage is found, this must be reported immediately

and a claim made against the transportation

company.

3. Check to be sure all components are in the

package. Any missing components should be

reported to your supplier at once and replaced with

authorized components only.

Each kit will contain:

Item Qty Description

1 1 Air Handler Control Board

2 1 Installer's Guide

1. Safety Considerations

2. Inspection

IMPORTANT: Follow all Warnings and Cautions in the air

handler Installer's Guide.

THE INFORMATION IN THIS GUIDE IS FOR USE BY

INDIVIDUALS HAVING ADEQUATE ELECTRICAL AND

MECHANICAL BACKGROUND. ANY ATTEMPTS, BY

UNQUALIFIED PERSONS, AT PLUMBING, INSTALLING

OR REPAIRING A HYDRONIC SYSTEM OR CENTRAL

AIR CONDITIONING PRODUCT COULD RESULT IN

PROPERTY DAMAGE, SEVERE PERSONAL INJURY OR

DEATH. THE MANUFACTURER OR SELLER CANNOT

BE RESPONSIBLE FOR THE INTERPRETATION OF THIS

INFORMATION, NOR CAN IT ASSUME ANY LIABILITY IN

CONNECTION WITH ITS USE.

ELECTRICAL HAZARD!

DISCONNECT ALL ELECTRICAL POWER, INCLUDING

REMOTE DISCONNECTS BEFORE INSTALLING OR

SERVICING. FOLLOW PROPER LOCKOUT/TAGOUT

PROCEDURES TO ENSURE THE POWER CAN NOT

BE INADVERTENTLY ENERGIZED. FAILURE TO

FOLLOW THIS WARNING COULD RESULT IN SERIOUS

PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE.

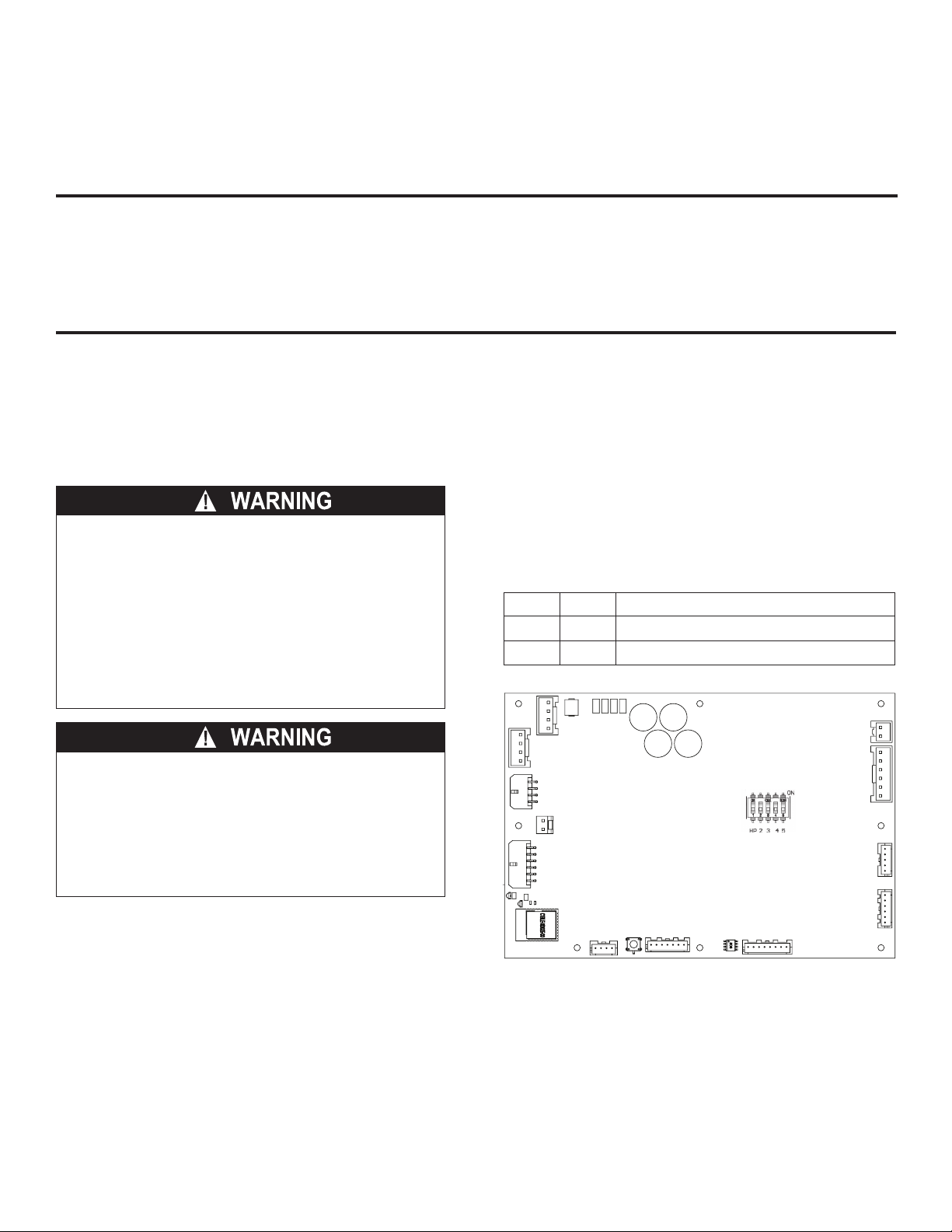

4. Kit Contents

Air Handler Control Board

INSTALLER'S GUIDE

2 18-GJ92D1-1A-EN

5. GET THE APP:

The Diagnostics Mobile App can be found in your device

App Store when searching for Trane Diagnostics or

American Standard Diagnostics. A QR code can be

scanned which sends you directly to the location:

Technician will need Comfortsite or AS Dealernet

credentials to use this tool.

6. Replacement AHC Configuration – 24 volt mode

Replacement AHC boards need programmed and will

not run without configuration IN 24 Volt Mode. There are

2 ways to perform the configuration. 1 of the methods

is required to get the unit running. Combining 2 or more

methods will result in unwanted operation.

1. The most complete configuration will be accomplished

using the Diagnostics Mobile App. In this app, there

are configurations for the model number, blower delays

and accessories.

2. There is a Button Press method to configure the size

of the air handler and is accomplished by pressing

the S1 button on the bottom of the control board in a

sequence explained in this document.

Only 1 of these methods should be used.

After conguration, power cycle the air

handler.

Method #1:

18-GJ92D1-1A-EN 3

INSTALLER'S GUIDE

7. Button Press AHC Configuration Method: Method #2

Replacement AHC will need to be configured for unit size. Airflow will be set at 400 cfm/ton based on unit size configura-

tion. These configurations can be done through the Diagnostics Mobile App with no manual steps or can be done manu-

ally without the Diagnostics Mobile App.

Step Manual Program Unit Model Size Red LED Status

1 Hold J13 BLE button down for 5 seconds and release Red LED will be off

2 Now entering programming 1 Red LED flash alerts user that it is now able to

program

3 If a configuration is present, will announce now Red LED will be off if no configuration is present

4If no configuration is present, AHC will inform you it is

ready to program 5 quick Red LED flashes

After 5 quick flashes, start programming within 2 sec-

onds by pressing J13 button. Red LED will also flash

with each button press

1 press= TAMXB0A24

2 press= TAMXB0B30

3 press= TAMXB0C36

4 press= TAMXB0C42

5 press= TAMXB0C48

6 press= TAMXB0C60

62 seconds after the last button press, the Red LED

will flash 1 time to acknowledge programming

Red LED will now flash the number of times you

pressed to confirm your configuration. If you pro-

grammed the wrong size, within 2 seconds, start

step 5 over

If the configuration is correct and the BLE button has

not been pressed for 2 seconds, Red LED will an-

nounce successful programming.

After conguration, power cycle the air

handler.

Red LED will turn on for 5 seconds announcing the

configuration has been stored in NV memory cor-

rectly. Red LED will be on for only 2 seconds if not

stored properly. Programming is complete.

8. Replacement AHC Configuration – LINK Communicating Mode:

The System Controller (SC360) will load important parameters in communicating mode and no interaction is necessary

when replacing the AHC. IF the AHC and the System Controller (SC360) need replaced at the same time - contact your

local FSR or technical support agent.

Table 1: Conguration for Replacement AHC

About Trane and American Standard Heating and Air Conditioning

Trane and American Standard create comfortable, energy efficient indoor environments for residential applications.

For more information, please visit www.trane.com or www.americanstandardair.com

The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without

notice. We are committed to using environmentally conscious print practices.

18-GJ92D1-1A-EN 21 Oct 2022
