Trane TAYSTAT 540 Manuale utente

OWNER’S GUIDE

Pub.No. 22-5185-01

Programmable Heat-Pump Thermostat

TAYSTAT 540

69-1229

2Pub. No. 22-5185-01

69-1229

FEATURES

The Trane Co. sells comfort systems.

Comfort is achieved through matching the

correct equipment and controls. This

thermostat is designed to provide the

maximum comfort for your needs.

Some of the basic offerings are:

•Program up to four time periods and

temperature settings to complement

your lifestyle.

•Set different schedules for weekdays

and weekends.

•Programs are permanently held in

memory in the event of a power failure.

•Indefinite temperature hold.

•Preprogrammed for your convenience.

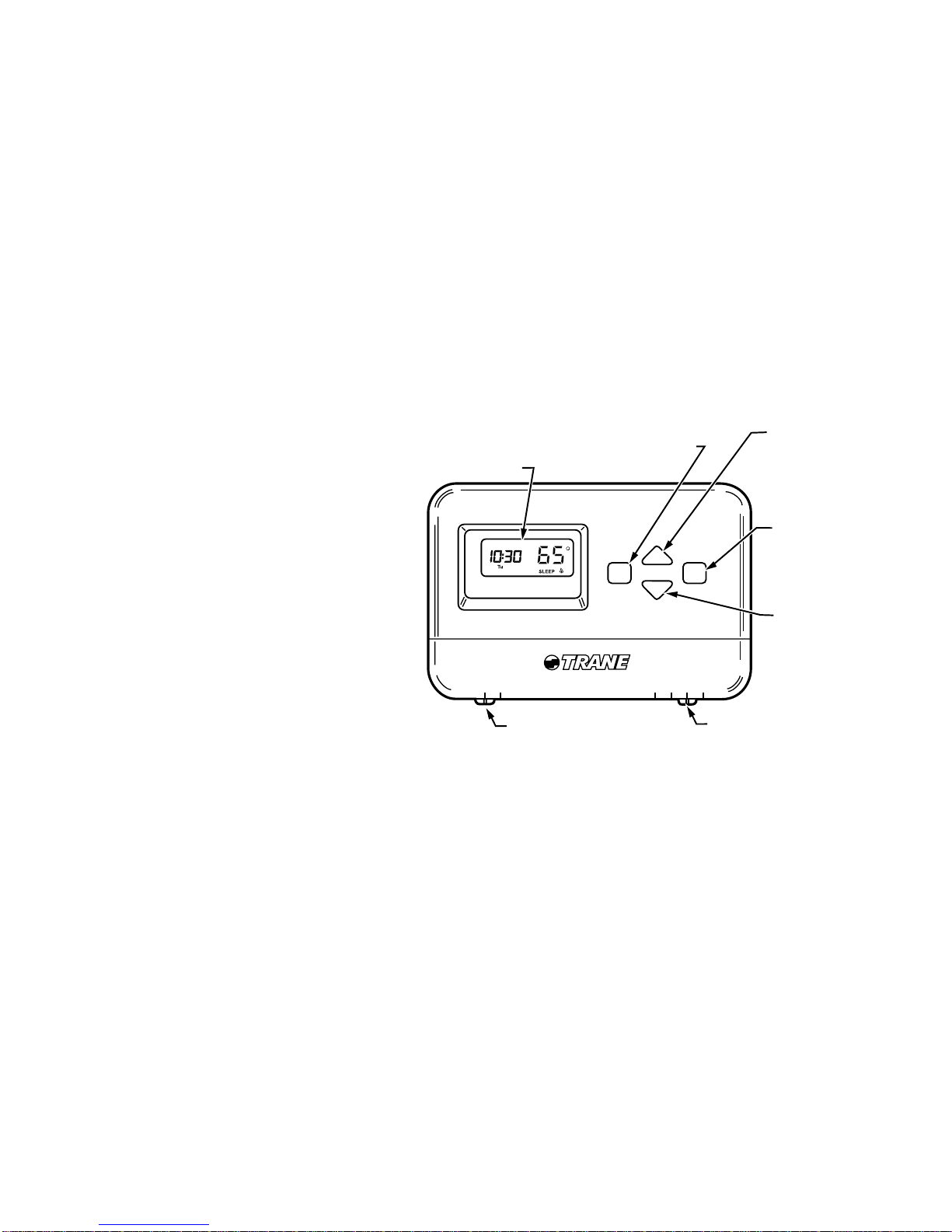

M14312

FAN SYSTEM

Auto On Cool Off Heat Em. Ht.

Hold Select

DECREASE KEY:

DECREASE

TEMPERATURE,

SET TIME, OR SCROLL

BACKWARD THROUGH

DAYS OF WEEK.

SELECT KEY: SET

CURRENT DAY AND

TIME, OR SET

PROGRAM DAY

AND TIME.

INCREASE KEY:

INCREASE

TEMPERATURE,

SET TIME, OR SCROLL

THROUGH DAYS OF WEEK.

HOLD KEY OVERRIDES PROGRAM

OR HOLDS TEMPERATURE INDEFINITELY.

LCD DISPLAY

FAN SWITCH

AUTO: FAN RUNS ONLY

WHEN SYSTEM OPERATES.

ON: FAN RUNS

CONTINUOUSLY.

SYSTEM SWITCH. SLIDE TO

COOL, OFF, OR HEAT FOR

PROGRAMMING. SLIDE TO

COOL, OFF, HEAT, OR EM. HT.

FOR CURRENT SETTING.

3Pub.No. 22-5185-01

69-1229

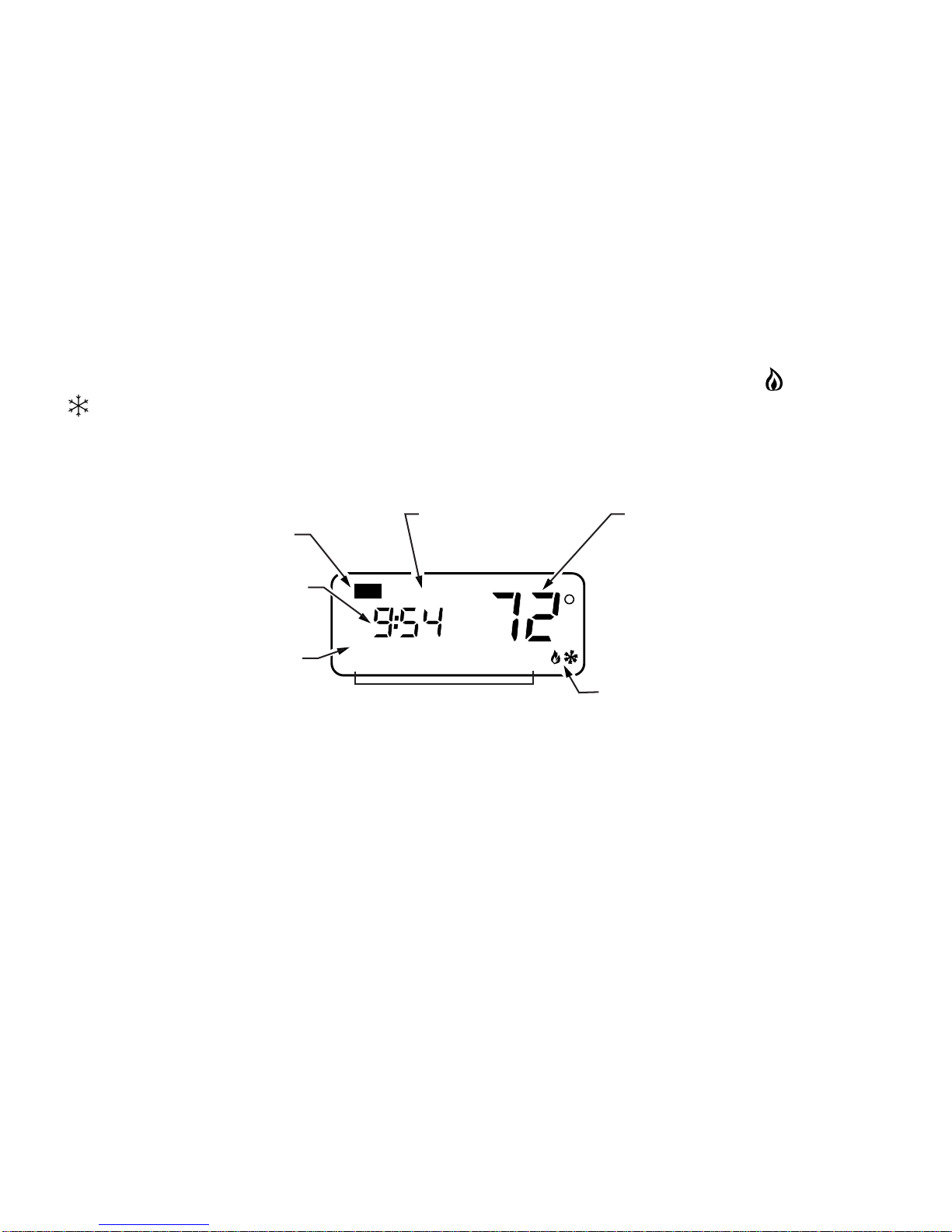

Your thermostat displays the current day, time, period, temperature and system ( for heating

or for cooling) in normal mode. In programming mode, only the setting or settings being

programmed display. For example “Sa Su” (Saturday Sunday) displays while programming the

weekend schedule. All settings are explained below:

TEMPORARY

M14308

SET

Mo Tu We Th Fr Sa Su

WAKE LEAVE RETURN SLEEP

DURING NORMAL MODE, THE

CURRENT PERIOD DISPLAYS.

DURING PROGRAMMING,THE

PERIOD BEING PROGRAMMED

DISPLAYS (WAKE, LEAVE,

RETURN OR SLEEP).

FLAME DISPLAYS DURING

HEATING OR WHILE

PROGRAMMING HEATING

SETPOINT. SNOWFLAKE

DISPLAYS DURING COOLING

OR WHILE PROGRAMMING

COOLING SETPOINT.

CURRENT TEMPERATURE

DISPLAYS.HEATING AND

COOLING SETPOINT DISPLAYS

DURING PROGRAMMING.

TEMPORARY DISPLAYS

DURING TEMPORARY

TEMPERATURE HOLD.

SET DISPLAYS

WHILE SETTING

THE CLOCK.

CURRENT TIME DISPLAYS

IN NORMAL MODE. PERIOD

START TIME DISPLAYS IN

PROGRAMMING MODE.

CURRENT DAY DISPLAYS

IN NORMAL MODE.

MONDAY THROUGH FRIDAY

DISPLAY DURING WEEKDAY

PROGRAMMING MODE.

SATURDAY AND SUNDAY

DISPLAY DURING WEEKEND

PROGRAMMING MODE.

4Pub. No. 22-5185-01

69-1229

PROGRAMMING YOUR

THERMOSTAT

CLOCK

Setting the Current Day and Time

To set or reset the current day and time,

follow these instructions.

IMPORTANT

Always press the keys with your

fingertip or similar blunt tool. Sharp

objects like pen and pencil points will

damage the keyboard.

Note: To exit the programming mode at

any time, press Hold.

1. To set Current Time, press Select twice.

Press ▲or ▼to set current time.

Note: While setting the current time, SET

displays.

2. To set Day of Week, press Select

again. Press ▲or ▼to set current day.

SET

M12591

3. Press Hold to exit programming mode.

M12593

SET

5Pub.No. 22-5185-01

69-1229

Organizing Your Schedule

Your thermostat can be set for four time periods (Wake, Leave, Return, and Sleep) for the

weekday schedule (Monday through Friday), and four time periods for the weekend schedule

(Saturday and Sunday). Without additional programming, your thermostat follows the same

preprogrammed schedule for both weekdays and weekends (see Table 1).

WAKE Choose the time you want your heating or cooling system to start to

reach your comfort temperature after the SLEEP period.

How? Consider the time required to reach your comfort level. Adjust the

Wake time to earlier when you know it will take the system longer to

reach your comfort temperature.

LEAVE Choose the time you want your heating or cooling system to start an

energy-saving mode while you are away at work or school.

How? Set the Leave temperature lower during heating season, and

higher during cooling season.

6Pub. No. 22-5185-01

69-1229

RETURN Choose the time you want your heating or cooling system to start to

reach your comfort temperature after the energy-savings LEAVE

period.

How? Consider the time required to reach your comfort level. Adjust the

Return time to earlier when you know it will take the system longer to

reach your comfort temperature.

SLEEP Set the time you want your heating or cooling system to start to reach

your sleep temperature.

To use this period as an energy-savings mode, set the temperature

lower during heating season, and higher during cooling season.

7Pub.No. 22-5185-01

69-1229

The preprogrammed schedule is shown in Table 1. You may keep this schedule or organize your

own. Schedules are adjustable as often as you wish. If you decide to keep this schedule, no

further programming is necessary.

Table 1. Preprogrammed Weekday and Weekend Schedule.

Period Time Heat Setpoint Cool Setpoint

Wake 6:00 AM 70°F (21°C) 78°F (26°C)

Leave 8:00 AM 62°F (17°C) 85°F (29°C)

Return 5:00 PM 70°F (21°C) 78°F (26°C)

Sleep 10:00 PM 62°F (17°C) 75°F (24°C)

To begin programming your weekday and weekend schedules, fill in Tables 2 and 3.

8Pub. No. 22-5185-01

69-1229

Customizing Your Weekday Schedule

Use Table 2 to organize your weekday schedule. Fill in the times and temperatures you want to

program. The names of the four periods are filled in for you.

Table 2. Your Weekday Schedule.

Period

Start Time

Heating

Temperature

Cooling

Temperature

Wake

Leave

Return

Sleep

9Pub.No. 22-5185-01

69-1229

Customizing Your Weekend Schedule

Use Table 3 to organize your weekend schedule. Fill in the times and temperatures you want to

program. The names of the four periods are filled in for you.

Table 3. Your Weekend Schedule.

Note: Start Time is the time your thermostat begins to reach the desired temperature.

Note: The thermostat cannot be set higher than 99°F (37°C) or lower than 50°F (10°C).

Period

Start Time

Heating

Temperature

Cooling

Temperature

Wake

Leave

Return

Sleep

10 Pub. No. 22-5185-01

69-1229

Setting the Weekday Program

IMPORTANT

Always press the keys with your

fingertip or similar blunt tool. Sharp

objects like pen and pencil points will

damage the keyboard.

1. Slide the SYSTEM switch to the setting

you want to program (Heat or Cool).

Throughout programming, the thermo-

stat displays a flame (heating) or

snowflake (cooling) to help you

identify which mode you are program-

ming. At the end of Setting the Week-

end Program, you are prompted to

return to this step to program the

opposite mode. Example shows Cool

setting.

NOTE: To exit the programming mode at

any time, press Hold (the thermostat

saves your changes).

M17336

FAN

Auto On

Hold Select

SYSTEM SWITCH

SYSTEM

Cool Off Heat Em. Ht.
