Transcend TS160GSJ25M Manuale utente

t®

SATA HDD Enclosure

Transcend Information Inc.

Description

This device is designed to expedite exchanging huge

amounts of data between Transcend StoreJet®and any

desktop or notebook computer.

System Requirements

•Desktop or notebook computers with USB port

•One of following operating systems:

Windows2000/XP/Vista, Mac OS 9.0 or above

Linux Kernel 2.4.2 or above

Placement

Features

•Hi-Speed USB 2.0 compliant and USB 1.1 backwards

compatible

•Easy Plug and Play installation

•Ultra-Portability

•High transfer rate up to 480 Mbits per second

•Additional software pack: StoreJet®elite (helps you manage

your data)

•OneTouch Auto-Backup function

•Security: Protect your HDD and data with password

•Powered via the USB port. No external power or battery

needed

•LED indicates power on and data access

•Recommended operating temperature: 5°C ~ 55°C

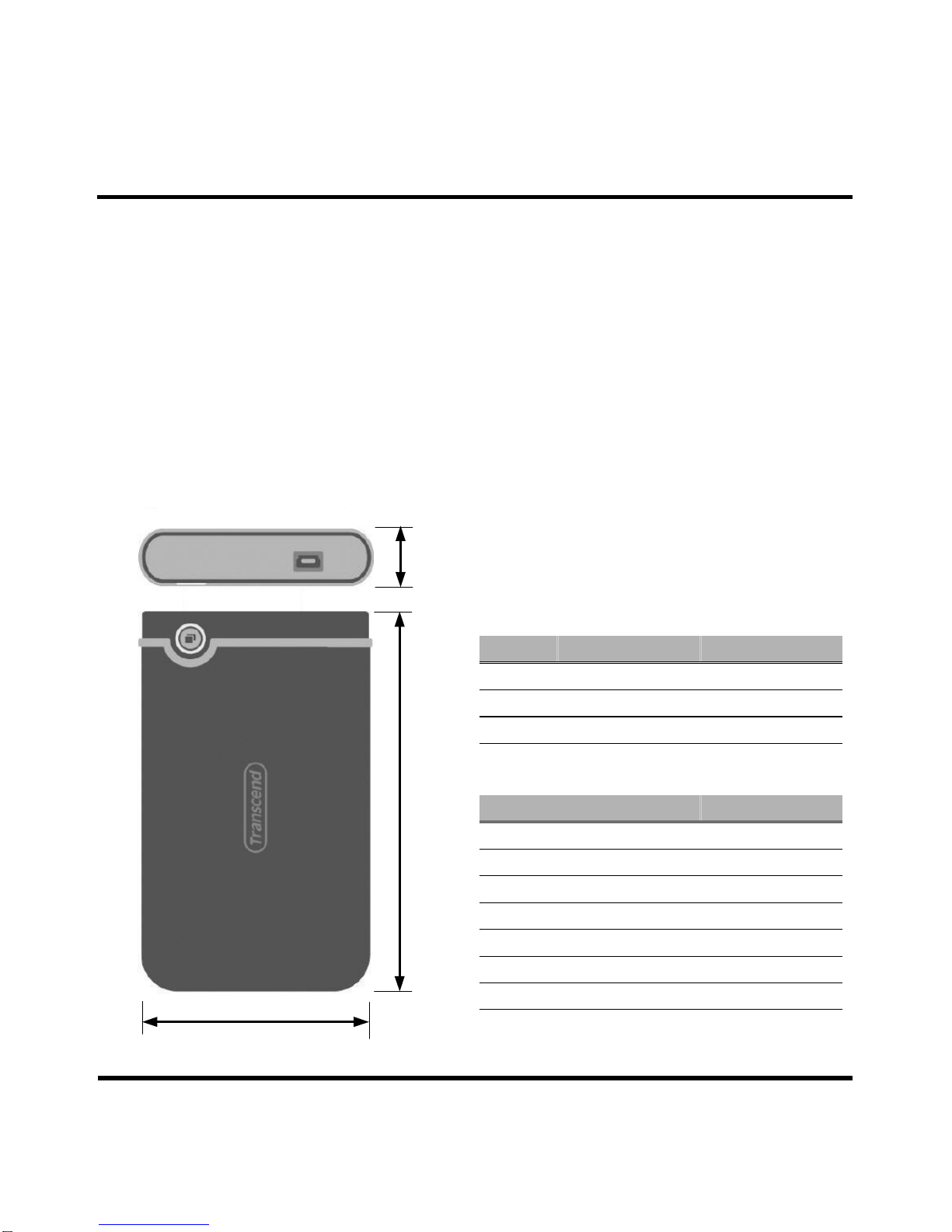

Dimensions

Side Millimeters Inches

A 134.00 ±1.00 5.276 ±0.04

B 80.80

±1.00 3.181 ±0.04

C 18.80 ±1.00 0.740 ±0.04

Ordering Information

Transcend P/N Capacity

TS160GSJ25M 160GB

TS250GSJ25M 250GB

TS250GSJ25M-R 250GB

TS320GSJ25M 320GB

TS320GSJ25M-R 320GB

TS500GSJ25M 500GB

TS500GSJ25M-R 500GB

t®

SATA HDD Enclosure

Transcend Information Inc.

Block Diagram

t®

SATA HDD Enclosure

Transcend Information Inc.

Pinouts

Pin No. Pin Name

01 VCC

02 USB-

03 USB+

04 VSS

Pin Identification

Symbol Function

USB- USB differential signal

USB+ The pairs are used to transmit

Data/Address/Command

VCC USB Cable Power Detector

VSS Ground

Specifications

Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes no warranty, either expressed or

implied, as to its accuracy and assumes no liability in connection with the use of this product. Transcend reserves the right to make changes in

specifications at any time without prior notice.

Environment

Storage Media 2.5 inch SATA Hard Disk

Temperature Operation 5 ℃to 55 ℃

Storage

-20 ℃to 60 ℃

Power Supply USB DC 5 Volt

Power Consumption 1090mA (Max.)

Size (L x W x H) 134.00mmx80.80mmx18.80mm

Weight With Hard Drive 206g

Certificates CE, FCC, BSMI
