Transcend TS2GIFD25 Manuale

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

Description

Ideal for use in harsh environments. Transcend’s

2.5” IDE Flash Disks are the best choice for your

specialized industrial computer equipment.

Placement

Features

• RoHS compliant

•Fully compatible with devices and OS that support the

IDE standard (44-Pin, pitch = 2.00 mm)

•Non-volatile Flash Memory for outstanding data

retention

•Built-in ECC (Error Correction Code) functionality and

wear-leveling algorithm ensures highly reliable of data

transfer

•Supports up to PIO Mode 6 and Ultra DMA Mode 4

•Auto Standby and Sleep Mode supported

•Lower Power Consumption

•Shock resistance

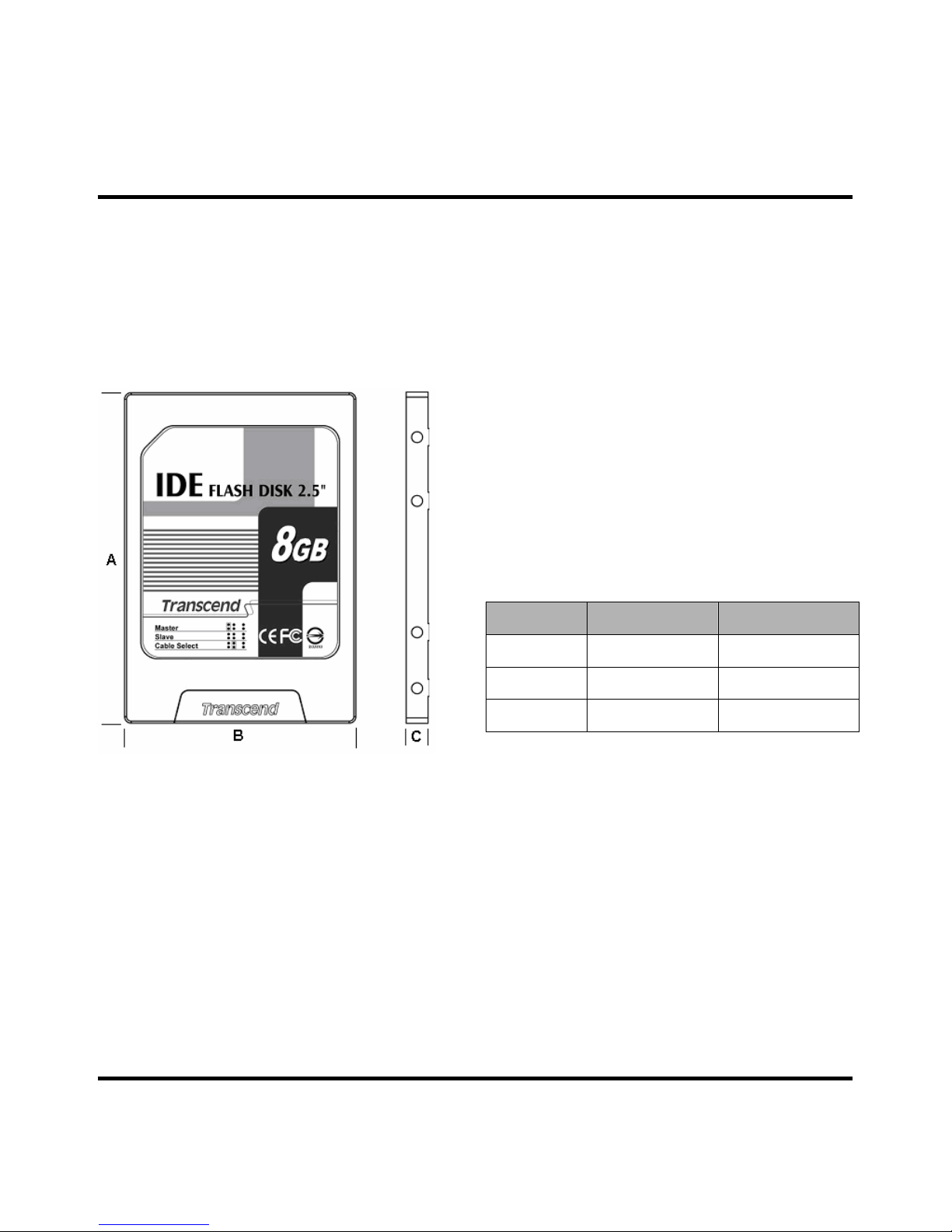

Dimensions

Side Millimeters Inches

A 100.00 ±0.40 3.937 ±0.016

B 69.85 ±0.20 2.750 ±0.008

C 7.40 ±0.15 0.292 ±0.004

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

Specifications

* Note: Base on TS8GIFD25

Physical Specification

Form Factor 2.5-inch HDD

Storage Capacities 2 GB to 8 GB

Length 100.0 0 ±0.40

Width 69.85 ±0.20

Dimensions (mm)

Height 7.40 ±0.15

Weight 80 g

Connector 44-Pin standard IDE/ATA connector (Pitch 2.0 mm)

Power Requirements

Input Voltage DC 5V ±5 %

Mode TYP (mA) MAX (mA)

Write 118 133.4

Standby 21.8 88.0

Power Consumption

(@25℃)

Sleep 17.3 20.6

Environmental Specifications

Operating Temperature 0 ℃to 70 ℃

Storage Temperature - 40 ℃to 85 ℃

Reliability

Data Reliability Built-in 4 symbol correction ECC (per 512 bytes Sector)

Data Retention 10 years

Connector Durability 10,000 times

MTBF 5,200,000 hours

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

* Note: 25 ℃, GIGABYTE GA-81945GZME-RH, 512MB RAM, IDE interface support UDMA4, Windows®2000 Version

5.00.2195 SP4, benchmark utility HDBENCH (version 3.4003), copied file 100MB

* Note: 2GB FAT format, 4/8GB FAT32 format

Interface Specification

Jumper Settings Master/Slave/Cable-select Settings

Drivers No Device Driver Required

ATA/ATAPI 5

PIO Modes 0 - 6

ATA Compatibility

UDMA Modes 0 - 4

Performance

Model P/N Capacity Read Write Random Read Random Write Burst R/W Rate

TS2GIFD25 2GB 26.5 MB/s 11.5 MB/s 23.0 MB/s 2.7 MB/s 66.7 MB/s

TS4GIFD25 4GB 26.0 MB/s 11.0 MB/s 22.0 MB/s 2.2 MB/s 66.7 MB/s

TS8GIFD25 8GB 20.4 MB/s 11.0 MB/s 17.6 MB/s 2.9 MB/s 66.7 MB/s

Actual Capacity

Model P/N Capacity Cylinder Head Sector

TS2GIFD25 2GB 3954 16 63

TS4GIFD25 4GB 7889 16 63

TS8GIFD25 8GB 15778 16 63

Regulations

Compliance CE, FCC and BSMI

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

* Note: Reference to the IEC 60068-2-6 Testing procedures; Operating-Sine wave, 5-800Hz/1 oct., 1.5mm, 3g, 0.5

hr./axis, total 1.5 hrs.

* Note: Reference to the IEC 60068-2-27 Testing procedures; Operating-Half-sine wave, 1500g, 0.5ms, 3 times/dir., total

18 times.

Vibration

Operating 3.0G, 5 - 800Hz

Non-Operating 3.0G, 5 - 800Hz

Shock

Operating 1500G, 0.5ms

Non-Operating 1500G, 0.5ms

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

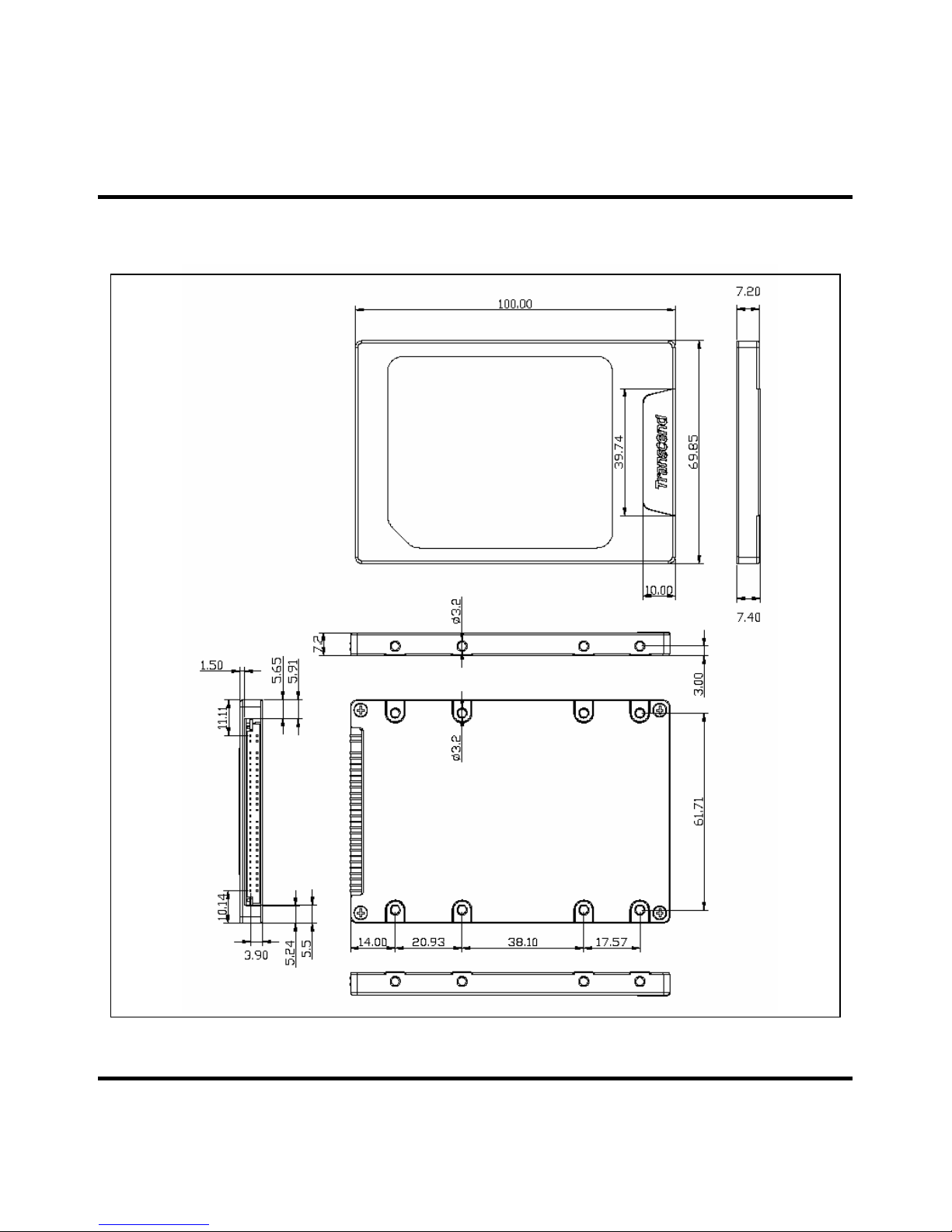

Package Dimensions

Below figure illustrates the Transcend 2.5” IDE Flash Disk. All dimensions are in mm

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

Pin Assignments

Pin No. Pin Name Pin No. Pin Name

01 -RESET 02 GND

03 DD7 04 DD8

05 DD6 06 DD9

07 DD5 08 DD10

09 DD4 10 DD11

11 DD3 12 DD12

13 DD2 14 DD13

15 DD1 16 DD14

17 DD0 18 DD15

19 GND 20 KEY-PIN (OPEN)

21 DMARQ 22 GND

23 -DIOW : STOP 24 GND

25 -DIOR : -HDMARDY : HSTROBE 26 GND

27 IORDY : DDMARDY : DSTROBE 28 CSEL

29 -DMACK 30 GND

31 INTRQ 32 IOCS16B

33 DA1 34 -PDIAG : -CBLID

35 DA0 36 DA2

37 -CS0 38 -CS1

39 -DASP 40 GND

41 VCC 42 VCC

43 GND 44 NC (No Connect)

Pin Layout

C A

D B

Master

C A

D B

Slave

C A

D B

Cable Select

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

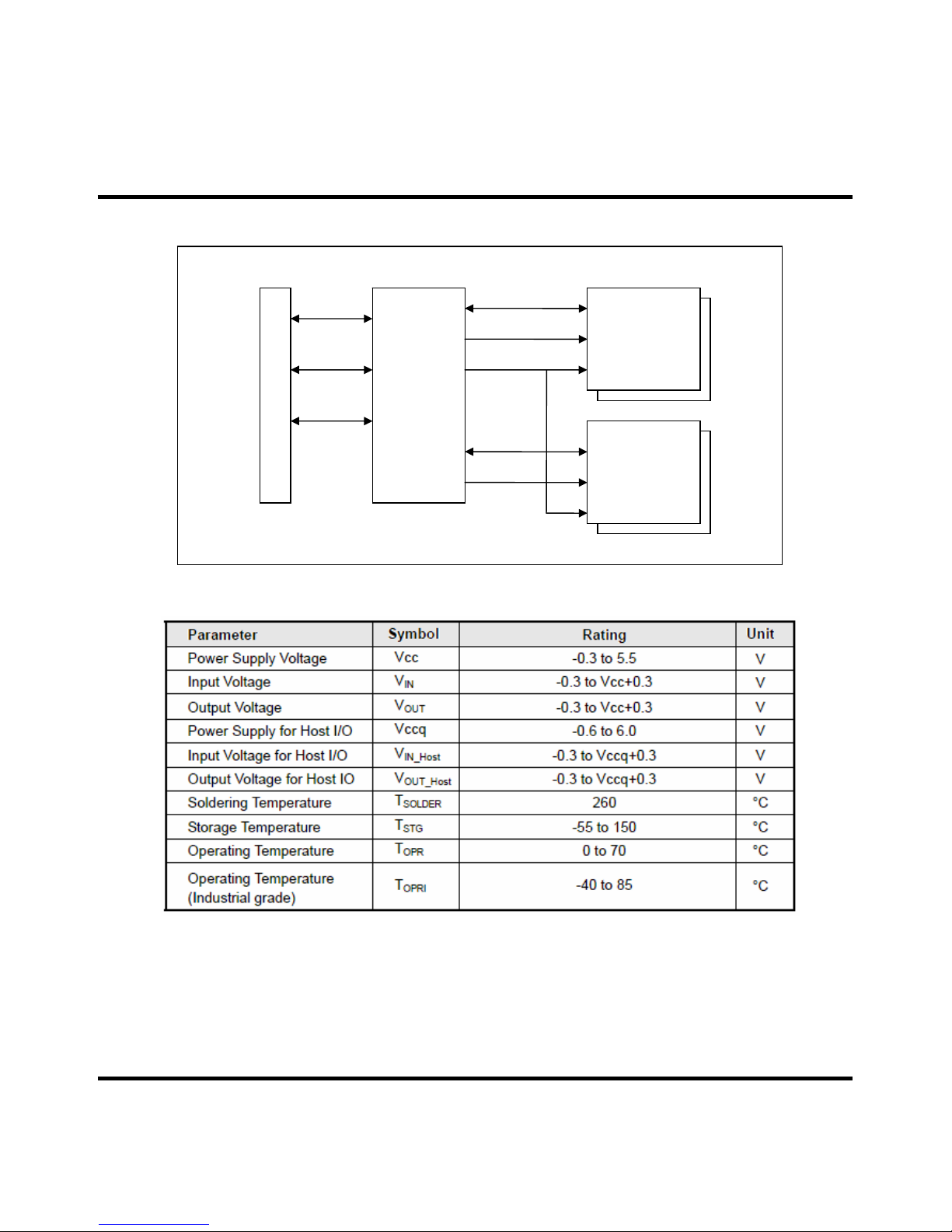

Block Diagram

Absolute Maximum Ratings

IDE

Flash Disk

Controller

Flash Memory

D0 – D7

-CE0

-CE1

-WE…-RE

44 PIN IDE Connector

Flash Memory

D0 – D7

-CE0

-CE1

-WE…-RE

D00 ~ D07

D10 ~ D17

-CE0, -CE2…

-CE1, -CE3…

Data bus

Control

Signal

Power

Others

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

DC Characteristics

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

Command Set

The following table summarizes the command defined in the ATAPI-5 specification and lists the commands supported

by the TS2/4/8GIFD25.

Note 1: FR (Feature Register), SC (Sector Count Register), SN (Sector Number Register), CY (Cylinder Low/High

Address Mode supported). Y: Set up; －: Not set up; C: The register contains command specific data.

2.5” IDE FLASH DISK

Transcend Information Inc.

V1.02

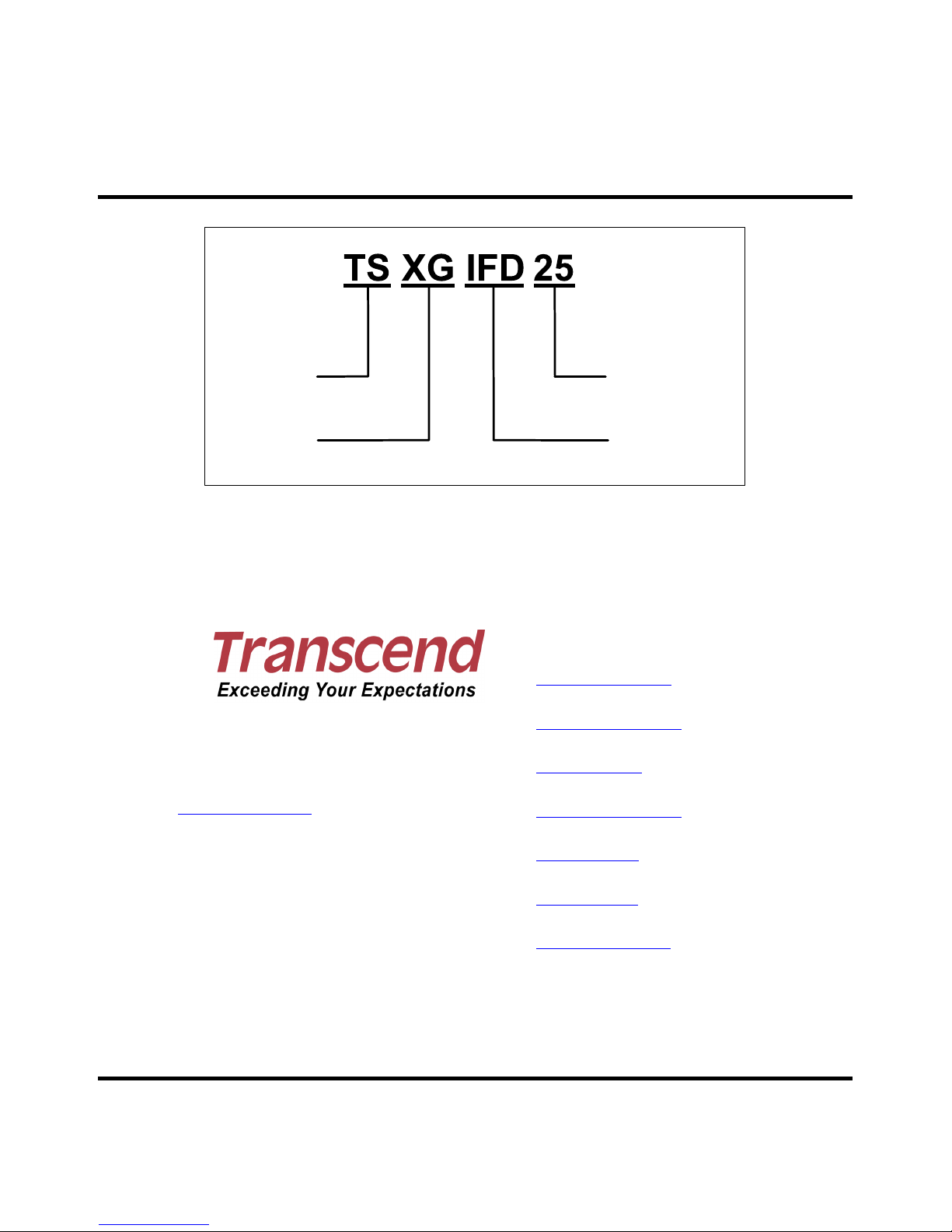

Ordering Information

Transcend

Product

IDE Flash Disk

Capacity

2GB~8GB

25 = 2.5" inch

Form Factor:

The above technical information is based on industry standard data and has been tested to be reliable. However,

Transcend makes no warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with

the use of this product. Transcend reserves the right to make changes to the specifications at any time without prior notice.

USA

Los Angeles:

E-mail: [email protected]

Maryland:

E-mail: sales_md@transcendusa.com

www.transcendusa.com

CHINA

E-mail: sales@transcendchina.com

www.transcendchina.com

GERMANY

E-mail: vertrieb@transcend.de

www.transcend.de

HONG KONG

E-mail: [email protected]

www.transcendchina.com

JAPAN

E-mail: [email protected]

www.transcend.jp

THE NETHERLANDS

E-mail: sales@transcend.nl

www.transcend.nl

TAIWAN

No.70, XingZhong Rd., NeiHu Dist., Taipei, Taiwan, R.O.C

TEL +886-2-2792-8000

Fax +886-2-2793-2222

E-mail: [email protected]

www.transcend.com.tw

United Kingdom

E-mail: sales@transcend-uk.com

www.transcend-uk.com
