Transcend Tsonic 630 1GB Manuale utente

TS1G/2G/4GMP630

Description

TS1G/2G/4GMP630 is a 1GB/2GB/4GB

USB Flash Drive with 1 pcs of

1Gx8/2Gx8/4Gx8 Flash Memory

assembled on the printed circuit board. It

combines a USB Flash Drive with an MP3

player, AB repeater, voice recorder and

an FM radio.

Outline

Dimensions

Side Millimeters

A 73.00 ± 0.20

B 33.00 ± 0.20

C 12.50 ± 0.20

Features

 MP3 Player that supports MP3, WMA,

WMA-DRM10 (subscription music)

and WAV music formats

 FM Radio (FM Radio recording and

the ability to preset 20 FM radio

stations)

 Advanced Digital Voice Recorder:

specify an individual (memo), or group

(meeting) environment

 One-Touch Recording: even when

Powered OFF, press and hold the

REC button to start the Built-in

Microphone Recording

 Karaoke-type lyrics display

 Direct Line-In recording from a CD

Player, or external Microphone

 Brilliant, White text (4-Line) OLED

Display produces a vibrant clear

display, easily viewed at any angle

and in any light

 Scheduled Recordings: preset a time

to auto-start a Radio, or Microphone

recording

 VAD (Voice Activation Detection), Very

High quality Gapless Audio

Recordings

 Playlist Builder

 A-B repeat function allows you to

continuously replay a designated

section of a track

 Variable Track Playback speeds

 Supports 12 user languages including

song/artist name display

 USB Flash Drive capabilities for data

transfer and storage, plus additional

software

 7 Equalizer effects, including a

customizable USER EQ setting

 Powered using a rechargeable Li-ion

battery (fully charged battery supports

over 15 hours of continuous operation)

 Hi-Speed Mini USB 2.0 port for easy

computer connectivity and fast file

transfers

 Sleep Mode, preset the player to

Auto-Power OFF after 15, 30, or 60

minutes

 Automatic screen saver runs if the unit

is idle for more than a few seconds,

this acts as a battery saving measure

 Real Time Clock (RTC) displays local

and world times

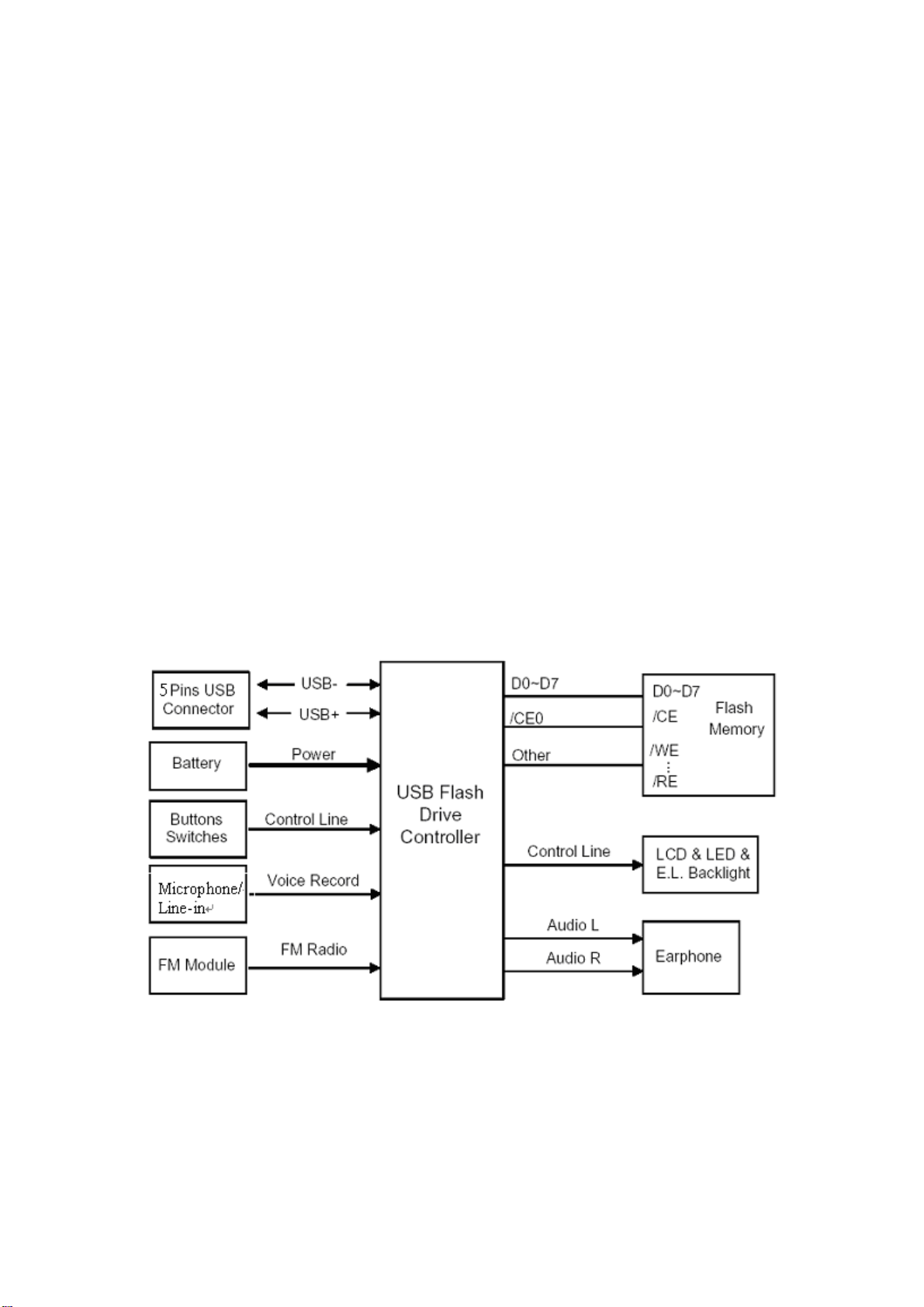

Block Diagram

With 1 pcs of 1G/2G/4Gx8 Flash Memory

1Gx8

2Gx8

4Gx8

Pinouts

Pin No. Pin Name

01 VCC

02 USB-

03 USB+

04 VSS

05 GND

Pin Identification

Symbol Function

USB+

USB- USB differential signal:

The pairs are used to transmit Data/Address/Command

VCC USB Power Input

VSS Ground

GND Ground

Specifications

• Host Interface USB2.0

• Storage 1GB/2GB/4GB

• Size: 73 mm × 33 mm × 12.5 mm

• Weight: 30g (with Li-ion battery)

• Data Retention: Up to 10 years

• Erase Cycles: ≧100,000 times

• Signal-to-Noise Ratio: ≧90dB

• Power Supply USB mass storage: DC5V ±10%

MP3 Player: 3.7V Li-ion battery

• Estimated Battery Life: 15 hours (Li-ion battery)

• Music Formats: MP3 WMA and WMA-DRM10 (Subscription

music)

• Recording Format: ADPCM (WAV)

• Compression Rates: 32Kbps–320Kbps

• Certificates: CE, FCC, BSMI

• Warranty: 2-years
