128M~2GB miniSD Memory Card

Transcend Information Inc.

Description

miniSD Card is a compact, slim and high capacity

storage media with copyright protection. Designed in

advanced SD specification Ver.1.1, TS2GSDM80

now reaches a new performance milestone. Based on

0.18um process controller and high quality SLC

(Single-Level-Cell) NAND Flash chip, TS128M~

2GSDM80 can provide high performance ,low power

consumption yet excellent reliability.

Placement

Front Back

Features

•Storage Capacity: 2GB(2GX8bit,2KB/page )

•Operating Voltage: 2.7 ~ 3.6V

•Operating Temperature: -25 ~ 85°C

•Maximum Data Transfer Rate:

Read:12MB/sec,Write:11MB/sec

•Insertion/removal durability: 10,000 cycles

•Fully compatible with SD card spec. v1.1

•Forward compatibility to MultiMediaCard Version 2.11

•Supports Copy Protection for Recorded Media(CPRM) for

music and other commercial media

•Form Factor: 21.5mm x 20mm x 1.4mm

9 1 2 3 10 11 4 5 6 7 8 Pin Definition

No. Name Type Description

1 CD/DAT3 I/O/PP3Card Detect/Data Line [Bit3]

2 CMD PP Command/Response

3 VSS1 S Supply voltage ground

4 VDD S Supply voltage

5 CLK I Clock

6 VSS2 S Supply voltage ground

7 DAT0 I/O/PP Data Line [Bit0]

8 DAT1 I/O/PP Data Line [Bit1]

9 DAT2 I/O/PP Data Line [Bit2]

10 NC4I/O/PP For Future Use

11 NC4I/O/PP For Future Use

128M~2GB miniSD Memory Card

Transcend Information Inc.

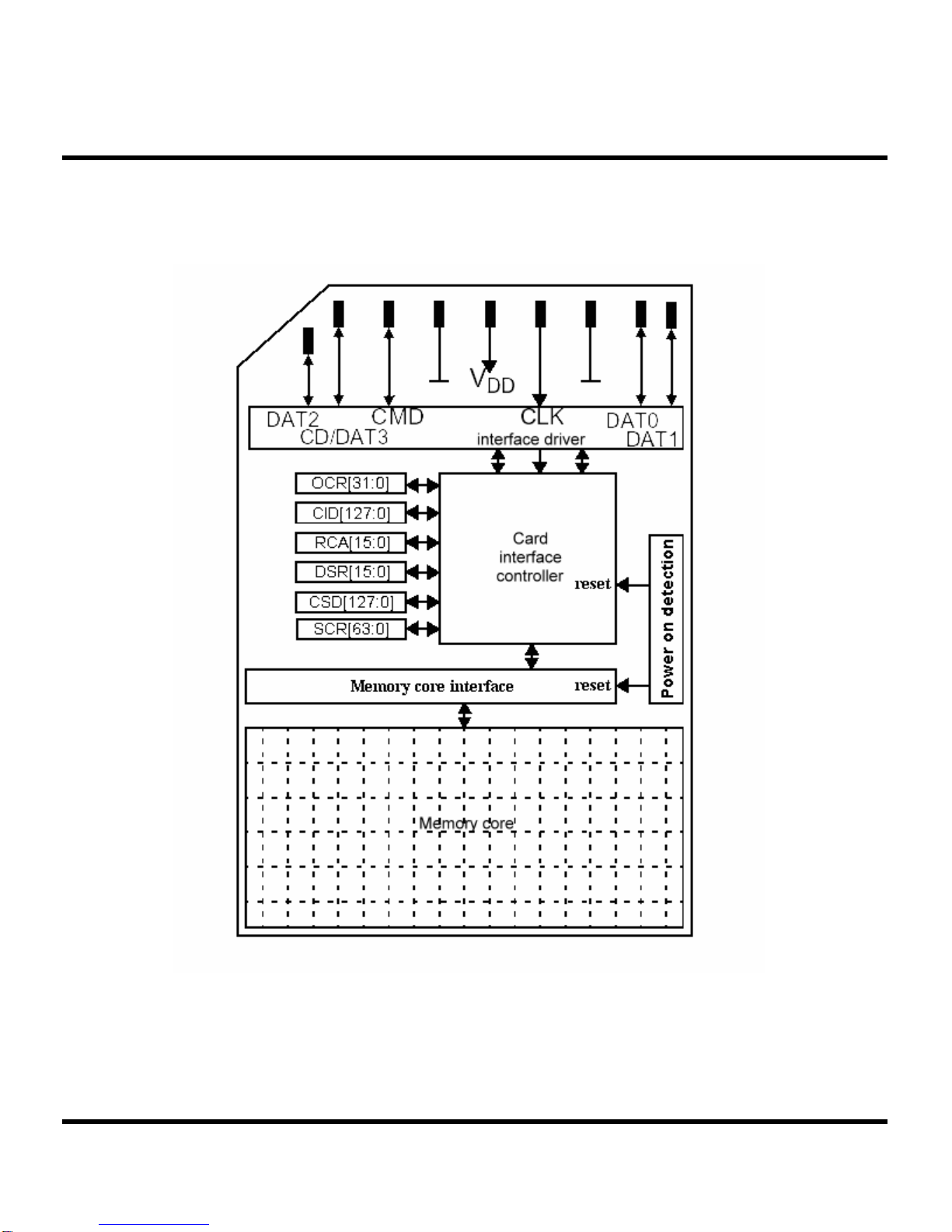

Architecture

128M~2GB miniSD Memory Card

Transcend Information Inc.

Bus Operating Conditions

• General

Parameter Symbol Min. Max. Unit Remark

Peak voltage on all lines -0.3 VDD+0.3 V

All Inputs

Input Leakage Current -10 10 µA

All Outputs

Output Leakage Current -10 10 µA

• Power Supply Voltage

Parameter Symbol Min. Max. Unit Remark

Supply voltage VDD 2.0 3.6 V CMD0, 15,55,ACMD41

commands

Supply voltage specified in OCR register 2.7 3.6 V Except CMD0, 15,55,

ACMD41 commands

Supply voltage differentials (VSS1, VSS2) -0.3 0.3 V

Power up time 250 ms From 0v to VDD Min.

Note. The current consumption of any card during the power-up procedure must not exceed 10 mA.

• Bus Signal Line Load

The total capacitance CLthe CLK line of the SD Memory Card bus is the sum of the bus master capacitance CHOST, the bus

capacitance CBUS itself and the capacitance CCARD of each card connected to this line:

CL= CHOST + CBUS + Ν*CCARD

Where N is the number of connected cards. Requiring the sum of the host and bus capacitances not to exceed 30 pF for

up to 10 cards, and 40 pF for up to 30 cards, the following values must not be exceeded:

Parameter Symbol Min. Max. Unit Remark

Bus signal line capacitance CL100 pF fPP ≤ 20 MHz, 7 cards

Single card capacitance CCARD 10 pF

Maximum signal line inductance 16 nH fPP ≤ 20 MHz

Pull-up resistance inside card (pin1) RDAT3 10 90 kΩMay be used for card

detection

Note that the total capacitance of CMD and DAT lines will be consist of CHOST, CBUS and one CCARD only since they are

connected separately to the SD Memory Card host.

Parameter Symbol Min. Max. Unit Remark

Pull-up resistance RCMD, RDAT 10 100 kΩTo prevent bus floating

Bus signal line capacitance CL250 pF fPP ≤ 5 MHz, 21 cards

128M~2GB miniSD Memory Card

Transcend Information Inc.

• Bus Signal Levels

As the bus can be supplied with a variable supply voltage, all signal levels are related to the supply voltage.

To meet the requirements of the JEDEC specification JESD8-1A, the card input and output voltages shall be within the

following specified ranges for any VDD of the allowed voltage range:

Parameter Symbol Min. Max. Unit Remark

Output HIGH voltage VOH 0.75*VDD V IOH = -100 μA @VDD min

Output LOW voltage VOL 0.125*VDD V IOL = -100 μA @VDD min

Input HIGH voltage VIH 0.625*VDD VDD + 0.3 V

Input LOW voltage VIL VSS – 0.3 0.25*VDD V

128M~2GB miniSD Memory Card

Transcend Information Inc.

• Bus Timing (Default)

Parameter Symbol Min Max. Unit Remark

Clock CLK (All values are referred to min (VIH) and max (VIL)

Clock frequency Data Transfer Mode fPP 0 25 MHz CL≤ 100 pF, (7 cards)

Clock frequency Identification Mode

(The low freq. is required for MultiMediaCard

compatibility.)

fOD 0 400 KHz CL≤ 250 pF, (21 cards)

tWL 10 ns CL≤ 100 pF, (7 cards)Clock low time

50 ns CL≤ 250 pF, (21 cards)

tWH 10 ns CL≤ 100 pF, (7 cards)Clock high time

50 ns CL≤ 250 pF, (21 cards)

Clock rise time tTLH 10 ns CL≤ 100 pF, (7 cards)

128M~2GB miniSD Memory Card

Transcend Information Inc.

50 ns CL≤ 250 pF, (21 cards)

tTHL 10 ns CL≤ 100 pF, (7 cards)Clock fall time

50 ns CL≤ 250 pF, (21 cards)

Inputs CMD, DAT (referenced to CLK)

Input set-up time tISU 5 ns CL≤ 25 pF, (1 cards)

Input hold time tIH 5 ns CL≤ 25 pF, (1 cards)

Outputs CMD, DAT (referenced to CLK)

Output Delay time during Data Transfer Mode tODLY 0 14 ns CL≤ 25 pF, (1 cards)

Output Delay time during Identification Mode tODLY 0 50 ns CL≤ 25 pF, (1 cards)

128M~2GB miniSD Memory Card

Transcend Information Inc.

• Bus Timing (High Speed Mode)

Parameter Symbol Min Max. Unit Remark

Clock CLK (All values are referred to min (VIH) and max (VIL)

Clock frequency Data Transfer Mode fPP 0 50 MHz

Clock low time tWL 7 ns

Clock high time tWH 7 ns

Clock rise time tTLH 3 ns

Clock fall time tTHL 3 ns

Inputs CMD, DAT (referenced to CLK)

Input set-up time tISU 6 ns

Input hold time tIH 2 ns

Outputs CMD, DAT (referenced to CLK)

128M~2GB miniSD Memory Card

Transcend Information Inc.

Output Delay time during Data Transfer Mode tODLY 14 ns

Output Hold time tOH 2.5 ns

Total System capacitance for each line CL40 pF

Reliability and Durability

Temperature Operation: -25°C / 85°C (Target spec)

Storage: -40°C (168h) / 85°C (500h)

Junction temperature: max. 95°C

Moisture and corrosion Operation: 25°C / 95% rel. humidity

Storage: 40°C / 93% rel. hum./500h

Salt Water Spray: 3% NaCl/35C; 24h acc. MIL STD Method 1009

Durability 10.000 mating cycles;

Bending 10N

Torque 0.15N.m or +/-2.5 deg

Drop test 1.5m free fall

UV light exposure UV: 254nm, 15Ws/cm² according to ISO 7816-1

Visual inspection

Shape and form

No warp page; no mold skin; complete form; no cavities surface smoothness <=

-0.1 mm/cm² within contour; no cracks; no pollution (fat, oil dust, etc.)

Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes no

warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.

Transcend reserves the right to make changes in specifications at any time without prior notice.
