Transcend TS2GUSD-P3 Manuale

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

Description

Transcend microSD card series are non-volatile,

which means no external power is required to retain

the information stored on it. Besides, it is also a

solid-state device that without moving parts to skip or

break down. Based on original NAND flash chip,

Transcend microSD can offer an incredible

combination of fast data transfer, great flexibility,

excellent security and incredibly small size.

Placement

Front Back

Features

•

ROHS compliant product.

•Operating Voltage: 2.7 ~ 3.6V

•Operating Temperature: -25 ~ 85°C

•Durability: 10,000 insertion/removal cycles

•Fully compatible with SD card spec. v1.1

•Comply with SD Association File System Specification

•Mechanical Write Protection Switch with microSD adapter

•SD Host allows MultiMediaCard upward compatibility

•Form Factor: 11mm x 15mm x 1mm

Pin Definition

SD Mode SPI Mode

Pin No.

Name Type Description Name Type Description

1 DAT2 I/O/PP

Data Line [Bit2] RSV Reserved

2 CD/DAT3 I/O/PP Card Detect / Data Line [Bit3] CS I Chip Select

3 CMD

PP Command / Response DI I Data In

4 V

S Supply voltage

VDD

Supply voltage

5 CLK I Clock SCLK I Clock

6 V

S Supply voltage ground

VSS

Supply voltage ground

7 DAT0 I/O/PP Data Line [Bit0] DO O/PP Data out

DAT1 I/O/PP Data Line [Bit1] RSV Reserved

S: Power Supply; I:Input; O:Output; PP:Push-Pull

1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 81 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

Architecture

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

Bus Operating Conditions

• General

Parameter Symbol

Min. Max. Unit Remark

Peak voltage on all lines -0.3 VDD+0.3

All Inputs

Input Leakage Current -10 10 µA

All Outputs

Output Leakage Current -10 10 µA

• Power Supply Voltage

Parameter Symbol

Min. Max. Unit Remark

Supply voltage V

2.0 3.6 V CMD0, 15,55,ACMD41

commands

Supply voltage specified in OCR register Except CMD0, 15,55,

ACMD41 commands

Supply voltage differentials (V

SS1

, V

SS2

) -0.3 0.3 V

Power up time 250 ms From 0v to V

Min.

Note. The current consumption of any card during the power-up procedure must not exceed 10 mA.

•

Bus Signal Line Load

The total capacitance C

the CLK line of the SD Memory Card bus is the sum of the bus master capacitance C

HOST

, the bus

capacitance C

BUS

itself and the capacitance C

CARD

of each card connected to this line:

= C

HOST

+ C

BUS

+ Ν*C

CARD

Where N is the number of connected cards. Requiring the sum of the host and bus capacitances not to exceed 30 pF for up

to 10 cards, and 40 pF for up to 30 cards, the following values must not be exceeded:

Parameter Symbol

Min. Max. Unit Remark

Bus signal line capacitance C

100 pF f

≤ 20 MHz, 7 cards

Single card capacitance C

CARD

10 pF

Maximum signal line inductance 16 nH f

≤ 20 MHz

Pull-up resistance inside card (pin1) R

DAT3

10 90 KΩMay be used for card

detection

Note that the total capacitance of CMD and DAT lines will be consist of C

HOST

, C

BUS

and one C

CARD

only since they are

connected separately to the SD Memory Card host.

Parameter Symbol

Min. Max. Unit Remark

Pull-up resistance R

CMD

, R

DAT

10 100 KΩTo prevent bus floating

Bus signal line capacitance C

250 pF f

≤ 5 MHz, 21 cards

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

•

Bus Signal Levels

As the bus can be supplied with a variable supply voltage, all signal levels are related to the supply voltage.

To meet the requirements of the JEDEC specification JESD8-1A, the card input and output voltages shall be within the

following specified ranges for any V

of the allowed voltage range:

Parameter Symbol Min. Max. Unit Remark

Output HIGH voltage V

0.75*V

V I

= -100 µA @V

min

Output LOW voltage V

0.125*V

V I

= 100 µA @V

min

Input HIGH voltage V

0.625*V

+ 0.3 V

Input LOW voltage V

– 0.3 0.25*V

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

•

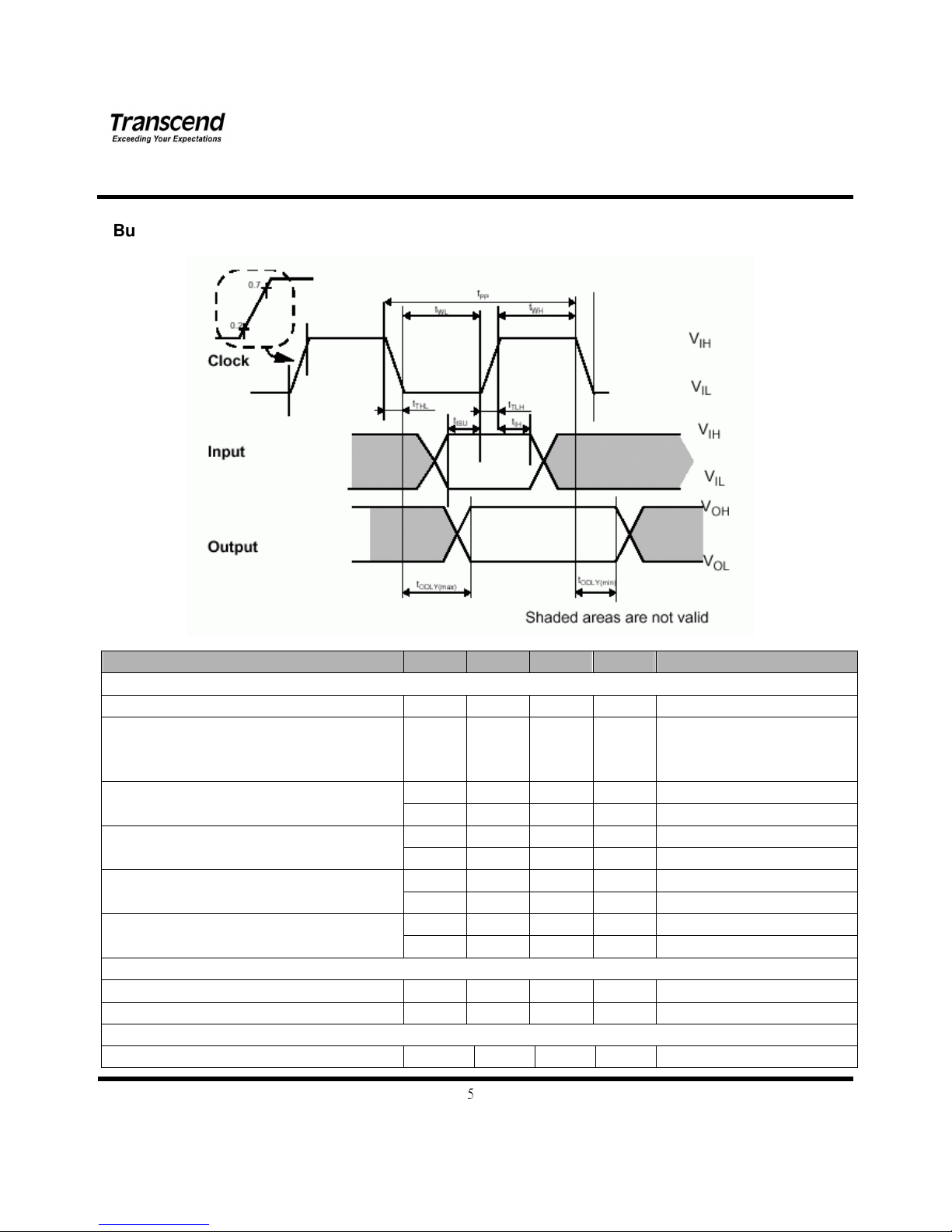

Bus Timing

Parameter Symbol

Min Max. Unit Remark

Clock CLK (All values are referred to min (V

) and max (V

)

Clock frequency Data Transfer Mode f

0 25 MHz C

≤ 100 pF, (7 cards)

Clock frequency Identification Mode

(The low freq. is required for MultiMediaCard

compatibility.)

0 400 KHz C

≤ 250 pF, (21 cards)

10 ns C

≤ 100 pF, (7 cards)Clock low time

50 ns C

≤ 250 pF, (21 cards)

10 ns C

≤ 100 pF, (7 cards)Clock high time

50 ns C

≤ 250 pF, (21 cards)

TLH

10 ns C

≤ 100 pF, (7 cards)Clock rise time

50 ns C

≤ 250 pF, (21 cards)

THL

10 ns C

≤ 100 pF, (7 cards)Clock fall time

50 ns C

≤ 250 pF, (21 cards)

Inputs CMD, DAT (referenced to CLK)

Input set-up time t

ISU

5 ns C

≤ 25 pF, (1 cards)

Input hold time t

5 ns C

≤ 25 pF, (1 cards)

Outputs CMD, DAT (referenced to CLK)

Output Delay time t

ODLY

0 14 ns C

≤ 25 pF, (1 cards)

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

Reliability and Durability

Temperature Operation: -25°C / 85°C (Target spec)

Moisture and corrosion Operation: 25°C / 95% rel. humidity

Storage: 40°C / 93% rel. hum./500h

Salt Water Spray: 3% NaCl/35C; 24h acc. MIL STD Method 1009

Durability 10000 mating cycles

Bending 10N

Torque 0.10N*m , +/- 2.5deg max

Drop test 1.5m free fall

UV light exposure UV: 254nm, 15Ws/cm² according to ISO 7816-1

Visual inspection

Shape and form

No warppage; no mold skin; complete form; no cavities surface smoothness <= -

0.1

mm/cm² within contour; no cracks; no pollution (fat, oil dust, etc.)

Above technical information is based on standard data and tested to be reliable. However, Transcend makes no warranty,

either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.

Transcend reserves the right to make changes in specifications at any time without prior notice.

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

Within the card interface six registers are defined: OCR, CID, CSD, RCA, DSR and SCR. These can be accessed only

by corresponding commands (see Chapter 4.7). The OCR, CID, CSD and SCR registers carry the card/content

specific information, while the RCA and DSR registers are configuration registers storing actual configuration

parameters.

1. OCR register

The 32-bit operation conditions register stores the V

voltage profile of the card. In addition, this

been finished. The OCR register shall be implemented by the cards which do not support the full

operating voltage range of the SD Memory Card bus, or if the card power up extends the definition

in the timing diagram.

A voltage range is not supported if the corresponding bit value is set to LOW. As long as the card is busy, the

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

corresponding bit (31) is set to LOW.

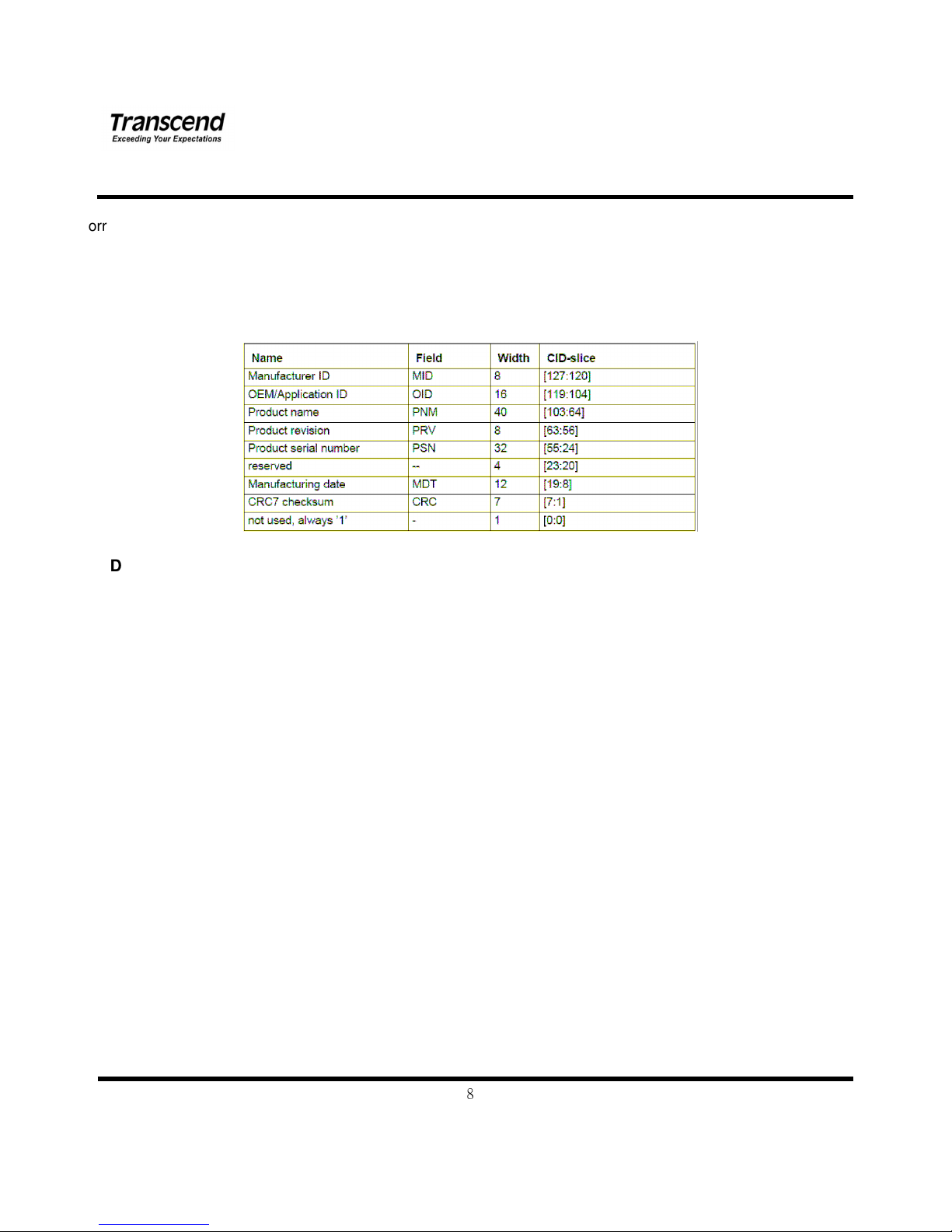

2. CID Register

The Card IDentification (CID) register is 128 bits wide. It contains the card identification information used during the

card identification phase. Every individual flash card shall have a unique identification number. The structure of the

CID register is defined in the following paragraphs:

•

MID

An 8 bit binary number that identifies the card manufacturer. The MID number is controlled, defined and allocated to a

SD Memory Card manufacturer by the SD Group. This procedure is established to ensure uniqueness of the CID

•

OID

A 2 ASCII string characters that identifies the card OEM and/or the card contents (when used as a distribution media

either on ROM or FLASH cards). The OID number is controlled, defined and allocated to a SD Memory Card

manufacturer by the SD Group. This procedure is established to ensure uniqueness of the CID register.

•

PNM

The product name is a string, 5 ASCII characters long.

•

PRV

The product revision is composed of two Binary Coded Decimal (BCD) digits, four bits each, representing an “n.m”

revision number. The “n” is the most significant nibble and “m” is the least significant nibble.

As an example, the PRV binary value field for product revision “6.2” will be: 0110 0010

•

PSN

The Serial Number is 32 bits of binary number.

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

•

MDT

The manufacturing date composed of two hexadecimal digits, one is 8 bit representing the year(y)

and the other is four bits representing the month(m).

The “m” field [11:8] is the month code. 1 = January.

The “y” field [19:12] is the year code. 0 = 2000.

As an example, the binary value of the Date field for production date “April 2001” will be:

00000001 0100.

•

CRC

CRC7 checksum (7 bits).

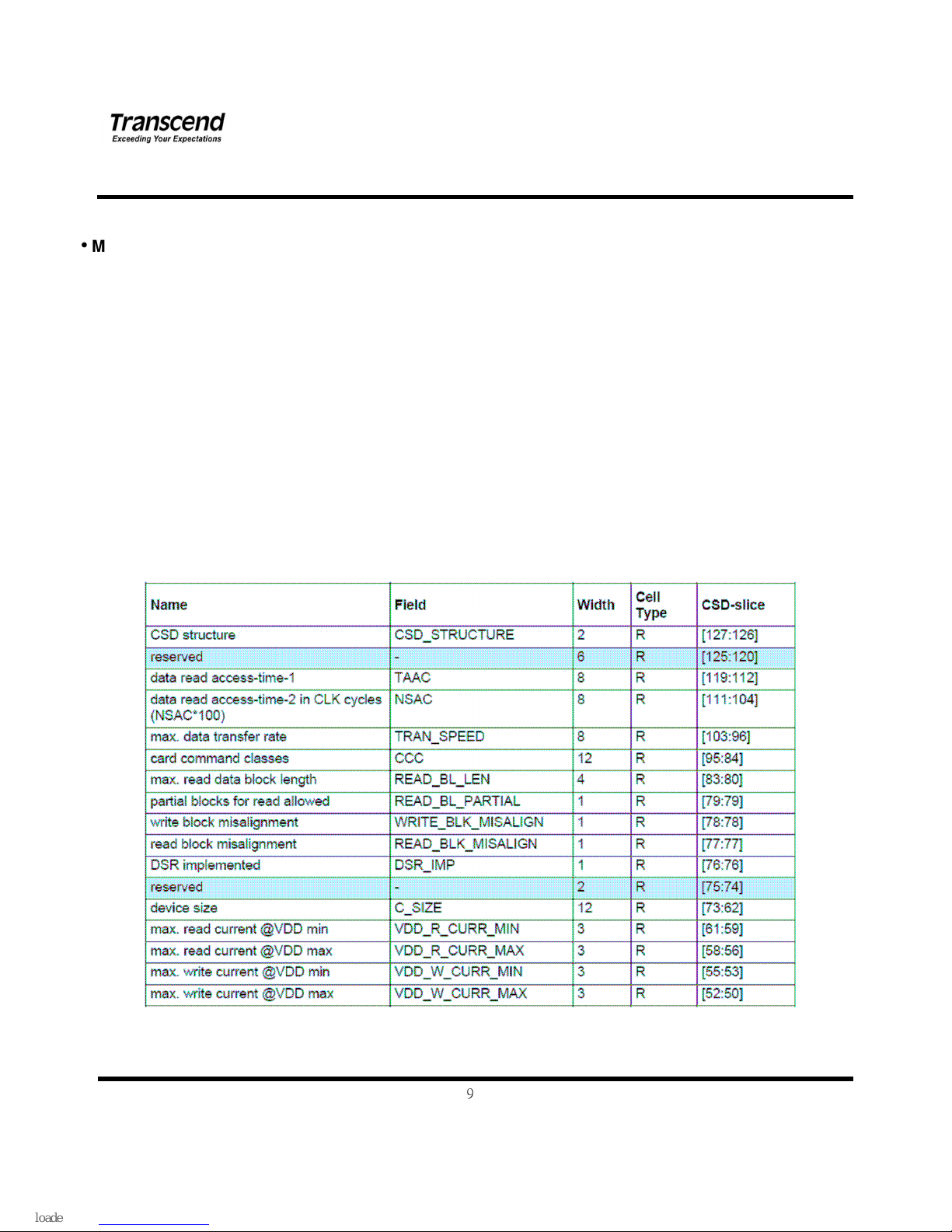

3. CSD Register

The Card-Specific Data register provides information on how to access the card contents. The CSD defines the data

format, error correction type, maximum data access time, whether the DSR register can be used etc. The

programmable part of the register (entries marked by W or E, see below) can be changed by CMD27. The type of the

entries in the table below is coded as follows: R= readable, W(1) = writable once, W = multiple writable.

D-

-P

2GB microSD Card + Reader P3

Transcend Information Inc.

The following sections describe the CSD fields and the relevant data types. If not explicitly defined otherwise, all bit

strings are interpreted as binary coded numbers starting with the left bit first.

•

CSD_STRUCTURE

Version number of the related CSD structure.

•

TAAC

Defines the asynchronous part of the data access time.
