Transcend ExpressCard SSD34E Manuale utente

E-

-M

E-

-M

E-

-M

8GB~32GB ExpressCard34 SSD

Transcend Information Inc.

V1.0

Description

The ExpressCard™ SSD (Solid State Disk) is small in

size, has a huge capacity and low power consumption

making it perfect for use as a mobile storage solution in

notebook computer with ExpressCard™ slot.

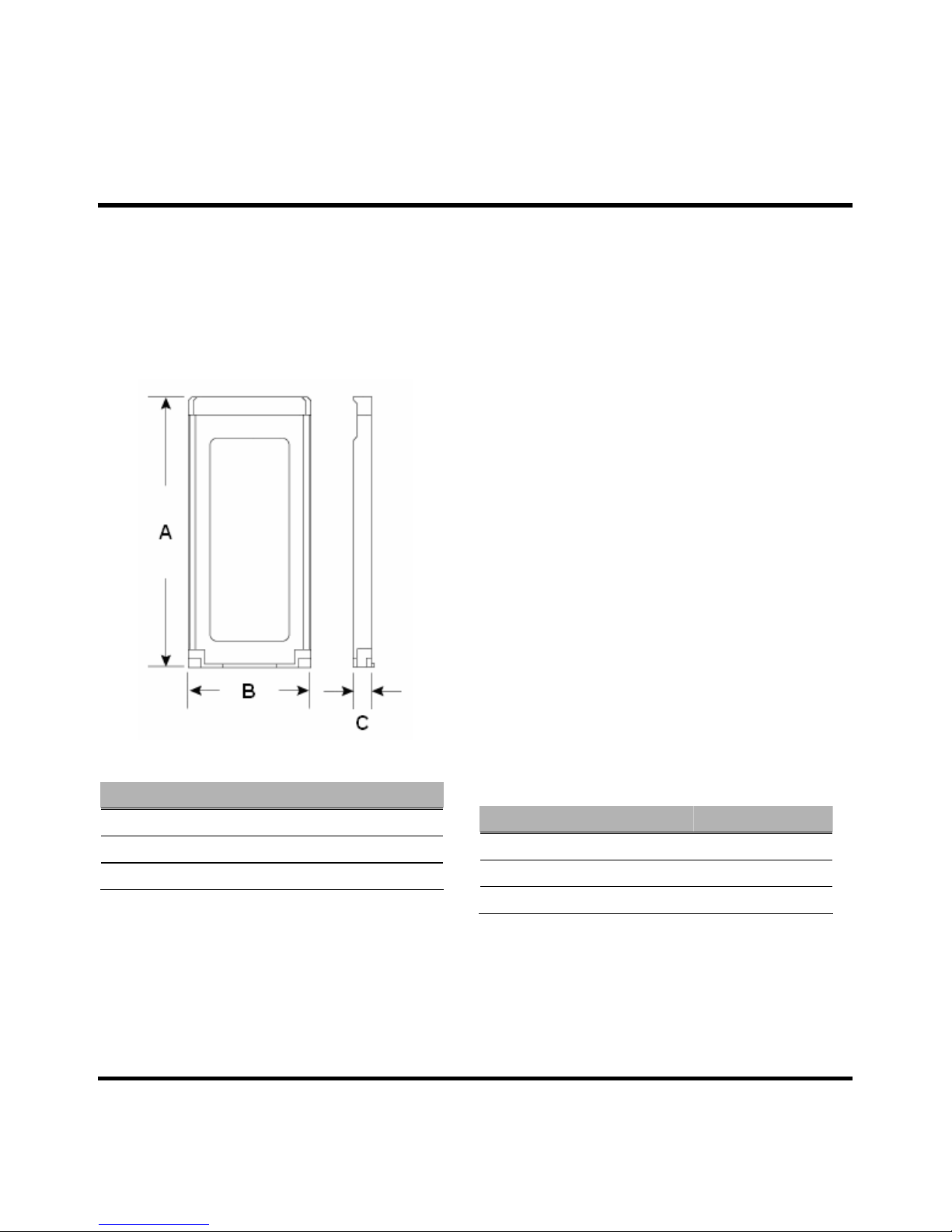

Outline

Dimensions

Side Millimeters Inches

A 75.00 ±1.00 2.95 ±0.04

B 34.00 ±1.00 1.34 ±0.04

C 5.00 ±1.00 0.20 ±0.04

Features

•RoHS compliant products

•High-speed USB 2.0 specification, True Plug and Play

functionality

•Fully compatible with ExpressCard™ standards and

Operating Systems (OS) that support the USB standard

•Non-volatile Flash Memory for outstanding data retention

•Built-in ECC (Error Correction Code) functionality and

wear-leveling algorithm ensures highly reliable of data

transfer

•Compatible with Windows Vista and supports ReadyBoost

function

•Low Power Consumption

•Shock resistance

System Requirement

•Hardware: An available ExpressCard™ slot on desktop

or notebook computer

•Operating System: Windows® 2000, Windows® XP,

Windows®Vista, Mac™ OS 10.4 or later, and Linux™

Kernel 2.4 or later

Order Information

Transcend P/N Capacity

TS8GSSD34E-M 8GB

TS16GSSD34E-M 16GB

TS32GSSD34E-M 32GB

E-

-M

E-

-M

E-

-M

8GB~32GB ExpressCard34 SSD

Transcend Information Inc.

V1.0

Block Diagram

E-

-M

E-

-M

E-

-M

8GB~32GB ExpressCard34 SSD

Transcend Information Inc.

V1.0

Pinouts

Pin No. Pin Name

01 GND

02 USBD-

03 USBD+

04 GND

05 NC

06 NC

07 NC

08 NC

09 NC

10 NC

11 NC

12 NC

13 NC

14 3.3V

15 3.3V

16 NC

17 NC

18 NC

19 NC

20 GND

21 NC

22 NC

23 GND

24 NC

25 NC

26 GND

Pin Identification

Symbol Function

USBD+

USBD- USB serial data interface

3.3V Primary voltage source

GND Ground

NC No connect

E-

-M

E-

-M

E-

-M

8GB~32GB ExpressCard34 SSD

Transcend Information Inc.

V1.0

Specifications

Physical Specification

Form Factor ExpressCard/34

Storage Capacities 8 GB to 32 GB

Length 75.00 ±0.10

Width 34.00 ±0.10

Dimensions (mm)

Height 5.00 ±0.10

Input Voltage 3.3V ±5%

Weight 19 g

Connector 26-Pin ExpressCard connector

Environmental Specifications

Operating Temperature 0 ℃to 70 ℃

Storage Temperature - 40 ℃to 85 ℃

Power Requirements

Input Voltage 3.3V ±5%

Mode TYP (mA) TYP (W)

Write 318.9 1.1

Power Consumption

(DC 3.3V @25℃)

Idle 100.8 0.3

Reliability

Data Reliability Supports BCH ECC 8 bits in 512 bytes

Data Retention 10 years

MTBF 1,000,000 hours

Interface Specification

Interface ExpressCard (USB 2.0)

E-

-M

E-

-M

E-

-M

8GB~32GB ExpressCard34 SSD

Transcend Information Inc.

V1.0

Reliability

Wear-Leveling algorithm

The controller supports static/dynamic wear leveling. When the host writes data, the controller will find and use the block

with the lowest erase count among the free blocks. This is known as dynamic wear leveling. When the free blocks' erase

count is higher than the data blocks', it will activate the static wear leveling, replacing the not so frequently used user

blocks with the high erase count free blocks.

ECC algorithm

The controller use BCH8 ECC algorithm per 512 bytes. BCH8 can correct up to 8 random error bits within 512 data

bytes.

Bad-block management

When the flash encounters ECC failed, program fail or erase fail, the controller will mark the block as bad block to

prevent the used of this block and caused data lost later on.

Performance

Model P/N Sequential Read Sequential Write

TS8GSSD34E-M 34 MB/s 21 MB/s

TS16GSSD34E-M 34 MB/s 21 MB/s

TS32GSSD34E-M 35 MB/s 25 MB/s

Regulations

Compliance CE, FCC and BSMI

E-

-M

E-

-M

E-

-M

8GB~32GB ExpressCard34 SSD

Transcend Information Inc.

V1.0

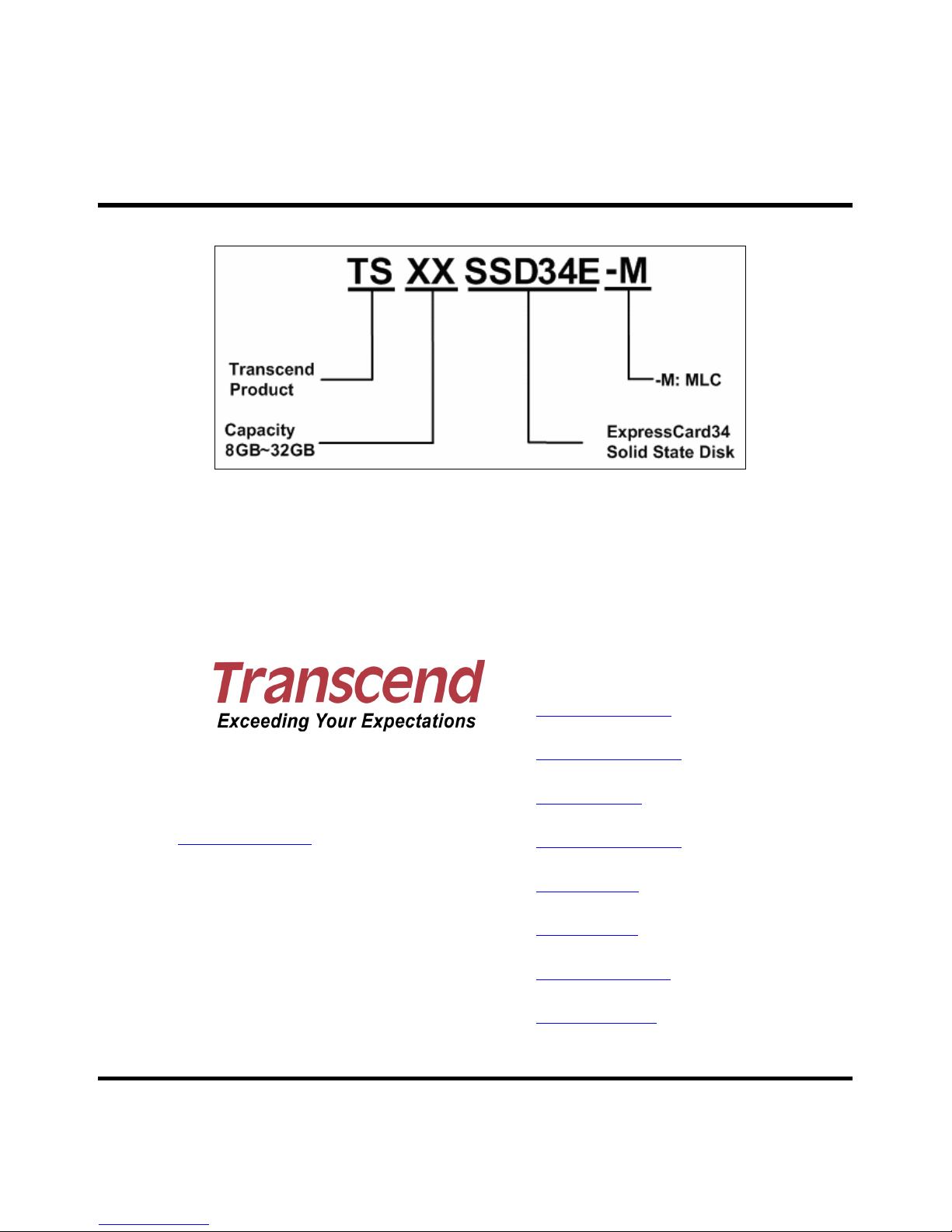

Ordering Information

Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes no

warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.

Transcend reserves the right to make changes in specifications at any time without prior notice.

USA

Los Angeles:

E-mail: sales@transcendusa.com

Maryland:

E-mail: sales_md@transcendusa.com

www.transcendusa.com

CHINA

E-mail: sales@transcendchina.com

www.transcendchina.com

GERMANY

E-mail: vertrieb@transcend.de

www.transcend.de

HONG KONG

E-mail: sales@transcend.com.hk

www.transcendchina.com

JAPAN

E-mail: [email protected]p

www.transcend.jp

THE NETHERLANDS

E-mail: sales@transcend.nl

www.transcend.nl

United Kingdom

E-mail: [email protected]

www.transcend-uk.com

TAIWAN

No.70, XingZhong Rd., NeiHu Dist., Taipei, Taiwan, R.O.C

TEL +886-2-2792-8000

Fax +886-2-2793-2222

E-mail: [email protected]

www.transcend.com.tw

KOREA

E-mail: sales@transcend.kr

www.transcend.co.kr
