Transcend CF 80X TS32M~1GCF80 Manuale utente

80X CompactFlash Card

Transcend Information Inc.

V1.1

1. Description

The Transcend CF 80X is a High Speed Compact

Flash Card with high quality Flash Memory assembled

on a printed circuit board.

Placement

1.1 Feature

•RoHS compliant products

•Compliant with CompactFlash®specification V3.0

•Single Power Supply: 5V

10% / 3.3V

•Compliant to CompactFlash, PCMCIA, and ATA

standard

•

Support PIO mode 0 to PIO mode 6

•

Support Multi-Word DMA mode 0 to Multi-Word DMA

mode 4 (Series of

–

P only supports PIO mode 0 to

mode 4, please see Orderin Information)

•True IDE Mode: Fixed Disk (Standard)

•PC Card Mode: Removable Disk (Standard)

•Operating Temperature: -25

C to 85

•Storage Temperature: -40

C to 85

•Hardware RS-code ECC

•Support Wear-Leveling to extend product life

•Durability of Connector: 10,000 times

1.2 Dimensions

Side Millimeters Inches

A 36.40 ±0.150 1.43 ±0.005

B 42.80 ±0.100 1.69 ±0.004

C 3.30 ±0.100 0.13 ±0.004

D 0.63 ±0.070 0.02 ±0.003

80X CompactFlash Card

Transcend Information Inc.

V1.1

1.3 Ordering Information

1.4 CHS and Capacity

Product Name Cylinder Head Sector Capacity

TS32MCF80 62 16 63 29.9MB

TS64MCF80 125 16 63 60.8MB

TS128MCF80 246 16 63 120MB

TS256MCF80 500 16 63 245MB

TS512MCF80 989 16 63 486MB

TS1GCF80 1978 16 63 972MB

Part Number Mode Description Transfer mode

True IDE mode

DMA Fixed Disk Multiword DMA mode 0~4, PIO mode 0~6

TS32M~1GCF80

PCMCIA mode

Non-DMA Removable Disk

N/A

True IDE mode

Non-DMA Fixed Disk PIO mode 0~4

CF80

TS32M~1GCF80-P

PCMCIA mode

Non-DMA Removable Disk

N/A

80X CompactFlash Card

Transcend Information Inc.

V1.1

2.Product Specification

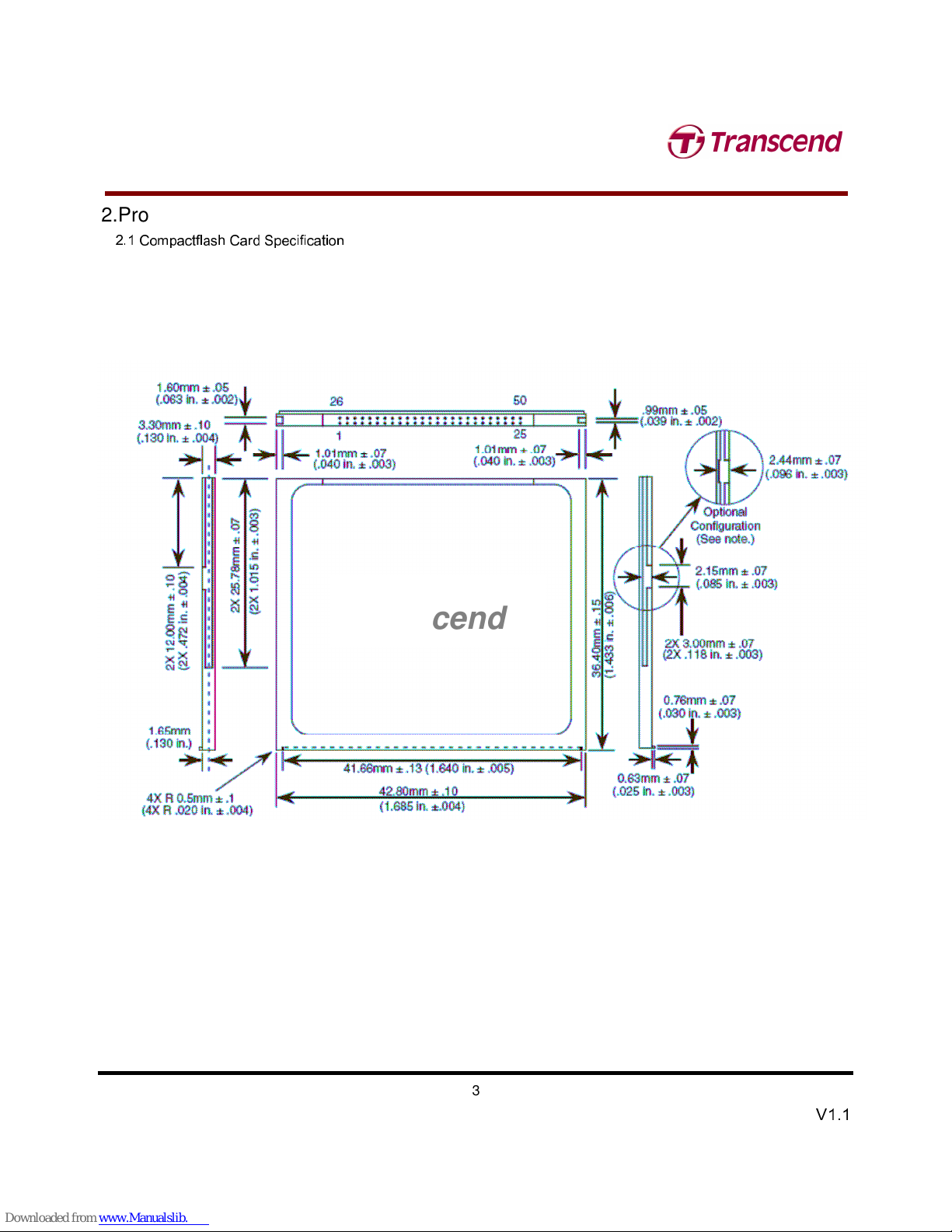

2.1 Compactflash Card Specification

Transcend

80X CompactFlash Card

Transcend Information Inc.

V1.1

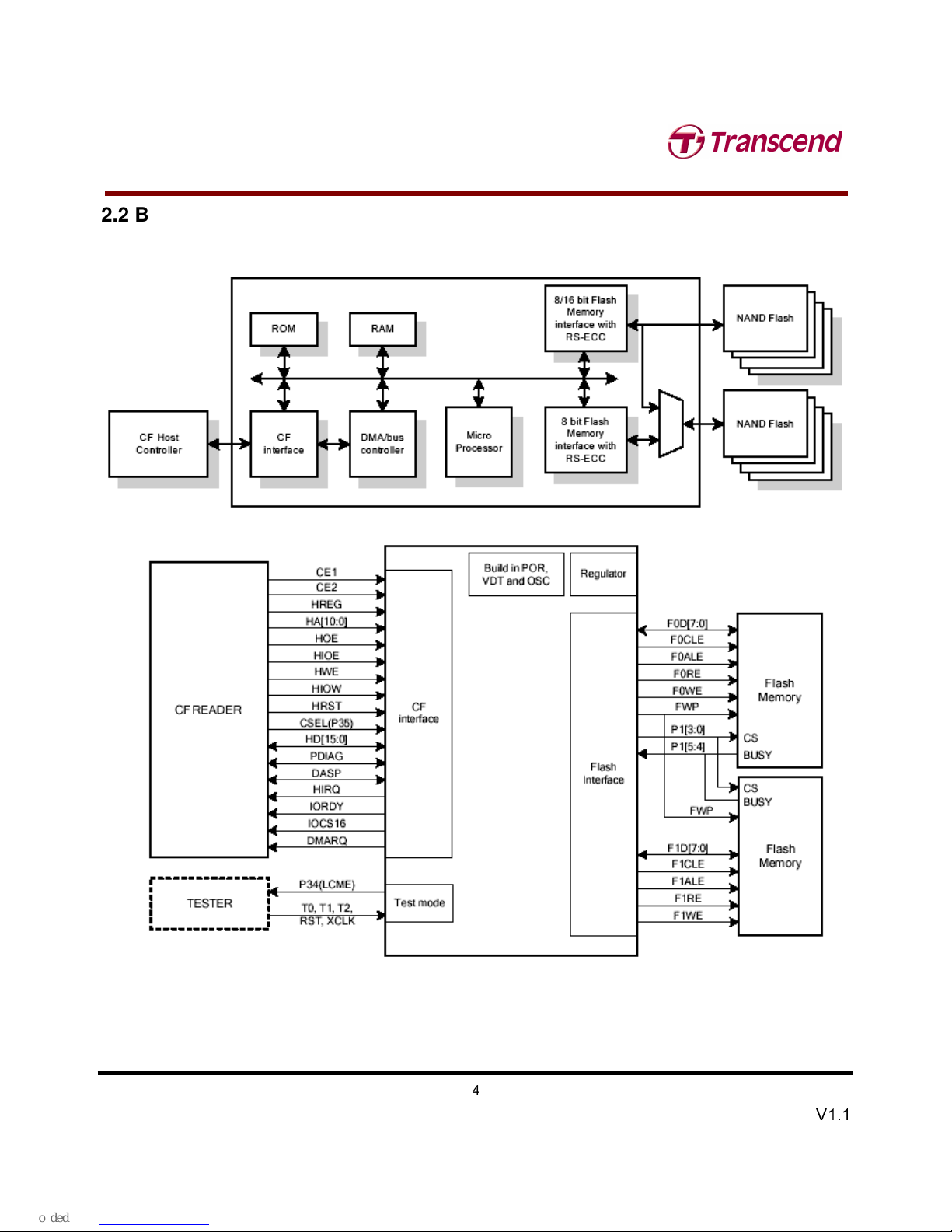

2.2 Block Diagram

80X CompactFlash Card

Transcend Information Inc.

V1.1

3. Electrical Interface

3.1 Pin Assignment and Pin Type

PC Card Memory Mode PC Card I/O Mode True IDE Mode

Num

Signal

Name

Type

In, Out Type

Pin Num

Signal

Name

Type

In, Out

Type

Num

Signal

Name

Type

In, Out

Type

1 GND

Ground 1 GND

Ground

1 GND

Ground

2 D03 I/O I1Z, OZ3 2 D03 I/O I1Z, OZ3

2 D03 I/O I1Z, OZ3

3 D04 I/O I1Z, OZ3 3 D04 I/O I1Z, OZ3

3 D04 I/O I1Z, OZ3

4 D05 I/O I1Z, OZ3 4 D05 I/O I1Z, OZ3

4 D05 I/O I1Z, OZ3

5 D06 I/O I1Z, OZ3 5 D06 I/O I1Z, OZ3

5 D06 I/O I1Z, OZ3

6 D07 I/O I1Z, OZ3 6 D07 I/O I1Z, OZ3

6 D07 I/O I1Z, OZ3

7 -CE1 I I3U 7 -CE1 I I3U 7 -CS0 I I3Z

8 A10 I I1Z 8 A10 I I1Z 8 A10

I I1Z

9 -OE I I3U 9 -OE I I3U 9 -ATA SEL

I I3U

A09 I I1Z 10 A09 I I1Z 10 A09

I I1Z

A08 I I1Z 11 A08 I I1Z 11 A08

I I1Z

A07 I I1Z 12 A07 I I1Z 12 A07

I I1Z

VCC

Power 13 VCC

Power

13 VCC

Power

A06 I I1Z 14 A06 I I1Z 14 A06

I I1Z

A05 I I1Z 15 A05 I I1Z 15 A05

I I1Z

A04 I I1Z 16 A04 I I1Z 16 A04

I I1Z

A03 I I1Z 17 A03 I I1Z 17 A03

I I1Z

A02 I I1Z 18 A02 I I1Z 18 A02 I I1Z

A01 I I1Z 19 A01 I I1Z 19 A01 I I1Z

A00 I I1Z 20 A00 I I1Z 20 A00 I I1Z

D00 I/O I1Z, OZ3 21 D00 I/O I1Z, OZ3

21 D00 I/O I1Z, OZ3

D01 I/O I1Z, OZ3 22 D01 I/O I1Z, OZ3

22 D01 I/O I1Z, OZ3

D02 I/O I1Z, OZ3 23 D02 I/O I1Z, OZ3

23 D02 I/O I1Z, OZ3

WP O OT3 24 -IOIS16

O OT3 24 -IOCS16

O ON3

-CD2 O Ground 25 -CD2 O Ground

25 -CD2 O Ground

-CD1 O Ground 26 -CD1 O Ground

26 -CD1 O Ground

D11

I/O

I1Z, OZ3 27 D11

I/O

I1Z, OZ3

27 D11

I/O

I1Z, OZ3

D121 I/O

I1Z, OZ3 28 D12

I/O

I1Z, OZ3

28 D12

I/O

I1Z, OZ3

D13

I/O

I1Z, OZ3 29 D13

I/O

I1Z, OZ3

29 D13

I/O

I1Z, OZ3

D14

I/O

I1Z, OZ3 30 D14

I/O

I1Z, OZ3

30 D14

I/O

I1Z, OZ3

D15

I/O

I1Z, OZ3 31 D15

I/O

I1Z, OZ3

31 D15

I/O

I1Z, OZ3

-CE2

I I3U 32 -CE2

I I3U 32 -CS1

I I3Z

80X CompactFlash Card

Transcend Information Inc.

V1.1

PC Card Memory Mode PC Card I/O Mode True IDE Mode

Num

Signal Name

Type

In, Out

Type

Num

Signal Name

Type

In, Out

Type

Num

Signal Name

Type

In, Out

Type

-VS1 O Ground

33 -VS1 O Ground

-IORD I I3U 34 -IORD I I3U 34 -IORD I I3Z

-IOWR I I3U 35 -IOWR I I3U 35 -IOWR I I3Z

-WE I I3U 36 -WE I I3U 36 -WE

I I3U

READY O OT1 37 -IREQ O OT1 37 INTRQ O OZ1

VCC Power

38 VCC Power

-CSEL

I I2Z 39 -CSEL

I I2Z 39 -CSEL I I2U

-VS2 O OPEN

40 -VS2 O OPEN

RESET I I2Z 41 RESET I I2Z 41 -RESET I I2Z

-WAIT O OT1 42 -WAIT O OT1 42 IORDY O ON1

-INPACK O OT1 43 -INPACK O OT1 43 DMARQ O OZ1

-REG I I3U 44 -REG I I3U 44 -DMACK

I I3U

BVD2 O OT1 45 -SPKR O OT1 45 -DASP I/O I1U, ON1

BVD1 O OT1 46 -STSCHG O OT1 46 -PDIAG I/O I1U, ON1

D08

I/O

I1Z,

OZ3 47 D08

I/O

I1Z,

OZ3 47 D08

I/O

I1Z, OZ3

D09

I/O

I1Z,

OZ3 48 D09

I/O

I1Z,

OZ3 48 D09

I/O

I1Z, OZ3

D10

I/O

I1Z,

OZ3 49 D10

I/O

I1Z,

OZ3 49 D10

I/O

I1Z, OZ3

GND Ground

50 GND Ground

Note:

1) These signals are required only for 16 bit accesses and not required when installed in 8 bit systems. Devices

should allow for 3-state signals not to consume current.

2) The signal should be grounded by the host.

3) The signal should be tied to VCC by the host.

4) The mode is required for CompactFlash Storage Cards.

5) The -CSEL signal is ignored by the card in PC Card modes. However, because it is not pulled upon the card in these

modes, it should not be left floating by the host in PC Card modes. In these modes, the pin should be connected by the

host to PC Card A25 or grounded by the host.

6) If DMA operations are not used, the signal should be held high or tied to VCC by the host. For proper operation in older

hosts: while DMA operations are not active, the card shall ignore this signal,including a floating condition

80X CompactFlash Card

Transcend Information Inc.

V1.1

3.2 Signal Description

Signal Name

Dir.

Description

A10 – A00

(PC Card Memory Mode)

A10 – A00

(PC Card I/O Mode)

A02 - A00

(True IDE Mode)

8,10,11,12,

14,15,16,17,

18,19,20

These address lines along with the -REG signal are used to

select the following:

The I/O port address registers within the CompactFlash Storage Card , the

memory mapped port addr

ess registers within the CompactFlash Storage Card,

a byte in the card's information structure and its

configuration control and status

registers.

This signal is the same as the PC Card Memory Mode signal.

In True IDE Mode, only A[02:00] are used to select the one of eight registers

in the Task File, the remaining address lines should be grounded by the

host.

BVD1

(PC Card Memory Mode)

-STSCHG

(PC Card I/O Mode)

Status Changed

-PDIAG

(True IDE Mode)

I/O

46 This signal is asserted high, as BVD1 is not supported.

This signal is asserted low to alert the host to changes in the

READY and Write

Protect states, while the I/O interface is configured. Its use is controlled by the

Card Config and Status Register.

In the True IDE Mode, this input / output is the Pass Diagnostic signal in the

Master / Slave handshake protocol.

BVD2

(PC Card Memory Mode)

-SPKR

(PC Card I/O Mode)

-DASP

(True IDE Mode)

I/O

45 This signal is asserted high, as BVD2 is not supported.

This line is the Binary Audio output from the card. If the Card does not support

the Binary Audio function, this line should be held negated.

In the True IDE Mode, this input/output is the Disk Active/Slave

Present signal in

the Master/Slave handshake protocol.

80X CompactFlash Card

Transcend Information Inc.

V1.1

-CD1, -CD2

(PC Card Memory Mode)

-CD1, -CD2

(PC Card I/O Mode)

-CD1, -CD2

(True IDE Mode)

26,25 These Card Detect pins are connected to ground on the

CompactFlash Storage

Card. They are used by the host to determine that the CompactFlash Storage

Card is fully inserted into its socket.

This signal is the same for all modes.

Signal Name

Dir.

Description

-CE1, -CE2

(PC Card Memory Mode)

Card Enable

-CE1, -CE2

(PC Card I/O Mode)

Card Enable

-CS0, -CS1

(True IDE Mode)

7,32 These input signals are used both to select the card and to

indicate to the card

whether a byte or a word operation is being performed. -CE2 always accesses

the odd byte of the word.-CE1 accesses the even byte or the Odd byte of the

word depending on A0 and -CE2. A multiplexing scheme based on A0,-CE1,

-CE2 allows 8 bit hosts to access all data on D0-D7. See Table 27, Table 29,

Table 31, Table 35, Table 36 and Table 37.

This signal is the same as the PC Card Memory Mode signal.

In the True IDE Mode, -CS0 is the address range select for the task file

registers while -CS1 is used to select the Alternate Status Register and the

Device Control Register.

While –DMACK is asserted, -CS0 and –CS1 shall be held negated and the

width of the transfers shall be 16 bits.

-CSEL

(PC Card Memory Mode)

-CSEL

(PC Card I/O Mode)

-CSEL

(True IDE Mode)

39 This signal is not used for this mode, but should be connected by

the host to PC

Card A25 or grounded by the host.

This signal is not used for this mode, but should be connected by

the host to PC

Card A25 or grounded by the host.

This internally pulled up signal is used to configure this device as

a Master or a

Slave when configured in the True IDE Mode.

When this pin is grounded, this device is configured as a Master.

When the pin is open, this device is configured as a Slave.

80X CompactFlash Card

Transcend Information Inc.

V1.1

D15 - D00

(PC Card Memory Mode)

D15 - D00

(PC Card I/O Mode)

D15 - D00

(True IDE Mode)

I/O

31,30,29,28,

27,49,48,47,

6,5,4,3,2,

23, 22, 21

These lines carry the Data, Commands and Status information

between the host

and the controller. D00 is the LSB of the Even

Byte of the Word. D08 is the LSB

of the Odd Byte of the Word.

This signal is the same as the PC Card Memory Mode signal.

In True IDE Mode, all Task File operations occur in byte mode

on the low order

bus D[7:0] while all data transfers are 16 bit using D[15:0].

GND

(PC Card Memory Mode)

GND

(PC Card I/O Mode)

GND

(True IDE Mode)

1,50 Ground.

This signal is the same for all modes.

Signal Name

Dir.

Description

-INPACK

(PC Card Memory Mode)

-INPACK

(PC Card I/O Mode)

Input Acknowledge

DMARQ

(True IDE Mode)

43 This signal is not used in this mode.

The Input Acknowledge signal is asserted by the CompactFlash Storage Card

when the card is selected and responding to an I/O read cycle at the address

that is on the address bus. This signal is used by the host to control the enable

any input data buffers between the CompactFlash Storage Card and the CPU.

This signal is a DMA Request that is used for DMA data

transfers between host

and device. It shall be asserted by the

device when it is ready to transfer data to

or from the host. For Multiword DMA transfers, the direction of data transfer is

controlled by -IORD and -IOWR. This signal is used in a

handshake manner with

-DMACK, i.e., the device shall wait until the host asserts -DMACK before

negating DMARQ, and reasserting DMARQ if there is more data to transfer.

DMARQ shall not be driven when the device is not selected.

While a DMA operation is in progress, -CS0 and –CS1 shall be held negated

and the width of the transfers shall be 16 bits.

If there is no hardware support for DMA mode in the host, this

output signal is not

used and should not be connected at the host. In this case

, the BIOS must report

that DMA mode is not supported by the host so that device drivers will not

attempt DMA mode.

A host that does not support DMA mode and implements both PCMCIA and

True-IDE modes of operation need not alter the PCMCIA mode connections

while in True-IDE mode as long as

this does not prevent proper operation in any

mode.

80X CompactFlash Card

Transcend Information Inc.

V1.1

-IORD

(PC Card Memory Mode)

-IORD

(PC Card I/O Mode)

-IORD

(True IDE Mode )

34 This signal is not used in this mode.

This is an I/O Read strobe generated by the host. This signal

gates I/O data onto

the bus from the CompactFlash Storage

Card when the card is configured to use

the I/O interface.

In True IDE Mode, this signal has the same function as in PC Card I/O Mode.

-IOWR

(PC Card Memory Mode)

-IOWR

(PC Card I/O Mode)

-IOWR

(True IDE Mode)

35 This signal is not used in this mode.

The I/O Write strobe pulse is used to clock I/O data on the Card Data bus into

the CompactFlash Storage Card controller registers when the CompactFlash

Storage Card is configured to use the I/O interface.

The clocking shall occur on the negative to positive edge of the signal (trailing

edge).

In True IDE Mode, this signal has the same function as in PC Card I/O Mode.

Signal Name

Dir.

Description

-OE

(PC Card Memory Mode)

-OE

(PC Card I/O Mode)

-ATA SEL

(True IDE Mode)

9 This is an Output Enable strobe generated by the host interface. It is used to

read data from the CompactFlash Storage Card in Memory Mode and to read

the CIS and configuration registers.

In PC Card I/O Mode, this signal is used to read the CIS and configuration

registers.

To enable True IDE Mode this input should be grounded by the host.

READY

(PC Card Memory Mode)

-IREQ

(PC Card I/O Mode)

INTRQ

(True IDE Mode)

37 In Memory Mode, this signal is set high when the CompactFlash Storage Card

is ready to accept a new data transfer

operation and is held low when the card is

busy.

At power up and at Reset, the READY signal is held low (busy) until the

CompactFlash Storage Card has completed its power up or reset function. No

access of any type should be made to the CompactFlash Storage Card during

this time.

Note, however, that when a card is powered up and used with RESET

continuously disconnected or asserted, the Reset function of the RESET pin is

disabled. Consequently, the continuous assertion of RESET from the

application of power

shall not cause the READY signal to remain continuously in

the busy state.

I/O Operation – After the CompactFlash Storage Card Card has been

configured for I/O operation, this signal is used as -

Interrupt Request. This line is

strobed low to generate a pulse mode interrupt or held low for a level mode

interrupt.

In True IDE Mode signal is the active high Interrupt Request to the host.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Transcend Magazzinaggio

Transcend

Transcend StoreJet 25D3 Manuale utente

Transcend

Transcend JetFlash V10 Manuale utente

Transcend

Transcend JetDrive SSD Upgrade Kit Manuale utente

Transcend

Transcend Wi-Fi SD Manuale utente

Transcend

Transcend USB JetFlash Manuale utente

Transcend

Transcend StoreJet 25 mobile Manuale utente

Transcend

Transcend StoreJet 25 mobile Manuale utente

Transcend

Transcend StoreJet 35T3 Manuale utente

Transcend

Transcend TS2GUSD-P3 Manuale

Transcend

Transcend StoreJet 25M Manuale utente

Transcend

Transcend JETFLASHTM TS32M-2GJF2B Manuale utente

Transcend

Transcend JetFlash 220 Manuale utente

Transcend

Transcend StoreJet 25 mobile Manuale utente

Transcend

Transcend StoreJet 35T Manuale utente

Transcend

Transcend CompactFlash TS8GCF266 Istruzioni per il montaggio

Transcend

Transcend SSD25S Manuale utente

Transcend

Transcend JetDrive 855 Manuale utente

Transcend

Transcend Mobile Memory Card TS1GRMMC4 Manuale utente

Transcend

Transcend ExpressCard SSD TS8GSSD34E-M Manuale utente

Transcend

Transcend StoreJet 25 mobile Manuale utente

Transcend

Transcend Computer Drive Manuale utente

Transcend

Transcend CompactFlash TS1G-32GCF133 Manuale utente

Transcend

Transcend StoreJet 25M3 USB 3.0 750GB Manuale utente

Transcend

Transcend StoreJetTM 3.5 Manuale utente

Manuali Magazzinaggio popolari di altre marche

QNAP

QNAP TS 32PXU Series Manuale utente

LaCie

LaCie RUGGED RAID Manuale utente

Freecom

Freecom CLS DOCK Manuale utente

PNY

PNY Attache P-FD64MBATT3 Manuale utente

HP StorageWorks MSL2024 Manuale utente

OLT

OLT 6x6 Maximizer Manuale utente

LaCie

LaCie RUGGED MINI Manuale utente

Thunderbolt

Thunderbolt 600 Manuale utente

Panasonic

Panasonic LB-DH8 series Manuale

Intel

Intel RAID High Availability Manuale utente

LaCie

LaCie 12big Thunderbolt 3 Manuale utente

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuale utente

Panasonic

Panasonic LKM-F931-1 Manuale utente

Tabernus

Tabernus Enterprise Erase E2400 Manuale utente

Rocstor

Rocstor COMMANDER 3F series Manuale utente

HP P9000 Manuale utente

Western Digital

Western Digital Ultrastar Data60 Manuale utente

Dell

Dell PowerVault MD3600f Series Manuale utente
