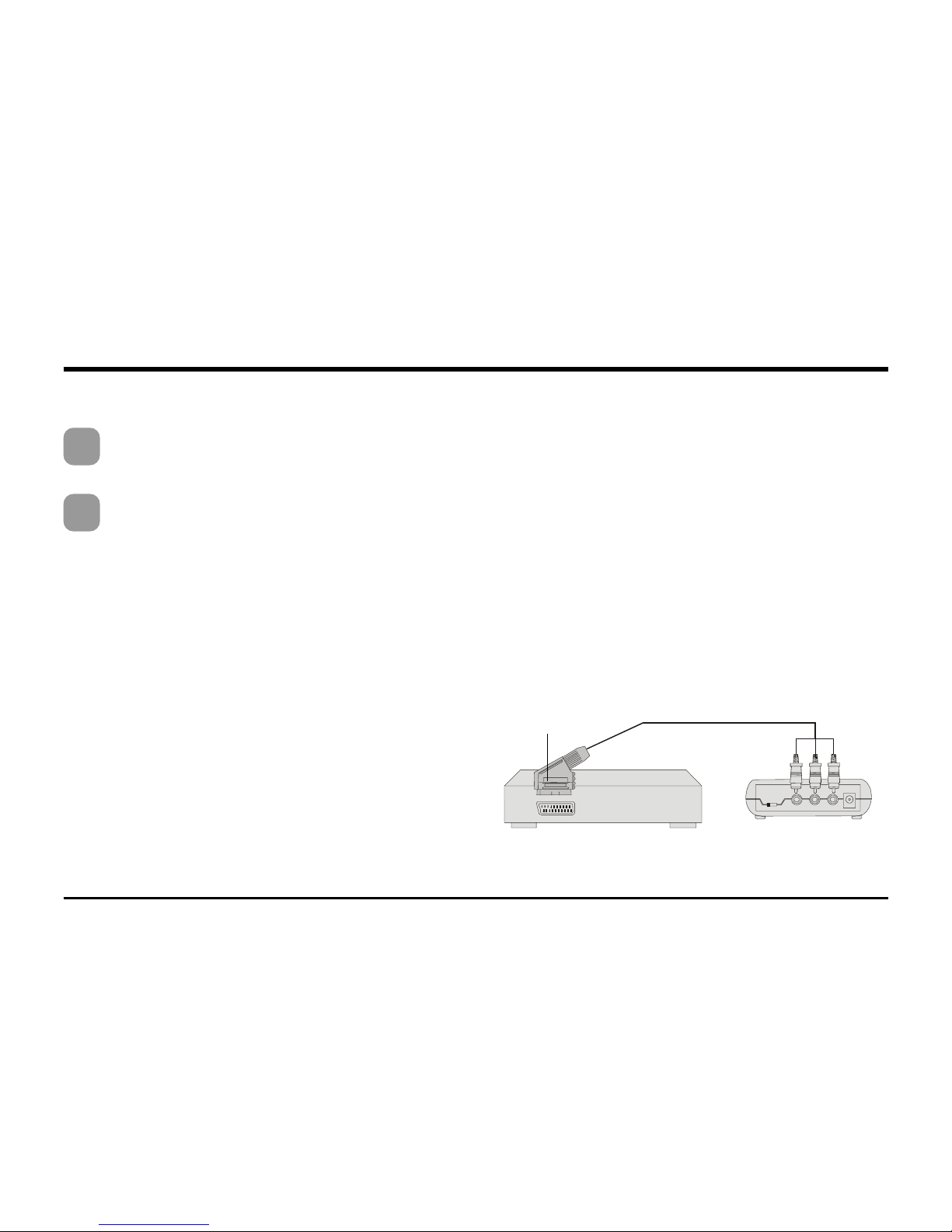

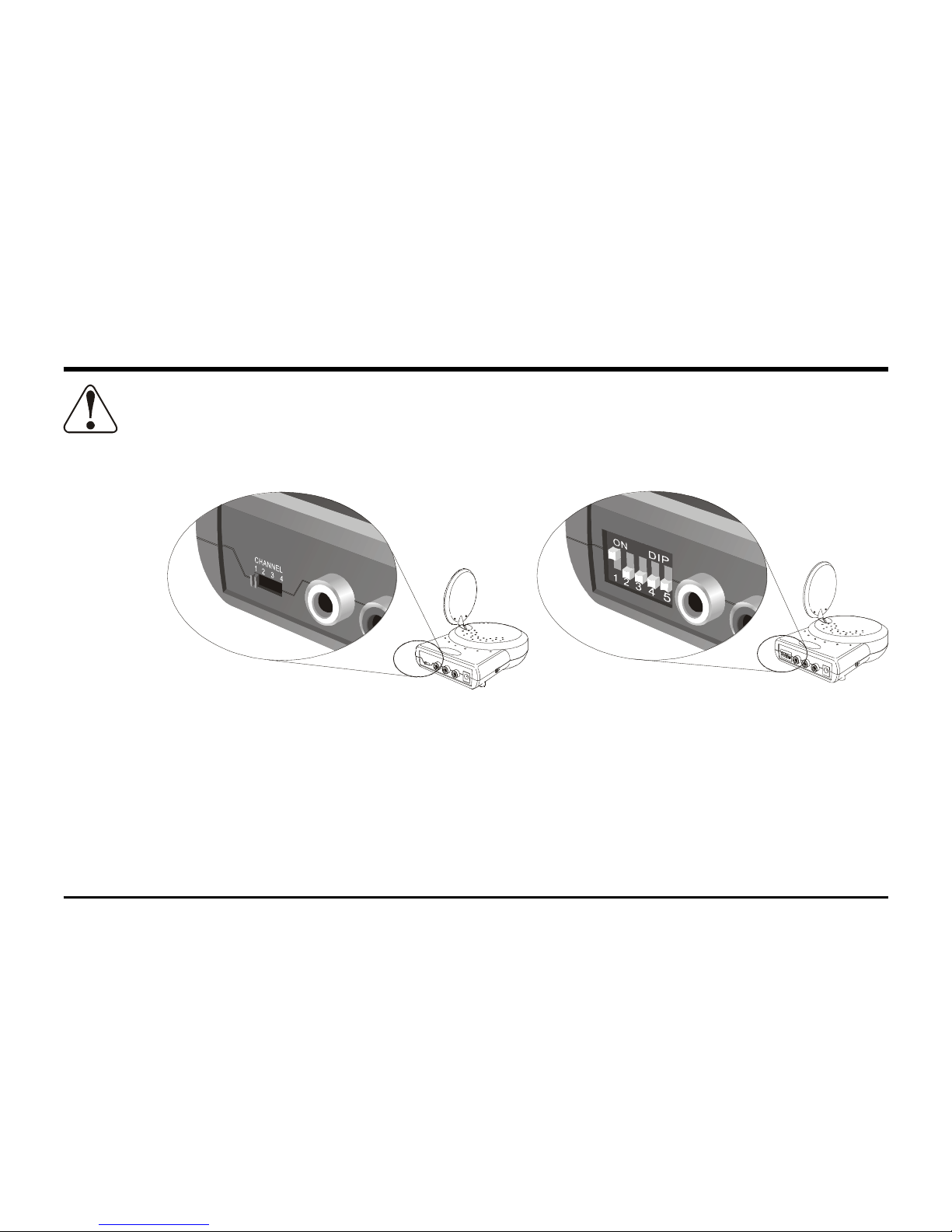

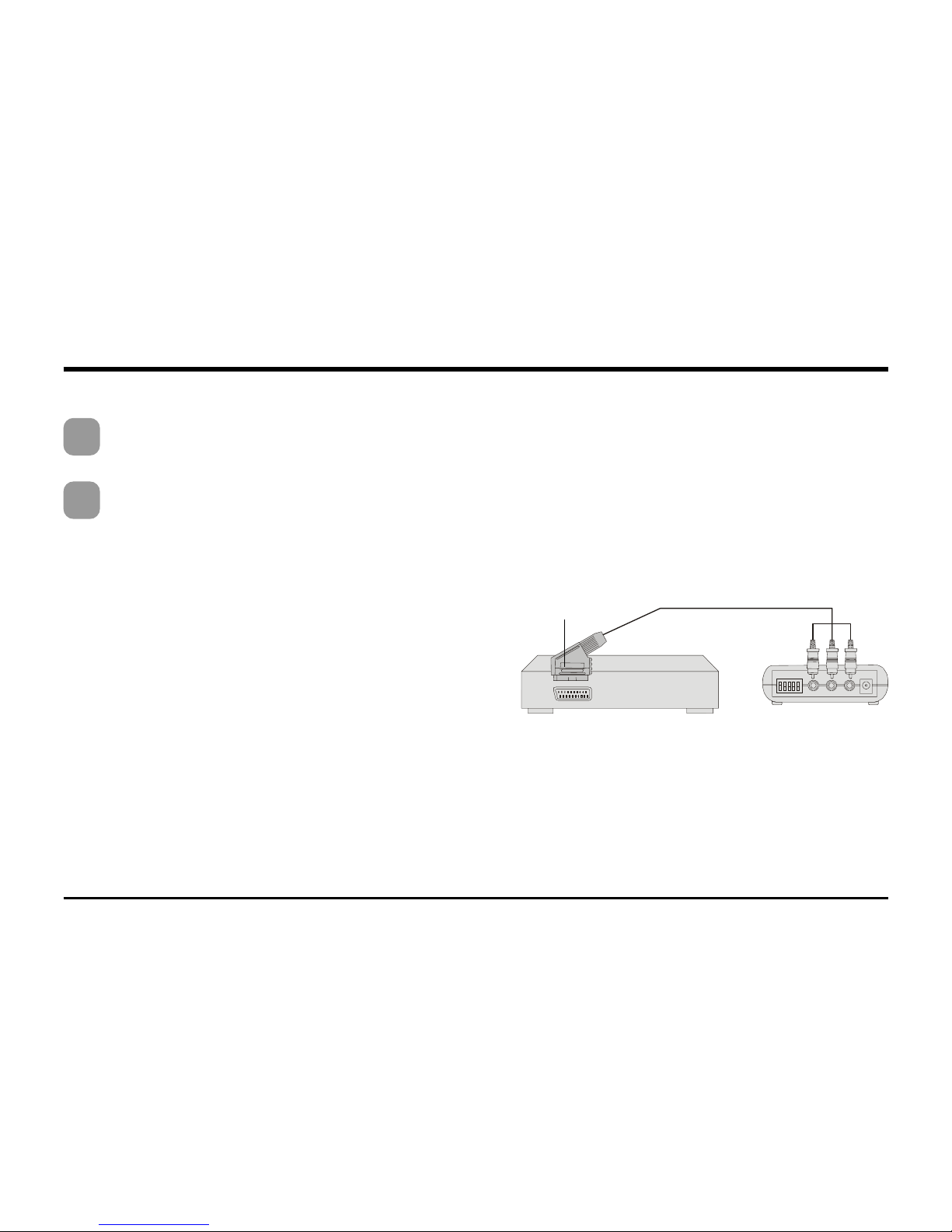

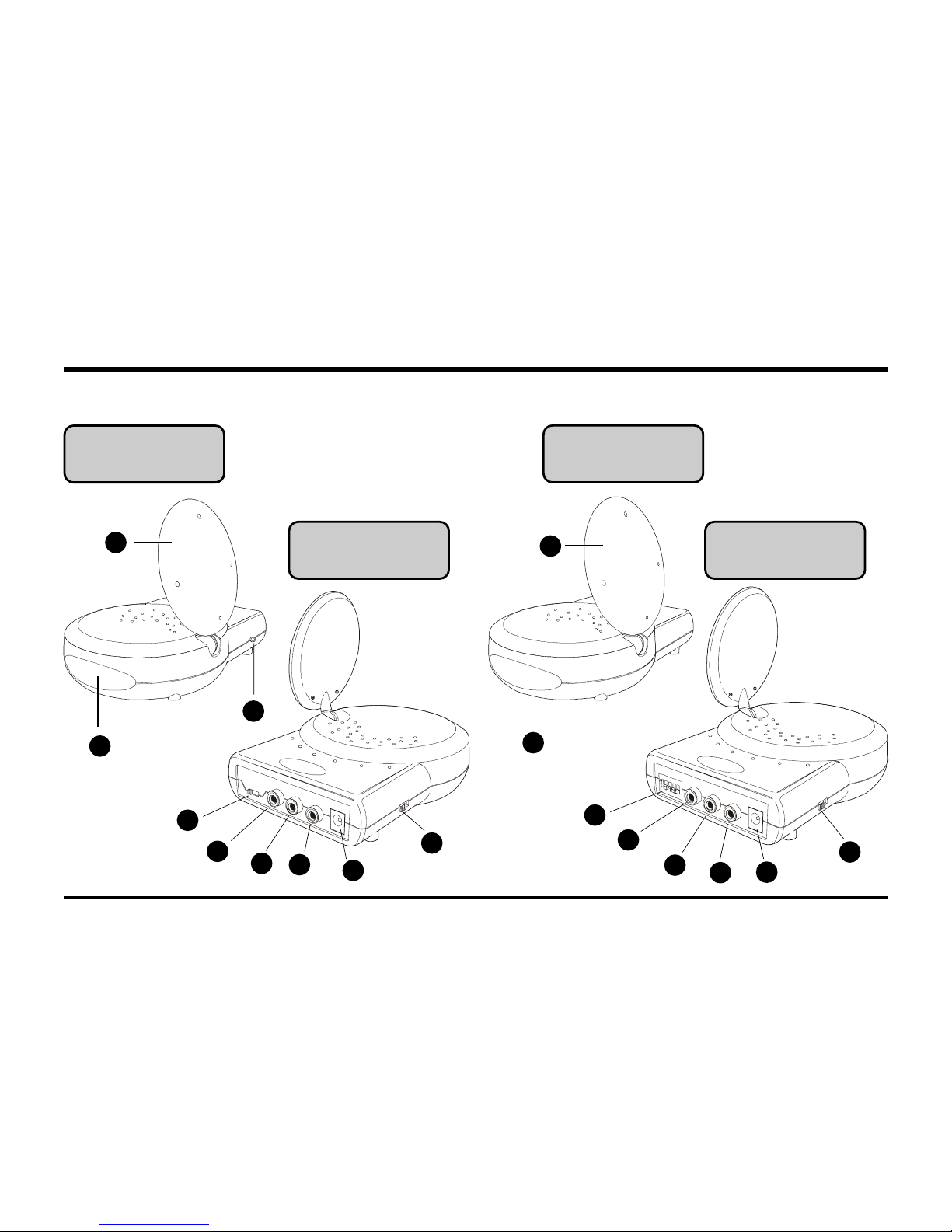

Setting Up-TransmitterTransmitter
TransmitterTransmitter
Transmitter

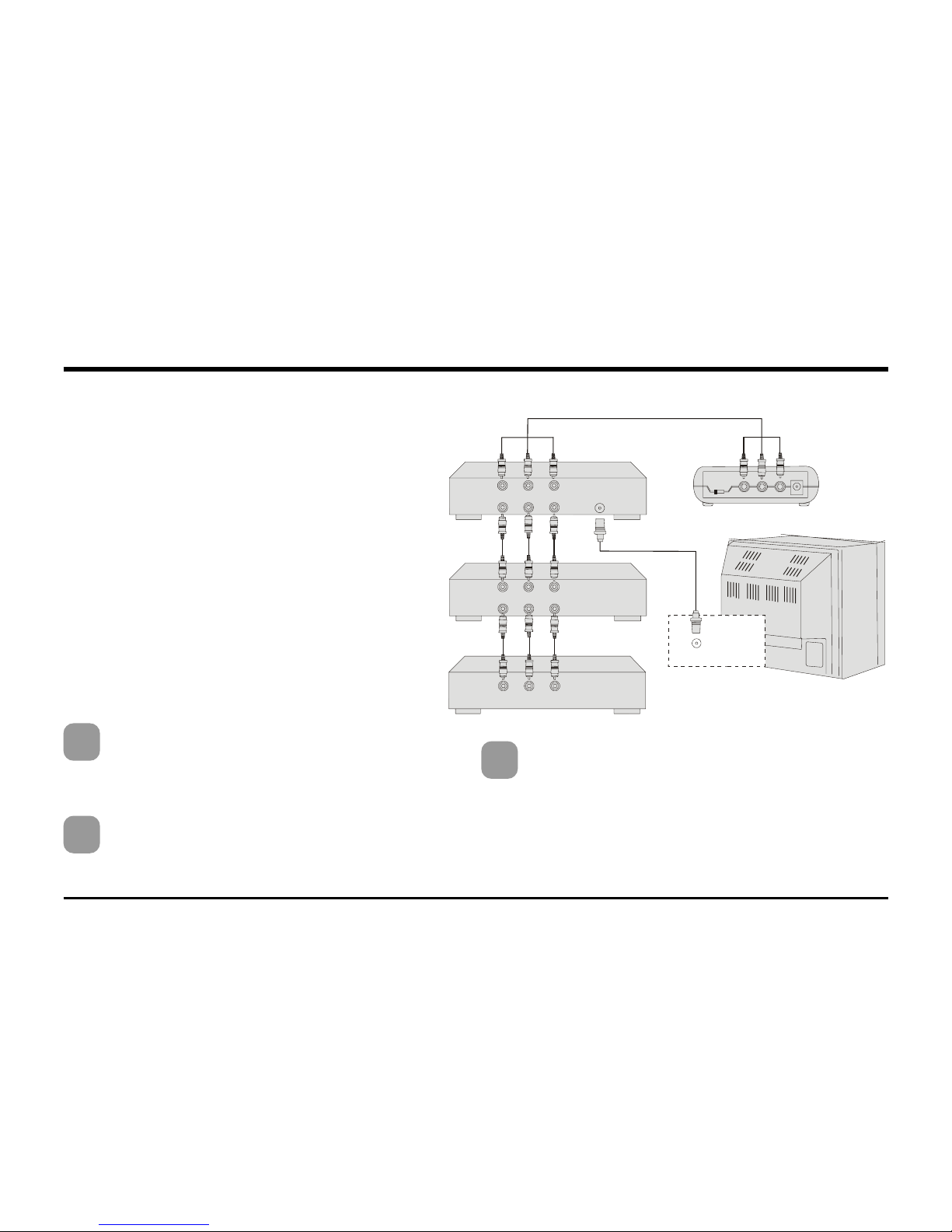

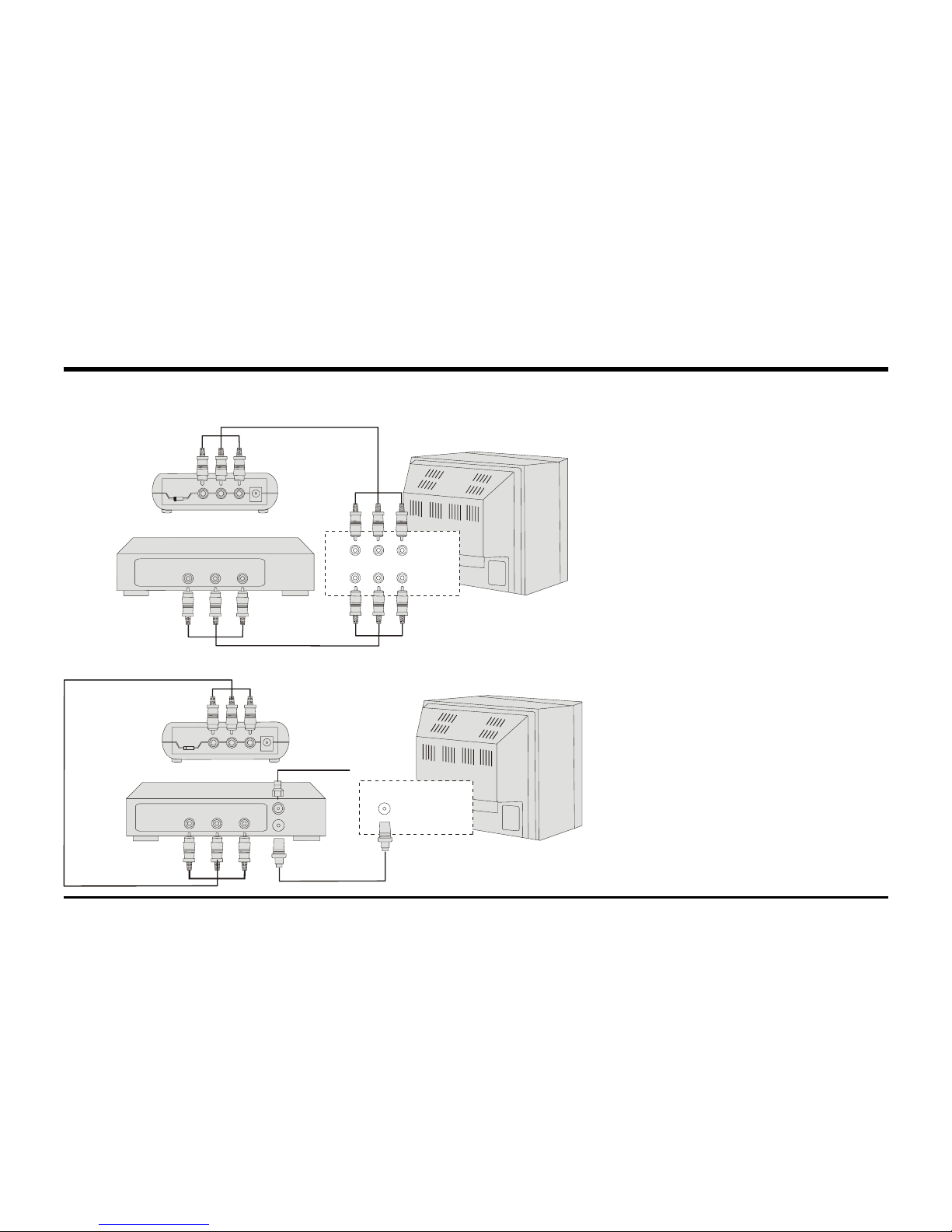

Connecting to Multiple Audio/Video Components
To use the Wireless Audio/Video Sender for
two or more audio/vidoe component, first
identify the last component in the chain and
connect its LINE OUT jacks to the
transmitter.
If the final component of the chain does not
have spare LINE OUT jacks, use coaxial cable
to connect the VHF/UHF jacks on the TV
and the last component. Then connect the
transmitter to the last compontnt's LINE
OUT jacks.
Audio/Video
Componet
Audio/Video
Componet
Audio/Video
Componet
TV
VHF/UHF
Transmitter
RF OUT
VIDEO AUDIO
IN
OUT
VIDEO AUDIO
IN
OUT
VIDEO AUDIO
OUT
Plug one end of the provided power
adapter into a wall outlet and the other
end into the rear of the transmitter.
Turn the ON/OFF switch to the ON positon.
The LED on the front of the unit should light.

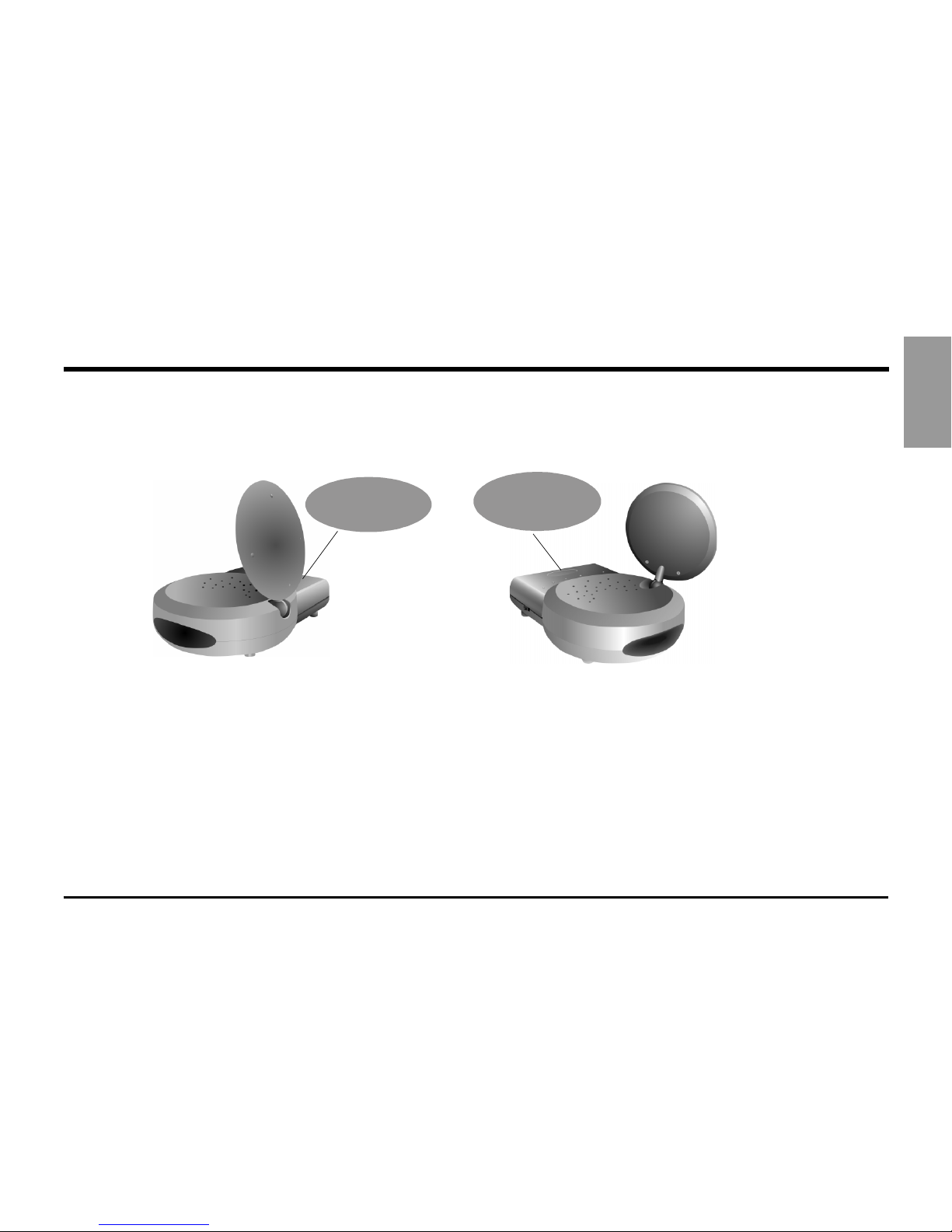

Place the transmitter in a convenient
location, then adjust its antenna so that the
front (curved face) faces the room where
the receiver is set up. See "Orienting Units
for Optimal Performance", on page 15).
