TRENDnet TBW-104UB Manuale utente
1
1
Table Contents
Introduction..................................................................................................... 2
Key Features ..................................................................................................................2
Getting Started................................................................................................ 3
Package Contents ..........................................................................................................3
Minimum System Requirements.....................................................................................3
Driver Installation............................................................................................................3
Applications Installed......................................................................................................7
BlueSoleil........................................................................................................ 8
Main Windows ................................................................................................................8
Bluetooth Connection Management.............................................................................11
Security Configurations ................................................................................................13
Appendix....................................................................................................... 15
Specification..................................................................................................................15
2
Introduction
The TBW-104UB is a class 1 Bluetooth v2.0 compliant USB adapter. This Bluetooth device
utilizes Enhanced Data Rate (EDR) technology to support data rates up to 3Mbps. The TBW-104UB
can communicate with other Bluetooth devices to form a "Piconet". The TBW-104UB provides a
fully compliant Bluetooth system for data and audio applications.
The TBW-104UB features advanced wireless technology allowing it to coexist with 802.11b/g
devices. The TBW-104UB utilizes EDR technology to communicate with other Bluetooth v2.0
standard compliant devices at high speed to provide various applications, such as Bluetooth ready
DSC (digital camera), PDA data sync, mobile phone, Access Point, printer, keyboard, mouse, etc.
The Bluetooth adapter can easily connect to your Bluetooth-enabled devices up to 100 meters away
(depending on application environment and condition).
Key Features
ySupport full-speed Bluetooth operation with full Piconet support
yBluetooth v2.0 compliant with EDR (Enhanced Data Rate)
yBackward compatible with Bluetooth v1.1 & v1.2
yCoexist with IEEE 802.11b/g devices
ySupport AFH (Adaptive Frequency Hopping) and fast connection
yUp to 100 meters radio coverage distance (depending on application environment and condition)
yUp to 3 Mbps access data rate
yLow power consumption
yBundled with the IVT BlueSoleil Software.
3
Getting Started
Package Contents
yTBW-104UB Advanced High Power Bluetooth USB Adapter
yQuick Installation Guide
yUtility & Driver CD-ROM
yUSB2.0Cable
Minimum System Requirements
yPC running Windows XP, 2000
yUSB 1.1 or 2.0 Port
yPentium 300 MHz processor or above
y256 MB RAM or above
y50MB free disk space on your hard drive
yCD-ROM drive
Driver Installation
If you have any Bluetooth driver (software) previously installed on your computer or built-in
Bluetooth adapter, please remove the driver and disable the Bluetooth adapter first!
1. Please insert the Utility & Driver CD into CD-ROM drive, and then follow the instructions below
to install the Utility and Drivers.
Note: DO NOT connect the TBW-104UB USB adapter until instructed to do so.
Note: If the setup menu does not launch automatically, go to start -> run -> type in
D:\setup, where "D" in "D:\setup" is the letter assigned to your CD-ROM Drive, and
then press the ENTER key on your keyboard.
4
1. Please click Install Utility
to begin Bluetooth adapter
installation.
5. Please Click Next
4. Please select I
accept the terms in
the license
agreement. Click
Next
3
. Pl
ease
C
li
c
k N
e
x
t
2. Please select Language
from the drop down menu
and then click OK.
5

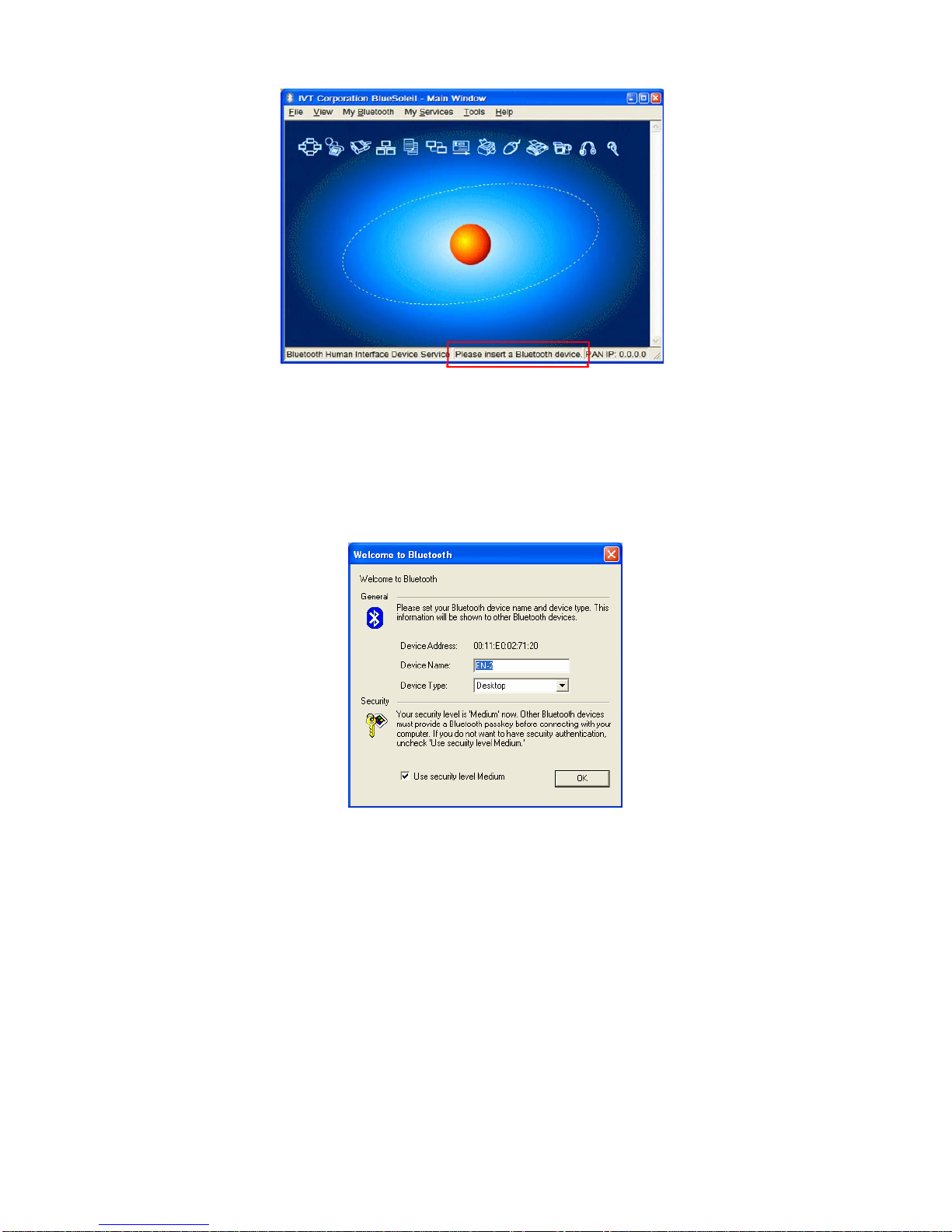

2. After the computer restarts, the main BlueSoleil screen appears.A message appears in the
BlueSoleil toolbar notifying the user to plug in the Bluetooth adapter.
9. Please click Yes to
restart your computer
8. Disregard all popup
Windows except for the
installation Window
shown to the right and
click Finish
7. Click Install
6
. Pl
ease
C
li
c
k N
e
x
t
6
3. Please plug in the TBW-104UB. The drivers will install automatically.
4. After the completion of the driver installation, the Welcome to Bluetooth screen will appear.
Assign your Windows system a device name and device type. In most cases, you should leave
the security setting checked. Click OK.
7
Applications Installed
After the completion of the driver and utility installation, the “IVT BlueSoleil” item will be added
to Windows Start Menu Programs group.
yBlueSoleil: Main program
yBlueSoleil Help: BlueSoleil EDR Edition Online Help
yUninstall BlueSoleil: Removes BlueSoleil driver
8
BlueSoleil
BlueSoleil is a Windows-based software from IVT that allows your Bluetooth®-enabled desktop or
notebook computer to connect wirelessly to other Bluetooth-enabled devices. BlueSoleil allows
Windows users to wirelessly access a wide variety of Bluetooth-enabled digital devices, such as
cameras, mobile phones, headsets, printers, and GPS receivers. You can also form networks and
exchange data with other Bluetooth-enabled devices.
In order to connect and share services via Bluetooth wireless technology, two devices must support
the same Bluetooth Profile(s) as well as opposite device roles (i.e., one must be the server, and the
other must be the client). Bluetooth-enabled devices often support multiple profiles, and can
perform different device roles simultaneously.
BlueSoleil supports the following Bluetooth profiles:
Bluetooth Functions (Profiles) Client Server
AV Headphone* 99
Basic Image Profile 99
Dial-Up Networking 9
Fax 9
File Transfer 99
Headset* 99
Human Interface Device 9
LAN access 99
Object Push 99
Personal Area Networking 99
Printer 9
Serial Port 99
Synchronization 99
9
Main Windows
Local Bluetooth Device
The My Device icon represents the local computer.
Icon:
Operations:
•Move the mouse over a Bluetooth device to display its name or address (if without name).
•Click on the red ball to start or stop searching for Bluetooth devices in range.
•Right-click on the red ball to display a pop-up menu of related operations (e.g., General
Inquiry, My Services, Security, etc.).
Remote Bluetooth Devices
Remote devices are other Bluetooth enabled devices that are in the Bluetooth radio range of your
local device. BlueSoleil uses different icons to indicated different types of remote devices.
Icons
