TRENDnet TEG-PCISXplus Manuale utente

TEG-PCISXplus

Gigabit Ethernet

1000BASE-SX

Fiber Adapter

32/64-bit PCI Bus

User’s Guide

FCC Warning

This equipment has been tested and found to comply with the

regulations for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with this user’s guide, may cause harmful interference to

radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference, in which case the user will

be required to correct the interference at his own expense.

CE Mark Warning

This is a Class B product. In a domestic environment, this product

may cause radio interference, in which case the user may be required

to take adequate measures.

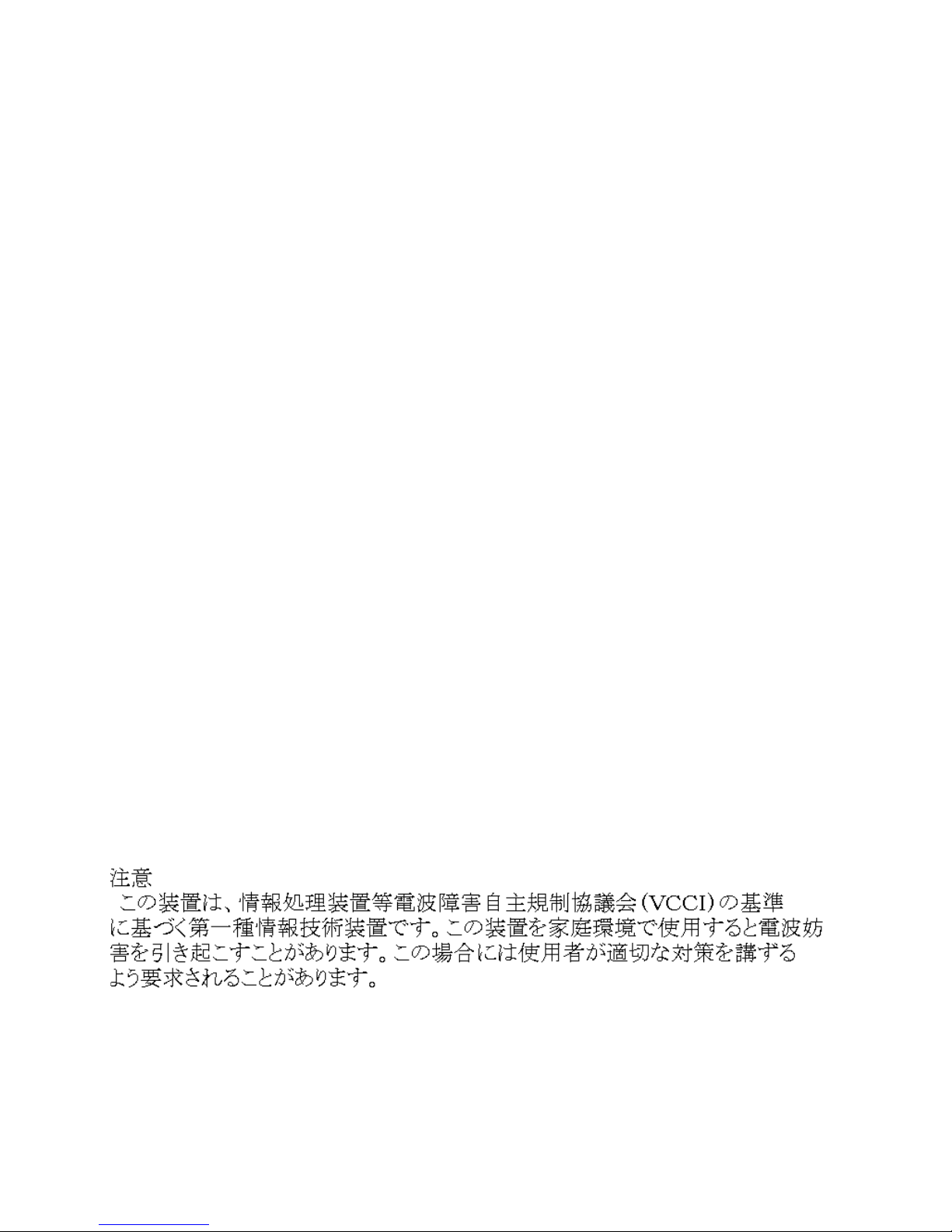

VCCI Warning

P/N: 6012-GA2000F01 Rev.A1-01

TABLE OF CONTENTS

INTRODUCTION.........................................................................5

FEATURES .................................................................................................5

GIGABIT ETHERNET TECHNOLOGY...............................................6

UNPACKING AND INSTALLATION....................7

UNPACKING..............................................................................................7

INSTALLING FIBER ADAPTER INTO PCI SLOT..........................8

CONNECTING THE FIBER ( SC ) CABLE......................................8

SOFTWARE INSTALLATION................................................................9

LED INDICATORS.....................................................................9

TECHNICAL SPECIFICATIONS............................11

INTRODUCTION

Thank you for choosing the Gigabit fiber Ethernet Card for 32/64-bit

PCI Bus-equipped personal computers. The Gigabit fiber Ethernet

Card is ideal for speeding up data transfers for network servers and

other computers, such as those used for video-conferencing, which

send and/or receive large amounts of data. It also includes the newest

networking technologies, such as VLAN and multicasting support that

require more network bandwidth and further help the card maximize

data throughput.

Features

?? IEEE 802.3z 1000BASE-SX compliant

?? Support 64/32-bit 66/33Mhz PCI Local Bus Master high-speed

operation of Rev.2.1/2.2 specification

?? Plug-and-Play installation

?? SC type connector for 50/125?m or 62.5/125?m multi-mode

fiber

?? Supports Full-duplex mode doubles network data rate to

2000Mbps

?? Built-in FIFO buffersreduces memory transfer overhead

?? Virtual LAN (VLAN) and long frame support. VLAN tag

insertion supports for transmit packets. VLAN tag detection and

removal for receive packets

?? 802.3x Full duplex flow control, including automatic

transmission of Pause frames based on Rx FIFO thresholds

?? Two LED indicators for easy diagnostic

Gigabit Ethernet Technology

Gigabit Ethernet is an extension of IEEE 802.3 Ethernet, which

utilizes the same packet structure, format, CSMA/CD protocol, full

duplex, flow control, and management objects. From the bandwidth

point of view, Gigabit Ethernet has a tenfold increase in theoretical

throughput over 100Mbps Fast Ethernet and a hundredfold increase

over 10Mbps Ethernet. Since it is also compatible with 10Mbps and

100Mbps Ethernet environments, Gigabit Ethernet provides a

straightforward upgrade without wasting a company’s existing

investment in hardware, software, and trained personnel.

The higher packet transfer speed and extra bandwidth offered by

Gigabit Ethernet is essential when coping with the network

bottlenecks that frequently developed as the computers and their

busses get faster and more users use applications that generate more

traffic. Upgrading key components, such as your backbone and

servers to Gigabit Ethernet can greatly improve network response

times as well as significantly speed up the traffic between your

subnets.

Fiber Gigabit Ethernet enables Fiber cable connections to

support video conferencing, complex imaging, and similar

data-intensive applications. Likewise, since data transfers

occur 10 times faster than Fast Ethernet, servers outfitted

with Gigabit Ethernet NIC’s are able to perform 10 times the

number of operations in the same amount of time.

UNPACKING AND INSTALLATION

This chapter provides unpacking and installation information for the

32/64-bit PCI Bus Gigabit fiber Ethernet card

Unpacking

CAUTION: Under normal condition, the 32/64-bit PCI 1000Mbps Fiber Gigabit

Ethernet Card will not be affected by static charge as may be received

through your body during handling of the unit. However, there are

occasions that you may carry a high static charge, and this can possibly

damage the card and/or your computer. It is good practice to eliminate

all static electricity by touching a ground (an unpainted metal area of

your computer chassis, for example) before performing any hardware

installation.

Open the box and carefully remove all items. In addition to this User's

Guide, ascertain that you have:

?? One 32/64-bit PCI 1000BASE-SX Gigabit fiber Ethernet Card.

?? One Driver Diskette

?? This User’s Guide.

If any item is found missing or damaged, please contact your local

reseller for replacement.

Installing Fiber Adapter into PCI slot

Step 1: Power off the computer and disconnect the computer power cord.

Step 2: Remove any jewelry on your hands.

Step 3: Remove the cover from your PC.

Step 4: Locate an empty, non-shared bus mastering 32bit or 64bit PCI slot and

remove the back-plate for that slot on the chassis. If there is a screw holding

the back-plate, remove it and save it for Step 6.

Step 5: Carefully insert the Fiber Adapter into the chosen slot; press it firmly and

make sure it is fully seated in the slot (all the gold contacts are in the slot).

Step 6: Secure the Fiber Adapter with the screw from step 4.

Step 7: Replace the PC cover.

Step 8: Proceed to “Connecting the Fiber Cable” section.

<Note>

Always ensure the power is cut off before any installation to avoid electric shock and possible

damage to the equipments.

Connecting the Fiber (SC type connector) Cable

A Multi-mode Fiber cable (50/125µm or 62/125µm, wavelength 850nm) with SC

connector is required for the Gigabit fiber Ethernet Card. The connector connects in a

certain way; do not force to make the connection. Also, make sure to connect the card’s

TX port to the RX port of the other device and vise versa.

For cabling requirementsand maximum segment distance for the Fiber Adapter, please

refer to the Technical Specifications on page 11.

Software Installation

Before you can use the Gigabit fiber Ethernet Card on the network,

you have to install the network driver first. The driver for each

networking operating system is under a separate directory. A

HELP.EXE file under root directory lists the information and detailed

installation procedure of all the available drivers.

LED INDICATORS

Link

This indicator lights green when the Gigabit Card is connects to

1000BASE-SX Gigabit Ethernet Network.

Activity (ACT)

This indicator blinks green when transmitting or receiving data on

the network.
