TRENDnet TFC-1000MSC Manuale utente

1000Base-SX/LX

Fiber Converters

Quick Installation Guide

Table of Contents

English ......................................................................................................

Spefications ..............................................................................................

Ordering Information...................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. .........................................................................

.................................................................................

Hardware Installation

Table of Contents

Version 02.02.2009

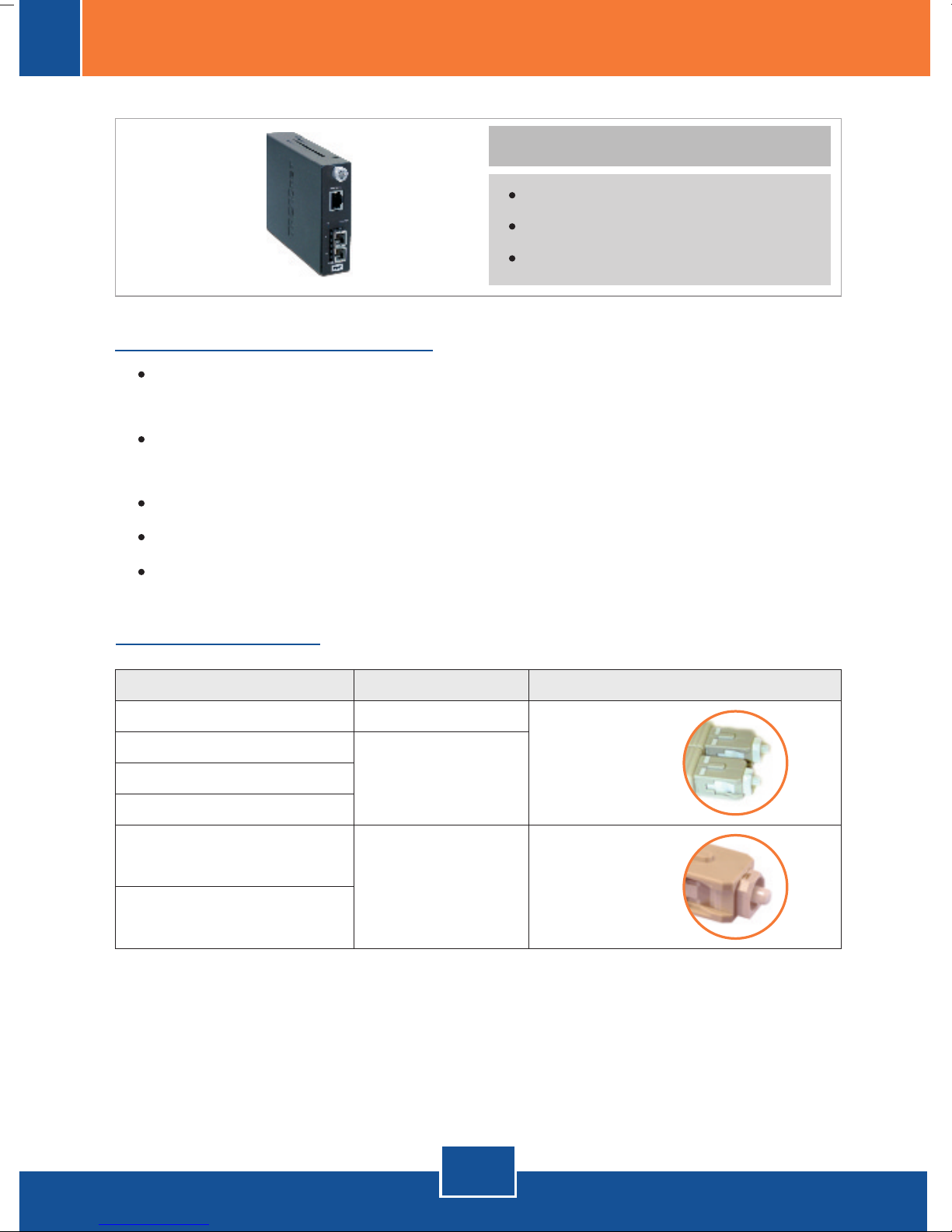

System Requirements

Product Detail

Fiber Converter

Quick Installation Guide

AC Power Supply (7.5 DC, 1.5A)

Package Contents

1. Before You Start

English

An environment that is free from strong electromagnetic field generators

(such as motors), vibration, dust and direct exposure to sunlight

10/100/1000Mbps Gigabit Switch

Multi-mode or Single-mode Fiber cables

CAT-5 or CAT-6 RJ-45 Ethernet Cable

TFC-1600 chassis (optional) or sturdy, level surface that can support the

weight of the Fiber Converter

Model Name Multi/Single-Mode Fiber Connector

TFC-1000MSC

TFC-1000S20

TFC-1000S50

TFC-1000S70

TFC-1000S10D3

TFC-1000S10D5

SC (Duplex)

SC (Simplex)

Multi-Mode

Single-Mode

Bidirectional

2. Hardware Installation

English

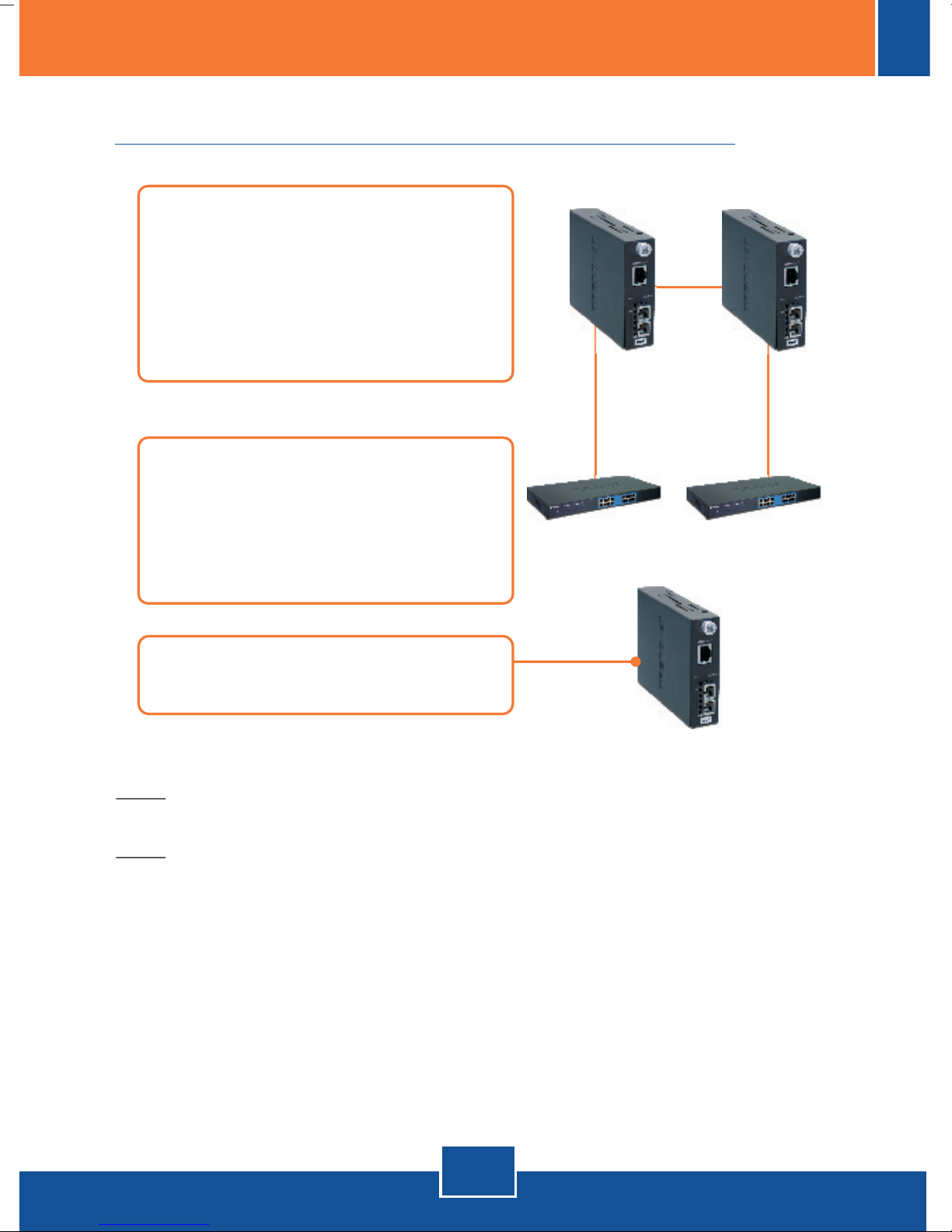

Installing two stand alone Fiber Converters

1. Connect the fiber cable to the fiber

converters. This cable must be

multi-mode for the TFC-1000MSC.

This cable must be single-mode for

the TFC-1000S20/S50/S70/S10D3/

S10D5.

2. Connect an RJ-45 Ethernet cable

from the Ethernet port on the fiber

converters to an Ethernet port on

your switch (e.g TEG-S160TX or

TEG-S240TX).

Note: The TX and RX cables must be reverse on the opposite fiber connection.

Note: The TFC-1000S10D3 must be paired with the TFC-1000S10D5.

3. Connect the power adapter to the

back of the fiber converter.

5. Unfasten the thumbscrew and

remove the fiber converter from the

metal casing.

Your installation is now complete.

English

4. Unscrew the bay cover from the

desired bay on the chassis.

6. Slide the media converter into an

available slot and fasten the

thumbscrew.

Installing Media Converter in a Chassis

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

DIP Switches: Switch 1: On(Forced Mode); Off(Auto-Negotiation)

Switch 2: On(LLR enabled); Off(LLR disabled)

Cable :

1000BASE-T

Cat. 5e or Cat. 6 EIA/TIA-568 100-ohm screened

twisted-pair (STP)

1000BASE-SX

62.5/125µm multi-mode fiber optic cable

50/125µm multi-mode fiber optic cable

1000BASE-LX

9/125µm single-mode fiber optic cable

10/125 µm single-mode fiber optic cable

Applicable Standards: IEEE802.3ab 1000BASE-TX

IEEE802.3z 1000BASE-SX/LX

Fixed Ports: 1 TX port, 1 FX port

1488000pps for 1000Mbps

Forwarding rate:

LED Indicators: PWR, LNK/ACT

Weight: 305 g

Power: External power adaptor 7.5V 1.5A

5.5 Watts Max.

10 ~ 90%, non-condensing

Power Consumption:

Operating: 0°C ~ 40°C (32°F ~ 104°F)

Storage: -25°C ~ 70°C (-13°F ~ 158°F)

Temperature:

Humidity:

FCC part 15 Class B, CISPR ClassB, VCCI Class B,

CE Mark

Certifications:

Dimensions: L120 × W88 × H25 mm

Specifications

Ordering Information

TFC-1000MSC

TFC-1000S20

TFC-1000S50

TFC-1000S70

TFC-1000S10D3

TFC-1000S10D5

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

MMF

(50 or 62.5 )

µm µm

SMF

(10 )

µm

SMF

(10 )

µm

SMF

(10 )

µm

Bi-directional SMF

(10 )

µm

Bi-directional SMF

(10 )

µm

Media Converters

Model Number Speed

(Mbps)

Speed

(Mbps)

Cable/Connector Max.

Distance

Max.

Distance

Wavelength Cable(/125 µm )

/Connector

RJ-45 Port Fiber Port

1000

100M

100M 1300nm

1300nm

TX: 1310nm

RX: 1550nm

TX: 1550nm

RX: 1310nm

220M

62.5/125µm

550M

50/125µm

20 km

50 km

70 km

10 km

Note: MMF (multi-mode fiber); SMF (single-mode fiber)

TFC-1000S40D3

TFC-1000S40D5

TFC-1000S60D3

TFC-1000S60D5

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

Cat. 5E, 6

EIA/TIA-568

100-ohm STP

SMF

(10 )

µm

SMF

(10 )

µm

Bi-directional SMF

(10 )

µm

Bi-directional SMF

(10 )

µm

1000

100M

TX: 1310nm

RX: 1550nm

TX: 1550nm

RX: 1310nm

40 km

60 km

TX: 1310nm

RX: 1550nm

TX: 1550nm

RX: 1310nm

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

After connecting the Fiber converter, the LEDs do not turn on. What should I

do?

First, check that the power outlet is receiving power. Second, make sure the

power adapter is firmly connected to the Fiber converter and the power outlet.

Third, make sure the Ethernet and the Fiber cables are connected.

All the LEDs are on, but I can't make a connection. What should I do?

First, verify that you are using the proper fiber cable (e.g. multi-mode fiber

cable for multi-mode converter; single-mode fiber cables for single-mode

converters). Second, verify that the TX and RX cables have been reverse on the

opposite Fiber connection. Third, power down the fiber converters and the

switches. Wait 15 seconds, then plug the switches and the fiber converters back

in.

What is the maximum distance that is supported by the fiber converter?

Please reference section 4 for distance information.

If you still encounter problems or have any questions regarding the Fiber Converters

please contact TRENDnet's Technical Support Department.

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

sent prepaid, insured and packaged appropriately for safe shipment.

5 Year Limited Warranty

Fiber Converters

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT

TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET

NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE

RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry 1-Year

Warranty
