TRENDnet TFM-PCIV92I Manuale utente

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 1 -

TABLE OF CONTENT

1. Contents of Package ...............................................................2

2. Comprehensive Modem Installation Instructions .................2

2.1 System Requirements ...........................................................2

2.2 Hardware Installation ...........................................................3

2.3 System Setup .......................................................................4

2.3.1 Setup Instructions for Windows 98SE ..................................4

2.3.2 Uninstall Modem from Windows 98SE .................................6

2.3.3 Setup Instructions for Windows Me ....................................7

2.3.4 Uninstall Modem from Windows Me ...................................9

2.3.5 Setup Instructions for Windows 2000 ............................... 10

2.3.6 Uninstall Modem from Windows 2000 .............................. 14

2.3.7 Setup Instructions for Windows XP .................................. 15

2.3.8 Uninstall Modem from Windows XP ................................. 18

2.4 Testing your modem ...........................................................19

2.5 Install Communication Software .........................................19

3. Troubleshooting .....................................................................20

Appendix 1: Modem Specifications ..........................................22

Appendix 2: Government Compliance .....................................22

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 2 -

Section 1 Contents of Package

! One V.92 PCI bus window modem

! One telephone cable

! One CD-ROM disk comprises Communication software, Modem Driver & User's Manual

! Quick installation guide

Please contact the place of purchase if any of the above listed items are missing.

Section 2 Comprehensive Modem Installation Instructions

Section 2.1 System Requirements

The modem operates on a personal computer equipped with the following:

! Windows 98SE or Windows Me or Windows 2000 or Windows XP operating system

! Any of the following processor/cache memory configurations:

- 266 MHz Pentium(r) II or faster CPU

- 433 MHz Intel(r) Celeron or faster CPU

! 8 MB hard disk space

! 64 MB RAM

! One vacant 32-bit PCI slot

! One available IRQ: 3 through 15

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 3 -

Section 2.2 Hardware Installation

Please refer to Fig. 2 - 1 and proceed to following steps for how to insert your modem into the computer and

connect telephone wire and audio accessories.

Model: I206

FIGURE 2-1 Internal modem diagram

1. Turn off and unplug your computer from the AC outlet.

2. Unplug any peripheral devices (keyboard, monitor, etc.) from your computer to avoid the

risk of electric shock.

3. Take the cover off your computer, review computer's manual if you need further instructions.

4. Find an empty PCI slot.

5. Unscrew the PCI slot bracket and save the screw, then remove the bracket.

6. Plug the modem into the PCI slot carefully until the modem is properly seated.

7. Fasten the modem bracket firmly with the screw saved in step 5.

8. Reassemble your computer cover and re-plug cables for peripheral.

9. Plug one end of telephone cord into the "LINE" jack at the modem's bracket. Plug another end of the

telephone cord into the telephone wall jack

10. Some models may comprise a phone jack for an optional telephone. If you wish to use a phone through

the same telephone wall jack when the modem is not in use, plug the telephone cord of the phone into

"PHONE" jack at the modem's bracket now. Lift the handset and listen for a dial tone to check for a

properly connection.

11. Plug the power cord into the computer and turn the computer on.

12. Up to now, the hardware installation had been finished. If you have not encountered any problems, you

can go to Section 2.3 System Setup. If you are having problems, see Section 3 Troubleshooting.

NOTE: The telephone wall jack you use must be for an ANALOG phone line (the type found in most homes).

Many offices are equipped with digital phone lines. Please be sure you know which type of line you have. The

modem will be damaged if you use a digital phone line.

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 4 -

Section 2.3 System Setup

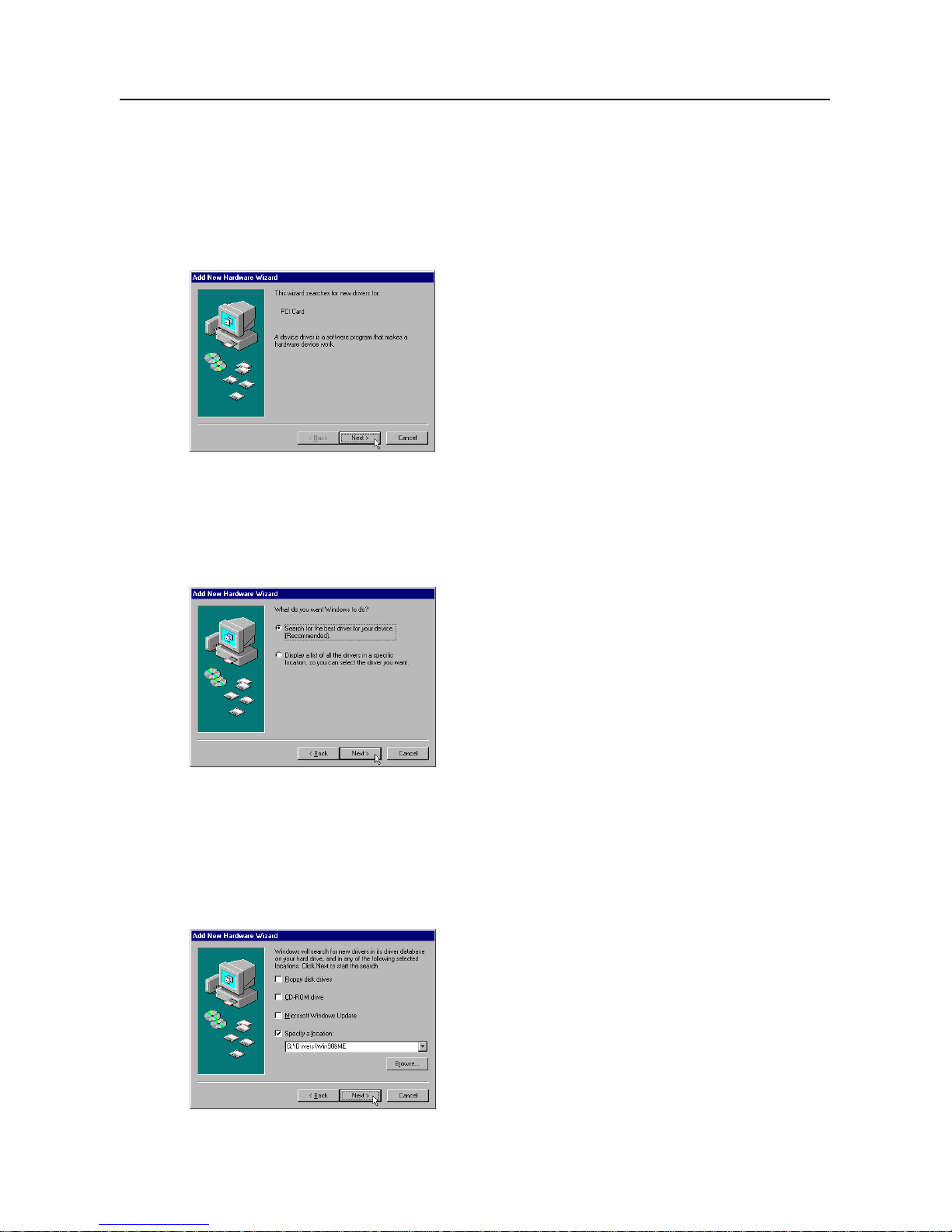

Section 2.3.1 Setup instructions for Windows 98SE

STEP 1. After you complete the modem hardware installation and turn on your PC, Windows system will

automatically detect your new added devices. Windows system will then prompt you with anAdd

New Hardware Wizard screen as shown in figure.

Then click on Next.

STEP 2. Aprompt screen will ask you to select Search for the best driver for your device or display a list

of all the drivers in a specific location, so you can select the driver you want.

Please select the recommended one as shown in figure.

Then click on Next.

STEP 3. And then, a prompt screen will ask you to indicate where your driver is located, floppy disk drives,

CD-ROM drive, Microsoft Windows Update or specify a location: .

Insert the Modem Driver CD-ROM disk attached with your modem into the CD-ROM drive device.

Then select Specify a location as shown in figure.

Click on Next.

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 5 -

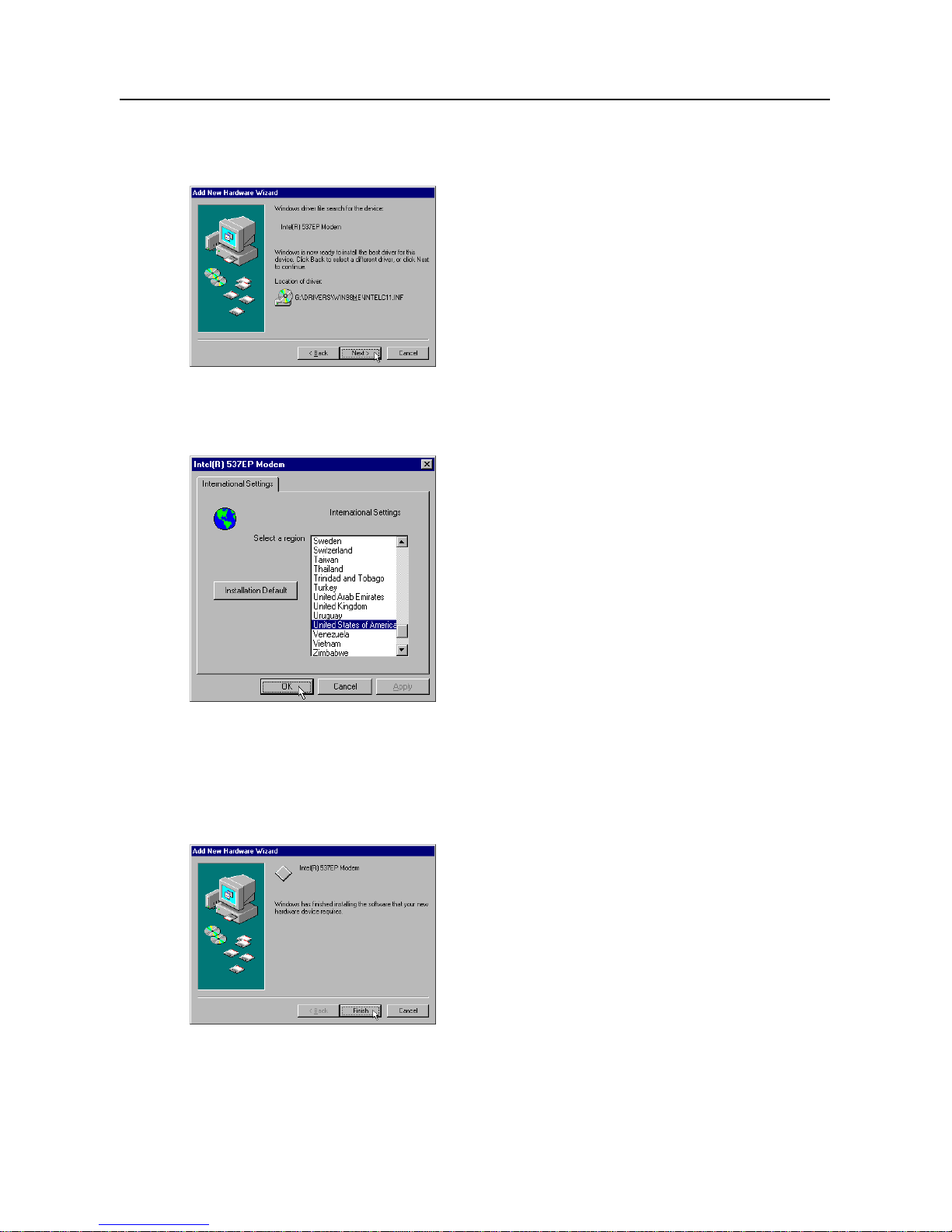

STEP 4. Then, a prompt screen indicates Windows has found the best driver for your modem as shown

in figure.

Please make sure the source of your driver is correct then click on Next.

STEP 5. Select International Settings tab as shown in figure.

Make sure the country setting is correct (default United States of America).

Changes of the setting will effect to modem performance.

Please select a correct option to match your location and click OK.

STEP 6. Click on Finish to complete the modem installation.

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 6 -

Section 2.3.2 Uninstall Modem from Windows 98SE

In any reason, you want to remove or reinstall the modem. Please follow the steps below to completely

uninstall the modem.

STEP 1. Click on Start #Settings #Control Panel as shown in figure.

STEP 2. Click on Add/Remove Programs icon in Control Panel window.

STEP 3. Click Install/Uninstall tab and choose Intel(R) 537EP Modem.

Then click Add/Remove…. Button to uninstall the modem.

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 7 -

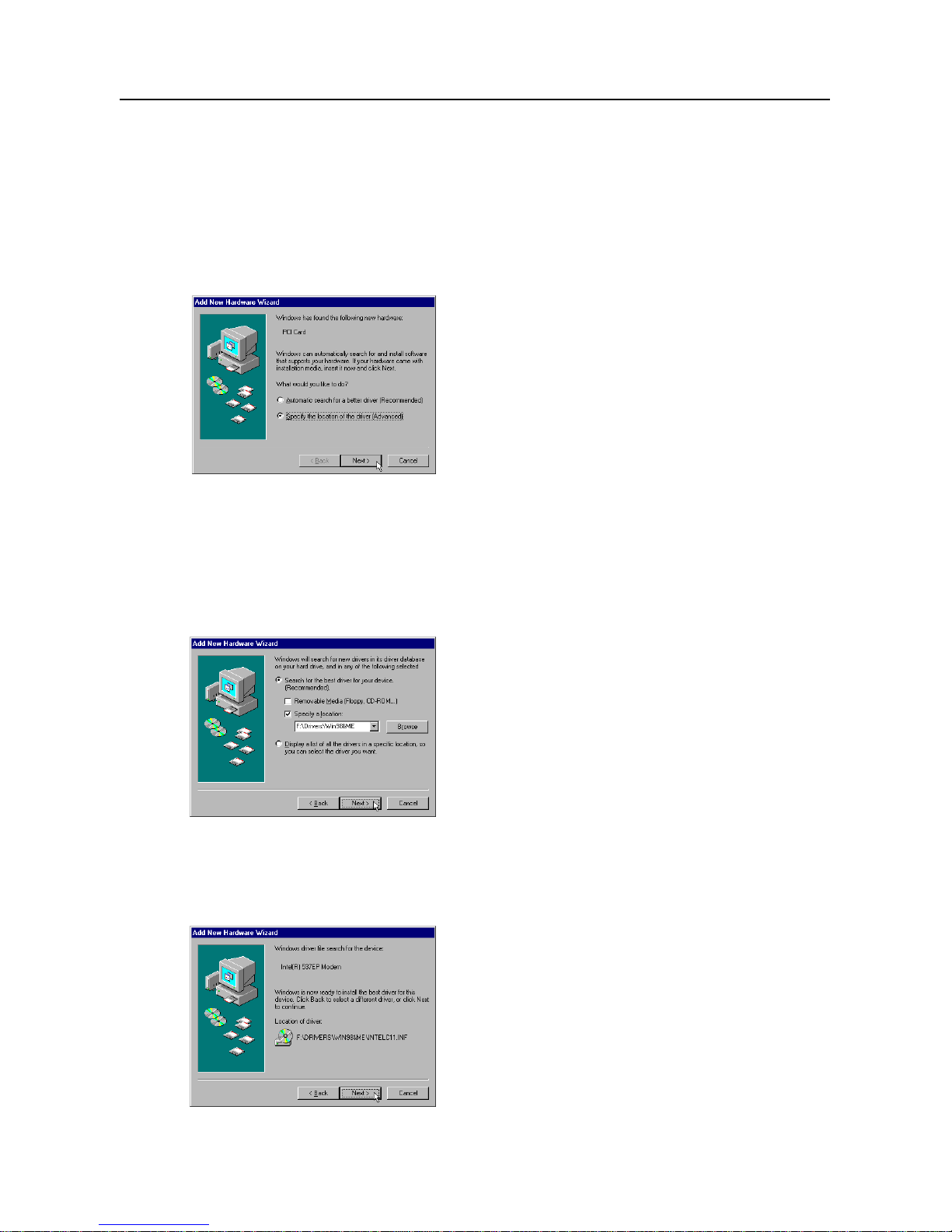

Section 2.3.3 Setup instructions for Windows Me

STEP 1. After you complete the modem hardware installation and turn on your PC, Windows system will

automatically detect your new added devices “PCI Card”.

A prompt screen will ask you to select Automatic search for a better driver or Specify the

location of the driver, so you can select the driver you want.

Please select the Specify the location of the driver [Advanced] as shown in figure.

Then click on Next.

STEP 2. And then, a prompt screen will ask you to indicate where your driver is located, floppy disk drives,

CD-ROM drive, Microsoft Windows Update or specify a location: .

Insert the Modem Driver CD-ROM disk attached with your modem into the CD-ROM drive device,

then select Specify a location as shown in figure.

Click on Next.

STEP 3. Then, a prompt screen indicates Windows has found the best driver for your modem as shown

in figure.

Please make sure the source of your driver is correct then click on Next.

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 8 -

STEP 4. Then, an Intel(R) 537EP Modem Settings screen show International Settings tab as shown in

figure.

Make sure the country setting is correct (default United States of America).

Changes of the setting will effect to modem performance.

Please select a correct option to match your location and click OK.

STEP 5. Click on Finish to complete the modem installation.

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 9 -

Section 2.3.4 Uninstall Modem from Windows Me

In any reason, you want to remove or reinstall the modem. Please follow the steps below to completely

uninstall the modem.

STEP 1. Click on Start #Settings #Control Panel as shown in figure.

STEP 2. Click on Add/Remove Programs icon in Control Panel window.

STEP 3. Click Install/Uninstall tab and choose Intel(R) 537EP Modem.

Then click Add/Remove…. Button to uninstall the modem.

I206 V.92 PCI MODEM USER’S MANUAL

Rev.1.00.2.1.57.75 - 10 -

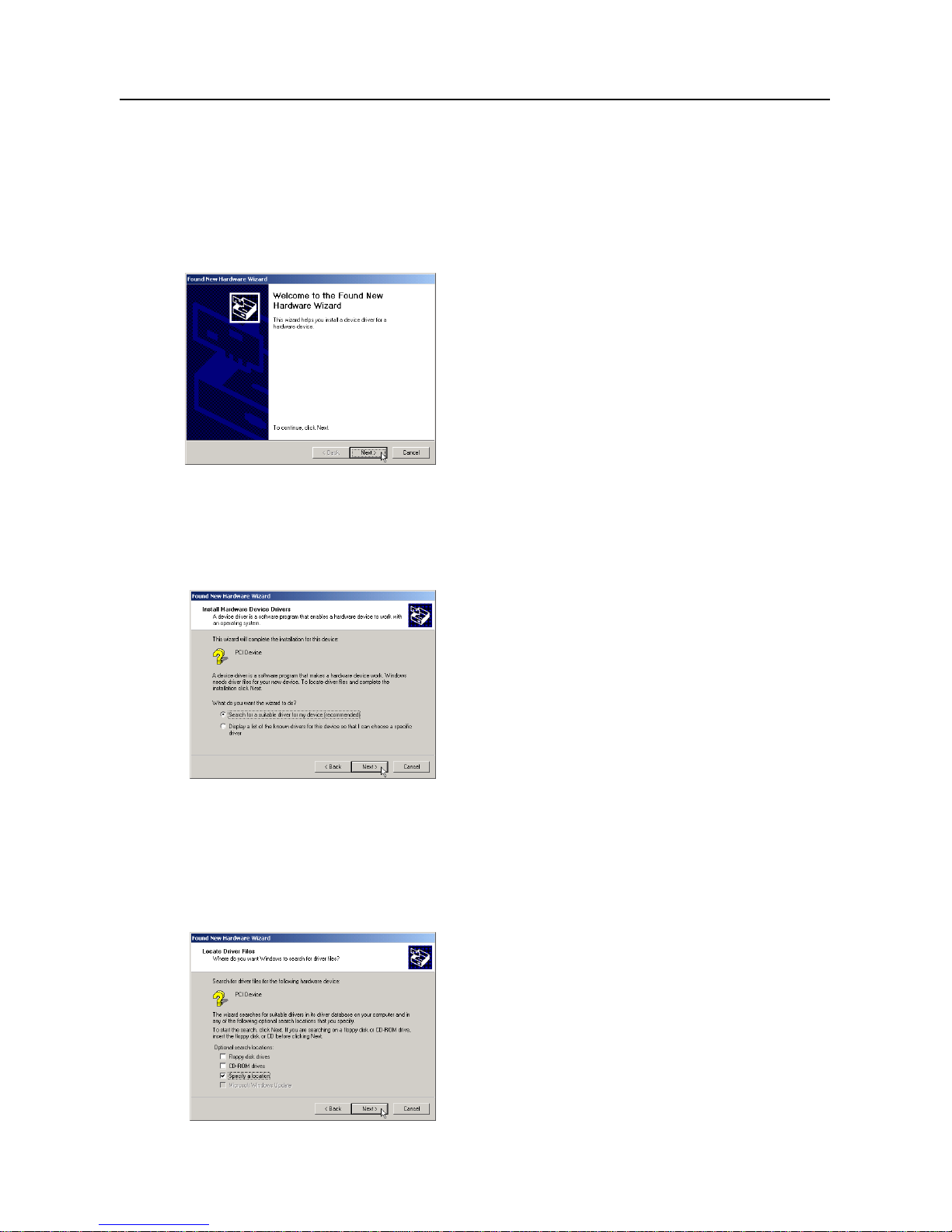

Section 2.3.5 Setup instructions for Windows 2000

STEP 1. After you complete the modem hardware installation and turn on your PC. Windows system will

automatically detect your new added devices. Windows system will then prompt you with a Found

New Hardware Wizard screen, as shown in figure.

STEP 2. A prompt screen will ask you to select Search for a suitable driver for my device or display a list

of all the drivers in a specific location, so you can select the driver you want.

Please select the recommended one as shown in figure.

Click on Next.

STEP 3. And then, a prompt screen will ask you to indicate where your driver is located, floppy disk drives,

CD-ROM drive, Microsoft Windows Update or specify a location:. Please select Specify a

location as shown in figure.
