TRENDnet TEW-652BRP Manuale utente

Quick Installation Guide

TEW-652BRP

3.21

Table of Contents

Version 04.13.2011

English 1

Troubleshooting 9

Wireless Tips 11

1. Before You Start 1

2. Hardware Installation 3

3. Configure the Wireless Router 5

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

1. Before You Start

Package Contents

System Requirements

TEW-652BRP

CD-ROM (User's Guide)

Multi-Language Quick Installation Guide

Network Cable (1.5m/4.9ft)

Power Adapter

A computer with a wired or wireless network adapter properly installed

(Note: It is recommended that you configure the Wireless Router from a wired

computer)

Web Browser: Internet Explorer (6.0 or higher)

Broadband Internet

Installed Cable or DSL Modem

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

Collect Internet Service Provider (ISP) Information

Please verify your Internet broadband connection type with your ISP and ensure you have all the information for

one of the following connection types:

1. Obtain IP Address Automatically (DHCP)

Host Name (Optional)

Clone Mac Address (Optional)

2. Fixed IP address

WAN IP Address: _____. _____._____._____ (e.g. 215.24.24.129)

WAN Subnet Mask: _____. _____._____._____

WAN Gateway IP Address: _____. _____._____._____

DNS Server Address 1: _____. _____._____._____

DNS Server Address 2: _____. _____._____._____

3. PPPoE to obtain IP automatically

User Name: _________

Password: ________________

Verify Password: ________________

4. PPPoE with a fixed IP address

User Name: _________

Password: ________________

Verify Password: ________________

IP Address: ____. _____._____._____ (e.g. 215.24.24.129)

5. PPTP or Russian PPTP

Type (Dynamic IP or Static IP )

My IP Address: _____. _____._____._____ (e.g. 215.24.24.129)

Subnet Mask:_____. _____._____._____

Gateway:_____. _____._____._____

Server IP: _____. _____._____._____

PPTP Account: ________________

PPTP Password: ________________

Retype Password: ________________

6. L2TP or Russia L2TP

Type (Dynamic IP or Static IP)

My IP Address: _____. _____._____._____ (e.g. 215.24.24.129)

Subnet Mask:_____. _____._____._____

Gateway:_____. _____._____._____

Server IP: _____. _____._____._____

L2TP Account: ________________

L2TP Password: ________________

Retype Password: ________________

7. Russia PPPoE

Type (Dynamic IP or Static IP)

User Name: _________

Password: ________________

Verify Password: ________________

IP Address: ____. _____._____._____ (e.g. 215.24.24.129)

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

2. Hardware Installation

Note: Gather all information related to your Internet Connection before you start. If necessary,

contact your Internet Service Provider (ISP).

Cable/DSL Modem

Internet

1. Verify that you have an Internet connection

when connecting your computer directly to the

Cable or DSL modem. Open your browser (e.g.

Internet Explorer) and type in a URL (e.g.

http://www.trendnet.com) in the address bar.

2. Power off your cable or DSL modem.

3. Disconnect the network cable from your Cable

or DSL modem and your computer.

6. Connect the Power Adapter to the wireless

router and then to a power outlet. Push the

power button to the “On” position.

4. Connect one end of a Network cable to one of

the TEW-652BRP's LAN ports. Connect the

other end of the cable to the computer's

Ethernet port.

5. Connect one end of a network cable to the

TEW-652BRP’s WAN port. Connect the other

end of the cable to your modem’s network port.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

7. Power on your cable or DSL modem. Wait until

the LEDs indicate that modem is fully booted

up. Consult with the modem user's guide for

more information.

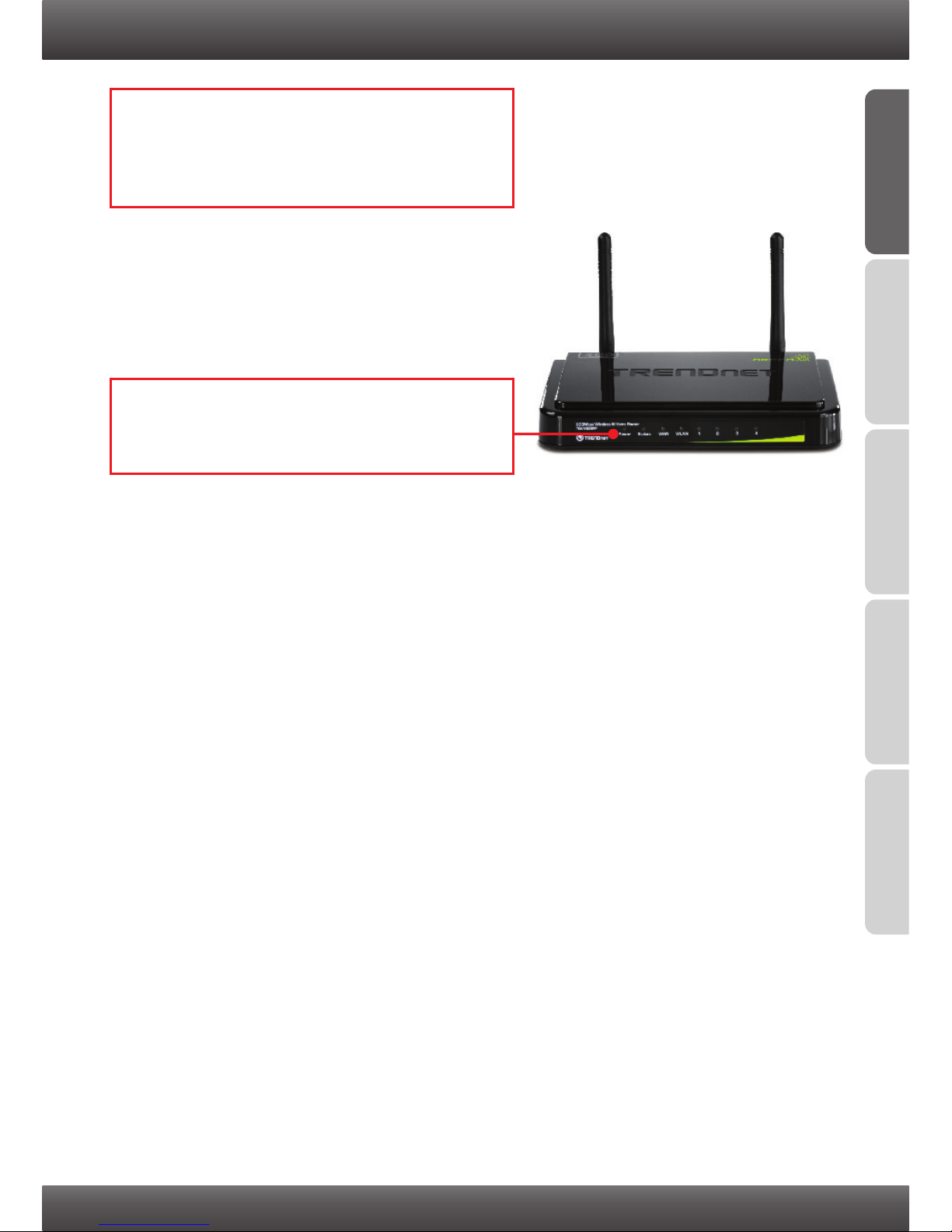

8. Verify that the following panel lights are on:

Power (Green), Status (Green), LAN (Green),

WAN and WLAN (Green).

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

3. Configure the Wireless Router

Note: It is recommended that you configure the Wireless Router from a wired computer.

2. Enter the User Name and password and then

click Login. By default:

User Name: admin

Password: admin

Note: User name and Password are case

sensitive.

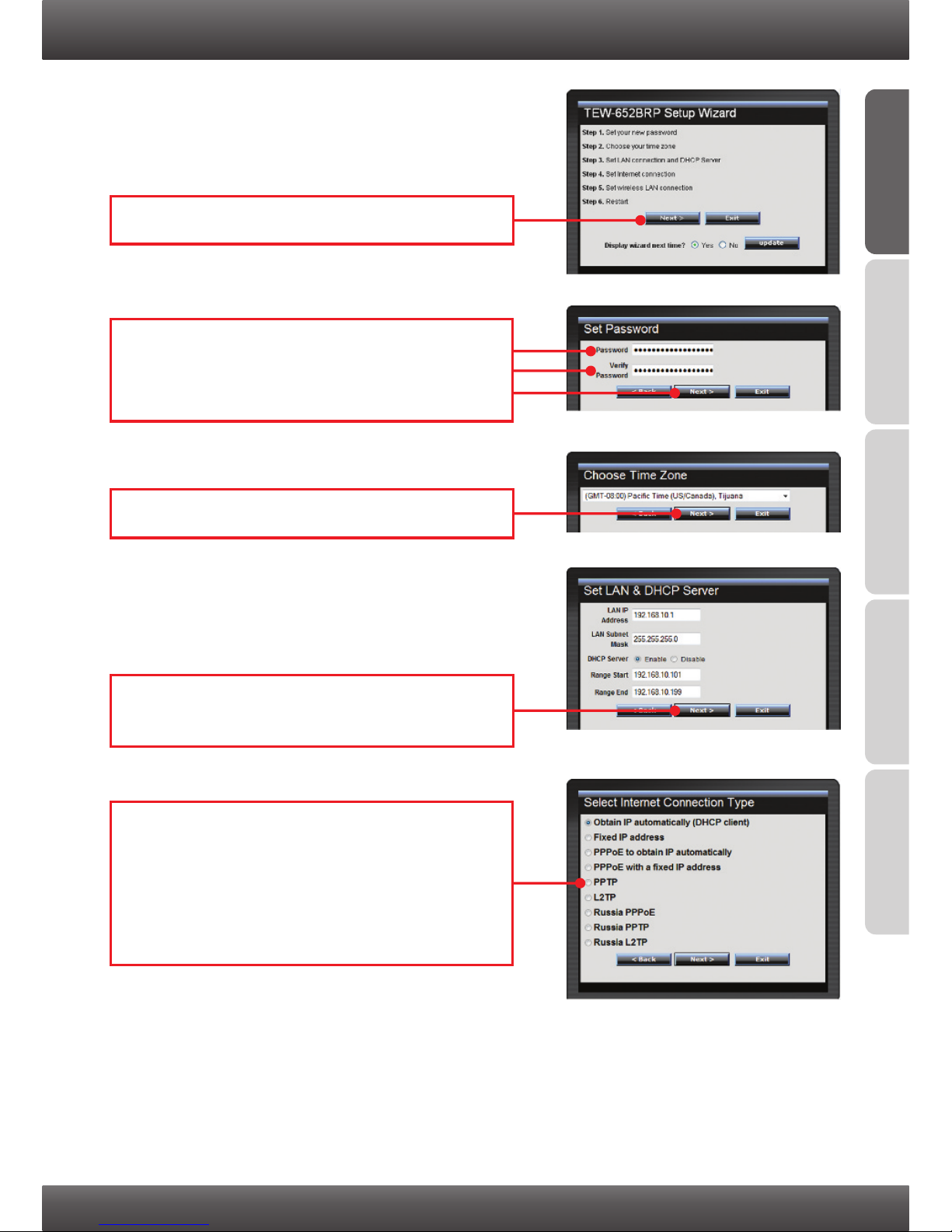

3. The Wizard will automatically appear. Click

Wizard if the Wizard does not automatically

appear.

1. Open your web browser, type

http://192.168.10.1 in the Address bar, and

then press Enter.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

5. Enter a Password, verify the Password and

then click Next. By default, the Password is

admin.

6. Select your Time Zone and then click Next.

7. Click Next. Note: In most cases, the default

LAN & DHCP server settings are fine.

8. Configure the settings based on information

provided by your ISP. Follow the wizard

instructions to complete the configuration.

Note: Each Internet Connection type may have

different options.

4. Click Next.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

Note:

1: To protect your network from any unauthorized access it is recommended to enable

wireless encryption. Please refer to the User’s Guide on the CD-ROM for information

on setting up encryption on the wireless router.

2: Once encryption is enabled on the router, each wireless computer and device must

be configured with the same encryption key.

13. Click Restart.

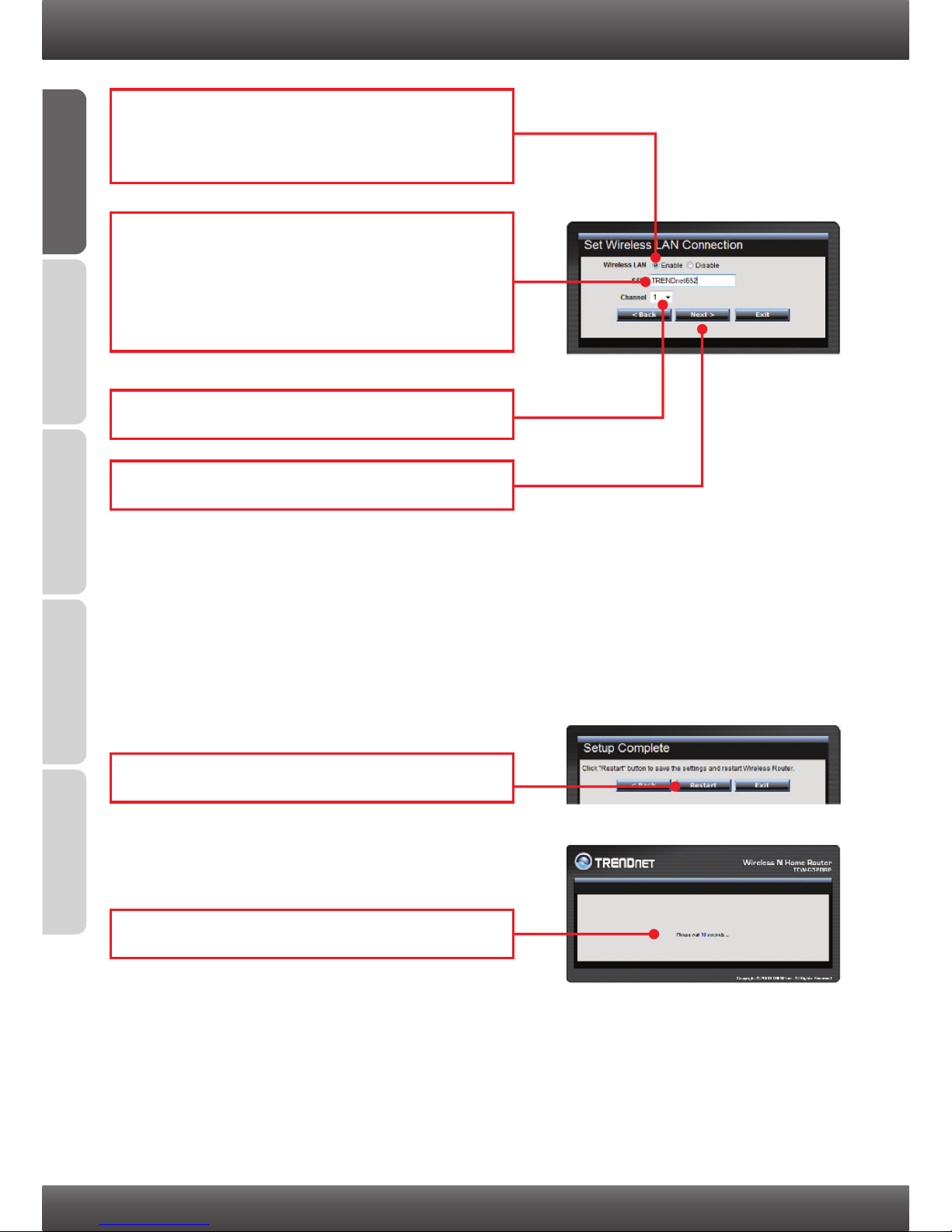

10. Enter a unique SSID (Network Name). Do not

use anything that would be identifying like

“Smith Family Network”. Choose something

that you would easily identify when searching

for available wireless networks.

9. Select Enable for Wireless LAN. Select Disable

if you do not want any wireless computers or

device to connect to this device.

11. In most cases, the default channel is fine.

12. Click Next.

14. Wait 10 seconds while the router reboots.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

15. Open up your browser and enter in a URL

(e.g. www.trendnet.com) to verify that you

have Internet connection.

Your configuration is now complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TEW-652BRP’s configuration and advanced settings,

please refer to User's Guide included on the CD-ROM, or TRENDnet's website at

http://www.trendnet.com.
